EUROPEAN STANDARD
EN 474-6
NORME EUROPÉENNE
EUROPÄISCHE NORM
November 2006
ICS 53.100 Supersedes EN 474-6:1996
English Version
Earth-moving machinery - Safety - Part 6: Requirements for
dumpers
Engins de terrassement - Sécurité - Partie 6: Prescriptions Erdbaumaschinen - Sicherheit - Teil 6: Anforderungen für
applicables aux tombereaux Muldenfahrzeuge
This European Standard was approved by CEN on 17 April 2006.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,
Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2006 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 474-6:2006: E
worldwide for CEN national Members.

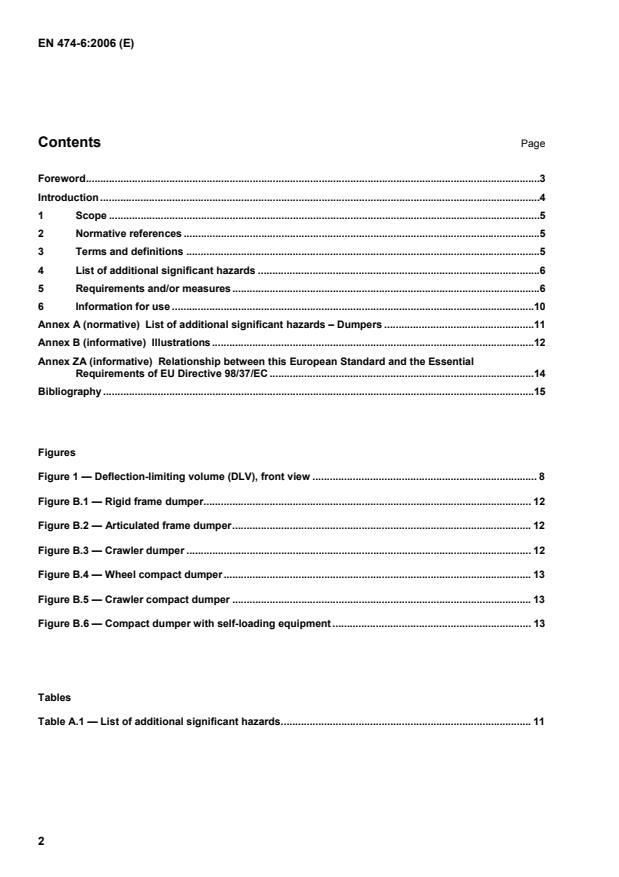

Contents Page
Foreword.3
Introduction .4
1 Scope .5
2 Normative references .5
3 Terms and definitions .5
4 List of additional significant hazards .6
5 Requirements and/or measures .6
6 Information for use .10
Annex A (normative) List of additional significant hazards – Dumpers .11
Annex B (informative) Illustrations.12
Annex ZA (informative) Relationship between this European Standard and the Essential
Requirements of EU Directive 98/37/EC .14
Bibliography .15

Figures
Figure 1 — Deflection-limiting volume (DLV), front view . 8
Figure B.1 — Rigid frame dumper. 12
Figure B.2 — Articulated frame dumper. 12
Figure B.3 — Crawler dumper . 12
Figure B.4 — Wheel compact dumper. 13
Figure B.5 — Crawler compact dumper . 13
Figure B.6 — Compact dumper with self-loading equipment . 13

Tables
Table A.1 — List of additional significant hazards. 11

Foreword
This document (EN 474-6:2006) has been prepared by Technical Committee CEN/TC 151 “Construction
equipment and building material machines — Safety”, the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by May 2007, and conflicting national standards shall be withdrawn at the
latest by November 2008.
This European Standard supersedes EN 474-6:1996.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive.
For relationship with EU Directive, see informative Annex ZA, which is an integral part of this document.
For bibliographic references, see EN 474-1:2006.
EN 474 "Earth-moving machinery — Safety" comprises the following parts:
 Part 1: General requirements
 Part 2: Requirements for tractor-dozers
 Part 3: Requirements for loaders
 Part 4: Requirements for backhoe-loaders
 Part 5: Requirements for hydraulic excavators
 Part 6: Requirements for dumpers
 Part 7: Requirements for scrapers
 Part 8: Requirements for graders
 Part 9: Requirements for pipelayers
 Part 10: Requirements for trenchers
 Part 11: Requirements for earth and landfill compactors
 Part 12: Requirements for cable excavators
This European Standard is intended for use in combination with Part 1 of the series.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Cyprus, Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden,
Switzerland and the United Kingdom.

Introduction
This part of EN 474 is a type C standard as stated in EN ISO 12100-1:2003.
The machinery concerned and the extent to which hazards, hazardous situations and events are covered are
indicated in the scope of this document.
When provisions of this type C standard are different from those which are stated in type A or B standards, the
provisions of this type C standard take precedence over the provisions of the other standards, for machines
that have been designed and built according to the provisions of this type C standard.
1 Scope
This part of EN 474 deals with all significant hazards, hazardous situations and events relevant to wheel and
crawler dumpers as defined in EN ISO 6165:2006, including compact dumpers, and compact dumpers with
standing operator when they are used as intended and under conditions of misuse which are reasonably
foreseeable by the manufacturer (see Clause 4). The requirements of this part are complementary to common
requirements formulated in EN 474-1:2006.
This part does not repeat the requirements from EN 474-1:2006, but adds or replaces the requirements for
application for dumpers.
This part specifies the appropriate technical measures to eliminate or reduce risks arising from the significant
hazards, hazardous situations and events during commissioning, operation and maintenance of dumpers.
Pedestrian controlled dumpers are excluded from the scope of this European Standard.
This European Standard is not applicable to dumpers, manufactured before the date of publication of this
European Standard by CEN.
2 Normative references
The following referenced documents are indispensable for the application of this European Standard. For
dated references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
EN 474-1:2006, Earth-moving machinery — Safety — Part 1: General requirements
EN 13510:2000, Earth-moving machinery — Roll-over protective structures — Laboratory tests and
performance requirements (ISO 3471:1994, including Amendment 1:1997 modified)
EN ISO 3449:2005, Earth-moving machinery - Falling-object protective structures - Laboratory tests and
performance requirements (ISO 3449:2005)
EN ISO 3164:1999, Earth-moving machinery — Laboratory evaluations of protective structures —
Specifications for deflecting-limiting volume (ISO 3164:1995)
EN ISO 7096:2000, Earth-moving machinery — Laboratory evaluation of operator seat vibration
(ISO 7096:2000)
EN ISO 12100-1:2003, Safety of machinery — Basic concepts, general principles for design — Part 1: Basic
terminology, methodology (ISO 12100-1:2003)
ISO 10268:1993, Earth-moving machinery — Retarders for dumpers and tractor-scrapers — Performance
tests
ISO 10570:2004, Earth-moving machinery — Articulated frame lock — Performance requirements
ISO 13333:1994, Earth-moving machinery — Dumper body support and operator’s cab tilt support devices
3 Terms and definitions
For the purposes of this European Standard, the terms and definitions given in EN 474-1:2006,
EN ISO 12100-1:2003 and the following apply.
NOTE 1 Terminology for dumpers is specified in ISO 7132:2003 and is illustrated in Annex B of this European
Standard.
NOTE 2 Definitions used in EN and ISO standards referred to in this European Standard are also valid for this
document.
3.1
dumper
self-propelled crawler or wheeled machine, with an open body, which transports and dumps or spreads
material (see EN ISO 6165:2006 and Figures B.1 and B.2)
NOTE Except for compact dumpers, loading is performed by other machines or equipment.
3.2
rigid frame dumper
dumper with a rigid frame and wheel or crawler steering (see EN ISO 6165:2006, Figure B.1and Figure B.3)
3.3
articulated frame dumper
dumper with an articulated frame for steering (see EN ISO 6165:2006 and Figure B.2)
3.4
swing dumper
dumper having a 360° swing upper structure (see EN ISO 6165:2006)
NOTE The upper structure comprises a rigid frame, open body and operator's station; the under-carriage consists
...
