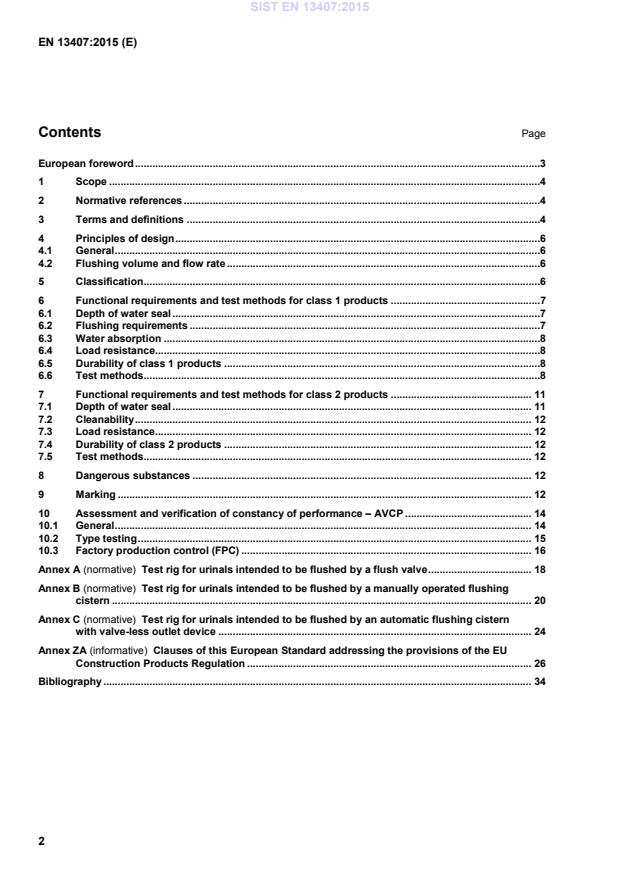

EN 13407:2015

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Zidni pisoar - Funkcionalne zahteve in preskusne metodeWandhängende Urinale - Funktionsanforderungen und PrüfverfahrenUrinoirs muraux - Prescriptions fonctionnelles et méthodes d'essaiWall-hung urinals - Functional requirements and test methods91.140.70Sanitarne napraveSanitary installationsICS:Ta slovenski standard je istoveten z:EN 13407:2015SIST EN 13407:2015en,fr,de01-oktober-2015SIST EN 13407:2015SLOVENSKI
STANDARDSIST EN 13407:20071DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13407
July 2015 ICS 91.140.70 Supersedes EN 13407:2006English Version
Wall-hung urinals - Functional requirements and test methods
Urinoirs muraux - Prescriptions fonctionnelles et méthodes d'essai
Wandhängende Urinale - Funktionsanforderungen und Prüfverfahren This European Standard was approved by CEN on 5 June 2015.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2015 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 13407:2015 ESIST EN 13407:2015

Test rig for urinals intended to be flushed by a flush valve . 18 Annex B (normative)
Test rig for urinals intended to be flushed by a manually operated flushing cistern . 20 Annex C (normative)
Test rig for urinals intended to be flushed by an automatic flushing cistern with valve-less outlet device . 24 Annex ZA (informative)
Clauses of this European Standard addressing the provisions of the EU Construction Products Regulation . 26 Bibliography . 34
Figure 1 — Wall-hung urinal 3.2 slab urinal sanitary appliance comprising a floor channel and a slab or sheet fixed to a wall, for receiving urine and water used for flushing and directing both into a drainage system Note 1 to entry: See Figure 2:
Figure 2 — Slab urinal SIST EN 13407:2015

Figure 3 — Stall urinal 3.4 urinal with siphonic action urinal in which urine is removed by siphonage (suction) induced by flushing water flowing through either an integral trap or a dedicated separate trap assembled in accordance with the manufacturer's instruction 3.5 wash-down urinal non-siphonic acting urinal with or without integral trap 3.6 waterless urinal sanitary appliance for receiving urine and directing it into a drainage system, which functions without the use of water 3.7 flushing cistern cistern for storage and discharge of a defined volume of flushing water for removal of urine from urinals 3.8 flush valve valve connected directly to a water supply, which delivers a pre-determined volume of flushing water for removal of urine from a urinal 3.9 cleanability characteristics which allow surfaces intended to come into contact with water and/or urine and cleansing materials to be visibly smooth, non-absorbent and free from acute internal corners, such that they can be kept visibly free from dirt and/or stains when subject to a regular maintenance regime, which may include, when appropriate, specific instructions for use and care specified by the manufacturer 3.10 product type construction product with a set of representative performance levels or classes in relation to its Essential Characteristics, produced using a given combination of raw materials or other elements in a specific production process SIST EN 13407:2015

4.2 Flushing volume and flow rate The flushing volumes and flow rates for particular flushing devices shall be as given in Table 2. Table 2 — Flushing devices, volumes and flow rate
Flushing device for testing Type of urinal Flush valve (C) in accordance with Annex A Manually operated flushing cistern (A) in accordance with Annex B Automatic flushing cistern (B) in accordance with Annex C
Flushing volume l Flow rate l/s Flushing volume l Flushing volume l I
0,50,10,2+−
II > 0,5 ≤ 5,0 0,22,01,0+− > 0,5 ≤ 5,0 — III
≤ 0,2
> 0,5 ≤ 4,5 IV
0,51,04,0+−
5 Classification Wall-hung urinals are classified as described below: — Class 1: Wall-hung urinals intended to be installed in drainage systems of type I, II or IV in accordance with EN 12056-2 and tested in accordance with Clause 6. SIST EN 13407:2015

Key 1 spreader or central inlet hole 2 surface to be tested Figure 4 — Surface to be tested for urinals without flushing rim flushed by a spreader or inlet holes SIST EN 13407:2015

Figure 5 — Template for testing urinals without flushing rim 6.6.1.3.1.2 Test material 20 g of fine dry wood sawdust. 6.6.1.3.1.3 Method For urinals without rim draw the perimeter of the surface to be tested (see Figure 4) using the template and a water resistant ink. Moisten the surface to be tested of all types of urinals. Immediately afterwards, sprinkle the sawdust as completely and evenly as possible over the moistened surface. Flush the urinal with the flushing volume and/or flow rate indicated by the manufacturer and measure any un-flushed area of the surface to be tested. Perform this procedure five times and check the compliance with 6.2.1. SIST EN 13407:2015

1) Suitable balls are available from Gebauer GmbH, Kugelfabrik, P.O. Box 425, 36004 Fulda, Germany, or CIMAP, Avenue Paul Adam 21 – 25, 75017 Paris, France. This information is given for the convenience of users of this European Standard and does not constitute an endorsement by CEN of these products. SIST EN 13407:2015

Figure 6 — Load test 7 Functional requirements and test methods for class 2 products 7.1 Depth of water seal When tested as described in 7.5.1, the depth of water seal of urinals of types I, II and IV shall be not less than 75 mm. Ensure that the trap will be re-filled up to not less than 75 mm. Traps in accordance with EN 274-1 are exempted from this test. SIST EN 13407:2015

9 Marking The intended use of wall-hung urinals is personal hygiene in accordance with the scope of this standard. NOTE The intended use is also mentioned in Annex ZA, Tables ZA.1.1 and ZA.1.2. The abbreviation “PH” for the intended use personal hygiene might be used for CE marking. A schematic drawing of the product may optionally follow the abbreviation for personal hygiene. EXAMPLE 1 Use of full text: personal hygiene. EXAMPLE 2 Use of abbreviation: PH. SIST EN 13407:2015

Wall-hung urinals belong always to one class and type at least. For each class and type a set of requirements to be tested (see 10.2.2) is defined. Due to this a wall-hung urinal can be described with a designation code which includes all fulfilled essential requirements. The relevant product characteristics and the Essential Characteristics for wall-hung urinals including their abbreviations are given in Tables 3 and 4. Table 3 — Characteristics and abbreviations for class 1 products Abbreviation Characteristics EN 13407 Number of European standard for wall-hung urinals for product description CL 1 Class 1 product in accordance with Clause 6 (Y) Type of urinal (I, II, III or IV) in accordance with Table 1 (X) Flushing volume and optionally flow rate specified by the manufacturer (Z) Flushing device:
A for manually operated flushing cistern B for automatic flushing cistern C for flush valve CA Cleanability BP Backflow prevention (foul air) LR Load resistance DA Durability Table 4 — Characteristics and abbreviations for class 2 products Abbreviation Characteristics EN 13407 Number of European standard for wall-hung urinals for product description CL 2 Class 2 product in accordance with Clause 7 (Y) Type of urinal (I, II, III or IV) in accordance with Table 1 (X) Flushing volume and optionally flow rate specified by the manufacturer (Z) Flushing device:
A for manually operated flushing cistern B for automatic flushing cistern C for flush valve CA Cleanability BP Backflow prevention (foul air) LR Load resistance DA Durability SIST EN 13407:2015

Type of wall-hung urinal Class of product Number of standard EN 13407 — CL1 (or 2) — (Y) — (X) / (Z) CA — BP — LR — DA Cleanability
Backflow prevention (of foul air) Load resistance
Durability
The declaration of the characteristics of the second line is considered being covered by the declaration of the relevant class. However, the characteristics should be listed when one of those characteristics is not declared. EXAMPLE 4 Class 1 wall-hung urinal of type I requiring a flush volume of 3 l supplied by a flush valve. EN 13407 — CL 1 — l — 3 C EXAMPLE 5 Class 2 wall-hung urinal of type III requiring a flush volume of 5 l supplied by an aut
...
