prEN 3660-062
(Main)Aerospace series - Cable outlet accessories for circular and rectangular electrical and optical connectors - Part 062 : Cable outlet, style K, 90°, for heat shrinkable boot, shielded, sealed, self locking - Product standard
Aerospace series - Cable outlet accessories for circular and rectangular electrical and optical connectors - Part 062 : Cable outlet, style K, 90°, for heat shrinkable boot, shielded, sealed, self locking - Product standard
This document specifies a range of cable outlets, style K, 90°, shielded, sealed, self-locking (anti-rotational), for heat shrinkable boot, and/ or metallic bands for use under the following conditions:
The mating connectors are listed in EN 3660-002.
Temperature range,
Class N:
−65 °C to 200 °C;
Class K:
−65 °C to 260 °C;
Class W:
−65 °C to 175 °C;
Class T:
−65 °C to 175 °C (Nickel PTFE plating);
Class Z:
−65 °C to 175 °C (Zinc nickel plating).
Class V:
−65 °C to 175 °C (Tin zinc plating non reflective).
Class D:
−65 °C to 175 °C (Tin zinc plating dark non reflective).
Associated electrical accessories are specified in EN 3660-033 Metallic band (for shield termination).
These cable outlets are designed for termination of overall shielding braid and/or individual cable shields. They accommodate/permit the termination of heat shrinkable boots.
Luft- und Raumfahrt - Endgehäuse für elektrische und optische Rund- und Rechtecksteckverbinder - Teil 062: Endgehäuse, Bauform K, 90°, für wärmeschrumpfende Bauteile, Schirmanschluss, abgedichtet, selbstsichernd - Produktnorm
Dieses Dokument legt eine Reihe von Endgehäusen, Bauform K, 90°, Schirmanschluss, abgedichtet, selbstsichernd (verdrehgesichert) für wärmeschrumpfende Bauteile und/oder Metallbänder für die Verwendung unter folgenden Bedingungen fest:
Die zugehörigen Steckverbinder sind in EN 3660 002 aufgeführt.
Temperaturbereich:
Klasse N: −65 °C bis 200 °C;
Klasse K: −65 °C bis 260 °C;
Klasse W: −65 °C bis 175 °C;
Klasse T: −65 °C bis 175 °C (Nickel/PTFE-Oberflächenschutz);
Klasse Z: −65 °C bis 175 °C (Zink-Nickel-Oberflächenschutz);
Klasse V: −65 °C bis 175 °C (Zinn-Zink-Oberflächenschutz, nicht reflektierend);
Klasse D: −65 °C bis 175 °C (Zinn-Zink-Oberflächenschutz, dunkel, nicht reflektierend).
Elektrische Zubehörteile sind in EN 3660 033, Metallband (für Schirmanschluss), festgelegt.
Diese Endgehäuse sind für den Anschluss von Gesamtschirmen und/oder Einzelleitungsschirmen ausgelegt. Sie nehmen wärmeschrumpfende Bauteile auf oder ermöglichen deren Anschluss.
Série aérospatiale - Accessoires arrière pour connecteurs circulaires et rectangulaires électriques et optiques - Partie 062 : Raccord, type K, coudé à 90°, blindé, étanche, pour manchon thermorétractable, à freinage interne - Norme de produit
Le présent document spécifie une gamme de raccords coudés à 90°, blindés, étanches, de type K, à freinage interne (anti-rotation) pour manchon thermorétractable et/ou bandes métalliques destinés à être utilisés dans les conditions suivantes :
Les connecteurs associés sont listés dans l’EN 3660 002.
Plage de températures :
classe N : −65 °C à 200 °C ;
classe K : −65 °C à 260 °C ;
classe W : −65 °C à 175 °C ;
classe T : −65 °C à 175 °C (nickelé PTFE) ;
classe Z : −65 °C à 175 °C (zinc nickelé) ;
classe V : −65 °C à 175 °C (étain zingué, non réfléchissant) ;
classe D : −65 °C à 175 °C (étain zingué, foncé, non réfléchissant).
Accessoires électriques associés : bande métallique EN 3660 033 (pour terminaison blindée).
Ces raccords sont conçus pour la terminaison de tresses de blindage complète et/ou du blindage des câbles individuels. Ils s’adaptent à/permettent la terminaison de manchons thermorétractables.
Aeronavtika - Dodatki za okrogle in pravokotne električne in optične konektorje - 062. del: Kabelska spojka, tip K, 90°, za toplotno skrčljive dele, oklopljena, tesnjena, samozapiralna - Standard za proizvod
General Information
Relations
Overview
The prEN 3660-062 standard, titled Aerospace series - Cable outlet accessories for circular and rectangular electrical and optical connectors - Part 062: Cable outlet, style K, 90°, for heat shrinkable boot, shielded, sealed, self locking - Product standard, is an essential specification developed by CEN. This standard defines the design and performance requirements for a specific range of cable outlets used in aerospace electrical and optical connector systems.
These cable outlets are characterized by their style K, 90-degree orientation, shielding capabilities, and self-locking (anti-rotational) mechanism. They are designed for use with heat shrinkable boots and metallic bands, ensuring secure cable termination under demanding environmental conditions common in aerospace applications.
The standard supports various temperature classes and plating options to meet diverse operational needs, enhancing the reliability and safety of aerospace electrical connections.
Key Topics
Product Scope and Use
The cable outlets covered by prEN 3660-062 accommodate overall shielding braid and individual cable shields, providing robust cable termination for aerospace connectors compliant with EN 3660-002. They facilitate the secure termination of heat shrinkable boots and metallic shield termination bands, enhancing EMI protection.Temperature Classes and Material Plating
The standard specifies multiple classes based on temperature range and surface treatments:- Class N: −65 °C to 200 °C, aluminium with nickel plating
- Class K: −65 °C to 260 °C, stainless steel, passivated
- Class W: −65 °C to 175 °C, cadmium-plated aluminium alloy (olive drab)
- Class T: −65 °C to 175 °C, aluminium with nickel PTFE plating
- Class Z: −65 °C to 175 °C, zinc-nickel plated aluminium alloy, non-reflective dark
- Class V: −65 °C to 175 °C, tin-zinc plated aluminium alloy, non-reflective grey
- Class D: −65 °C to 175 °C, tin-zinc plated aluminium alloy, non-reflective dark
Mechanical & Dimensional Specifications
Dimensions for shell sizes 09 to 25 are standardized, covering shell external diameters, threading, cable entry dimensions, and standard front interface layouts. The outlets are self-locking with a unique torque profile to resist rotational loosening during operation.Testing and Quality Assurance
The standard requires compliance with rigorous aerospace test methods as described in EN 2591 series, including visual examination, mechanical endurance, thermal cycling, shielding effectiveness, and fluid resistance. This guarantees performance consistency under harsh environmental conditions typical in aerospace.Environmental and Safety Compliance
prEN 3660-062 mandates zero hexavalent chromium compounds in surface treatments, addressing health and environmental concerns. The coating materials offer excellent corrosion resistance, meeting a 500-hour salt spray test and continuous operational temperature ranges.
Applications
Aerospace Electrical Systems
Designed primarily for aerospace circular and rectangular electrical and optical connectors, these cable outlets ensure reliable cable shielding termination and environmental sealing in aircraft, spacecraft, and related ground support equipment.High-Temperature and Harsh Environment Use
Suitable for applications requiring temperature resistance from −65 °C to 260 °C, the cable outlets support heat shrinkable boots and metallic bands, making them ideal for high vibration, temperature-extreme, and electromagnetic interference (EMI) sensitive environments.Shielding and EMI Protection
These accessories provide critical shielding continuity, reducing electromagnetic emissions and susceptibility in complex aerospace wiring harnesses, contributing to safer and more efficient aerospace vehicle operation.Connector Systems Integration
Compatible with connectors listed in EN 3660-002, they integrate seamlessly into aerospace electrical and optical connection systems, facilitating standardization and simplifying maintenance and assembly processes.
Related Standards
- EN 3660-001: Technical specifications of cable outlet accessories for aerospace connectors, supporting foundational terminology and general requirements.
- EN 3660-002: Index of product standards specifying compatible mating connectors, essential for system interoperability.
- EN 3660-033: Specifications for metallic bands used in shield termination complementing cable outlet products.
- EN 2591 series: Aerospace-specific test methods covering mechanical, environmental, and electrical testing vital for product qualification according to this standard.
- EN 60529: Defines degrees of protection by enclosures (IP Code), relevant for sealing requirements of cable outlet accessories.
Keywords: aerospace cable outlet, style K cable outlet, 90-degree cable accessories, heat shrinkable boot, shielded cable connectors, sealed cable outlets, self-locking connectors, aerospace electrical connectors, EMI shielding termination, aerospace connector standards, prEN 3660-062, CEN aerospace standards.
Standards Content (Sample)
SLOVENSKI STANDARD
01-januar-2026
Aeronavtika - Dodatki za okrogle in pravokotne električne in optične konektorje -
062. del: Kabelska spojka, tip K, 90°, za toplotno skrčljive dele, oklopljena,
tesnjena, samozapiralna - Standard za proizvod
Aerospace series - Cable outlet accessories for circular and rectangular electrical and
optical connectors - Part 062 : Cable outlet, style K, 90°, for heat shrinkable boot,
shielded, sealed, self locking - Product standard
Luft- und Raumfahrt - Endgehäuse für elektrische und optische Rund- und
Rechtecksteckverbinder - Teil 062: Endgehäuse, Bauform K, 90°, für
wärmeschrumpfende Bauteile, Schirmanschluss, abgedichtet, selbstsichernd -
Produktnorm
Ta slovenski standard je istoveten z: prEN 3660-062
ICS:
31.220.99 Druge elektromehanske Other electromechanical
komponente components
49.060 Letalska in vesoljska Aerospace electric
električna oprema in sistemi equipment and systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
DRAFT
EUROPEAN STANDARD
NORME EUROPÉENNE
EUROPÄISCHE NORM
November 2025
ICS 49.060 Will supersede EN 3660-062:2022
English Version
Aerospace series - Cable outlet accessories for circular and
rectangular electrical and optical connectors - Part 062 :
Cable outlet, style K, 90°, for heat shrinkable boot,
shielded, sealed, self locking - Product standard
Luft- und Raumfahrt - Endgehäuse für elektrische und
optische Rund- und Rechtecksteckverbinder - Teil 062:
Endgehäuse, Bauform K, 90°, für wärmeschrumpfende
Bauteile, Schirmanschluss, abgedichtet, selbstsichernd
- Produktnorm
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee ASD-
STAN.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 3660-062:2025 E
worldwide for CEN national Members.

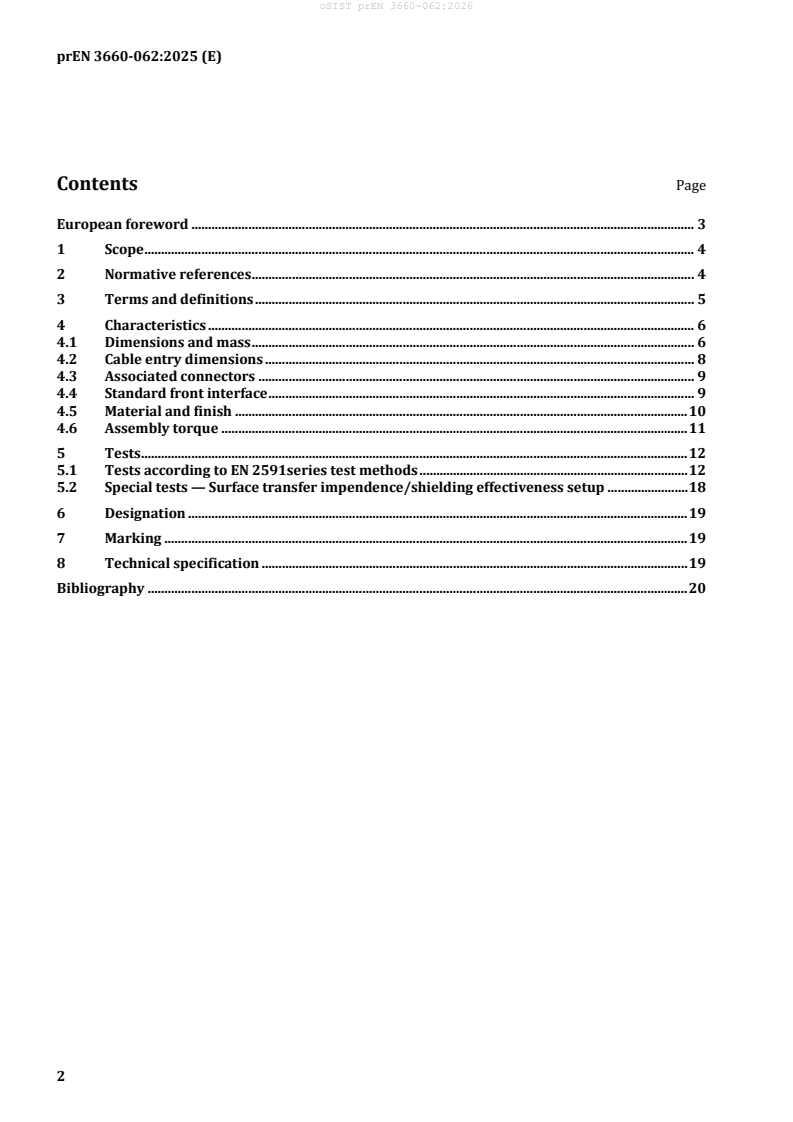

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 5
4 Characteristics . 6
4.1 Dimensions and mass . 6
4.2 Cable entry dimensions . 8
4.3 Associated connectors . 9
4.4 Standard front interface . 9
4.5 Material and finish . 10
4.6 Assembly torque . 11
5 Tests . 12
5.1 Tests according to EN 2591series test methods . 12
5.2 Special tests — Surface transfer impendence/shielding effectiveness setup . 18
6 Designation . 19
7 Marking . 19
8 Technical specification . 19
Bibliography . 20
European foreword
This document (prEN 3660-062:2025) has been prepared by ASD-STAN.
After enquiries and votes carried out in accordance with the rules of this Association, this document has
received the approval of the National Associations and the Official Services of the member countries of
ASD-STAN, prior to its presentation to CEN.
This document is currently submitted to the CEN Enquiry.
This document will supersede EN 3660-062:2022.
This document includes the following significant technical changes with respect to EN 3660-062:2022:
— addition of classes V and D (tin-zinc): update of Table 3 (mass max. of connector), Clause 4.3
description of material and finish, assembly torque in Table 7, tests in Table 8;
— addition of Table 6 Hexavalent chromium compound list.
1 Scope
This document specifies a range of cable outlets, style K, 90°, shielded, sealed, self-locking (anti-
rotational), for heat shrinkable boot, and/ or metallic bands for use under the following conditions:
The mating connectors are listed in EN 3660-002.
Temperature range,
Class N: −65 °C to 200 °C;
Class K: −65 °C to 260 °C;
Class W: −65 °C to 175 °C;
Class T: −65 °C to 175 °C (Nickel PTFE plating);
Class Z: −65 °C to 175 °C (Zinc nickel plating).
Class V: −65 °C to 175 °C (Tin zinc plating non reflective).
Class D: −65 °C to 175 °C (Tin zinc plating dark non reflective).
Associated electrical accessories are specified in EN 3660-033 Metallic band (for shield termination).
These cable outlets are designed for termination of overall shielding braid and/or individual cable
shields. They accommodate/permit the termination of heat shrinkable boots.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 2591-101, Aerospace series — Elements of electrical and optical connection; test methods — Part 101:
Visual examination
EN 2591-102, Aerospace series — Elements of electrical and optical connection — Test methods —
Part 102: Examination of dimensions and mass
EN 2591-205, Aerospace series — Elements of electrical and optical connection — Test methods —
Part 205: Housing (shell) electrical continuity
EN 2591-212, Aerospace series — Elements of electrical and optical connection — Test methods —
Part 212: Surface transfer impedance
EN 2591-213, Aerospace series — Elements of electrical and optical connection — Test methods —
Part 213: Shielding effectiveness from 100 MHz to 1 GHz
EN 2591-214, Aerospace series — Elements of electrical and optical connection — Test methods —
Part 214: Lightning strike, current and voltage pulse
EN 2591-301, Aerospace series — Elements of electrical and optical connection — Test methods —
Part 301: Endurance at temperature
EN 2591-305, Aerospace series — Elements of electrical and optical connection — Test methods —
Part 305: Rapid change of temperature
EN 2591-306, Aerospace series — Elements of electrical and optical connection — Test methods —
Part 306: Mould growth
EN 2591-307, Aerospace series — Elements of electrical and optical connection — Test methods —
Part 307: Salt mist
EN 2591-308, Aerospace series — Elements of electrical and optical connection — Test methods —
Part 308: Sand and dust
EN 2591-315, Aerospace series — Elements of electrical and optical connection — Test methods —
Part 315: Fluid resistance
EN 2591-402, Aerospace series — Elements of electrical and optical connection — Test methods —
Part 402: Shock
EN 2591-403, Aerospace series — Elements of electrical and optical connection — Test methods —
Part 403: Sinusoidal and random vibration
EN 2591-406, Aerospace series — Elements of electrical and optical connection — Test methods —
Part 406: Mechanical endurance
EN 2591-408, Aerospace series — Elements of electrical and optical connection — Test methods —
Part 408: Mating and unmating forces
EN 2591-420, Aerospace series — Elements of electrical and optical connection — Test methods —
Part 420: Mechanical strength of rear accessories
EN 2591-423, Aerospace series — Elements of electrical and optical connection — Test methods —
Part 423: Connector rear accessories thread strength
EN 2591-513, Aerospace series — Elements of electrical and optical connection — Test methods —
Part 513: Magnetic permeability
EN 3660-001, Aerospace series — Cable outlet accessories for circular and rectangular electrical and
optical connectors — Part 001: Technical specification
EN 3660-002, Aerospace series — Cable outlet accessories for circular and rectangular electrical and
optical connectors — Part 002: Index of product standards
EN 60529, Degrees of protection provided by enclosures (IP Code)
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 3660-001 and the following
apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp
— IEC Electropedia: available at https://www.electropedia.org/
3.1
self-locking/anti rotational
self-locking or anti rotational mechanism provides a nut rotation with moderate torque in the mated
direction and provides a greater torque in the unmated direction
4 Characteristics
4.1 Dimensions and mass
Dimensions and mass according to Figures 1 to Figure 3 and Table 1, Table 2 to Table 5.
Cable entry dimensions according to 4.2.
Key
1 O-Ring
2 thread C
3 marking
4 four (4) tooling holes spaced 90°apart. ⌀ 2,70 +/−0,15 mm, depth, 1,27
5 straight knurl. Pitch manufacturer’s option
6 number of teeth N
7 RKV 08 DIN 82. Figure 2 (Please note there may be crossover dependent on diameter and pitch) or RGV 1.0
DIN 82 as alternative
8 minimum penetration of ⌀ D from the front of serrations
9 optional clearance feature, see Table 2.
10 break edge
NOTE 1 Cable outlets can be manufactured as cast, fabricated or machined (manufactures option).
NOTE 2 No sharp edges/burrs permissible on internal or external surfaces/joints. Surface finish of
1,6µm max. on all internal surfaces.
NOTE 3 Reference clearance feature (9) when nut is in the uncoupled position the nut can not contact the shell
body.
NOTE 4 Valley of start of tooth to be at vertical centre line of accessory at position shown:
— within ± 3° for shell sizes 09–13;
— within ± 2° for shell sizes 15–19;
— within ± 1° for shell sizes 21 and larger.
Figure 1 — Cable outlet
Table 1 — Fixed dimensions of shell
Dimensions in millimetres
⌀ A ⌀ B C ⌀ D E G ⌀ H J I N
Numbe
Shell size
max. max. Thread min. max. max. max. max. min. r of
teeth
09 21,79 15,24 M12 × 1,0–6H 6,7 16,76 14,85 10,2 31,05 2,9 12
11 24,99 18,21 M15 × 1,0–6H 9,9 16,76 16,60 13,7 34,21 2,9 16
13 29,39 21,18 M18 × 1,0–6H 12,8 16,76 18,15 16,8 37,95 2,9 20
15 32,49 25,14 M22 × 1,0–6H 16,0 16
...
Frequently Asked Questions
prEN 3660-062 is a draft published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Cable outlet accessories for circular and rectangular electrical and optical connectors - Part 062 : Cable outlet, style K, 90°, for heat shrinkable boot, shielded, sealed, self locking - Product standard". This standard covers: This document specifies a range of cable outlets, style K, 90°, shielded, sealed, self-locking (anti-rotational), for heat shrinkable boot, and/ or metallic bands for use under the following conditions: The mating connectors are listed in EN 3660-002. Temperature range, Class N: −65 °C to 200 °C; Class K: −65 °C to 260 °C; Class W: −65 °C to 175 °C; Class T: −65 °C to 175 °C (Nickel PTFE plating); Class Z: −65 °C to 175 °C (Zinc nickel plating). Class V: −65 °C to 175 °C (Tin zinc plating non reflective). Class D: −65 °C to 175 °C (Tin zinc plating dark non reflective). Associated electrical accessories are specified in EN 3660-033 Metallic band (for shield termination). These cable outlets are designed for termination of overall shielding braid and/or individual cable shields. They accommodate/permit the termination of heat shrinkable boots.
This document specifies a range of cable outlets, style K, 90°, shielded, sealed, self-locking (anti-rotational), for heat shrinkable boot, and/ or metallic bands for use under the following conditions: The mating connectors are listed in EN 3660-002. Temperature range, Class N: −65 °C to 200 °C; Class K: −65 °C to 260 °C; Class W: −65 °C to 175 °C; Class T: −65 °C to 175 °C (Nickel PTFE plating); Class Z: −65 °C to 175 °C (Zinc nickel plating). Class V: −65 °C to 175 °C (Tin zinc plating non reflective). Class D: −65 °C to 175 °C (Tin zinc plating dark non reflective). Associated electrical accessories are specified in EN 3660-033 Metallic band (for shield termination). These cable outlets are designed for termination of overall shielding braid and/or individual cable shields. They accommodate/permit the termination of heat shrinkable boots.
prEN 3660-062 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
prEN 3660-062 has the following relationships with other standards: It is inter standard links to EN 3660-062:2022. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase prEN 3660-062 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
