EN ISO 15245-1:2021
(Main)Gas cylinders - Parallel threads for connection of valves to gas cylinders - Part 1: Specification (ISO 15245-1:2021)
Gas cylinders - Parallel threads for connection of valves to gas cylinders - Part 1: Specification (ISO 15245-1:2021)
This document specifies definitions, dimensions and tolerances of parallel screw threads of M30 x 2, M25 x 2 and M18 x 1,5, for the connection of valves to medical and industrial gas cylinders.
This document does not contain the connection requirements for:
— mechanical strength;
— gas tightness;
— capability of repeated assembly and dismounting operations (this aspect is covered in ISO 13341).
Ortsbewegliche Gasflaschen - Zylindrische Gewinde für den Anschluss von Ventilen an Gasflaschen - Teil 1: Spezifikation (ISO 15245-1:2021)
Dieses Dokument legt Begriffe, Maße und Toleranzen für zylindrische Gewinde M30 × 2, M25 × 2 und M18 × 1,5 für den Anschluss von Ventilen an Gasflaschen für den medizinischen und industriellen Gebrauch fest.
Dieses Dokument enthält keine Anforderungen an die Verbindung hinsichtlich
- der mechanischen Festigkeit,
- der Gasdichtheit, und
- der Fähigkeit, eine Reihe von Montagen und Demontagen unbeschadet zu überstehen (dieser Aspekt wird in ISO 13341 behandelt).
Bouteilles à gaz - Filetages parallèles pour le raccordement des robinets sur les bouteilles à gaz - Partie 1: Spécification (ISO 15245-1:2021)
Le présent document spécifie les définitions, les dimensions et les tolérances des filetages parallèles M30 x 2, M25 x 2 et M18 x 1,5, destinés au raccordement des robinets sur des bouteilles à gaz médicales ou industrielles.
Le présent document ne spécifie pas les exigences de raccordement pour les éléments suivants:
— la résistance mécanique;
— l’étanchéité au gaz;
— la capacité à répéter les opérations de montage et de démontage (cet aspect est couvert par l’ISO 13341).
Plinske jeklenke - Cilindrični navoji za priključitev ventilov na plinske jeklenke - 1. del: Specifikacija (ISO 15245-1:2021)
General Information
- Status
- Published
- Publication Date
- 08-Jun-2021
- Withdrawal Date
- 30-Dec-2021
- Technical Committee
- CEN/TC 23 - Transportable gas cylinders
- Drafting Committee
- CEN/TC 23/WG 20 - Cylinder design - Fittings
- Current Stage
- 6060 - Definitive text made available (DAV) - Publishing
- Start Date
- 09-Jun-2021
- Completion Date
- 09-Jun-2021
Relations
- Effective Date
- 16-Jun-2021
- Effective Date
- 16-Jun-2021
Overview
EN ISO 15245-1:2021 (ISO 15245-1:2021) specifies the definitions, dimensions and tolerances for parallel screw threads used to connect valves to medical and industrial gas cylinders. It covers the three standardized thread sizes used for valve-to-cylinder connections: M18 × 1.5, M25 × 2, and M30 × 2. The standard defines the thread form, pitch, sealing features (O-ring recess), thread reliefs and other geometric details needed to ensure compatible valve and cylinder components.
This document does not address:
- Mechanical strength of the connection
- Gas tightness performance
- Capability for repeated assembly/disassembly (this is covered by ISO 13341)
Key topics and technical requirements
- Thread form and rotation: Threads are right‑hand and use the ISO standard 60° profile (ISO 68‑1).
- Pitches: M18 = 1.5 mm; M25 = 2.0 mm; M30 = 2.0 mm (defined with reference to ISO 724).
- Dimensional specifications: Detailed dimensions and tolerances are provided for valve stem threads and cylinder neck threads, including flange diameters, stem lengths, minimum full thread lengths, sealing recess geometry and thread relief lengths.
- O‑ring sealing: Sealing recess diameter and depth, O‑ring internal diameter and cross‑section (thickness) are specified to ensure consistent sealing interfaces between valve flanges and cylinder necks.
- Thread end finish: Chamfering or radiused root options are given (e.g., chamfer 45°/radius values for certain sizes) to avoid sharp first threads.
- Optional vent grooves: Provision for up to two vent grooves on the valve stem is allowed; maximum groove depth is limited (figure note states max 1 mm below root diameter) and edges must be smooth to avoid thread damage.
- Normative references: Includes ISO references such as ISO 724 (pitches), ISO 68‑1 (thread form), ISO 965 (tolerances), ISO 5408 and ISO 10286 for terminology.
Applications and users
This standard is essential to ensure interchangeability, safety and compatibility in the gas-cylinder supply chain. Typical users:
- Cylinder manufacturers and designers
- Valve manufacturers and suppliers
- Medical gas equipment manufacturers and procurement teams
- Industrial gas suppliers, distributors and service technicians
- Testing laboratories and conformity assessors
- Standards and quality engineers responsible for device/component interoperability
Related standards
- ISO 13341 - capability for repeated assembly and dismounting (related testing/requirements)
- ISO 724, ISO 68‑1, ISO 965 series - thread dimensions and tolerances
- ISO 10286, ISO 5408 - terminology and thread vocabulary
Keywords: EN ISO 15245-1:2021, ISO 15245-1, gas cylinders threads, parallel threads, valve-to-cylinder connection, M18×1.5, M25×2, M30×2, O-ring sealing, cylinder manufacturers, valve manufacturers.
Frequently Asked Questions
EN ISO 15245-1:2021 is a standard published by the European Committee for Standardization (CEN). Its full title is "Gas cylinders - Parallel threads for connection of valves to gas cylinders - Part 1: Specification (ISO 15245-1:2021)". This standard covers: This document specifies definitions, dimensions and tolerances of parallel screw threads of M30 x 2, M25 x 2 and M18 x 1,5, for the connection of valves to medical and industrial gas cylinders. This document does not contain the connection requirements for: — mechanical strength; — gas tightness; — capability of repeated assembly and dismounting operations (this aspect is covered in ISO 13341).
This document specifies definitions, dimensions and tolerances of parallel screw threads of M30 x 2, M25 x 2 and M18 x 1,5, for the connection of valves to medical and industrial gas cylinders. This document does not contain the connection requirements for: — mechanical strength; — gas tightness; — capability of repeated assembly and dismounting operations (this aspect is covered in ISO 13341).
EN ISO 15245-1:2021 is classified under the following ICS (International Classification for Standards) categories: 23.020.35 - Gas cylinders. The ICS classification helps identify the subject area and facilitates finding related standards.
EN ISO 15245-1:2021 has the following relationships with other standards: It is inter standard links to EN ISO 15245-1:2001/A1:2013, EN ISO 15245-1:2001. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase EN ISO 15245-1:2021 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.
Standards Content (Sample)

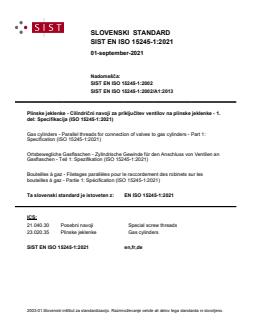

SLOVENSKI STANDARD
01-september-2021
Nadomešča:
SIST EN ISO 15245-1:2002
SIST EN ISO 15245-1:2002/A1:2013
Plinske jeklenke - Cilindrični navoji za priključitev ventilov na plinske jeklenke - 1.
del: Specifikacija (ISO 15245-1:2021)
Gas cylinders - Parallel threads for connection of valves to gas cylinders - Part 1:
Specification (ISO 15245-1:2021)
Ortsbewegliche Gasflaschen - Zylindrische Gewinde für den Anschluss von Ventilen an
Gasflaschen - Teil 1: Spezifikation (ISO 15245-1:2021)
Bouteilles à gaz - Filetages parallèles pour le raccordement des robinets sur les
bouteilles à gaz - Partie 1: Spécification (ISO 15245-1:2021)
Ta slovenski standard je istoveten z: EN ISO 15245-1:2021
ICS:
21.040.30 Posebni navoji Special screw threads
23.020.35 Plinske jeklenke Gas cylinders
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

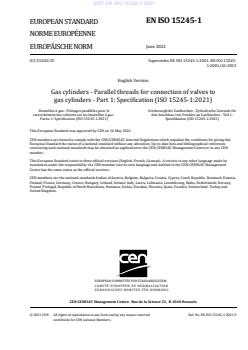

EN ISO 15245-1
