EN 14018:2005+A1:2009
(Main)Agricultural and forestry machinery - Seed drills - Safety
Agricultural and forestry machinery - Seed drills - Safety
This European Standard, applied together with EN 1553:1999, specifies the safety requirements and their verification for design and construction of mounted, semi-mounted, trailed or self-propelled seed drills, including the seeding function of combined seed and fertilizer drills, used in agriculture and in forestry. In addition, this European Standard specifies the type of information on safe working practices (including residual risks) to be provided by the manufacturer.
When requirements of this European Standard are different from those which are stated in EN 1553:1999 the requirements of this European Standard take precedence over the requirements of EN 1553:1999 for machines that have been designed and built according to the provisions of this European Standard.
It does not apply to:
- fertilizer distributors designed only for solid fertilizer application (dealt with in EN 14017);
- seed drills with integrated and inseparable powered soil working tools (see 3.2).
NOTE Powered soil working tools are dealt with in EN 708:1996 and EN 708:1996/A1:2000.
This European Standard deals with all the significant hazards, hazardous situations and events relevant to seed drills, when they are used as intended and under the conditions foreseen by the manufacturer (see Clause 4), excepting the hazards arising from:
- electrostatic phenomena;
- external influences on electrical equipment;
- failure of energy supply;
- failure, malfunction of control system;
- inadequate visibility from drivers/operators position;
- travelling functions (drive, braking etc.);
- break-up of parts rotating at high speed;
- equipment for loading seeds (and fertilizer).
It is not applicable to electromagnetic compatibility (EMC) nor to environmental hazards (except noise). These aspects are covered by EN 13740-1:2003 and EN 13740-2:2003 for combined seed and solid fertilizer drills.
This European Standard is not applicable to seed drills which are manufactured before the date of its
Land- und Forstmaschinen - Sämaschinen - Sicherheit
Diese Europäische Norm, gemeinsam mit EN 1553:1999 angewendet, enthält sicherheitstechnische Anforderungen und deren Überprüfung für Gestaltung und Konstruktion von angebauten, aufgesattelten, gezogenen oder selbstfahrenden Sämaschinen, einschließlich der Säfunktion von kombinierten Sämaschinen mit Düngerausbringung, zur Verwendung in Land- und Forstwirtschaft. Außerdem gibt diese Europäische Norm Informationen über sicheres Arbeiten (einschließlich Restgefährdungen), die vom Hersteller zur Verfügung zu stellen sind.
Wenn Anforderungen dieser Europäischen Norm von den Anforderungen in EN 1553:1999 abweichen, haben die Anforderungen dieser Europäische Norm Vorrang gegenüber den Anforderungen von EN 1553:1999 für Maschinen, die nach den Bestimmungen dieser Europäische Norm konzipiert und gebaut worden sind.
Sie gilt nicht für:
- Düngerstreuer ausschließlich zum Ausbringen von Mineraldünger (behandelt in EN 14017);
- Sämaschinen mit integrierten, untrennbar verbundenen kraftbetriebenen Bodenbearbeitungswerkzeugen (siehe 3.2).
ANMERKUNG Kraftbetriebene Bodenbearbeitungswerkzeuge sind in EN 708:1996 und EN 708:1996/A1:2000 behandelt.
Diese Europäische Norm behandelt alle signifikanten Gefährdungen, Gefährdungssituationen und Gefährdungsereignisse von Sämaschinen, wenn sie wie beabsichtigt und entsprechend den vom Hersteller vorgesehenen Bedingungen verwendet werden (siehe Abschnitt 4), mit Ausnahme der Gefährdungen durch:
- elektrostatische Vorgänge;
- äußere Einflüsse auf elektrische Betriebsmittel;
- Ausfall der Energieversorgung;
- Ausfall, Fehlfunktion des Steuer- bzw. Regelsystems;
- unangemessene Sicht von der Fahrer-/Bedienerposition;
- Verfahren der Maschine (Fahren, Bremsen, übermäßige Schwingungen, usw.);
- Bruch von mit hoher Geschwindigkeit rotierenden Teilen;
- Geräte zum Laden von Saatgut (und Dünger).
Sie gilt nicht für elektromagnetische Verträglichkeit (EMV), noch für Umweltgefährdungen (ausgenommen Geräusche). (....)
Matériel agricole et forestier - Semoirs - Sécurité
La présente Norme européenne, appliquée conjointement avec l’EN 1553:1999, détermine les prescriptions de
sécurité et leur mode de vérification au niveau de la conception et de la construction des semoirs portés, semi-portés,
traînés ou automoteurs, y compris concernant la fonction des semoirs combinés !avec des distributeurs
d’engrais" utilisés en agriculture et en sylviculture. En outre, la présente Norme européenne spécifie le type
d'informations que le fabricant doit fournir sur les pratiques d'utilisation sûre (incluant les risques résiduels).
Lorsque des dispositions de la présente Norme européenne sont différentes de celles mentionnées
dans l'EN 1553:1999, les dispositions de la présente Norme européenne prennent le pas sur les dispositions
de l'EN 1553:1999, pour les machines qui ont été conçues et fabriquées suivant les dispositions de la présente
Norme européenne.
Elle ne s'applique pas :
— aux distributeurs d'engrais destinés uniquement à l'application d'engrais solides (faisant l'objet de l’EN 14017) ;
— aux semoirs avec outils de travail du sol animés, intégrés et indissociables (voir 3.2).
NOTE Les outils de travail du sol animés sont traités dans l’EN 708:1996 et l’EN 708:1996/A1:2000.
La présente Norme européenne traite de tous les phénomènes dangereux, situations dangereuses et événements
dangereux relatifs aux semoirs, dans le cadre de l’utilisation prévue et dans les conditions prévues par le fabricant
(voir Article 4), à l’exception des phénomènes dangereux liés :
— à des phénomènes électrostatiques ;
— à des influences extérieures sur l’équipement électrique ;
— à une défaillance de l’alimentation en énergie ;
— à des défaillances ou dysfonctionnements du circuit de commande ;
— à une mauvaise visibilité du poste du conducteur/ de l’opérateur ;
— aux fonctions de déplacement (conduite, freinage, etc.) ;
— à la rupture de pièces en rotation à grande vitesse ;
— aux dispositifs de chargement des semences (et engrais).
Kmetijski in gozdarski stroji - Sejalnice - Varnost
Ta evropski standard, ki se uporablja skupaj z EN 1553:1999, opredeljuje varnostne zahteve in njihovo preverjanje pri načrtovanju in izdelavi nošenih, polnošenih, vlečenih ali samognanih sejalnic, vključno s kombinirano funkcijo sejanja in gnojenja, ki se uporabljajo v kmetijstvu in gozdarstvu. Poleg tega ta evropski standard opredeljuje vrste podatkov glede varnih delovnih praks (vključno s preostalimi tveganji), ki jih mora zagotoviti proizvajalec. Kadar se zahteve tega evropskega standarda razlikujejo od zahtev, ki so navedene v EN 1553:1999, imajo zahteve tega evropskega standarda prednost pred zahtevami EN 1553:1999 za stroje, ki so bili načrtovani in izdelani v skladu z določbami tega evropskega standarda. Ne velja za: - naprave za razdeljevanje gnojil, ki so zasnovane samo za nanos trdnih gnojil (obravnavane v EN 14017); - sejalnice z vgrajenimi in neločljivimi pogonskimi orodji za obdelovanje zemlje (glej točko 3.2). Ta evropski standard obravnava vse velike nevarnosti, nevarne situacije in primere, ki se nanašajo na sejalnicae, kadar se uporabljajo v skladu z namembnostjo in pod pogoji, ki jih je predvidel proizvajalec (glej Klavzulo 4), z izjemo nevarnosti, ki izhajajo iz: - elektrostatičnih pojavov, - zunanjih vplivov na električno opremo, - izpada električne energije, - okvare ali napake nadzornega sistema, - nezadostne vidljivosti s položaja voznikov/upravljavcev, - funkcij gibanja (vožnja, zaviranje, itd.), - razpada delov, ki rotirajo z visoko hitrostjo; - opreme za polnjenje s semeni (in gnojilom). Ne uporablja se za elektromagnetno združljivost, niti za okoljske nevarnosti (razen hrupa). Te vidike zajemata EN 13740-1:2003 in EN 13740-2:2003 za sejalnice s kombinirano funkcijo sejanja in razdeljevanja trdih gnojil. Ta evropski standard se ne nanaša na sejalnice, ki so izdelane pred datumom, ko je bil objavljen kot EN.
General Information
- Status
- Withdrawn
- Publication Date
- 13-Oct-2009
- Withdrawal Date
- 20-Jan-2026
- Technical Committee
- CEN/TC 144 - Tractors and machinery for agriculture and forestry
- Drafting Committee
- CEN/TC 144/WG 3 - Mobile machines and trailers
- Current Stage
- 9960 - Withdrawal effective - Withdrawal
- Start Date
- 31-Oct-2018
- Completion Date
- 21-Jan-2026
- Directive
- 98/37/EC - Machinery
Relations
- Effective Date
- 18-Jan-2023
- Replaced By
EN ISO 4254-9:2018 - Agricultural machinery - Safety - Part 9: Seed drills (ISO 4254-9:2018) - Effective Date
- 07-Nov-2018
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Referred By
EN ISO 9073-11:2004 - Textiles - Test methods for nonwovens - Part 11: Run-off (ISO 9073-11:2002) - Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Get Certified
Connect with accredited certification bodies for this standard
Rainforest Alliance
International non-profit sustainability certification organization.
SCS Global Services
Global leader in environmental and sustainability certification.
DNV Business Assurance China
Accredited by CNAS for wind turbine and component certification.
Sponsored listings
Frequently Asked Questions
EN 14018:2005+A1:2009 is a standard published by the European Committee for Standardization (CEN). Its full title is "Agricultural and forestry machinery - Seed drills - Safety". This standard covers: This European Standard, applied together with EN 1553:1999, specifies the safety requirements and their verification for design and construction of mounted, semi-mounted, trailed or self-propelled seed drills, including the seeding function of combined seed and fertilizer drills, used in agriculture and in forestry. In addition, this European Standard specifies the type of information on safe working practices (including residual risks) to be provided by the manufacturer. When requirements of this European Standard are different from those which are stated in EN 1553:1999 the requirements of this European Standard take precedence over the requirements of EN 1553:1999 for machines that have been designed and built according to the provisions of this European Standard. It does not apply to: - fertilizer distributors designed only for solid fertilizer application (dealt with in EN 14017); - seed drills with integrated and inseparable powered soil working tools (see 3.2). NOTE Powered soil working tools are dealt with in EN 708:1996 and EN 708:1996/A1:2000. This European Standard deals with all the significant hazards, hazardous situations and events relevant to seed drills, when they are used as intended and under the conditions foreseen by the manufacturer (see Clause 4), excepting the hazards arising from: - electrostatic phenomena; - external influences on electrical equipment; - failure of energy supply; - failure, malfunction of control system; - inadequate visibility from drivers/operators position; - travelling functions (drive, braking etc.); - break-up of parts rotating at high speed; - equipment for loading seeds (and fertilizer). It is not applicable to electromagnetic compatibility (EMC) nor to environmental hazards (except noise). These aspects are covered by EN 13740-1:2003 and EN 13740-2:2003 for combined seed and solid fertilizer drills. This European Standard is not applicable to seed drills which are manufactured before the date of its
This European Standard, applied together with EN 1553:1999, specifies the safety requirements and their verification for design and construction of mounted, semi-mounted, trailed or self-propelled seed drills, including the seeding function of combined seed and fertilizer drills, used in agriculture and in forestry. In addition, this European Standard specifies the type of information on safe working practices (including residual risks) to be provided by the manufacturer. When requirements of this European Standard are different from those which are stated in EN 1553:1999 the requirements of this European Standard take precedence over the requirements of EN 1553:1999 for machines that have been designed and built according to the provisions of this European Standard. It does not apply to: - fertilizer distributors designed only for solid fertilizer application (dealt with in EN 14017); - seed drills with integrated and inseparable powered soil working tools (see 3.2). NOTE Powered soil working tools are dealt with in EN 708:1996 and EN 708:1996/A1:2000. This European Standard deals with all the significant hazards, hazardous situations and events relevant to seed drills, when they are used as intended and under the conditions foreseen by the manufacturer (see Clause 4), excepting the hazards arising from: - electrostatic phenomena; - external influences on electrical equipment; - failure of energy supply; - failure, malfunction of control system; - inadequate visibility from drivers/operators position; - travelling functions (drive, braking etc.); - break-up of parts rotating at high speed; - equipment for loading seeds (and fertilizer). It is not applicable to electromagnetic compatibility (EMC) nor to environmental hazards (except noise). These aspects are covered by EN 13740-1:2003 and EN 13740-2:2003 for combined seed and solid fertilizer drills. This European Standard is not applicable to seed drills which are manufactured before the date of its
EN 14018:2005+A1:2009 is classified under the following ICS (International Classification for Standards) categories: 65.060.30 - Sowing and planting equipment. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 14018:2005+A1:2009 has the following relationships with other standards: It is inter standard links to EN 14018:2005, EN ISO 4254-9:2018, EN ISO 11688-1:1998, EN 1553:1999, EN ISO 12100-1:2003, EN 294:1992, EN ISO 12100-2:2003, EN ISO 9073-17:2008, EN ISO 9073-11:2004, EN ISO 9073-14:2007, EN ISO 9073-13:2007. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 14018:2005+A1:2009 is associated with the following European legislation: EU Directives/Regulations: 2006/42/EC, 98/37/EC; Standardization Mandates: M/079, M/396. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
EN 14018:2005+A1:2009 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Kmetijski in gozdarski stroji - Sejalnice - VarnostLand- und Forstmaschinen - Sämaschinen - SicherheitMatériel agricole et forestier - Semoirs - SécuritéAgricultural and forestry machinery - Seed drills - Safety65.060.30Sejalna in sadilna opremaSowing and planting equipmentICS:Ta slovenski standard je istoveten z:EN 14018:2005+A1:2009SIST EN 14018:2006+A1:2010en,fr,de01-februar-2010SIST EN 14018:2006+A1:2010SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 14018:2005+A1
October 2009 ICS 65.060.30 Supersedes EN 14018:2005English Version
Agricultural and forestry machinery - Seed drills - Safety
Matériel agricole et forestier - Semoirs - Sécurité
Land- und Forstmaschinen - Sämaschinen - Sicherheit This European Standard was approved by CEN on 26 August 2005 and includes Amendment 1 approved by CEN on 17 August 2009.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2009 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 14018:2005+A1:2009: ESIST EN 14018:2006+A1:2010

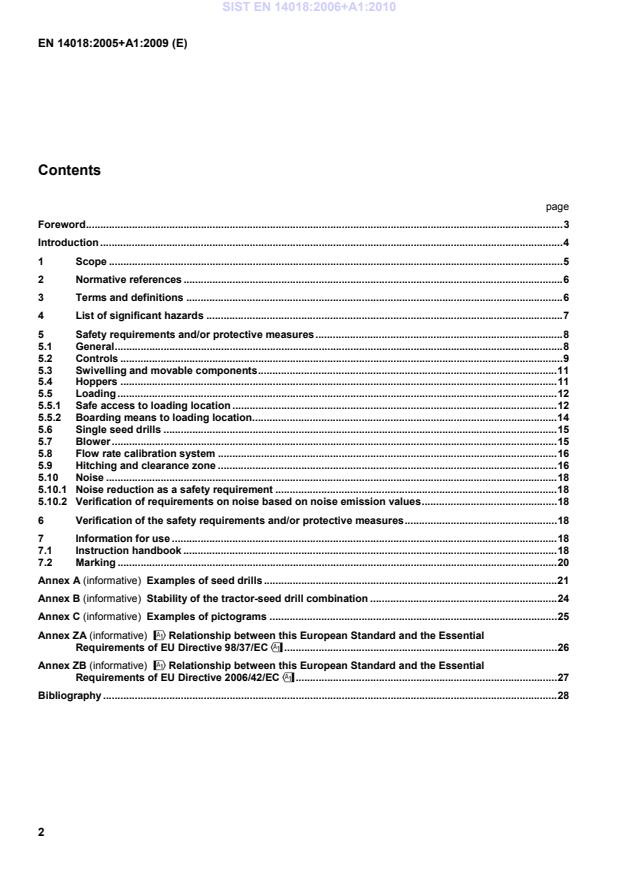

Contents page Foreword . 3Introduction . 41Scope . 52Normative references . 63Terms and definitions . 64List of significant hazards . 75Safety requirements and/or protective measures . 85.1General . 85.2Controls . 95.3Swivelling and movable components . 115.4Hoppers . 115.5Loading . 125.5.1Safe access to loading location . 125.5.2Boarding means to loading location. 145.6Single seed drills . 155.7Blower . 155.8Flow rate calibration system . 165.9Hitching and clearance zone . 165.10Noise . 185.10.1Noise reduction as a safety requirement . 185.10.2Verification of requirements on noise based on noise emission values . 186Verification of the safety requirements and/or protective measures . 187Information for use . 187.1Instruction handbook . 187.2Marking . 20Annex A (informative)
Examples of seed drills . 21Annex B (informative)
Stability of the tractor-seed drill combination . 24Annex C (informative)
Examples of pictograms . 25Annex ZA (informative)
!Relationship between this European Standard and the Essential Requirements of EU Directive 98/37/EC" . 26Annex ZB (informative)
!Relationship between this European Standard and the Essential Requirements of EU Directive 2006/42/EC" . 27Bibliography . 28
1 Scope This European Standard, applied together with EN 1553:1999, specifies the safety requirements and their verification for design and construction of mounted, semi-mounted, trailed or self-propelled seed drills, including the seeding function of combined seed and fertilizer drills, used in agriculture and in forestry. In addition, this European Standard specifies the type of information on safe working practices (including residual risks) to be provided by the manufacturer. When requirements of this European Standard are different from those which are stated in EN 1553:1999 the requirements of this European Standard take precedence over the requirements of EN 1553:1999 for machines that have been designed and built according to the provisions of this European Standard. It does not apply to: fertilizer distributors designed only for solid fertilizer application (dealt with in EN 14017); seed drills with integrated and inseparable powered soil working tools (see 3.2). NOTE Powered soil working tools are dealt with in EN 708:1996 and EN 708:1996/A1:2000. This European Standard deals with all the significant hazards, hazardous situations and events relevant to seed drills, when they are used as intended and under the conditions foreseen by the manufacturer (see Clause 4), excepting the hazards arising from: electrostatic phenomena; external influences on electrical equipment; failure of energy supply; failure, malfunction of control system; inadequate visibility from drivers/operators position; travelling functions (drive, braking etc.); break-up of parts rotating at high speed; equipment for loading seeds (and fertilizer). It is not applicable to electromagnetic compatibility (EMC) nor to environmental hazards (except noise). These aspects are covered by EN 13740-1:2003 and EN 13740-2:2003 for combined seed and solid fertilizer drills. This European Standard is not applicable to seed drills which are manufactured before the date of its publication as EN. SIST EN 14018:2006+A1:2010
5.1, 5.4, 5.6, 5.7, 5.9, 7.1 1.6 Impact hazard Closing of the cover of the hopper, insufficient clearance zone when hitching 4.1.1, 4.1.7.1, 4.1.7.3, 4.2.6.1, 4.3.2.3, 4.3.4.1 5.1, 5.4, 5.9 1.9 High pressure fluid injection or ejection hazard Rupture of pressurised hoses 4.1.8.2 5.1 2.2 Contact of persons with parts which have become live under faulty conditions (direct and indirect contact) Contact of the swivelling and movable components with overhead power line - 5.3.1, 7.1 4.1 Hearing loss (deafness), other physiological disorders (e.g. loss of balance, loss of awareness) Hearing damage due to the working of the machine 4.1.2, Annex D 5.10, 7.1 5.2 Whole body vibration, particularly when combined with non-ergonomic postures Platform transmitting the vibration of the blower and of the uneven ground 4.1.3 - 7.1 Hazards from contact with or inhalation of harmful fluids, gases, mists, fumes, and dusts Leakage of fuel, contact with operating fluid, contact with seeds 4.2.5.2, 4.2.6.2, 4.3.4.2, 5.1 7.1
Discharge of foreign matter through the blower 4.1.8.2 5.7 18 Loss of stability/overturning of machinery Lack of stability when parked 4.2.4.1, 4.3.2.1 - 19 Slip, trip and fall of persons from machinery or during access to (or at/from) the work position Falling off the access of loading because of slipping surface 4.1.5.1, 4.1.5.2, 4.1.5.3, 4.1.6, 4.2.5.2, 4.2.6.2, 4.3.4.2 5.5, 7.1, 7.2 20.1 Movement when starting the engine Movement of the swivelling and movable components when the machine starts 4.2.2.5 - 20.3 Movement without all parts in a safe position Movement of the swivelling and movable components when the machine starts - 5.3.3, 5.3.4, 5.3.5, 7.1 22.1 Inadequate location and mode of operation of manual controls Controls so located that the operator has to enter a dangerous zone to actuate them, contact with swivelling and movable components 4.2.1, 4.3.1 5.2, 5.3.2, 5.3.3, 5.3.4, 5.3.5 24.2 Hazards from transmission of power
Contact with the drive 4.1.7.1, 4.3.2.3 - 24.3 Hazards from hitching
Insufficient clearance zone when hitching 4.2.4.1.1, 4.3.2.2 5.9, 7.1 5 Safety requirements and/or protective measures 5.1 General Machinery shall comply with the safety requirements and/or protective measures of this clause. In addition, the machine shall be designed according to the principles of EN ISO 12100 for relevant but not significant hazards, which are not dealt with by this European Standard. SIST EN 14018:2006+A1:2010
Key 1 Outer limits of the seed drill
2 Area in which the manual controls for the adjustments shall not be located
3 Forward direction 4 Lower coupling points of the machine, if provided Figure 1 — Area where the manual controls for the adjustments shall not be located (case of machines which are intended to be mounted on the rear of soil working machines with powered tools) 5.2.2 In other cases, manual controls for the adjustments located on the machine shall meet the following requirements: a) the adjustments shall be possible with the machine stopped; b) the manual controls accessible to the operator standing on the ground shall not be located in the shaded area as shown in Figure 2. See also 7.1 a). SIST EN 14018:2006+A1:2010
Figure 2a
Figure 2b Key 1 Outer limits of the machine 2 Lower coupling points 3 Area where the manual controls for the adjustments shall not be located Figure 2 — Area where the manual controls for the adjustments shall not be located SIST EN 14018:2006+A1:2010
...
