EN 15984:2022

SLOVENSKI STANDARD
01-april-2022
Nadomešča:
SIST EN 15984:2017
Naftna industrija in proizvodi - Določevanje sestave rafinerijskega plina za
ogrevanje in izračunavanje vsebnosti ogljika in kalorične vrednosti - Plinska
kromatografska metoda
Petroleum industry and products - Determination of composition of refinery heating gas
and calculation of carbon content and calorific value - Gas chromatography method
Mineralölindustrie und -produkte - Bestimmung der Zusammensetzung von Heizgas für
Raffinerien und Berechnung des Kohlenstoffgehaltes und des Heizwertes -
Gaschromatographisches Verfahren
Industries et produits pétroliers - Détermination de la composition des gaz combustibles
de raffinerie, de leur pouvoir calorifique et de leur teneur en carbone - Méthode par
chromatographie en phase gazeuse
Ta slovenski standard je istoveten z: EN 15984:2022
ICS:
71.040.50 Fizikalnokemijske analitske Physicochemical methods of
metode analysis
75.160.30 Plinska goriva Gaseous fuels
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 15984
EUROPEAN STANDARD
NORME EUROPÉENNE
February 2022
EUROPÄISCHE NORM
ICS 75.160.30 Supersedes EN 15984:2017
English Version
Petroleum industry and products - Determination of
composition of refinery heating gas and calculation of
carbon content and calorific value - Gas chromatography
method
Industries et produits pétroliers - Détermination de la Mineralölindustrie und -produkte - Bestimmung der
composition des gaz combustibles de raffinerie, de leur Zusammensetzung von Heizgas für Raffinerien und
pouvoir calorifique et de leur teneur en carbone - Berechnung des Kohlenstoffgehaltes und des
Méthode par chromatographie en phase gazeuse Heizwertes - Gaschromatographisches Verfahren
This European Standard was approved by CEN on 24 December 2021.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 15984:2022 E
worldwide for CEN national Members.

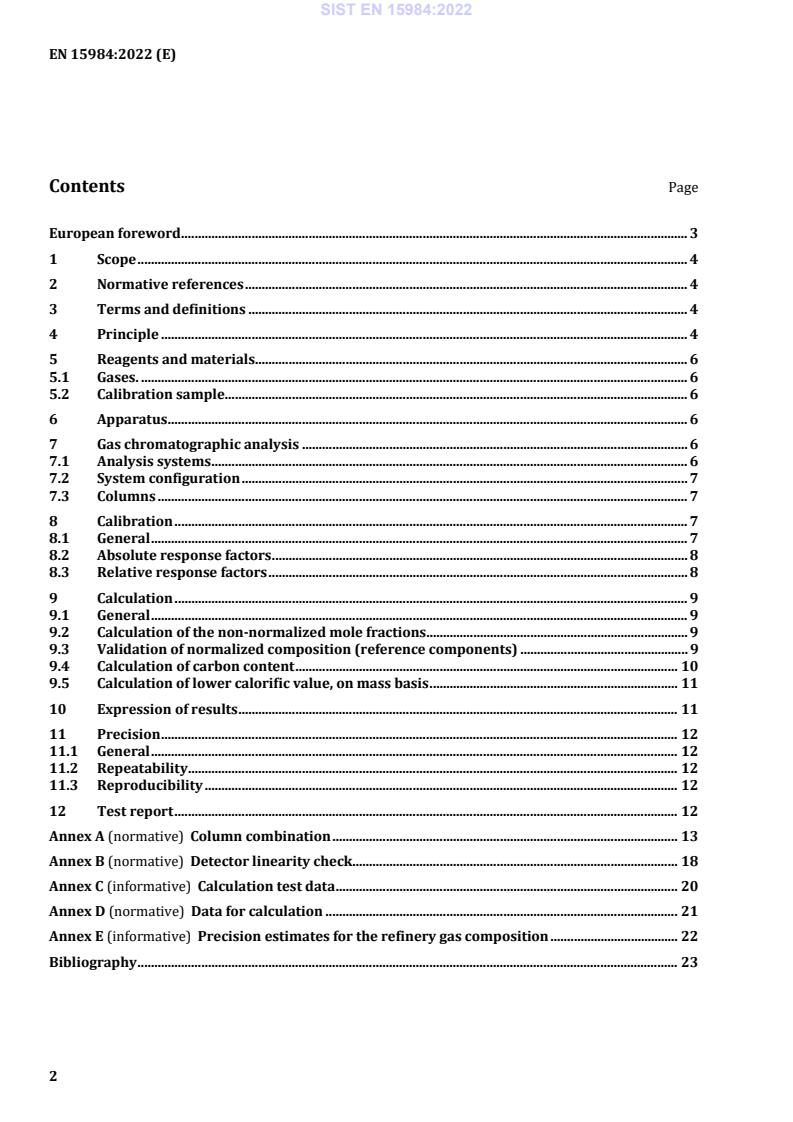

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 4
4 Principle . 4
5 Reagents and materials . 6
5.1 Gases. . 6
5.2 Calibration sample. . 6
6 Apparatus . 6
7 Gas chromatographic analysis . 6
7.1 Analysis systems . 6
7.2 System configuration . 7
7.3 Columns . 7
8 Calibration . 7
8.1 General . 7
8.2 Absolute response factors . 8
8.3 Relative response factors . 8
9 Calculation . 9
9.1 General . 9
9.2 Calculation of the non-normalized mole fractions. 9
9.3 Validation of normalized composition (reference components) . 9
9.4 Calculation of carbon content . 10
9.5 Calculation of lower calorific value, on mass basis . 11
10 Expression of results . 11
11 Precision . 12
11.1 General . 12
11.2 Repeatability . 12
11.3 Reproducibility . 12
12 Test report . 12
Annex A (normative) Column combination . 13
Annex B (normative) Detector linearity check . 18
Annex C (informative) Calculation test data . 20
Annex D (normative) Data for calculation . 21
Annex E (informative) Precision estimates for the refinery gas composition . 22
Bibliography . 23
European foreword
This document (EN 15984:2022) has been prepared by Technical Committee CEN/TC 19 “Gaseous and
liquid fuels, lubricants and related products of petroleum, synthetic and biological origin”, the secretariat
of which is held by NEN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by August 2022, and conflicting national standards shall be
withdrawn at the latest by August 2022.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 15984:2017.
This revision contains a new informative Annex with estimated precision data for selected components
in refinery gas.
This document is based on a DIN Standard [5] with the same scope.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United
Kingdom.
1 Scope
This document defines a gas chromatographic analysis for the determination of the composition of fuel
gases, as used in refinery heating gas. These results are used to calculate the carbon content and the lower
calorific value.
With this gas chromatographic analysis, an overall of 23 refinery heating gas components are determined
in concentrations as typically found in refineries (see Table 1 for further details).
Water is not analysed. The results represent dry gases.
NOTE 1 Depending on the equipment used, there is a possibility to determine higher hydrocarbons as well.
NOTE 2 For the purposes of this document, the terms “% (V/V)” is used to represent the volume fraction (φ).
IMPORTANT — This document does not purport to address all of the safety problems associated with its
use. It is the responsibility of the user of this document to establish appropriate safety and health
practices and determine the applicability of regulatory limitations.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
• IEC Electropedia: available at https://www.electropedia.org/
• ISO Online browsing platform: available at https://www.iso.org/obp
4 Principle
This document defines a procedure that is used to determine all components that are present in a typical
refinery heating gas, as indicated in Table 1.
NOTE The composition range in which each component can be analyzed does depend on the actual sample
composition as higher amounts of a certain component can affect the detection range of other components eluting
close by. The general ranges which apply to all the individual components are:
— hydrocarbons from 0,01 (mol/100 mol) up to 100 (mol/100 mol);
— non-condensable gases from 0,02 (mol/100 mol) up to 100 (mol/100 mol);
— for hydrogen sulfide a range between 0,1 (mol/100 mol) up to 10 (mol/100 mol) has been found applicable.
Three different analysis systems are necessary; they may be built in three separate gas chromatographs,
or be integrated into one.
Depending on the configuration, hydrocarbons with more than five carbon atoms are reported as a sum
parameter. The composition of the refinery heating gas is used to calculate the carbon content and the
calorific value. A typical procedure is described hereafter. A configuration is acceptable when the
determination results in the precision as described in Clause 11.
Table 1 — Refinery heating gas components
Number Description Chemical formula
1 Hydrogen H
2 Oxygen/Argon O /Ar
3 Nitrogen N
4 Carbon monoxide CO
5 Carbon dioxide CO
6 Hydrogen sulfide H S
7 Methane CH
8 Ethane C H
2 6
9 Ethene C H
2 4
10 Ethyne (Acetylene) C H
2 2
11 Propane C H
3 8
12 Propene C H
3 6
13 Propyne (Methylacetylene) C H
3 4
14 Propadiene C H
3 4
15 iso-Butane C H
4 10
16 n-Butane C H
4 10
17 trans-2-Butene C H
4 8
18 1-Butene C H
4 8
19 2-Methyl-Propene C H
4 8
20 cis-2-Butene C H
4 8
21 1,3-Butadiene C H
4 6
22 iso-Pentane C H
5 12
23 n-Pentane C H
5 12
24 Other components with 5 or more Carbon atoms, excluding iso- and n-
Pentane (C )
5+
5 Reagents and materials
5.1 Gases.
5.1.1 Hydrogen, with a minimum purity of 99,995 % (V/V).
5.1.2 Helium, with a minimum purity of 99,995 % (V/V).
5.1.3 Nitrogen, with a minimum purity of 99,995 % (V/V).
5.1.4 Air, free of oil and water.
5.1.5 Argon, as alternative for analysis system 2, with a minimum purity of 99,995 % (V/V).
5.2 Calibration sample.
A certified reference gas mixture in concentrations that allow the determination of the necess
...
