EN ISO 23997:2012
(Main)Resilient floor coverings - Determination of mass per unit area (ISO 23997:2007)
Resilient floor coverings - Determination of mass per unit area (ISO 23997:2007)
ISO 23997:2007 describes a method for determining the mass per unit area of a resilient floor covering.
Elastische Bodenbeläge - Bestimmung der flächenbezogenen Masse (ISO 23997:2007)
Diese Internationale Norm beschreibt ein Verfahren zur Bestimmung der flächenbezogenen Masse eines elastischen Bodenbelags.
Revêtements de sol résilients - Détermination de la masse surfacique (ISO 23997:2007)
L'ISO 23997:2007 spécifie une méthode de détermination de la masse surfacique des revêtements de sol résilients.
Netekstilne talne obloge - Ugotavljanje ploščinske mase (ISO 23997:2007)
Ta mednarodni standard opisuje metodo za ugotavljanje ploščinske mase netekstilnih talnih oblog.
General Information
- Status
- Published
- Publication Date
- 31-Jan-2012
- Withdrawal Date
- 30-Aug-2012
- Technical Committee
- CEN/TC 134 - Resilient and textile floor coverings
- Drafting Committee
- CEN/TC 134/WG 7 - Resilient floor coverings
- Current Stage
- 6060 - Definitive text made available (DAV) - Publishing
- Start Date
- 01-Feb-2012
- Due Date
- 25-Feb-2013
- Completion Date
- 01-Feb-2012
Relations
- Effective Date
- 08-Jun-2022
Overview
EN ISO 23997:2012 (adopted from ISO 23997:2007) defines a standardized laboratory method for determining the mass per unit area of resilient floor coverings. The method yields repeatable mass-per-area values that support product specification, quality control and regulatory compliance for non-textile and resilient flooring products.
Key Topics
- Scope: Method for determining mass per unit area (expressed in g/m2). Applies to resilient floor coverings as described in the standard.
- Principle: Cut a number of specimens of defined size, weigh each specimen and calculate mass per unit area as m/A (mass divided by area).
- Specimen selection: Take a representative sample and obtain five specimens at equal distances from the sample, with the nearest specimen edge at least 100 mm from the outer edge of the sample. Specimens may be square, round (minimum area 0.01 m2) or full tiles.
- Conditioning: Condition specimens at 23 ± 2 °C and 50 ± 5 % relative humidity for a minimum of 24 hours and maintain these conditions during testing.
- Apparatus:
- Balance capable of weighing to the nearest 10 mg.
- Calliper gauge capable of measuring specimen dimensions to the nearest 0.05 mm.
- Measurement and calculation: Measure dimensions to the nearest 0.1 mm, weigh to the nearest 10 mg, calculate mass per unit area for each specimen using m/A, and report the mean value for the five specimens.
- Result expression: For results ≤ 1 000 g/m2 express to the nearest 5 g/m2; for results > 1 000 g/m2 express to the nearest 10 g/m2.
- Precision: A round‑robin test is planned/conducted to determine method precision.
- Test report requirements: Report shall state conformity to ISO 23997, product identification (type, source, colour, manufacturer reference), sample history, mean mass per unit area, and any deviations from the standard.
Applications
- Product specification: Establish and verify declared mass per unit area for resilient flooring products.
- Quality control: Routine production monitoring to detect density or material composition changes that affect performance.
- Regulatory and procurement compliance: Provide objective test data for standards compliance, tendering requirements and material classification.
- Research and development: Comparative evaluation of formulations, backing systems and construction methods when mass per area is a relevant parameter.
Related Standards
- ISO 23997:2007 - original international publication adopted without modification as EN ISO 23997:2012.
- Superseded: EN 430:1994 (EN ISO 23997:2012 supersedes this earlier European standard).
For laboratories and manufacturers, EN ISO 23997:2012 provides a concise, reproducible procedure to generate reliable mass-per-unit-area data for resilient floor coverings used across testing, specification and compliance workflows.
Frequently Asked Questions
EN ISO 23997:2012 is a standard published by the European Committee for Standardization (CEN). Its full title is "Resilient floor coverings - Determination of mass per unit area (ISO 23997:2007)". This standard covers: ISO 23997:2007 describes a method for determining the mass per unit area of a resilient floor covering.
ISO 23997:2007 describes a method for determining the mass per unit area of a resilient floor covering.
EN ISO 23997:2012 is classified under the following ICS (International Classification for Standards) categories: 97.150 - Floor coverings. The ICS classification helps identify the subject area and facilitates finding related standards.
EN ISO 23997:2012 has the following relationships with other standards: It is inter standard links to EN 430:1994. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase EN ISO 23997:2012 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.
Standards Content (Sample)
SLOVENSKI STANDARD
01-maj-2012
1DGRPHãþD
SIST EN 430:1999
1HWHNVWLOQHWDOQHREORJH8JRWDYOMDQMHSORãþLQVNHPDVH ,62
Resilient floor coverings - Determination of mass per unit area (ISO 23997:2007)
Elastische Bodenbeläge - Bestimmung der flächenbezogenen Masse (ISO 23997:2007)
Revêtements de sol résilients - Détermination de la masse surfacique (ISO 23997:2007)
Ta slovenski standard je istoveten z: EN ISO 23997:2012
ICS:
97.150 Netekstilne talne obloge Non-textile floor coverings
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD
EN ISO 23997
NORME EUROPÉENNE
EUROPÄISCHE NORM
February 2012
ICS 97.150 Supersedes EN 430:1994
English Version
Resilient floor coverings - Determination of mass per unit area
(ISO 23997:2007)
Revêtements de sol résilients - Détermination de la masse Elastische Bodenbeläge - Bestimmung der
surfacique (ISO 23997:2007) flächenbezogenen Masse (ISO 23997:2007)
This European Standard was approved by CEN on 31 December 2011.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same
status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2012 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 23997:2012: E
worldwide for CEN national Members.

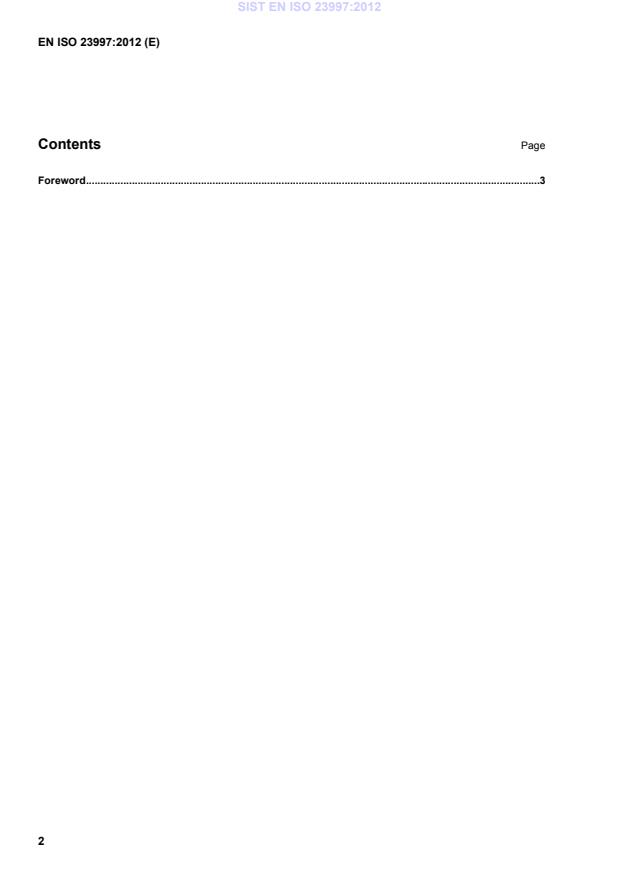

Contents Page
Foreword .3
Foreword
The text of ISO 23997:2007 has been prepared by Technical Committee ISO/TC 219 “Floor coverings” of the
International Organization for Standardization (ISO) and has been taken over as EN ISO 23997:2012 by
Technical Committee CEN/TC 134 “Resilient, textile and laminate floor coverings” the secretariat of which is
held by BSI.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by August 2012, and conflicting national standards shall be withdrawn at
the latest by August 2012.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 430:1994.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland, Turkey and the United Kingdom.
Endorsement notice
The text of ISO 23997:2007 has been approved by CEN as a EN ISO 23997:2012 without any modification.
INTERNATIONAL ISO
STANDARD 23997
First edition
2007-12-15
Resilient floor coverings — Determination
of mass per unit area
Revêtements de sol résilients — Détermination de la masse surfacique
Reference number
ISO 23997:2007(E)
©
ISO 2007
ISO 23997:2007(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
