EN 13130-2:2004

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Werkstoffe und Gegenstände in Kontakt mit Lebensmitteln - Substanzen in Kunststoffen, die Beschränkungen unterliegen - Teil 2: Bestimmung von Terephtalsäure in PrüflebensmittelnMatériaux et objets en contact avec les denrées alimentaires - Substances dans les matieres plastiques soumises a des limitations - Partie 2 : Détermination de l'acide téréphtalique dans les simulants d'alimentsMaterials and articles in contact with foodstuffs - Plastics substances subject to limitation - Part 2: Determination of terephthalic acid in food simulants67.250Materiali in predmeti v stiku z živiliMaterials and articles in contact with foodstuffsICS:Ta slovenski standard je istoveten z:EN 13130-2:2004SIST EN 13130-2:2004en,fr,de01-september-2004SIST EN 13130-2:2004SLOVENSKI
STANDARDSIST ENV 13130-2:20001DGRPHãþD

EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 13130-2May 2004ICS 67.250English versionMaterials and articles in contact with foodstuffs - Plasticssubstances subject to limitation - Part 2: Determination ofterephthalic acid in food simulantsMatériaux et objets en contact avec les denréesalimentaires - Substances dans les matières plastiquessoumises à des limitations - Partie 2 : Détermination del'acide téréphtalique dans les simulants d'alimentsWerkstoffe und Gegenstände in Kontakt mit Lebensmitteln- Substanzen in Kunststoffen, die Beschränkungenunterliegen - Teil 2: Bestimmung von Terephtalsäure inPrüflebensmittelnThis European Standard was approved by CEN on 24 March 2004.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2004 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 13130-2:2004: ESIST EN 13130-2:2004

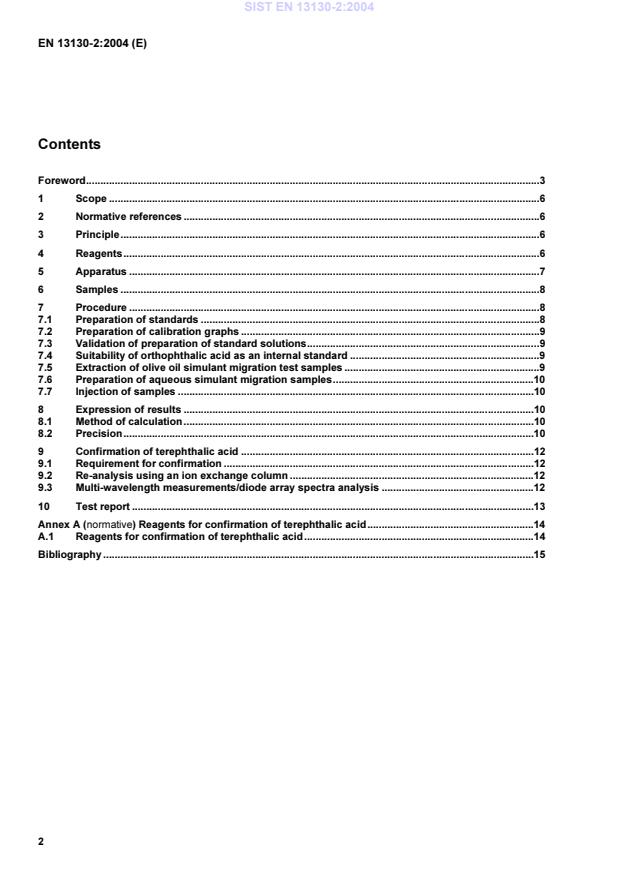

Foreword.3 1 Scope.6 2 Normative references.6 3 Principle.6 4 Reagents.6 5 Apparatus.7 6 Samples.8 7 Procedure.8 7.1 Preparation of standards.8 7.2 Preparation of calibration graphs.9 7.3 Validation of preparation of standard solutions.9 7.4 Suitability of orthophthalic acid as an internal standard.9 7.5 Extraction of olive oil simulant migration test samples.9 7.6 Preparation of aqueous simulant migration samples.10 7.7 Injection of samples.10 8 Expression of results.10 8.1 Method of calculation.10 8.2 Precision.10 9 Confirmation of terephthalic acid.12 9.1 Requirement for confirmation.12 9.2 Re-analysis using an ion exchange column.12 9.3 Multi-wavelength measurements/diode array spectra analysis.12 10 Test report.13 Annex A (normative) Reagents for confirmation of terephthalic acid.14 A.1 Reagents for confirmation of terephthalic acid.14 Bibliography.15
EN 13130 are as follows. Part 1: Guide to test methods for the specific migration of substances from plastics to foods and food simulants and the determination of substances in plastics and the selection of conditions of exposure to food simulants Part 3: Determination of acrylonitrile in food and food simulants Part 4: Determination of 1,3-butadiene in plastics
Part 5: Determination of vinylidene chloride in food simulants Part 6: Determination of vinylidene chloride in plastics Part 7: Determination of monoethylene glycol and diethylene glycol in food simulants Part 8: Determination of isocyanates in plastics Part 9: Determination of acetic acid, vinyl ester in food simulants Part 10: Determination of acrylamide in food simulants
Part 11: Determination of 11-aminoundecanoic acid in food simulants
Part 16: Determination of caprolactam and caprolactam salt in food simulants Part 17: Determination of carbonyl chloride in plastics
Part 18: Determination of 1,2-dihydroxybenzene, 1,3- dihydroxybenzene, 1,4- dihydroxybenzene, 4,4’-dihydroxybenzophenone and 4,4’dihydroxybiphenyl in food simulants Part 19:
Determination of dimethylaminoethanol in food simulants Part 20:
Determination of epichlorohydrin in plastics Part 21:
Determination of ethylenediamine and hexamethylenediamine in food simulants Part 22:
Determination of ethylene oxide and propylene oxide in plastics Part 23:
Determination of formaldehyde and hexamethylenetetramine in food simulants Part 24:
Determination of maleic acid and maleic anhydride in food simulants Part 25: Determination of 4-methyl-pentene in food simulants Part 26: Determination of 1-octene and tetrahydrofuran in food simulants Part 27
Determination of 2,4,6-triamino-1,3,5-triazine in food simulants Part 28:
Determination of 1,1,1-trimethylopropane in food simulants Parts 1 to 8 are European Standards.
Parts 9 to 28 are Technical Specifications, prepared within the Standards, Measurement and Testing project, MAT1-CT92-0006, “Development of Methods of Analysis for Monomers”.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom. SIST EN 13130-2:2004

Residues of terephthalic acid can be present in the plastics after processing to form materials and articles intended to come into contact with foodstuffs.
When these plastics are in contact with foodstuffs, the residual terephthalic acid monomer can migrate into the foodstuff. SIST EN 13130-2:2004

1 Scope This part of this European Standard specifies methods for the determination of the monomer terephthalic acid in food simulants; distilled water, 3 % (w/v) acetic acid aqueous solution, 15 % (v/v) ethanol aqueous solution and olive oil and other fatty food simulants, simulants D, e.g. a mixture of synthetic triglycerides or sunflower oil or corn oil.
The methods are capable of determining terephthalic acid in the food simulants at the level of the specific migration limit of 7,5 mg of terephthalic acid per kilogram of food simulants.
NOTE This method was developed for the determination of terephthalic acid in 15 % (v/v) aqueous ethanol, as required by the regulations in force at the time the development work was carried out.
However, this method, developed for 15 (v/v) aqueous ethanol, should be applicable to the determination in 10 (v/v) aqueous ethanol. 2 Normative references This European Standard incorporates by dated or undated reference, provisions from other publications.
These normative references are cited at the appropriate places in the text, and the publications are listed hereafter. For dated references, subsequent amendments to or revisions of any of these publications apply to this European Standard only when incorporated in it by amendment or revision.
For undated references the latest edition of the publication referred to applies (including amendments).
EN 13130-1:2004; Materials and articles in contact with foodstuffs - Plastics substances subject to limitation - Part 1: Guide to test methods for the specific migration of substances from plastics to foods and food simulants and the determination of substances in plastics and the selection of conditions of exposure to food simulants EN ISO 1042; Laboratory glassware – One-mark volumetric flasks (ISO 1042:1998). ISO 385 (all parts); Laboratory glassware – Burettes. ISO 648; Laboratory glassware – One-mark pipettes. ISO 835 (all parts); Laboratory glassware – Graduated pipettes. ISO 4788, Laboratory glassware – Graduated measuring cylinders. 3 Principle The aqueous simulant test samples are directly analysed by high performance liquid chromatography (HPLC) with ultraviolet (UV) detection.
The olive oil test samples are extracted with dilute sodium hydrogen carbonate and the resultant aqueous solution is acidified and analysed by HPLC. 4 Reagents WARNING:
All chemicals are hazardous to health to a greater or lesser extent.
It is beyond the scope of this standard to give instructions for the safe handling of all chemicals, that meet, in full, the legal obligations in all countries in which this standard can be followed.
Therefore, specific warnings are not given and users of this standard shall ensure that they meet all the necessary safety requirements in their own country. NOTE During the analysis, unless otherwise stated, only reagents of recognized analytical grade and only distilled water of equivalent purity should be used. SIST EN 13130-2:2004

4.2 Sodium acetate, trihydrate.
4.3 Ort
...
