Adhesives - Determination of tensile strength of butt joints (ISO 6922:1987 modified)

This European Standard specifies a method for determining the bond strength of a butt joint when subjected
to tensile force. The method can be applied to all types of adhesives. Although primarily intended for use
under ambient conditions, the basic method can also be applied to testing under a wide range of temperature
and other environmental conditions. The method requires rigid adherends that can be produced to the
required dimensional tolerances and that will withstand the forces applied to them during the test.

Klebstoffe - Bestimmung der Zugfestigkeit von Stumpfklebungen (ISO 6922:1987 modifiziert)

Diese Europäische Norm legt ein Verfahren zur Bestimmung der Festigkeit einer Stumpfklebung fest, wenn
diese mit einer Zugkraft beansprucht wird. Das Verfahren ist auf alle Arten von Klebstoffen anwendbar.
Obwohl es in erster Linie zur Anwendung unter normalen Umgebungsbedingungen vorgesehen ist, kann das
Grundverfahren auch für eine Prüfung in einem weiten Temperaturbereich und unter anderen Umgebungsbedingungen
angewendet werden. Das Prüfverfahren erfordert starre Fügeteile, die mit den geforderten
Maßtoleranzen herstellbar sind und der Zugbeanspruchung widerstehen, die während der Prüfung auf sie
einwirkt.

Adhésifs - Détermination de la résistance en traction des joints bout à bout (ISO 6922:1987 modifiée)

La présente Norme européenne spécifie une méthode de détermination de la résistance à la rupture d’un joint
extrémité à extrémité soumis à une force de traction. La méthode peut être appliquée à tout type d’adhésif.
Bien que primitivement destinée à être utilisée dans des conditions ambiantes, la méthode de base peut aussi
être appliquée pour effectuer des essais dans une large gamme de températures et d’autres conditions
d’environnement. La méthode nécessite des supports rigides qui peuvent être usinés aux tolérances
dimensionnelles requises et qui seront à même de supporter les forces appliquées pendant toute la durée de
l’essai.

Lepila - Določanje natezne trdnosti čelnih stikov (ISO 6922:1987, spremenjen)

General Information

Status
Published
Publication Date
21-Apr-2009
Withdrawal Date
30-Oct-2009
ICS
83.180 - Adhesives
Technical Committee
CEN/TC 193 - Adhesives
Drafting Committee
CEN/TC 193/WG 2 - Structural adhesives
Current Stage
9093 - Decision to confirm - Review Enquiry
Start Date
09-Oct-2025
Completion Date
22-Oct-2025
Ref Project
SIST EN 15870:2009 - Adhesives - Determination of tensile strength of butt joints (ISO 6922:1987 modified)

Relations

Replaces
EN 26922:1993 - Adhesives - Determination of tensile strength of butt joints (ISO 6922:1987)
Effective Date
08-Jun-2022

Overview

EN 15870:2009 (CEN) defines a standardized method for determining the tensile bond strength of butt joints. Based on ISO 6922:1987 (modified), the method is applicable to all adhesive types and is primarily intended for ambient-condition testing but can be applied across a wide range of temperatures and environmental conditions. The standard requires rigid adherends that meet dimensional tolerances and can withstand test forces.

Key Topics

  • Principle: A butt joint formed from two bar or rod adherends, bonded on faces normal to the length, is loaded in tension along its long axis until rupture. The reported result is the force observed at rupture.
  • Apparatus: A Class 1 testing machine complying with EN ISO 7500-1 is required. The machine must measure force accurately (recorded force within 1% of true force) and allow steady, controlled increase of load. Self-aligning grips and a simple jig for alignment during bonding are specified.
  • Test specimens: Adherends should be rigid and, for comparative testing, identical materials. Typical cross-sections permitted include circular or square (10, 15, 25 or 50 mm) with tolerances of ±0.1 mm; length rules are defined in the standard. Surfaces must be plane and normal to the long axis and prepared per adhesive manufacturer or EN 13887.
  • Bonding and conditioning: Use manufacturer-recommended bonding procedures or those that produce an optimum bond. Condition specimens under standard atmosphere (recommended 23 ± 2 °C and 50 ± 5 % RH per EN ISO 291) unless otherwise specified.
  • Procedure and reporting: Apply tensile loading at a constant jaw separation rate approximating 10 mm/min so that rupture occurs in (60 ± 20) s. Record the maximum force at rupture and the failure mode (per EN ISO 10365). Report the mean of five valid results, specimen details, bonding conditions, adhesive identification, adhesive layer thickness, and failure types.

Applications

  • Quality control and batch verification of adhesives
  • Comparative R&D testing of adhesive formulations
  • Material qualification for bonded assemblies in design and production
  • Environmental conditioning and performance assessment across temperatures and humidity

Related Standards

  • EN ISO 7500-1 - Verification of static uniaxial testing machines
  • EN ISO 291 - Standard atmospheres for conditioning and testing
  • EN ISO 10365 - Designation of main failure patterns
  • EN 13887 - Surface preparation guidelines for metals and plastics
  • ISO 5893, ISO 3534, EN ISO 472 (referenced for related test and statistical guidance)

This standard provides a practical, reproducible method for measuring adhesive bond strength of butt joints, facilitating consistent reporting for QC, certification and laboratory comparison.

Frequently Asked Questions

EN 15870:2009 is a standard published by the European Committee for Standardization (CEN). Its full title is "Adhesives - Determination of tensile strength of butt joints (ISO 6922:1987 modified)". This standard covers: This European Standard specifies a method for determining the bond strength of a butt joint when subjected to tensile force. The method can be applied to all types of adhesives. Although primarily intended for use under ambient conditions, the basic method can also be applied to testing under a wide range of temperature and other environmental conditions. The method requires rigid adherends that can be produced to the required dimensional tolerances and that will withstand the forces applied to them during the test.

This European Standard specifies a method for determining the bond strength of a butt joint when subjected to tensile force. The method can be applied to all types of adhesives. Although primarily intended for use under ambient conditions, the basic method can also be applied to testing under a wide range of temperature and other environmental conditions. The method requires rigid adherends that can be produced to the required dimensional tolerances and that will withstand the forces applied to them during the test.

EN 15870:2009 is classified under the following ICS (International Classification for Standards) categories: 83.180 - Adhesives. The ICS classification helps identify the subject area and facilitates finding related standards.

EN 15870:2009 has the following relationships with other standards: It is inter standard links to EN 26922:1993. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.

EN 15870:2009 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

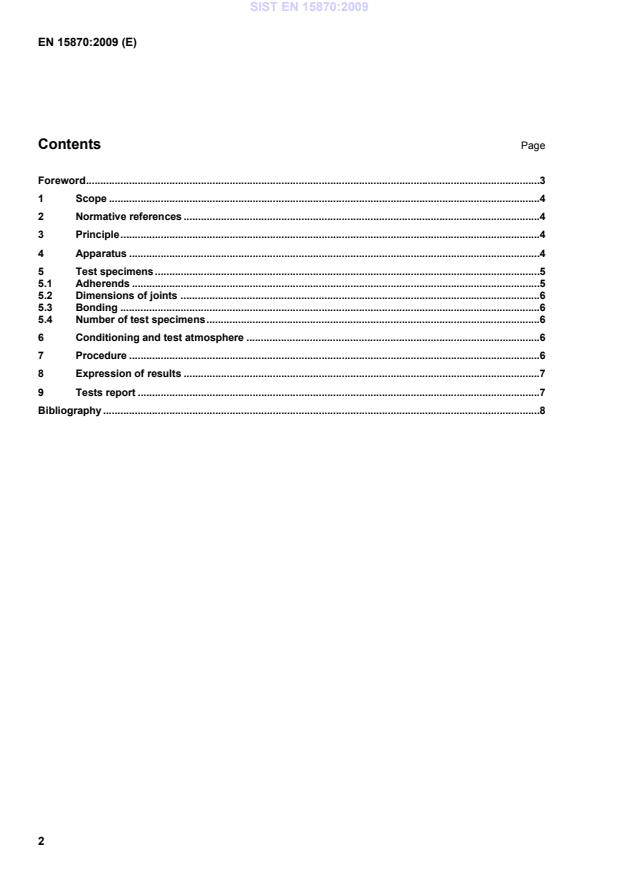

Standards Content (Sample)


2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Klebstoffe - Bestimmung der Zugfestigkeit von Stumpfklebungen (ISO 6922:1987 modifiziert)Adhésifs - Détermination de la résistance en traction des joints bout à bout (ISO 6922:1987 modifiée)Adhesives - Determination of tensile strength of butt joints (ISO 6922:1987 modified)83.180LepilaAdhesivesICS:Ta slovenski standard je istoveten z:EN 15870:2009SIST EN 15870:2009en,fr,de01-julij-2009SIST EN 15870:2009SLOVENSKI
STANDARDSIST EN 26922:19981DGRPHãþD

EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 15870April 2009ICS 83.180Supersedes EN 26922:1993
English VersionAdhesives - Determination of tensile strength of butt joints (ISO6922:1987 modified)Adhésifs - Détermination de la résistance en traction desjoints bout à bout (ISO 6922:1987 modifiée)Klebstoffe - Bestimmung der Zugfestigkeit vonStumpfklebungen (ISO 6922:1987 modifiziert)This European Standard was approved by CEN on 26 March 2009.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the CEN Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as theofficial versions.CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre:
Avenue Marnix 17,
B-1000 Brussels© 2009 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 15870:2009: ESIST EN 15870:2009
...
