EN 1804-1:2001+A1:2010
(Main)Machines for underground mines - Safety requirements for hydraulic powered roof supports - Part 1: Support units and general requirements
Machines for underground mines - Safety requirements for hydraulic powered roof supports - Part 1: Support units and general requirements
This standard specifies the safety requirements for support units when used as specified by the manufacturer or his authorised representative. Examples of support units are frame supports, chock supports, shield supports, paired frames and push-pull support systems including the components of advancing and anchoring devices which provide support functions. This part of the standard excludes fixing elements on the conveyor, coal-winning equipment, power set legs and rams, valves, hydraulic and electro-hydraulic control units, lighting and signalling facilities and other ancillary equipment.
NOTE Some components are dealt with in other parts of this standard.
This standard applies to support units used at temperatures from -10° C to 60° C.
This standard also applies to support components and support accessories which are provided if the support unit is fitted with stowing equipment. This standard identifies and takes account of:
- Possible hazards which may be caused by the operation of support units;
- Areas and operating conditions which may create such hazards;
- Hazardous situations which may cause injury or may be damaging to health;
This standard describes methods for the reduction of these hazards.
A list of hazards covered appears in clause 4.
This European standard does not establish the additional requirements for:
- Specially corrosive environments;
- Hazards occurring during construction, transportation, decommissioning;
- Earthquake.
This standard is applicable to all support units placed on the market for the first time, which are manufactured after the date on which this standard was published.
Maschinen für den Bergbau unter Tage - Sicherheitsanforderungen für hydraulischen Schreitausbau - Teil 1: Ausbaugestelle und allgemeine Anforderungen
Diese Europäische Norm legt die Sicherheitsanforderungen für die vom Hersteller oder seinem bevollmächtigten
Vertreter vorgesehene bestimmungsgemäße Verwendung von Ausbaugestellen fest. Beispiele für Ausbaugestelle
sind: Ausbaurahmen, Ausbauböcke, Ausbauschilde, Ausbaugespanne und Ausbauzüge einschließlich der
Rückeinrichtungen und der Teile von Abspannungen, welche Ausbaufunktionen haben, jedoch ausschließlich der
Anschlagelemente am Förderer, der Gewinnungseinrichtungen, der Stempel und Zylinder, der Ventile, der
hydraulischen und elektrohydraulischen Steuerungseinrichtungen, der Beleuchtungs- und Signaleinrichtungen
sowie sonstiger Hilfseinrichtungen.
ANMERKUNG Einige Komponenten werden in anderen Teilen dieser Normenreihe behandelt.
Diese Norm gilt für Ausbaugestelle, die bei Umgebungstemperaturen zwischen −10 °C bis 60 °C eingesetzt
werden.
Diese Norm bezieht sich ebenfalls auf Ausbauteile und Ausbauzubehör, die vorgesehen sind, wenn das
Ausbaugestell mit Versatzeinrichtungen ausgerüstet wird. Diese Norm identifiziert und berücksichtigt:
⎯ die Gefährdungen, die womöglich durch den Betrieb von Ausbaugestellen hervorgerufen werden;
⎯ die Gefahrenbereiche und die Betriebsbedingungen, die irgendeine Gefährdung verursachen und
⎯ die Situationen, die zu Gefährdungen führen können, die eine Verletzung oder Gesundheitsschädigung
verursachen.
Diese Norm beschreibt Methoden zur Reduzierung dieser Gefährdungen.
Abschnitt 4 enthält eine Liste der behandelten Gefährdungen.
Diese Europäische Norm spezifiziert keine zusätzlichen Anforderungen für:
⎯ besonders korrosive Umgebung;
⎯ Risiken bei Herstellung, Transport und Außerbetriebnahme;
⎯ Erdbeben.
Diese Norm gilt für alle Ausbaugestelle, die nach dem Ausgabedatum dieser Norm erstmalig in Verkehr gebracht
wurden.
Machines pour mines souterraines - Exigences de sécurité relatives aux soutènements marchants applicables aux piles - Partie 1: Unités de soutènement et exigences générales
La présente norme précise les exigences de sécurité pour les unités de soutènement lorsqu’elles sont utilisées tel que spécifié par le fabricant ou son mandataire. Les exemples d’unités de soutènement sont les piles à flèche, piles monoblocs, piles-boucliers, piles à file et systèmes de soutènement «push-pull» y compris les composants de dispositifs d'avancement et d'ancrage qui assurent le soutènement du toit. La présente partie de la norme exclut les éléments de fixation sur le convoyeur, les équipements d'abattage du charbon, les étançons et vérins à pose mécanisée, les soupapes, les unités de commande hydrauliques et électro-hydrauliques, les installations d'éclairage et de signalisation et les autres équipements auxiliaires.
NOTE Certains équipements sont traités dans d’autres parties de cette norme.
Cette norme s’applique aux unités de soutènement utilisées à des températures comprises entre – 10 °C et 60 °C.
Cette norme s'applique également aux composants et accessoires du soutènement fournis lorsque l'unité de soutènement est munie d'équipements de remblayage. La présente norme identifie et tient compte :
— des risques potentiels pouvant résulter de l’utilisation des unités de soutènement ;
— des zones et des conditions d’utilisation susceptibles de créer de tels risques ;
— des situations dangereuses susceptibles d’entraîner des blessures ou pouvant affecter la santé.
La présente norme décrit des méthodes de réduction de ces phénomènes dangereux.
Une liste des phénomènes dangereux couverts est donnée à l’article 4.
Cette norme européenne ne définit pas d’exigences supplémentaires concernant :
— les milieux environnants particulièrement corrosifs ;
— les risques dus à la construction, au transport et à la mise hors service ;
— les tremblements de terre.
La présente norme est applicable à toutes les unités de soutènement commercialisées pour la première fois après leur fabrication qui suit la date de publication de la présente norme.
Stroji za podzemne rudnike - Varnostne zahteve za hidravlično podporje - 1. del: Deli podporja in splošne zahteve
Ta standard določa varnostne zahteve za dele podporja, ko se uporabljajo po navodilih proizvajalca ali pooblaščenega predstavnika. Primeri delov podporja so podporna ogrodja, podložna podporja, zaščitna podporja, ogrodja v parih in potisno-vlečni podporni sistemi, vključno s komponentami pripomočkov za pomikanje in sidranje, ki omogočajo podporne funkcije. Ta del standarda izključuje pritrdilne elemente na jermenih, opremo za pridobivanje premoga, dele hidravličnih stojk in potisnih cilindrov, ventile, hidravlične in elektrohidravlične krmilne enote, opremo za osvetljavo in signalizacijo ter drugo pomožno opremo. Ta standard velja za dele podporja, ki se uporabljajo pri temperaturi med -10° C in 60° C. Ta standard velja tudi za podporne komponente in podporne dodatke, ki so na voljo, kadar je del podporja opremljen z opremo za nakladanje. Ta standard ugotavlja in upošteva: - morebitne nevarnosti, ki jih lahko povzroči delovanje delov podporja; - področja in pogoje delovanja, ki lahko povzročijo takšne nevarnosti; - nevarne razmere, ki lahko povzročijo škodo ali škodujejo zdravju. Ta standard opisuje metode za zmanjševanje takšnih nevarnosti. Seznam zajetih nevarnosti je naveden v Klavzuli 4. Ta evropski standard ne vzpostavlja dodatnih zahtev za: - posebej korozivna okolja; - nevarnosti, ki se pojavljajo med konstrukcijo, prevozom, izločitvijo iz uporabe; - potres. Ta standard velja za vse dele podporja, ki so prvič dani v promet in so narejeni po datumu izdaje tega standarda.
General Information
- Status
- Withdrawn
- Publication Date
- 26-Jan-2010
- Withdrawal Date
- 20-Jan-2026
- Technical Committee
- CEN/TC 196 - Machines for undergroung mines - Safety
- Drafting Committee
- CEN/TC 196/WG 3 - Hydraulic driven supports
- Current Stage
- 9960 - Withdrawal effective - Withdrawal
- Start Date
- 23-Dec-2020
- Completion Date
- 21-Jan-2026
- Directive
- 98/37/EC - Machinery
Relations
- Effective Date
- 28-Nov-2009
- Effective Date
- 08-Jun-2022
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Get Certified
Connect with accredited certification bodies for this standard
Bureau Veritas Chile
Bureau Veritas certification services in Chile.
Bureau Veritas Peru
Bureau Veritas certification services in Peru.
Cotecna Inspection India Pvt. Ltd.
Leading TIC provider, ISO 9001 certified and ISO 17020 accredited.
Sponsored listings
Frequently Asked Questions
EN 1804-1:2001+A1:2010 is a standard published by the European Committee for Standardization (CEN). Its full title is "Machines for underground mines - Safety requirements for hydraulic powered roof supports - Part 1: Support units and general requirements". This standard covers: This standard specifies the safety requirements for support units when used as specified by the manufacturer or his authorised representative. Examples of support units are frame supports, chock supports, shield supports, paired frames and push-pull support systems including the components of advancing and anchoring devices which provide support functions. This part of the standard excludes fixing elements on the conveyor, coal-winning equipment, power set legs and rams, valves, hydraulic and electro-hydraulic control units, lighting and signalling facilities and other ancillary equipment. NOTE Some components are dealt with in other parts of this standard. This standard applies to support units used at temperatures from -10° C to 60° C. This standard also applies to support components and support accessories which are provided if the support unit is fitted with stowing equipment. This standard identifies and takes account of: - Possible hazards which may be caused by the operation of support units; - Areas and operating conditions which may create such hazards; - Hazardous situations which may cause injury or may be damaging to health; This standard describes methods for the reduction of these hazards. A list of hazards covered appears in clause 4. This European standard does not establish the additional requirements for: - Specially corrosive environments; - Hazards occurring during construction, transportation, decommissioning; - Earthquake. This standard is applicable to all support units placed on the market for the first time, which are manufactured after the date on which this standard was published.
This standard specifies the safety requirements for support units when used as specified by the manufacturer or his authorised representative. Examples of support units are frame supports, chock supports, shield supports, paired frames and push-pull support systems including the components of advancing and anchoring devices which provide support functions. This part of the standard excludes fixing elements on the conveyor, coal-winning equipment, power set legs and rams, valves, hydraulic and electro-hydraulic control units, lighting and signalling facilities and other ancillary equipment. NOTE Some components are dealt with in other parts of this standard. This standard applies to support units used at temperatures from -10° C to 60° C. This standard also applies to support components and support accessories which are provided if the support unit is fitted with stowing equipment. This standard identifies and takes account of: - Possible hazards which may be caused by the operation of support units; - Areas and operating conditions which may create such hazards; - Hazardous situations which may cause injury or may be damaging to health; This standard describes methods for the reduction of these hazards. A list of hazards covered appears in clause 4. This European standard does not establish the additional requirements for: - Specially corrosive environments; - Hazards occurring during construction, transportation, decommissioning; - Earthquake. This standard is applicable to all support units placed on the market for the first time, which are manufactured after the date on which this standard was published.
EN 1804-1:2001+A1:2010 is classified under the following ICS (International Classification for Standards) categories: 73.100.10 - Tunnelling and tubbing equipment. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 1804-1:2001+A1:2010 has the following relationships with other standards: It is inter standard links to EN 1804-1:2001, EN 1804-1:2020, EN ISO 9606-1:2017, EN 292-1:1991, EN 292-2:1991, EN 292-2:1991/A1:1995, EN ISO 6892-1:2019, EN ISO 15614-1:2017, EN 1804-3:2020, EN 1804-2:2020, EN ISO 15607:2019, EN 1050:1996, EN 13463-1:2001, EN ISO 15609-1:2019. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 1804-1:2001+A1:2010 is associated with the following European legislation: EU Directives/Regulations: 2006/42/EC, 98/37/EC; Standardization Mandates: M/396, M/BC/CEN/91/1. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
EN 1804-1:2001+A1:2010 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Maschinen für den Bergbau unter Tage - Sicherheitsanforderungen für hydraulischen Schreitausbau - Teil 1: Ausbaugestelle und allgemeine AnforderungenMachines pour mines souterraines - Exigences de sécurité relatives aux soutènements marchants applicables aux piles - Partie 1: Unités de soutènement et exigences généralesMachines for underground mines - Safety requirements for hydraulic powered roof supports - Part 1: Support units and general requirements73.100.10Oprema za gradnjo predorov in podzemnih železnicTunnelling and tubbing equipmentICS:Ta slovenski standard je istoveten z:EN 1804-1:2001+A1:2010SIST EN 1804-1:2002+A1:2010en,fr,de01-marec-2010SIST EN 1804-1:2002+A1:2010SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 1804-1:2001+A1
January 2010 ICS 73.100.10 Supersedes EN 1804-1:2001English Version
Machines for underground mines - Safety requirements for hydraulic powered roof supports - Part 1: Support units and general requirements
Machines pour mines souterraines - Exigences de sécurité relatives aux soutènements marchants applicables aux piles - Partie 1: Unités de soutènement et exigences générales
Maschinen für den Bergbau unter Tage - Sicherheitsanforderungen für hydraulischen Schreitausbau - Teil 1: Ausbaugestelle und allgemeine Anforderungen This European Standard was approved by CEN on 21 September 2001 and includes Amendment 1 approved by CEN on 21 December 2009.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2010 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 1804-1:2001+A1:2010: ESIST EN 1804-1:2002+A1:2010

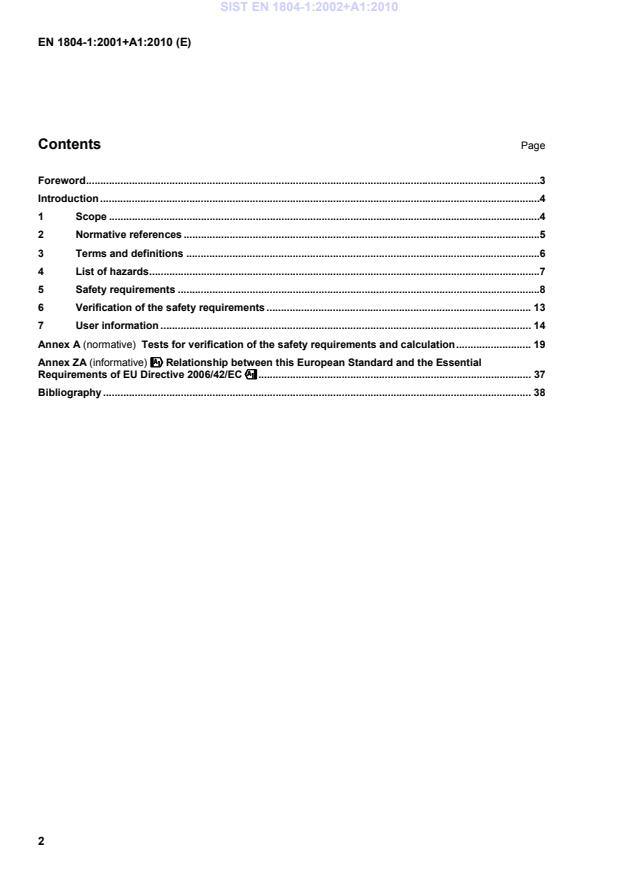

Tests for verification of the safety requirements and calculation . 19Annex ZA (informative) !!!!Relationship between this European Standard and the Essential
