EN 12560-5:2001
(Main)Flanges and their joints - Gaskets for Class-designated flanes - Part 5: Metallic ring joint gaskets for use with steel flanges
Flanges and their joints - Gaskets for Class-designated flanes - Part 5: Metallic ring joint gaskets for use with steel flanges
This standard specifies the dimensions, types, design, materials and marking requirements of metallic ring-joint gaskets for use in conjunction with specific flange facings (type J) of flanges complying with EN 1759-1 for Class designations 150, 300, 600, 900 and 1500 for nominal size designations up to and including NPS 24 (DN600), and for Class designation 2500 up to and including NPS 12 (DN300).
Flansche und ihre Verbindungen - Dichtungen für Flansche mit Class-Bezeichnung - Teil 5: RTJ-Dichtungen aus Metall für Stahlflansche
Diese Norm legt die Maße und die Kennzeichnung von RTJ-Dichtungen aus Metall zur Verwendung mit Flanschen nach prEN 1759-1 mit Dichtflächen Form J für Class-Stufen 150, 300, 600, 900 und 1500 bis NPS 24 sowie für Class 2500 bis NPS 12 fest.
Brides et leurs assemblages - Joints pour les brides désignées Class - Partie 5: Joints annulaires métalliques pour utilisation avec des brides en acier
La présente norme européenne prescrit les dimensions et le marquage des joints annulaires métalliques, utilisés conjointement avec les brides avec portée de joint spécifique (type J) conformes à la norme EN 1759-1, pour désignation Class 150, Class 300, Class 600, Clas 900 et Class 1500 et des désignations NPS jusqu'à et y compris 24, et pour la désignation Class 2500 jusqu'à et y compris NPS 12.
Prirobnice in prirobnični spoji - Tesnila za prirobnice z oznako Class - 5. del: Kovinska obročasta tesnila za jeklene prirobnice
General Information
- Status
- Published
- Publication Date
- 23-Jan-2001
- Withdrawal Date
- 30-Jul-2001
- Technical Committee
- CEN/TC 74 - Flanges and their joints
- Drafting Committee
- CEN/TC 74/WG 8 - Gaskets
- Current Stage
- 9060 - Closure of 2 Year Review Enquiry - Review Enquiry
- Start Date
- 04-Jun-2023
- Completion Date
- 04-Jun-2023
Overview
EN 12560-5:2001 is a CEN standard that specifies requirements for metallic ring-joint gaskets (RTJ gaskets) intended for use with steel flanges. The document covers the dimensions, types, design, materials and marking requirements of metallic ring-joint gaskets that mate with flange facings of type J as defined for flanges complying with EN 1759-1. The scope includes Class-designated flanges 150, 300, 600, 900 and 1500 for nominal sizes up to and including NPS 24 (DN600), and Class 2500 up to and including NPS 12 (DN300).
Key Topics
- Gasket types and geometry: Defines the metallic ring-joint (RTJ) gasket forms compatible with type J flange facings.
- Dimensions and tolerances: Specifies dimensional envelopes and acceptable manufacturing tolerances for interchangeability.
- Design and materials: Sets requirements for gasket profile, cross-section and suitable metallic materials to ensure reliable sealing with steel flanges.
- Marking and traceability: Requires clear marking of gaskets for identification, material, size and class to support installation, inspection and procurement.
- Compatibility limits: Clarifies the class designations (150–2500) and nominal size (NPS/DN) ranges where the standard applies.
Applications
EN 12560-5:2001 is used wherever high-integrity metal-to-metal flange seals are required, particularly in systems requiring ring-type joint (RTJ) sealing:
- Oil & gas pipelines and processing facilities
- Petrochemical and chemical plants
- Power generation (high-pressure steam and feedwater systems)
- Pressure-containing piping and valve assemblies in heavy industry
- Fabrication shops and flange/gasket manufacturers for quality control and product specification
Typical users include piping designers, mechanical engineers, procurement & inspection teams, flange and gasket manufacturers, and plant maintenance personnel who need to select or verify RTJ gaskets for Class-designated steel flanges.
Related Standards
- EN 1759-1 - referenced flange specification for type J facings (compatibility requirement)
- EN 12560 series - series context for gaskets for Class-designated flanges
- ICS classifications: 23.040.80 (Seals for pipe and hose assemblies) and 23.040.60 (Flanges, couplings and joints)
EN 12560-5:2001 helps ensure consistent, interchangeable metallic ring joint gaskets for steel flanges, supporting safe sealing performance and simplified procurement across high-pressure piping applications.
Frequently Asked Questions
EN 12560-5:2001 is a standard published by the European Committee for Standardization (CEN). Its full title is "Flanges and their joints - Gaskets for Class-designated flanes - Part 5: Metallic ring joint gaskets for use with steel flanges". This standard covers: This standard specifies the dimensions, types, design, materials and marking requirements of metallic ring-joint gaskets for use in conjunction with specific flange facings (type J) of flanges complying with EN 1759-1 for Class designations 150, 300, 600, 900 and 1500 for nominal size designations up to and including NPS 24 (DN600), and for Class designation 2500 up to and including NPS 12 (DN300).
This standard specifies the dimensions, types, design, materials and marking requirements of metallic ring-joint gaskets for use in conjunction with specific flange facings (type J) of flanges complying with EN 1759-1 for Class designations 150, 300, 600, 900 and 1500 for nominal size designations up to and including NPS 24 (DN600), and for Class designation 2500 up to and including NPS 12 (DN300).
EN 12560-5:2001 is classified under the following ICS (International Classification for Standards) categories: 23.040.80 - Seals for pipe and hose assemblies. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 12560-5:2001 is associated with the following European legislation: EU Directives/Regulations: 97/23/EC; Standardization Mandates: M/071. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
EN 12560-5:2001 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

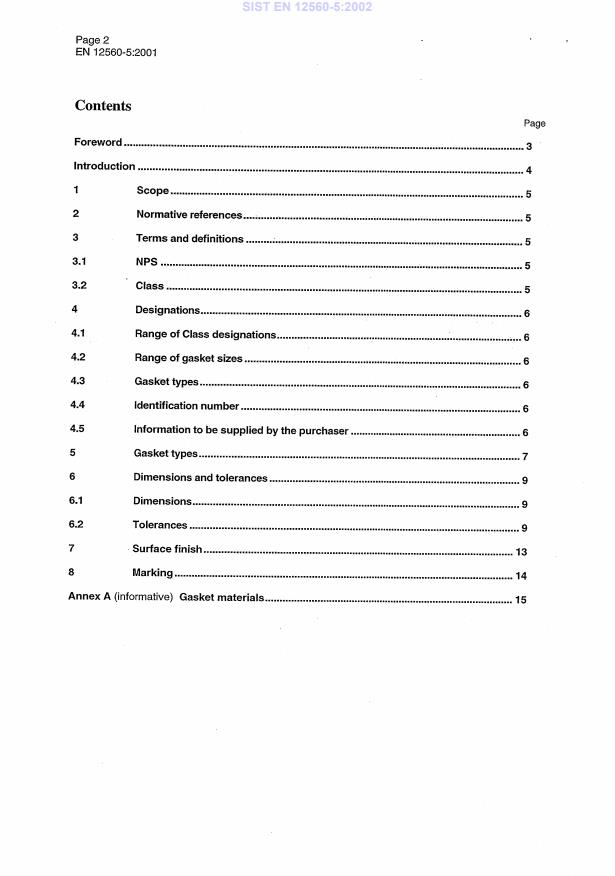

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Flansche und ihre Verbindungen - Dichtungen für Flansche mit Class-Bezeichnung - Teil 5: RTJ-Dichtungen aus Metall für StahlflanscheBrides et leurs assemblages - Joints pour les brides désignées Class - Partie 5: Joints annulaires métalliques pour utilisation avec des brides en acierFlanges and their joints - Gaskets for Class-designated flanes - Part 5: Metallic ring joint gaskets for use with steel flanges23.040.80Tesnila za cevne zvezeSeals for pipe and hose assemblies2
...
