TECHNICAL REPORT
CEN/TR 13201-1
RAPPORT TECHNIQUE
TECHNISCHER BERICHT
December 2014
ICS 93.080.40 Supersedes CEN/TR 13201-1:2004
English Version
Road lighting - Part 1: Guidelines on selection of lighting classes
Éclairage public - Partie 1: Sélection des classes Straßenbeleuchtung - Teil 1: Leitfaden zur Auswahl der
d'éclairage Beleuchtungsklassen
This Technical Report was approved by CEN on 9 December 2013. It has been drawn up by the Technical Committee CEN/TC 169.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United
Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2014 CEN All rights of exploitation in any form and by any means reserved Ref. No. CEN/TR 13201-1:2014 E
worldwide for CEN national Members.

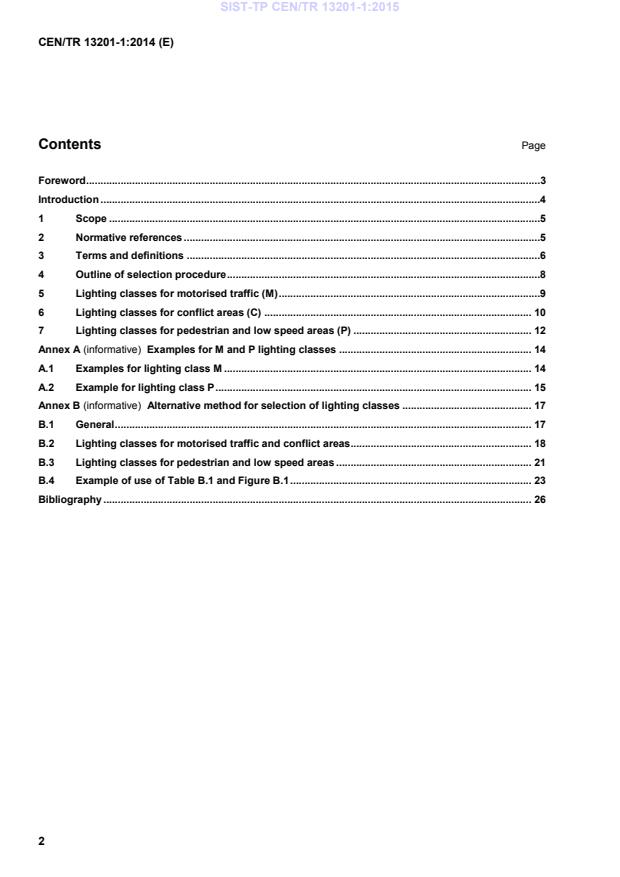

Contents Page
Foreword .3
Introduction .4
1 Scope .5
2 Normative references .5
3 Terms and definitions .6
4 Outline of selection procedure .8
5 Lighting classes for motorised traffic (M) .9
6 Lighting classes for conflict areas (C) . 10
7 Lighting classes for pedestrian and low speed areas (P) . 12
Annex A (informative) Examples for M and P lighting classes . 14
A.1 Examples for lighting class M . 14
A.2 Example for lighting class P . 15
Annex B (informative) Alternative method for selection of lighting classes . 17
B.1 General . 17
B.2 Lighting classes for motorised traffic and conflict areas. 18
B.3 Lighting classes for pedestrian and low speed areas . 21
B.4 Example of use of Table B.1 and Figure B.1 . 23
Bibliography . 26
Foreword
This document (CEN/TR 13201-1:2014) has been prepared by Technical Committee CEN/TC 169 “Light and
lighting”, the secretariat of which is held by DIN.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document supersedes CEN/TR 13201-1:2004.
This revised publication includes a simplified system of guidelines for selection of the lighting classes. The
most important parameters are listed for the different lighting situations - motorised traffic areas, conflict areas,
and pedestrian/low speed areas. The parameters include the design speed, the traffic volume and traffic
composition, the function of the overall layout of the road, and the environmental conditions.
Road lighting is dealt with by CEN as follows:
— CEN/TR 13201-1: Road lighting – Part 1: Guidelines on selection of lighting classes.
— EN 13201-2: Road lighting – Part 2: Performance requirements
— EN 13201-3: Road lighting – Part 3: Calculation of performance
— EN 13201-4: Road lighting – Part 4: Methods of measuring lighting performance
— prEN 13201-5: Road lighting – Part 5: Energy performance indicators
Introduction
This document offers guidance on the selection of lighting classes and related aspects. It is applicable to fixed
lighting installations intended to provide good visibility to users of outdoor public traffic areas during the hours
of darkness to support traffic safety, traffic flow and public security.
The document offers two alternative examples of selection of lighting classes, one based on simple lighting
class and the other giving a more refined result within the lighting class. Both methods provide comparable
lighting classes and are interchangeable. Any adaptation of either of these methods or any other method can
be used instead, on the national level.
1 Scope
This Technical Report specifies the lighting classes set out in EN 13201-2 and gives guidelines on the
selection of the most appropriate class for a given situation. To do this, it includes a system to define
appropriate lighting classes for different outdoor public areas in terms of parameters relevant to guarantee the
aims presented in introductions.
The decision on whether a road should be lit is defined in the national road lighting policy. This varies by
country or municipality. Specific guidelines are usually available at national level for each country. This
Technical Report does not give the criteria on which a decision to light an area can be made, nor on how a
lighting installation should be used. Further guidance is given in CIE 115:2010 (Paragraph 1.2 and Annex A).
The methods presented in Clauses 5, 6 and 7 have to be considered as the starting points of a
comprehensive approach for the normal road lighting. In that sense, the models cannot cover all the different
road cases; they introduce general parameters and the impact on lighting requirements. Only the real situation
and its unique characteristics (geometry of the road, marking, visual environment, difficulty of the navigation
task, lack of visibility, risks of glares due to existing elements, local weather, specific users such as high rate
of elderly or visually impaired people, etc.) can lead to a final determination of the appropriate lighting class
applying risk evaluation techniques.
The visual needs of road users under reduced traffic volumes during certain periods of night or under varying
weather conditions, and the positive benefits of reduced energy consumption and potential environmental
improvements, are some of the considerations which justify the installation of adaptive road lighting. There are
a variety of suitable instruments, devices and methods which can be used for the intelligent control of a road
lighting installation. The control systems range from very simple to the most sophisticated applications.
Annex B is of assistance in choosing the correct lighting level when adaptive lighting is used as it provides a
more refined evaluation of the luminance or illuminance levels within the specific lighting class. Whilst the
luminance or illuminance levels may be varied to suit reduced traffic volumes, weather conditions or other
parameters the quality parameters of the applicable lighting class specified in EN 13201-2 should be
maintained at all times.
Renewal or refurbishment of obsolete and uneconomic installations is important. It may be possible to obtain
more adapted lighting levels with lower energy consumption using new designs and new technology. The
upgrading of lighting and control systems will often give good cost-benefit ratios and short amortisation
periods.
This document does not give guidelines on the selection of lighting classes for toll stations, tunnels or canals
and locks.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
EN 13201-2, Road lighting - Part 2: Performance requirements
EN 13201-3, Road lighting - Part 3: Calculation of performance
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 13201-2 and EN 13201-3 and the
following apply.
3.1
normal lighting class
class with the maximum value of average luminance or illuminance at any period of operation
3.2
adaptive lighting
temporal controlled changes in luminance or illuminance in relation to traffic volume, time, weather or other
parameters
3.3
motorised traffic (M)
motor powered vehicles
3.4
conflict area (C)
relevant area where motorised traffic streams intersect each other or overlap areas frequented by other user
types
3.5
pedestrians and low speed area (P)
relevant area reserved for use by people on foot or using bicycle, and drivers of motorised vehicles at low
speed (≤ 40 km/h)
3.6
design speed
speed selected for purposes of design and correlation of the geometric features of a road and is a measure of
the quality of design offered by the road
Note 1 to entry: It is the highest continuous speed at which individual vehicles can travel with safety on a road when
weather conditions are favourable and traffic density is so low that the safe speed is determined by the geometric features
of the road.
3.7
traffic volume
the number of vehicles passing a given point in a stated time period in both directions
Note 1 to entry: E.g. average daily traffic is measured as number of vehicles per day.
3.8
maximum capacity
maximum rate of flow at which vehicles can be reasonably expected to traverse a point or uniform segment of
a lane or carriageway during a specified time period under prevailing road, traffic and control conditions
Note 1 to entry: Usually expressed as veh/h or veh/d.
3.9
traffic density
number of vehicles occupying a given length of lane or carriageway averaged over time
Note 1 to entry: Usually expressed as veh/km or veh/km/lane.
3.10
traffic composition
distribution of vehicle types in the traffic stream, directional distribution of traffic, lane use distribution of traffic,
and type of driver population on a given facility
Note 1 to entry: In this report simplified: mixed and motorised only.
3.11
junction
place where several traffic routes meet, join, or cross each other, and a location where traffic can change
between different routes
3.12
intersection
general area where two or more roads join or cross at the same level, within which are included the
carriageway and roadside facilities for traffic movements
3.13
interchange
grade-separated junction with one or more turning ramps for travel between the through roads
3.14
ambient luminosity
assessed luminance levels of the surroundings
3.15
visual guidance / traffic control
means that ensure that motorists are given adequate information on the course of the road
3.16
facial recognition
visual task of pedestrians consisting of a recognition of a face at certain distances that allows to take evasive
or defensive action if thought necessary
Note 1 to entry: Generally, facial recognition requires an overall minimum lighting value at a distance where the
recognition of a face is possible.
Note 2 to entry: An ideal facial recognition distance is 10 m – the point of transition between “close” and “not-close”
phases.
3.17
relevant area
part of the public traffic area under consideration
3.18
non-motorised
pedestrians and pedal cyclists
3.19
separation of carriageways
central reserve and/or guardrail
3.20
difficulty of navigational task
degree of effort necessary by the road user, as a result of the information presented, to select route and lane,
and to maintain or change speed and position on the carriageway
Note 1 to entry: Visual guidance provided by the road is part of this information.
4 Outline of selection procedure
In this Technical Report, a number of the most important parameters are listed for the different lighting
situations - motorised traffic areas, conflict areas, and pedestrian and low speed areas. These parameters
include the design speed, the traffic volume and traffic composition, the function and
...
SLOVENSKI STANDARD
01-marec-2015
1DGRPHãþD
SIST-TP CEN/TR 13201-1:2004
Cestna razsvetljava - 1. del: Smernice za izbor razredov za razsvetljavo
Road lighting - Part 1: Guidelines on selection of lighting classes
Straßenbeleuchtung - Teil 1: Leitfaden zur Auswahl der Beleuchtungsklassen
Éclairage public - Partie 1: Sélection des classes d'éclairage
Ta slovenski standard je istoveten z: CEN/TR 13201-1:2014
ICS:
93.080.40 &HVWQDUD]VYHWOMDYDLQ Street lighting and related
SULSDGDMRþDRSUHPD equipment
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
TECHNICAL REPORT
CEN/TR 13201-1
RAPPORT TECHNIQUE
TECHNISCHER BERICHT
December 2014
ICS 93.080.40 Supersedes CEN/TR 13201-1:2004
English Version
Road lighting - Part 1: Guidelines on selection of lighting classes
Éclairage public - Partie 1: Sélection des classes Straßenbeleuchtung - Teil 1: Leitfaden zur Auswahl der
d'éclairage Beleuchtungsklassen
This Technical Report was approved by CEN on 9 December 2013. It has been drawn up by the Technical Committee CEN/TC 169.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United
Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2014 CEN All rights of exploitation in any form and by any means reserved Ref. No. CEN/TR 13201-1:2014 E
worldwide for CEN national Members.
Contents Page
Foreword .3
Introduction .4
1 Scope .5
2 Normative references .5
3 Terms and definitions .6
4 Outline of selection procedure .8
5 Lighting classes for motorised traffic (M) .9
6 Lighting classes for conflict areas (C) . 10
7 Lighting classes for pedestrian and low speed areas (P) . 12
Annex A (informative) Examples for M and P lighting classes . 14
A.1 Examples for lighting class M . 14
A.2 Example for lighting class P . 15
Annex B (informative) Alternative method for selection of lighting classes . 17
B.1 General . 17
B.2 Lighting classes for motorised traffic and conflict areas. 18
B.3 Lighting classes for pedestrian and low speed areas . 21
B.4 Example of use of Table B.1 and Figure B.1 . 23
Bibliography . 26
Foreword
This document (CEN/TR 13201-1:2014) has been prepared by Technical Committee CEN/TC 169 “Light and
lighting”, the secretariat of which is held by DIN.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document supersedes CEN/TR 13201-1:2004.
This revised publication includes a simplified system of guidelines for selection of the lighting classes. The
most important parameters are listed for the different lighting situations - motorised traffic areas, conflict areas,
and pedestrian/low speed areas. The parameters include the design speed, the traffic volume and traffic
composition, the function of the overall layout of the road, and the environmental conditions.
Road lighting is dealt with by CEN as follows:
— CEN/TR 13201-1: Road lighting – Part 1: Guidelines on selection of lighting classes.
— EN 13201-2: Road lighting – Part 2: Performance requirements
— EN 13201-3: Road lighting – Part 3: Calculation of performance
— EN 13201-4: Road lighting – Part 4: Methods of measuring lighting performance
— prEN 13201-5: Road lighting – Part 5: Energy performance indicators
Introduction
This document offers guidance on the selection of lighting classes and related aspects. It is applicable to fixed
lighting installations intended to provide good visibility to users of outdoor public traffic areas during the hours
of darkness to support traffic safety, traffic flow and public security.
The document offers two alternative examples of selection of lighting classes, one based on simple lighting
class and the other giving a more refined result within the lighting class. Both methods provide comparable
lighting classes and are interchangeable. Any adaptation of either of these methods or any other method can
be used instead, on the national level.
1 Scope
This Technical Report specifies the lighting classes set out in EN 13201-2 and gives guidelines on the
selection of the most appropriate class for a given situation. To do this, it includes a system to define
appropriate lighting classes for different outdoor public areas in terms of parameters relevant to guarantee the
aims presented in introductions.
The decision on whether a road should be lit is defined in the national road lighting policy. This varies by
country or municipality. Specific guidelines are usually available at national level for each country. This
Technical Report does not give the criteria on which a decision to light an area can be made, nor on how a
lighting installation should be used. Further guidance is given in CIE 115:2010 (Paragraph 1.2 and Annex A).
The methods presented in Clauses 5, 6 and 7 have to be considered as the starting points of a
comprehensive approach for the normal road lighting. In that sense, the models cannot cover all the different
road cases; they introduce general parameters and the impact on lighting requirements. Only the real situation
and its unique characteristics (geometry of the road, marking, visual environment, difficulty of the navigation
task, lack of visibility, risks of glares due to existing elements, local weather, specific users such as high rate
of elderly or visually impaired people, etc.) can lead to a final determination of the appropriate lighting class
applying risk evaluation techniques.
The visual needs of road users under reduced traffic volumes during certain periods of night or under varying
weather conditions, and the positive benefits of reduced energy consumption and potential environmental
improvements, are some of the considerations which justify the installation of adaptive road lighting. There are
a variety of suitable instruments, devices and methods which can be used for the intelligent control of a road
lighting installation. The control systems range from very simple to the most sophisticated applications.
Annex B is of assistance in choosing the correct lighting level when adaptive lighting is used as it provides a
more refined evaluation of the luminance or illuminance levels within the specific lighting class. Whilst the
luminance or illuminance levels may be varied to suit reduced traffic volumes, weather conditions or other
parameters the quality parameters of the applicable lighting class specified in EN 13201-2 should be
maintained at all times.
Renewal or refurbishment of obsolete and uneconomic installations is important. It may be possible to obtain
more adapted lighting levels with lower energy consumption using new designs and new technology. The
upgrading of lighting and control systems will often give good cost-benefit ratios and short amortisation
periods.
This document does not give guidelines on the selection of lighting classes for toll stations, tunnels or canals
and locks.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
EN 13201-2, Road lighting - Part 2: Performance requirements
EN 13201-3, Road lighting - Part 3: Calculation of performance
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 13201-2 and EN 13201-3 and the
following apply.
3.1
normal lighting class
class with the maximum value of average luminance or illuminance at any period of operation
3.2
adaptive lighting
temporal controlled changes in luminance or illuminance in relation to traffic volume, time, weather or other
parameters
3.3
motorised traffic (M)
motor powered vehicles
3.4
conflict area (C)
relevant area where motorised traffic streams intersect each other or overlap areas frequented by other user
types
3.5
pedestrians and low speed area (P)
relevant area reserved for use by people on foot or using bicycle, and drivers of motorised vehicles at low
speed (≤ 40 km/h)
3.6
design speed
speed selected for purposes of design and correlation of the geometric features of a road and is a measure of
the quality of design offered by the road
Note 1 to entry: It is the highest continuous speed at which individual vehicles can travel with safety on a road when
weather conditions are favourable and traffic density is so low that the safe speed is determined by the geometric features
of the road.
3.7
traffic volume
the number of vehicles passing a given point in a stated time period in both directions
Note 1 to entry: E.g. average daily traffic is measured as number of vehicles per day.
3.8
maximum capacity
maximum rate of flow at which vehicles can be reasonably expected to traverse a point or uniform segment of
a lane or carriageway during a specified time period under prevailing road, traffic and control conditions
Note 1 to entry: Usually expressed as veh/h or veh/d.
3.9
traffic density
number of vehicles occupying a given length of lane or carriageway averaged over time
Note 1 to entry: Usually expressed as veh/km or veh/km/lane.
3.10
traffic composition
distribution of vehicle types in the traffic stream, directional distribution of traffic, lane use distribution of traffic,
and type of driver population on a given facility
Note 1 to entry: In this report simplified: mixed and motorised only.
3.11
junction
place where several traffic routes meet, join, or cross each other, and a location where traffic can change
between different routes
3.12
intersection
general area where two or more roads join or cross at the same level, within which are included the
carriageway and roadside facilities for traffic movements
3.13
interchange
grade-separated junction with one or more turning ramps for travel between the through roads
3.14
ambient luminosity
assessed luminance levels of the surroundings
3.15
visual guidance / traffic control
means that ensure that motorists are given adequate information on the course of the road
3.16
facial recognition
visual task of pedestrians consisting of a recognition of a face at certain distances that allows to take evasive
or defensive action if thought necessary
Note 1 to entry: Generally, facial recognition requires an overall minimum lighting value at a distance where the
recognition of a face is possible.
Note 2 to entry: An ideal facial recognition distance is 10 m – the point of transition between “close” and “not-close”
phases.
3.17
relevant area
part of the public traffic area under consideration
3.18
non-motorised
pedestrians and pedal cyclists
3.19
separation of carriageways
central reserve and/or guardrail
3.20
difficulty of navigational task
degree of effort necessary by the road user, as a result of the information presented, to select route and lane,
and to maintain or change speed and position on the carriageway
Note 1 to entry: Visual guidance provided by the road is part of this information.
4 Outline of selection procedure
In this Technical Report, a number of the most important parameters are listed for the different lighting
situations - motorised traffic areas, conflict areas, and pedestrian and low speed areas. These parameters
include the design speed, the traffic volume and traffic composition, the
...
SLOVENSKO SIST-TP CEN/TR 13201-1
TEHNIČNO marec 2015
POROČILO
Cestna razsvetljava – 1. del: Smernice za izbiro svetlobnotehničnih razredov
Road lighting – Part 1: Guidelines on selection of lighting classes
Straßenbeleuchtung – Teil 1: Leitfaden zur Auswahl der Beleuchtungsklassen
Éclairage public – Partie 1: Sélection des classes d'éclairage
Referenčna oznaka
ICS 93.080.40 SIST-TP CEN/TR 13201-1:2015 (sl)
Nadaljevanje na strani II in od 1 do 25
© 2021-05: Slovenski inštitut za standardizacijo. Razmnoževanje ali kopiranje celote ali delov tega dokumenta ni dovoljeno.
SIST-TP CEN/TR 13201-1 : 2015

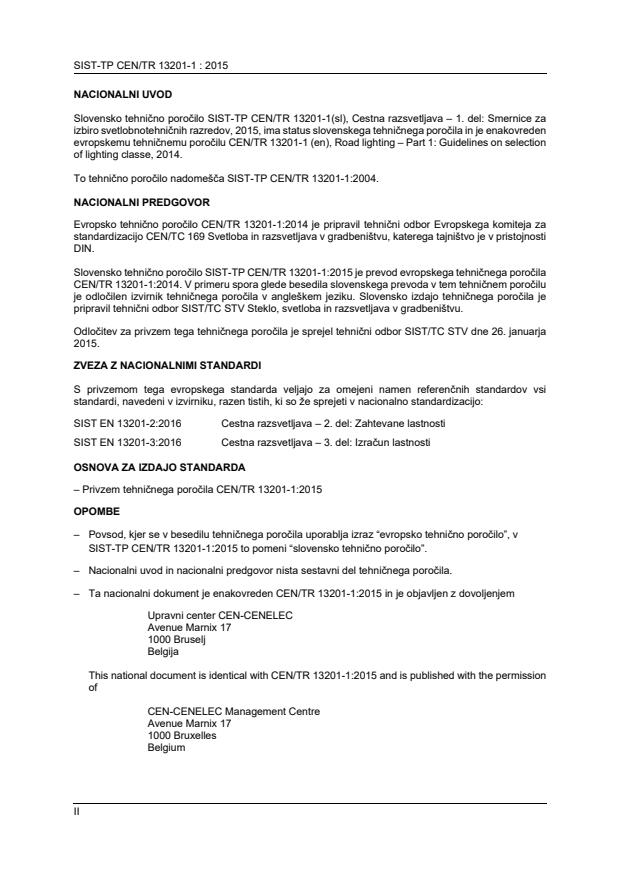

NACIONALNI UVOD
Slovensko tehnično poročilo SIST-TP CEN/TR 13201-1(sl), Cestna razsvetljava – 1. del: Smernice za
izbiro svetlobnotehničnih razredov, 2015, ima status slovenskega tehničnega poročila in je enakovreden
evropskemu tehničnemu poročilu CEN/TR 13201-1 (en), Road lighting – Part 1: Guidelines on selection
of lighting classe, 2014.
To tehnično poročilo nadomešča SIST-TP CEN/TR 13201-1:2004.
NACIONALNI PREDGOVOR
Evropsko tehnično poročilo CEN/TR 13201-1:2014 je pripravil tehnični odbor Evropskega komiteja za
standardizacijo CEN/TC 169 Svetloba in razsvetljava v gradbeništvu, katerega tajništvo je v pristojnosti
DIN.
Slovensko tehnično poročilo SIST-TP CEN/TR 13201-1:2015 je prevod evropskega tehničnega poročila
je odločilen izvirnik tehničnega poročila v angleškem jeziku. Slovensko izdajo tehničnega poročila je
pripravil tehnični odbor SIST/TC STV Steklo, svetloba in razsvetljava v gradbeništvu.
Odločitev za privzem tega tehničnega poročila je sprejel tehnični odbor SIST/TC STV dne 26. januarja
2015.
ZVEZA Z NACIONALNIMI STANDARDI
S privzemom tega evropskega standarda veljajo za omejeni namen referenčnih standardov vsi
standardi, navedeni v izvirniku, razen tistih, ki so že sprejeti v nacionalno standardizacijo:
SIST EN 13201-2:2016 Cestna razsvetljava – 2. del: Zahtevane lastnosti
SIST EN 13201-3:2016 Cestna razsvetljava – 3. del: Izračun lastnosti
OSNOVA ZA IZDAJO STANDARDA
– Privzem tehničnega poročila CEN/TR 13201-1:2015
OPOMBE
– Povsod, kjer se v besedilu tehničnega poročila uporablja izraz “evropsko tehnično poročilo”, v
– Nacionalni uvod in nacionalni predgovor nista sestavni del tehničnega poročila.
– Ta nacionalni dokument je enakovreden CEN/TR 13201-1:2015 in je objavljen z dovoljenjem
Upravni center CEN-CENELEC
Avenue Marnix 17
1000 Bruselj
Belgija
This national document is identical with CEN/TR 13201-1:2015 and is published with the permission
of
CEN-CENELEC Management Centre
Avenue Marnix 17
1000 Bruxelles
Belgium
II
TEHNIČNO POROČILO CEN/TR 13201-1
TECHNICAL REPORT
RAPPORT TECHNIQUE
december 2014
TECHNISCHER BERICHT
ICS 93.080.40 Nadomešča CEN/TR 13201-1:2004
Slovenska izdaja
Cestna razsvetljava – 1. del: Smernice za izbiro svetlobnotehničnih
razredov
Road lighting – Part 1: Éclairage public – Partie 1: Straßenbeleuchtung – Teil 1:
Guidelines on selection of Sélection des classes Leitfaden zur Auswahl der
lighting classes d'éclairage Beleuchtungsklassen
To tehnično poročilo je CEN sprejel 9. decembra 2013. Pripravil ga je tehnični odbor CEN/TC 169.
Člani CEN so nacionalni organi za standarde Avstrije, Belgije, Bolgarije, Cipra, Češke republike,
Danske, Estonije, Finske, Francije, Grčije, Hrvaške, Irske, Islandije, Italije, Latvije, Litve,
Luksemburga, Madžarske, Malte, Nekdanje jugoslovanske republike Makedonije, Nemčije,
Nizozemske, Norveške, Poljske, Portugalske, Romunije, Slovaške, Slovenije, Španije, Švedske,
Švice, Turčije in Združenega kraljestva.
CEN
Evropski komite za standardizacijo
European committee for standardization
Comité européen de normalisation
Europäisches komitee für normung
Upravni center CEN-CENELEC: Avenue Marnix 17, B-1000 Bruselj
© 2014 CEN Lastnice avtorskih pravic so vse države članice Ref. oznaka CEN/TR 13201-1:2014 E
CEN.
SIST-TP CEN/TR 13201-1 : 2015

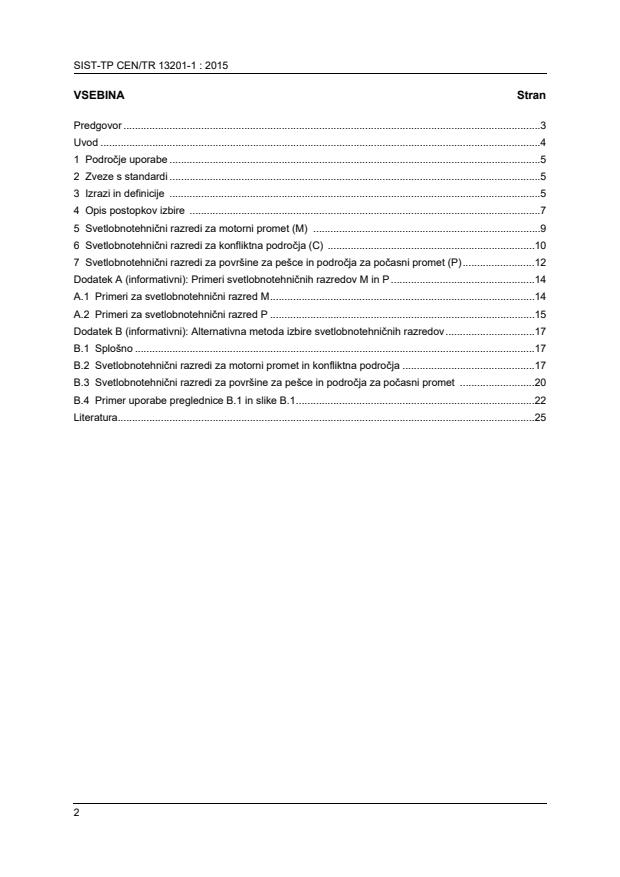

VSEBINA Stran
Predgovor . 3
Uvod . 4
1 Področje uporabe . 5
2 Zveze s standardi . 5
3 Izrazi in definicije . 5
4 Opis postopkov izbire . 7
5 Svetlobnotehnični razredi za motorni promet (M) . 9
6 Svetlobnotehnični razredi za konfliktna področja (C) . 10
7 Svetlobnotehnični razredi za površine za pešce in področja za počasni promet (P) . 12
Dodatek A (informativni): Primeri svetlobnotehničnih razredov M in P . 14
A.1 Primeri za svetlobnotehnični razred M . 14
A.2 Primeri za svetlobnotehnični razred P . 15
Dodatek B (informativni): Alternativna metoda izbire svetlobnotehničnih razredov . 17
B.1 Splošno . 17
B.2 Svetlobnotehnični razredi za motorni promet in konfliktna področja . 17
B.3 Svetlobnotehnični razredi za površine za pešce in področja za počasni promet . 20
B.4 Primer uporabe preglednice B.1 in slike B.1 . 22
Literatura. 25
SIST-TP CEN/TR 13201-1 : 2015
Predgovor
Ta dokument (CEN/TR 13201-1:2014) je pripravil tehnični odbor CEN/TC 169 “Svetloba in razsvetljava”,
katerega sekretariat je v pristojnosti DIN.
Opozoriti je treba na možnost, da so lahko nekateri elementi tega dokumenta predmet patentnih pravic.
CEN (in/ali CENELEC) ne prevzema odgovornosti za identifikacijo nekaterih ali vseh takih patentnih
pravic.
Ta dokument nadomešča CEN/TR 13201-1:2004.
Ta revidirana publikacija vsebuje poenostavljen sistem smernic za izbiro svetlobnotehničnih razredov.
Podan je pregled najpomembnejših parametrov za različne svetlobnotehnične situacije – za področja,
namenjena motornemu prometu, konfliktna področja ter površine za pešce ali področja za počasni
promet. Parametri vključujejo predvideno hitrost, gostoto in sestavo prometa, funkcijo celotne cestne
trase in okoljske pogoje.
Cestno razsvetljavo obravnavajo naslednji standardi CEN:
‒ CEN/TR 13201-1 Cestna razsvetljava – 1. del: Smernice za izbiro svetlobnotehničnih razredov
‒ EN 13201-2 Cestna razsvetljava – 2. del: Zahtevane lastnosti
‒ EN 13201-3 Cestna razsvetljava – 3. del: Izračun lastnosti
‒ EN 13201-4 Cestna razsvetljava – 4. del: Metode za merjenje lastnosti razsvetljave
‒ prEN 13201-5 Cestna razsvetljava – 5. del: Kazalniki energijske učinkovitosti
SIST-TP CEN/TR 13201-1 : 2015
Uvod
Ta dokument podaja navodilo za izbiro svetlobnotehničnih razredov in s tem povezanih vidikov.
Uporablja se za trajno nameščeno razsvetljavo, ki naj uporabnikom javnih prometnih površin zagotavlja
dobro vidljivost v času teme in povečuje prometno varnost, pretočnost prometa in javno varnost.
V dokumentu sta podana dva alternativna primera izbire svetlobnotehničnih razredov, eden na podlagi
enostavnega svetlobnotehničnega razreda in drugi z izboljšanimi rezultati znotraj svetlobnotehničnega
razreda. Obe metodi dajeta primerljive rezultate glede svetlobnotehničnih razredov in sta med seboj
zamenljivi. Na nacionalni ravni je dopustna kakršnakoli prilagoditev teh metod ali uporaba katerekoli
druge ustrezne metode.
SIST-TP CEN/TR 13201-1 : 2015
1 Področje uporabe
To tehnično poročilo določa svetlobnotehnične razrede, podane v EN 13201-2, in podaja smernice za
izbiro najustreznejšega svetlobnotehničnega razreda za dano situacijo. Zato vključuje sistem za
določanje ustreznih svetlobnotehničnih razredov za različna zunanja javna področja ob upoštevanju
parametrov, ki zagotavljajo izpolnjevanje ciljev, navedenih v uvodu.
Odločitev, katera cesta naj bo razsvetljena, je določena v nacionalni politiki cestne razsvetljave. Ta
politika se razlikuje med državami ali občinami. Posebne smernice so navadno na voljo na nacionalni
ravni za vsako državo. To tehnično poročilo ne podaja meril, na podlagi katerih naj bi bila sprejeta
odločitev o osvetlitvi določenega področja ali kako naj se naprave za razsvetljavo uporabljajo. Nadaljnja
navodila so podana v dokumentu CIE 115:2010 (člen 1.2 in dodatek A).
Metode, predstavljene v točkah 5, 6 in 7, je treba obravnavati kot začetne točke celovitega pristopa k
normalni cestni razsvetljavi. Zato modeli ne morejo zajeti vseh različnih primerov na cestah, temveč
uvajajo splošne parametre in njihov vpliv na zahteve za razsvetljavo. Samo realna situacija in njene
edinstvene značilnosti (geometrija ceste, oznake, vidno okolje, zahtevnost navigacije, slaba vidljivost,
tveganje bleščanja zaradi obstoječih obcestnih elementov, lokalni vremenski pogoji, specifični
udeleženci v prometu, kot so velik delež starejših ali oseb s slabšim vidom itd.) lahko vodijo do končne
opredelitve svetlobnotehničnega razreda z uporabo tehnik vrednotenja tveganja.
Vidne potrebe udeležencev v prometu v času manjše gostote prometa v določenih nočnih obdobjih ali
pri spreminjajočih se vremenskih pogojih ter pozitivne koristi zaradi zmanjšane porabe energije in
morebitnega izboljšanja okolja so nekateri dejavniki, ki upravičujejo postavitev prilagodljive cestne
razsvetljave. Obstaja veliko primernih instrumentov, naprav in metod, ki se lahko uporabijo za
inteligentno krmiljenje inštalacije cestne razsvetljave. Sistemi za regulacijo cestne razsvetljave so lahko
zelo preprosti ali pa so njihove izvedbe zelo izpopolnjene. Dodatek B je v pomoč pri izbiri pravilnega
nivoja razsvetljave pri uporabi prilagodljive razsvetljave, ker podaja izpopolnjeno ovrednotenje nivojev
svetlosti ali osvetljenosti v okviru določenega svetlobnotehničnega razreda. Medtem ko se nivoji
svetlosti ali osvetljenosti lahko spreminjajo glede na zmanjšano prometno gostoto, vremenske pogoje
ali druge parametre, naj se parametri kakovosti ustreznega svetlobnotehničnega razreda, določeni v EN
13201-2, ves čas vzdržujejo.
Obnova ali prenova zastarelih in neekonomičnih naprav za razsvetljavo je pomembna. Z uporabo novih
zasnov in nove tehnologije je mogoče doseči prilagodljivejše nivoje razsvetljave ob manjši porabi
energije. Nadgradnja sistemov za razsvetljavo in njene regulacije pogosto da dobro razmerje med
stroški in koristmi ter kratka amortizacijska obdobja.
Ta dokument ne podaja smernic za izbiro svetlobnotehničnih razredov za cestninske postaje, predore
ali kanale in zapornice.
2 Zveze s standardi
Za uporabo tega standarda so v celoti ali delno nujno potrebni naslednji referenčni dokumenti. Pri
datiranih sklicevanjih velja samo navedena izdaja. Pri nedatiranih sklicevanjih se uporablja zadnja izdaja
referenčnega dokumenta (vključno z vsemi dopolnili).
EN 13201-2 Cestna razsvetljava – 2. del: Zahtevane lastnosti
EN 13201-3 Cestna razsvetljava – 3. del: Izračun lastnosti
3 Izrazi in definicije
V tem dokumentu se uporabljajo izrazi in definicije iz EN 13201-2 in EN 13201-3 ter naslednji izrazi:
3.1
normalni svetlobnotehnični razred
razred z navečjo vrednostjo povprečne svetlosti ali osvetljenosti v vsakem obdobju obratovanja
SIST-TP CEN/TR 13201-1 : 2015
3.2
prilagodljiva razsvetljava
časovno odvisne spremembe svetlosti ali osvetljenosti glede na gostoto prometa, čas, vreme in druge
parametre
3.3
motorni promet (M)
vozila na motorni pogon
3.4
konfliktno področje (C)
ustrezno področje, kjer se križajo tokovi motornega prometa ali prekrivajo področja, ki jih pogosto
uporabljajo drugi udeleženci v prometu
3.5
površina za pešce in področje za počasni promet (P)
ustrezno področje, rezervirano za pešce ali kolesarje in motorna vozila z manjšo hitrostjo (≤ 40 km/h)
3.6
predvidena hitrost
hitrost, izbrana glede na konstrukcijo in geometrijske lastnosti ceste in je merilo za kakovost
konstrukcije, ki jo nudi cesta
Opomba 1: Najvišja konstantna hitrost, pri kateri lahko posamezna vozila varno potujejo po cesti, ko so vremenske razmere
ugodne in je gostota prometa tako majhna, da je varna hitrost določena z geometričnimi lastnostmi ceste.
3.7
gostota prometa
število vozil, ki prečkajo določeno točko v danem časovnem obdobju v obeh smereh
Opomba 1: Na primer, povprečni dnevni promet se meri kot število vozil na dan.
3.8
največja zmogljivost
največji prometni pretok (gostota prometa), ki ga je mogoče pričakovati v določeni točki ali na določenem
odseku ceste ali vozišča v določenem časovnem obdobju pri trenutnih cestnih, prometnih in nadzornih
pogojih
Opomba 1: Ponavadi je izražena kot vozilo/uro ali vozilo/dan.
3.9
gostota prometa
povprečno število vozil, ki zasedajo določeno dolžino ceste ali vozišča v določenem časovnem obdobju
Opomba 1: Ponavadi je izražena kot vozilo/km ali vozilo/km/ceste.
3.10
sestava p
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
