EN 15091:2013

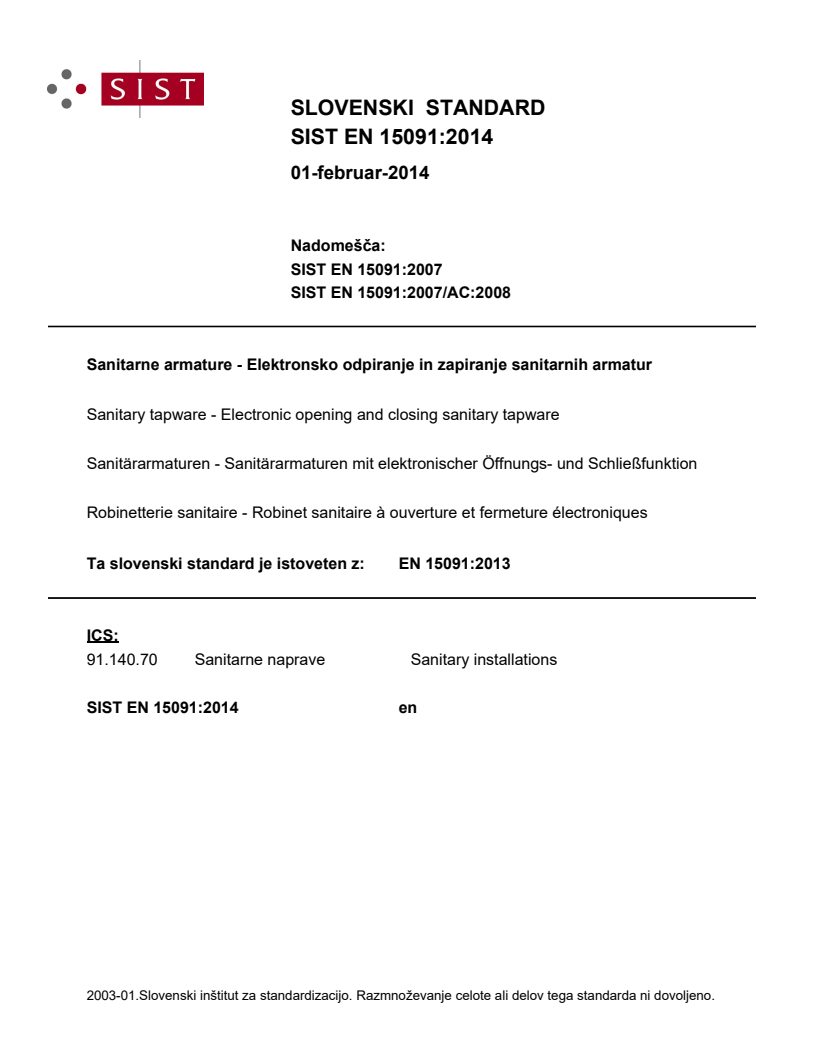

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Sanitarne armature - Elektronsko odpiranje in zapiranje sanitarnih armaturSanitärarmaturen - Sanitärarmaturen mit elektronischer Öffnungs- und SchließfunktionRobinetterie sanitaire - Robinet sanitaire à ouverture et fermeture électroniquesSanitary tapware - Electronic opening and closing sanitary tapware91.140.70Sanitarne napraveSanitary installationsICS:Ta slovenski standard je istoveten z:EN 15091:2013SIST EN 15091:2014en01-februar-2014SIST EN 15091:2014SLOVENSKI
STANDARDSIST EN 15091:2007/AC:2008SIST EN 15091:20071DGRPHãþD

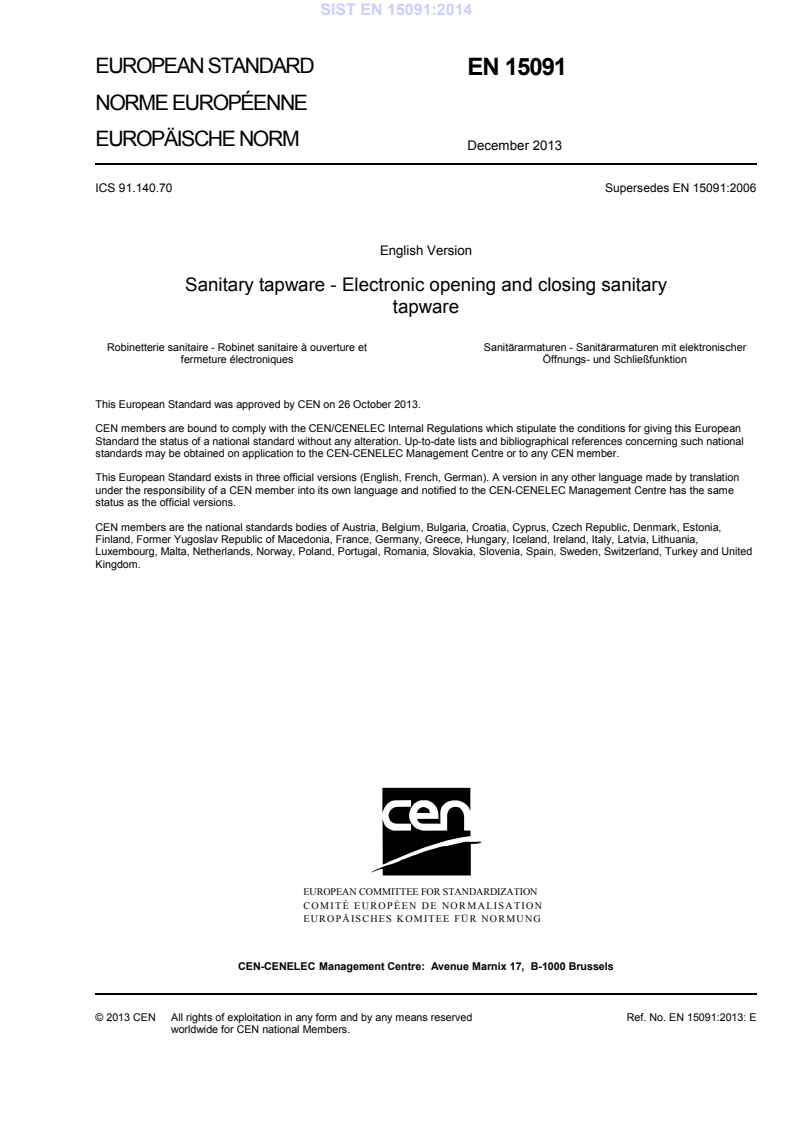

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 15091
December 2013 ICS 91.140.70 Supersedes EN 15091:2006English Version
Sanitary tapware - Electronic opening and closing sanitary tapware
Robinetterie sanitaire - Robinet sanitaire à ouverture et fermeture électroniques
Sanitärarmaturen - Sanitärarmaturen mit elektronischer Öffnungs- und Schließfunktion This European Standard was approved by CEN on 26 October 2013.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2013 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 15091:2013: ESIST EN 15091:2014

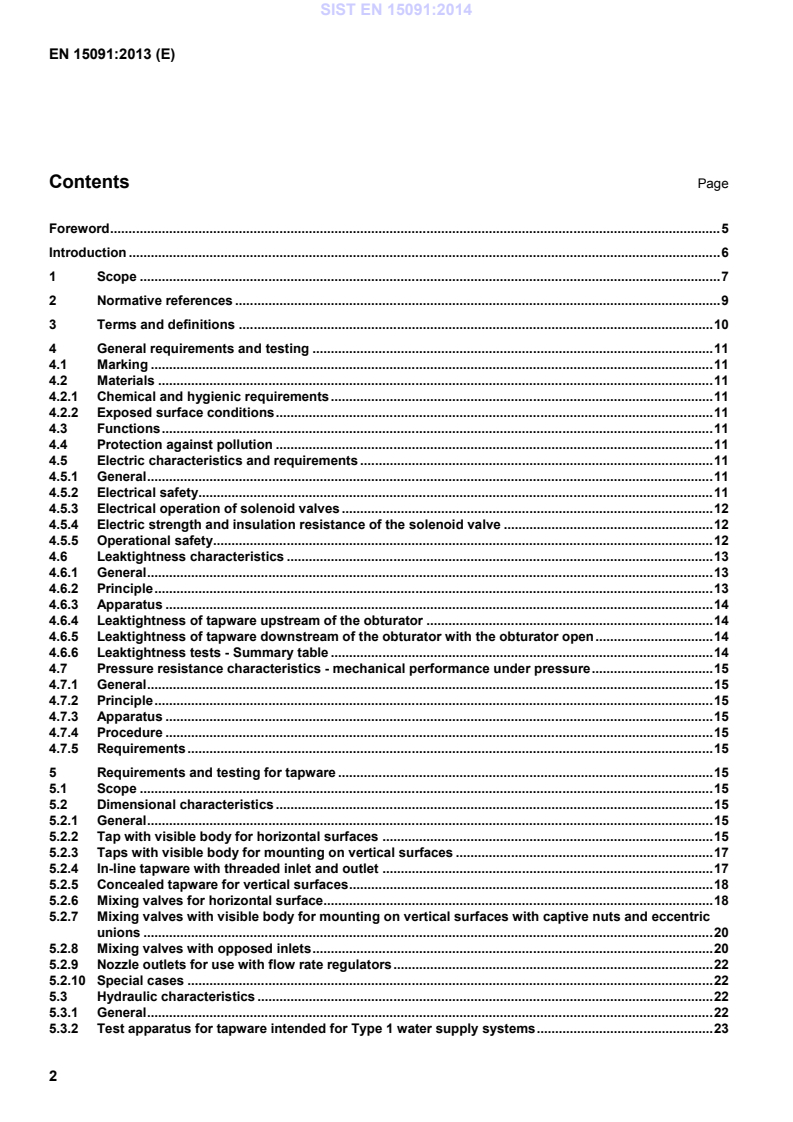

Design of pressure take-off tees . 48 Annex B (informative)
Potential consequences of use outside the recommended operating limits . 50 Bibliography . 51
MARKING DIMENSIONAL CHARACTERISTICS ENDURANCE ACOUSTIC ELECTRICAL SAFETY OPERATIONAL SAFETY LEAKTIGHTNESS MECHANICAL RESISTANCE HYDRAULIC CHARACTERISTICS WATER HAMMER WATER HAMMER FOLLOWING PRODUCT STANDARD Clause 4.General requirements and testing X
X X X X
Clause 5. Requirements and testing for tapware
X X X
X X
Clause 6. Requirements and testing for flushing valves for urinals
X X
X X
Clause 7. Requirements and testing for flushing valves for WCs
X X X
X
X
Limits of use Recommended limits of operation Tapware with normally open or normally closed (monostable) solenoid valves Tapware with latching (bistable) solenoid valves Tapware with normally open or normally closed (monostable) solenoid valves Tapware with latching (bistable) solenoid valves Type 1 (see Figure 1) Minimum dynamic pressure 0,05 MPa (0,5 bar) 0,05 MPa (0,5 bar) (0,1 to 0,5) MPa [(1 to 5) bar] (0,1 to 0,5) MPa [(1 to 5) bar] Maximum static pressure 1 MPa (10 bar) 1 MPa (10 bar) 1 MPa (10 bar) 0.8 MPa (8 bar) Type 2 a (see Figure 2) Minimum dynamic pressure 0,01 MPa (0,1 bar) 0,01 MPa (0,1 bar) (0,01 to 0,2) MPa [(0,1 to 2) bar] (0,01 to 0,2) MPa [(0,1 to 2) bar] Maximum static pressure 1 MPa (10 bar) 1 MPa (10 bar) 0.8 MPa (8 bar) 0.6 MPa (6 bar) Temperature of the water ≤ 75 °C ≤ 75 °C ≤ 65 °C ≤ 65 °C a For Type 2, the manufacturer is to declare the minimum operating pressure at which opening, closing and the specified flow rate can be obtained. There is usually no acoustic classification for tapware used in supply systems of Type 2 and no specifications governing the level of noise emissions from these water installations. If supply pressures are such that excessive noise is generated it is recommended that pressure or flow regulators are fitted in the system. Or where practicable, tapware conforming to the appropriate acoustic classification are used.
Annex B lists possible consequences of using a product outside its recommended operating range. SIST EN 15091:2014

Key 1 cold water 3 mains supply pipe (Supply pressures from (0,05 to 1,0) MPa ((0,5 - 10) bar) 2 hot water 4 water heater Figure 1 —Type 1 — Supply system with a pressure range of (0,05 to 1,0) MPa ((0,5 to 10) bar) SIST EN 15091:2014

Key 1 cold water storage cistern (cover omitted for clarity) 2 warning pipe 3 vent pipe 4 hot water cylinder 5 alternative cistern fed cold supply to sanitary appliances 6 to boiler 7 mains supply pipe (Supply pressures up to 8 bar) Figure 2 — Type 2 — Supply system with a pressure range of (0,01 to 0,8) MPa ((0,1 to 8) bar) A vented domestic hot water and cold water supply system incorporating gravity hot water, mains cold water and alternative gravity cold water supply to sanitary appliances. 2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 31, Wash basins — Connecting dimensions SIST EN 15091:2014

Figure 3 — Tap with visible body for horizontal surface Table 4 — Dimensions Dimension Values mm Comments A G 1/2 B or G 3/4 B
B 29 max.
C 11 min.
D 90 min. Dimension from the centre of the outlet orifice as supplied. E a 25 min. Dimension from lowest point of the outlet orifice to the mounting surface for taps intended for Type 1 supply systems and taps intended for Type 2 supply systems – except sinks. G 45 min. Smallest dimension of the tap base L Value that enables the tapware to be mounted on a support between 1 mm and 18 mm in thickness and connected to the water supply. a Larger dimensions may be required per national regulatory provisions.
NOTE Supply by flexible hose complying with EN 13618 is permitted. SIST EN 15091:2014

Figure 4 — Threaded inlets of taps with visible body for mounting on vertical surfaces Table 5 — Dimensions of threaded inlets Dimension Values (mm) A G 1/2 B G 3/4 B C 11 min. 13 min.
5.2.4 In-line tapware with threaded inlet and outlet 5.2.4.1 Inlets and outlets aligned The standardized dimensions of electronic opening and closing tapware (see Figure 5 and Table 6) shall: — comply with Figure 5 and Table 6 in the case of inlet dimensions; — provide various options for connecting to the water supply.
Figure 5 — Tapware with inlets and outlets aligned SIST EN 15091:2014

Figure 6 — Tapware with inlets and outlets at right angles Table 6 — Dimensions of threads Dimension Values
mm A (male) G 1/2 B G 3/4 B D (female) G 1/2 G 3/4 C 8 min. 10 min.
In the event of a different inlet and outlet size the nominal size is that of the inlet, and the outlet size shall be stated (e.g. In-line tapware G 1/2 B male with female outlet G 3/4 with inlet and outlet aligned). 5.2.5 Concealed tapware for vertical surfaces The dimensions are left to the discretion of the manufacturer. 5.2.6 Mixing valves for horizontal surface 5.2.6.1 General The standardized dimensions of electronic opening and closing mixing valves (see Figure 7, Figure 8 and Table 7) shall: — facilitate mounting and interchangeability on sanitary appliances complying with EN 31, EN 35, EN 36, and EN 695; — provide various options for connecting to the water supply. SIST EN 15091:2014

Figure 7 — Mixing valves for horizontal mounting threaded inlet Figure 8 — Mixing valves for horizontal mounting, stud connection SIST EN 15091:2014

Hose in accordance with EN 13618 with: Plain end exterior Î 10 or with G 3/8 (male or female thread) or G1/2 (male or female thread) U 350 min. May be reduced down to 220 subject to agreement between the manufacturer and the customer V 32 max. Maximal dimension of projection to rear measured from axis of diameter J a Larger dimensions may be required per national regulatory provisions.
5.2.6.3 Supply by flexible hose Supply hoses shall comply with the requirements of EN 13618. 5.2.7 Mixing valves with visible body for mounting on vertical surfaces with captive nuts and eccentric unions The standardized dimensions of electronic opening and closing tapware (see Figure 9 and Table 8) shall: — inlet dimensions of mixing valves shall comply with Figure 9 and Table 8; — provide the various options for connecting to the water supply. 5.2.8 Mixing valves with opposed inlets The standardized dimensions of electronic opening and closing tapware shall: — inlet dimensions of mixing valves with opposed inlets comply with Figure 10 and Table 8 in the case of inlet dimensions of mixing valves with opposed inlets; — provide various options for connecting to the water supply. SIST EN 15091:2014

Figure 9 — Mixing valve with captive nuts and eccentric unions
Figure 10 — Mixer with opposed inlets SIST EN 15091:2014

a It is permitted to serrate or knurl this thread to assist the retention of sealing tape or compounds. In such cases, the lower deviation tolerance on the basic major diameter indicated in EN ISO 228-1 may be increased to – 0,35 mm. Use of deformable washers is permissible. NOTE Other dimensions are permissible (for replacement) when market tradition requires it, provided the manufacturer specifies the actual dimensions in literature to avoid confusion with the standard dimension – which can be achieved using an excentric connection.
5.2.9 Nozzle outlets for use with flow rate regulators Nozzle outlets to accept flow rate regulators shall be in accordance with EN 246. Nozzle outlets not in accordance with EN 246 are covered by 5.2.10. 5.2.10 Special cases Tapware intended for special applications e.g. for installation on sanitary appliances not conforming with European Standards or where dimensional interchangeability is not a requirement may incorporate dimensional deviations, provided: — all other requirements of this standard are satisfied; — secure fixing to the mounting surface is provided with all fixing holes covered; — thread connection to the supply pipes complies with EN ISO 228-1; — suitable air gap dimension or a backflow prevention device is provided. The manufacturer's literature including the installation instructions supplied with the tapware shall indicate clearly that the tapware has unique characteristics e.g. not standard dimensions. 5.3 Hydraulic characteristics 5.3.1 General The tests described are type tests (laboratory tests), not quality control tests carried out during manufacture. This clause gives a test method for measuring the flow rate and the cross-flow between the hot and cold water supply for a given pressure. SIST EN 15091:2014
...
