EN 13042-3:2007+A1:2009
(Main + Amendment)Machines and plants for the manufacture, treatment and processing of hollow glass - Safety requirements - Part 3: IS machines
Machines and plants for the manufacture, treatment and processing of hollow glass - Safety requirements - Part 3: IS machines
1.1 This European Standard applies to the design and installation of IS machines including the gob distributor and machine conveyor.
1.2 ! This European Standard deals with the significant hazards, hazardous situations and events relevant to IS machines, when they are used as intended and under the conditions of misuse which are reasonably foresee-able by the manufacturer (see Clause 4). This European Standard specifies the appropriate technical measures to eliminate or reduce risks arising from significant hazards during commissioning, operation and maintenance."
1.3 This European Standard does not deal with gob feeders (see EN 13042-1) and handling machines for feed-ing (see EN 13042-2) which are self-standing machines used for the delivery of portions of melted glass to hollow-glass-forming machines such as glass presses (see EN 13042-5).
1.4 This European Standard is not applicable to IS machines which are manufactured before the date of publication of this European Standard by CEN.
Maschinen und Anlagen für die Herstellung, Be- und Verarbeitung von Hohlglas - Sicherheitsanforderungen - Teil 3: IS-Maschinen
1.1 Diese Europäische Norm gilt für die Konstruktion und die Installation von IS-Maschinen einschließlich
des Tropfenverteilers und des Maschinenbands.
1.2 !Diese Europäische Norm behandelt die signifikanten Gefährdungen, Gefährdungssituationen und
Gefährdungsereignisse, die auf IS-Maschinen zutreffen, wenn sie bestimmungsgemäß und unter den
Bedingungen des Missbrauchs, die vernünftigerweise vom Hersteller vorhersehbar sind, verwendet werden
(siehe Abschnitt 4). Diese Europäische Norm spezifiziert die entsprechenden technischen Maßnahmen zur
Beseitigung oder Verminderung der Risiken, die von den signifikanten Gefährdungen während der
Inbetriebnahme, Bedienung und Wartung ausgehen."
1.3 Diese Europäische Norm befasst sich nicht mit Tropfenspeisern (siehe EN 13042-1) und Handhabungsmaschinen
zum Speisen (siehe EN 13042-2), die eigenständige Maschinen darstellen, die zur Abgabe von
Portionen von schmelzflüssigem Glas an Hohlglas-Formgebungsmaschinen, wie z. B. Glaspressen (siehe
EN 13042-5), verwendet werden.
1.4 Diese Europäische Norm gilt nicht für IS-Maschinen, die hergestellt wurden, bevor CEN diese
Europäische Norm veröffentlichte.
Machines et installations pour la production, le façonnage et la transformation du verre creux - Exigences de sécurité - Partie 3: Machines IS
1.1 La présente Norme européenne s’applique à la conception et à l'installation des machines IS, y compris
le distributeur de paraisons et le convoyeur.
1.2 !La présente Norme européenne traite des phénomènes dangereux significatifs, situations dangereuses et
événements dangereux relatifs aux machines IS lorsqu'elles sont utilisées comme prévu et dans des conditions de
mauvais usage raisonnablement prévisibles par le fabricant (voir Article 4). La présente Norme européenne spécifie
les mesures techniques appropriées permettant d’éliminer ou de réduire les risques dus aux phénomènes dangereux
significatifs pendant la mise en service, le fonctionnement et la maintenance."
1.3 La présente Norme européenne ne traite ni des machines d’alimentation en paraison (voir l’EN 13042-1)
ni des machines de chargement (voir l’EN 13042-2), qui sont des machines autonomes utilisées pour la distribution
de paraisons pour le façonnage de verre creux, comme les presses (voir l’EN 13042-5).
1.4 La présente Norme européenne ne s’applique pas aux machines IS fabriquées avant sa date de publication
par le CEN.
Stroji in obrati za proizvodnjo, obdelavo in predelavo votlega stekla - Varnostne zahteve - 3. del: Stroji IS
General Information
Relations
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Stroji in obrati za proizvodnjo, obdelavo in predelavo votlega stekla - Varnostne zahteve - 3. del: Stroji ISMaschinen und Anlagen für die Herstellung, Be- und Verarbeitung von Hohlglas - Sicherheitsanforderungen - Teil 3: IS-MaschinenMachines et installations pour la production, le façonnage et la transformation du verre creux - Exigences de sécurité - Partie 3: Machines ISMachines and plants for the manufacture, treatment and processing of hollow glass - Safety requirements - Part 3: IS machines81.100Equipment for the glass and ceramics industriesICS:Ta slovenski standard je istoveten z:EN 13042-3:2007+A1:2009SIST EN 13042-3:2007+A1:2009en,fr01-oktober-2009SIST EN 13042-3:2007+A1:2009SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13042-3:2007+A1
July 2009 ICS 81.100 Supersedes EN 13042-3:2007English Version
Machines and plants for the manufacture, treatment and processing of hollow glass - Safety requirements - Part 3: IS machines
Machines et installations pour la production, le façonnage et la transformation du verre creux - Exigences de sécurité - Partie 3: Machines IS
Maschinen und Anlagen für die Herstellung, Be- und Verarbeitung von Hohlglas - Sicherheitsanforderungen - Teil 3: IS-Maschinen This European Standard was approved by CEN on 15 December 2006 and includes Amendment 1 approved by CEN on 19 June 2009.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2009 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 13042-3:2007+A1:2009: ESIST EN 13042-3:2007+A1:2009

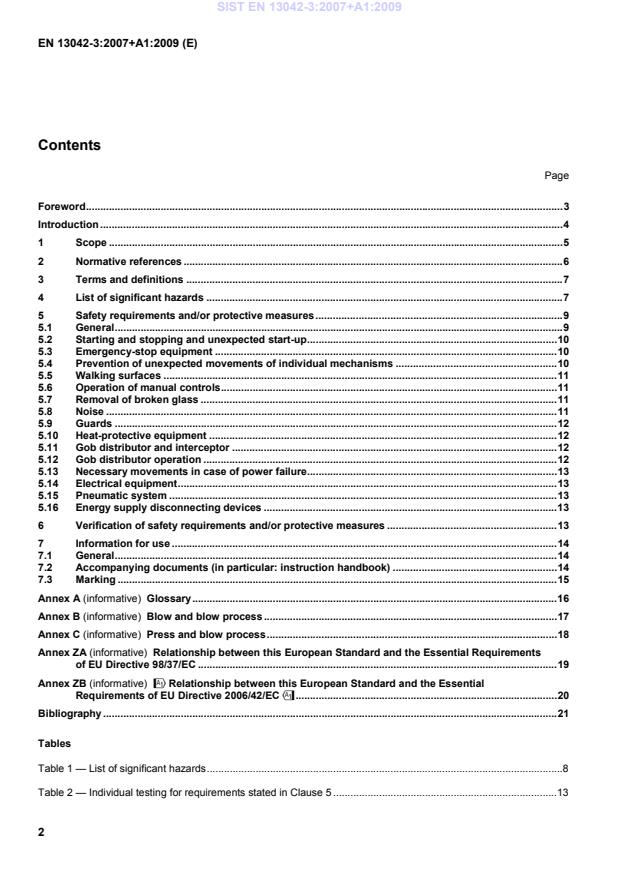

Glossary . 16 Annex B (informative)
Blow and blow process . 17 Annex C (informative)
Press and blow process . 18 Annex ZA (informative)
Relationship between this European Standard and the Essential Requirements of EU Directive 98/37/EC . 19 Annex ZB (informative)
!Relationship between this European Standard and the Essential
Requirements of EU Directive 2006/42/EC" . 20 Bibliography . 21
Tables Table 1 — List of significant hazards . 8 Table 2 — Individual testing for requirements stated in Clause 5 .13
Each manufacturing section is con-trolled individually, synchronously with the feeding of the glass gob, by an electrical linkage.
Each section can be isolated individually from the gob distributor and shut down. The types of processes performed on the IS machine – see also 3.3 –, the operation names of each part of the process and the names of specific parts of a section are shown in Annex B (informative) and Annex C (informative). !When compiling this European Standard it was assumed that due to the heat of the processed material and the need for the use of auxiliary aids, such as tongs, during work in the danger zone of the closing mould, there is typi-cally no significant risk from the closing movement of the mould parts during the normal shaping process of hot glass." SIST EN 13042-3:2007+A1:2009
1 Scope 1.1 This European Standard applies to the design and installation of IS machines including the gob distributor and machine conveyor. 1.2 ! This European Standard deals with the significant hazards, hazardous situations and events relevant to IS machines, when they are used as intended and under the conditions of misuse which are reasonably foresee-able by the manufacturer (see Clause 4). This European Standard specifies the appropriate technical measures to eliminate or reduce risks arising from significant hazards during commissioning, operation and maintenance." 1.3 This European Standard does not deal with gob feeders (see EN 13042-1) and handling machines for feed-ing (see EN 13042-2) which are self-standing machines used for the delivery of portions of melted glass to hollow-glass-forming machines such as glass presses (see EN 13042-5). 1.4 This European Standard is not applicable to IS machines which are manufactured before the date of publica-tion of this European Standard by CEN. SIST EN 13042-3:2007+A1:2009
For undated references, the latest edition of the referenced document (including any amendments) applies. EN 294:1992, Safety of machinery — Safety distances to prevent danger zones being reached by the upper limbs !deleted text" EN 894-3:2000, Safety of machinery — Ergonomics requirements for the design of displays and control actuators — Part 3: Control actuators EN 953:1997, Safety of machinery — Guards — General requirements for the design and construction of fixed and movable guards !deleted text" EN 983:1996, Safety of machinery — Safety requirements for fluid power systems and their components — Pneu-matics EN 999:1998, Safety of machinery — The positioning of protective equipment in respect of approach speeds of parts of the human body EN 1037:1995, Safety of machinery — Prevention of unexpected start-up !deleted text" EN 1088:1995, Safety of machinery — Interlocking devices associated with guards — Principles for design and selection !EN ISO 3744:1995, Acoustics — Determination of sound power levels of noise sources using sound pres-sure — Engineering method in an essentially free field over a reflecting plane (ISO 3744:1994)" EN ISO 3746:1995, Acoustics — Determination of sound power levels of noise sources using sound pressure — Survey method using an enveloping measurement surface over a reflecting plane (ISO 3746:1995) !EN ISO 3747:2000, Acoustics — Determination of sound power levels of noise sources using sound pres-sure — Comparison method for use in situ (ISO 3747:2000)" EN ISO 11204:1995, Acoustics — Noise emitted by machinery and equipment — Measurement of emission sound pressure levels at the work station and at other specified positions — Method requi
...
