EN 14891:2007
(Main)Liquid applied water impermeable products for use beneath ceramic tiling bonded with adhesives - Requirements, test methods, evaluation of conformity, classification and designation
Liquid applied water impermeable products for use beneath ceramic tiling bonded with adhesives - Requirements, test methods, evaluation of conformity, classification and designation
This European Standard applies to all liquid-applied water impermeable products, based on polymer modified cementitious mortars, dispersions and reaction resin coatings, used beneath ceramic tiling, for internal and external tile installations on walls and floors.
This European Standard gives the terminology concerning the products and specifies the test methods and the values of performance requirements for liquid applied water impermeable products associated with tile adhesives.
This European Standard specifies the evaluation of conformity and the classification and designation of liquid-applied water impermeable products beneath ceramic tiling.
This European Standard does not contain recommendations for the design and installation of ceramic tiles and grouts in combination with water impermeable products.
NOTE 1 Liquid-applied water impermeable products may also be used beneath other types of tiles (natural and agglomerated stones etc.), where they do not adversely affect these materials.
NOTE 2 The user of this European Standard should be familiar with normal laboratory practice. This European Standard does not purport to address all the safety problems associated with its use. It is the responsibility of the user to establish appropriate health and safety practices and to ensure compliance with any European and national regulatory conditions.
Flüssig zu verarbeitende wasserundurchlässige Produkte im Verbund mit keramischen Fliesen- und Plattenbelägen - Anforderungen, Prüfverfahren, Konformitätsbewertung, Klassifizierung und Bezeichnung
Diese Europäische Norm gilt für alle flüssig zu verarbeitenden wasserundurchlässigen Produkte, die aus Schichten auf der Basis von polymermodifiziertem Zementmörtel, Dispersions- und Reaktionsharzen bestehen und unter keramischen Fliesen und Platten für Wand und Boden im Innen und Außenbereich verwendet werden.
Diese Europäische Norm enthält die Terminologie für die Produkte und legt die Prüfverfahren und die Werte für die Leistungsanforderungen an flüssig zu verarbeitende wasserundurchlässige Produkte in Verbindung mit Fliesenkleber fest.
Diese Europäische Norm legt die Konformitätsbewertung sowie die Klassifizierung und Bezeichnung von flüssig zu verarbeitenden wasserundurchlässigen Produkten, die unter keramischen Fliesen und Platten verwendet werden, fest.
Diese Europäische Norm enthält keine Empfehlungen für die Anwendung und Verarbeitung der Keramikfliesen und ihre Verlegung in Verbindung mit wasserundurchlässigen Produkten.
ANMERKUNG 1 Flüssig zu verarbeitende wasserundurchlässige Produkte dürfen auch unter anderen Fliesenarten (Natur und Kunststeinfliesen usw.) angewendet werden, sofern sie keinen nachteiligen Einfluss auf diese Materialien ausüben.
ANMERKUNG 2 Die Anwender dieser Europäischen Norm sollten mit der üblichen Laborpraxis vertraut sein. Diese berücksichtigt nicht alle bei ihrer Anwendung möglicherweise auftretenden Sicherheitsprobleme. Es liegt in der Verantwortung des Anwenders, geeignete Verhaltensregeln zur Sicherheit und zur Gesundheit festzulegen und deren Übereinstimmung mit den Bestimmungen aller europäischen und nationalen Regelungen sicherzustellen.
Produits d'imperméabilisation appliqués en phase liquide utilisés sous carrelage collé - Spécifications, méthodes d'essai, évaluation de la conformité, classification et désignation
La présente Norme européenne s’applique à tous les produits d’imperméabilisation à base de mortiers de ciment modifiés par des polymères, de résine réactive et de résine en dispersion appliqués en phase liquide et utilisés sous carrelage collé, pour la pose des carreaux céramiques au sol et mur, en intérieur et extérieur.
La présente Norme Européenne donne la terminologie concernant les produits et prescrit les méthodes d’essai ainsi que les exigences performancielles des produits d’imperméabilisation à l’eau appliqués sous forme liquide en association avec des colles à carrelage.
La présente Norme Européenne spécifie l’évaluation de la conformité, la classification et la désignation des produits d’imperméabilisation destinés à être utilisés sous du carrelage céramique.
La présente Norme Européenne ne contient pas de recommandations relatives à la conception et à la pose de carreaux céramiques ni à la réalisation de joints, en association avec les produits d’imperméabilisation.
NOTE 1 Les produits d’imperméabilisation peuvent également être utilisés pour la pose d’autres types de carreaux (pierres naturelles ou agglomérées, etc.), si ils sont compatibles avec ces matériaux.
NOTE 2 L’utilisateur de la présente Norme Européenne doit bien connaître les pratiques courantes de laboratoire. La présente Norme Européenne n’a pas pour but de traiter tous les problèmes de sécurité qui sont, le cas échéant, liés à son utilisation. Il incombe à l’utilisateur de la présente norme d’établir des pratiques appropriées en matière d’hygiène et de sécurité, et de s’assurer de la conformité à toute réglementation nationale et européenne en vigueur.
Tekoče vgrajevani za vodo neprepustni izdelki za uporabo pod keramičnimi ploščicami, lepljenimi z lepili - Zahteve, preskusne metode, ugotavljanje skladnosti, klasifikacija in označevanje
Ta evropski standard velja za vse tekoče vgrajevane za vodo neprepustne izdelke na osnovi polimerno spremenjenih cementnih malt, disperzije in reakcijske smolne premaze, ki se uporabljajo pod keramičnimi ploščicami za notranjo in zunanjo vgradnjo ploščic na stenah in tleh. Ta evropski standard podaja terminologijo v zvezi z izdelki in določa preskusne metode in vrednosti zahtev za zmogljivost tekoče vgrajevanih za vodo neprepustnih izdelkov, povezanih z lepili za ploščice. Ta evropski standard določa vrednotenje skladnosti in klasifikacijo ter označevanje tekoče vgrajevanih za vodo neprepustnih izdelkov pod keramičnimi ploščicami. Ta evropski standard ne vsebuje priporočil za zasnovo in vgradnjo keramičnih ploščic in fugirnih malt v kombinaciji z za vodo neprepustnimi izdelki.
General Information
Relations
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.PLþQLPLDYOMDQMHFlüssig zu verarbeitende wasserundurchlässige Produkte im Verbund mit keramischen Fliesen- und Plattenbelägen - Anforderungen, Prüfverfahren, Konformitätsbewertung, Klassifizierung und BezeichnungProduits d'imperméabilisation pour la pose collée du carrelage - Spécification, méthodes d'essai, évaluation de la conformité, classification et désignationLiquid applied water impermeable products for use beneath ceramic tiling bonded with adhesives - Requirements, test methods, evaluation of conformity, classification and designation91.100.50Veziva. Tesnilni materialiBinders. Sealing materials91.100.23Ceramic tilesICS:Ta slovenski standard je istoveten z:EN 14891:2007SIST EN 14891:2008en01-februar-2008SIST EN 14891:2008SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 14891August 2007ICS 91.100.25 English VersionLiquid applied water impermeable products for use beneathceramic tiling bonded with adhesives - Requirements, testmethods, evaluation of conformity, classification and designationProduits d'imperméabilisation pour la pose collée ducarrelage - Spécification, méthodes d'essai, évaluation dela conformité, classification et désignationFlüssig zu verarbeitende wasserundurchlässige Produkteim Verbund mit keramischen Fliesen- und Plattenbelägen -Anforderungen, Prüfverfahren, Konformitätsbewertung,Klassifizierung und BezeichnungThis European Standard was approved by CEN on 2 December 2006.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the CEN Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as theofficial versions.CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2007 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 14891:2007: ESIST EN 14891:2008

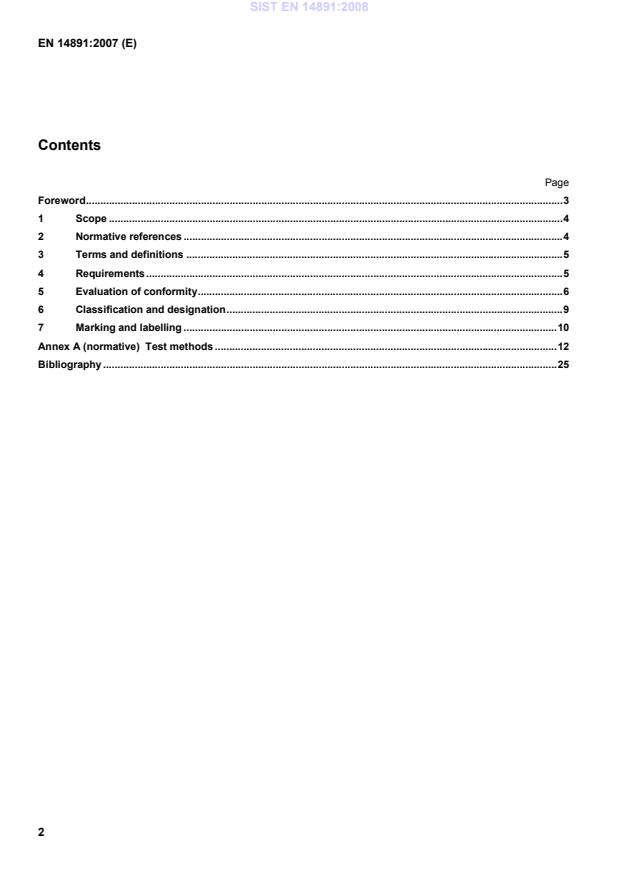

Test methods.12 Bibliography.25
1 Scope This European Standard applies to all liquid-applied water impermeable products, based on polymer modified cementitious mortars, dispersions and reaction resin coatings, used beneath ceramic tiling, for internal and external tile installations on walls and floors. This European Standard gives the terminology concerning the products and specifies the test methods and the values of performance requirements for liquid-applied water impermeable products associated with tile adhesives. This European Standard specifies the evaluation of conformity and the classification and designation of liquid-applied water impermeable products beneath ceramic tiling. This European Standard does not contain recommendations for the design and installation of ceramic tiles and grouts in combination with water impermeable products. NOTE 1 Liquid-applied water impermeable products may also be used beneath other types of tiles (natural and agglomerated stones etc.), where they do not adversely affect these materials. NOTE 2 The user of this European Standard should be familiar with normal laboratory practice. This European Standard does not purport to address all the safety problems associated with its use. It is the responsibility of the user to establish appropriate health and safety practices and to ensure compliance with any European and national regulatory conditions. 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 196-1, Methods of testing cement — Part 1: Determination of strength EN 197-1, Cement — Part 1: Composition, specifications and conformity criteria for common cements EN 480-1:2006, Admixture for concrete, mortar and grout — Test methods — Part 1: Reference concrete and mortar for testing EN 1008, Mixing water for concrete — Specification for sampling, testing and assessing the suitability of water, including water recovered from processes in the concrete industry, as mixing water for concrete EN 1067, Adhesives — Examination and preparation of samples for testing EN 1323, Adhesives for tiles — Concrete slab for test EN 12004, Adhesives for tiles — Definitions and specifications EN 12390-2, Testing hardened concrete — Part 2: Making and curing specimens for strength tests EN 12620, Aggregates for concrete EN 14411, Ceramic tiles — Definitions, classification, characteristics and marking EN ISO 15605, Adhesives — Sampling (ISO 15605:2000) SIST EN 14891:2008
(CM) mixture of hydraulic binding agents, aggregates and organic additives that has only to be mixed with water or liquid admixture just before use 3.3 dispersion liquid-applied water impermeable product
(DM) mixture of organic binding agent(s) in the form of an aqueous polymer dispersion, organic additives and mineral fillers NOTE The mixture is ready for use 3.4 reaction resin liquid-applied water impermeable product
(RM) mixture of synthetic resin, mineral fillers and organic additives in which hardening occurs by chemical reaction NOTE
They are available in one or more component forms 3.5 crack bridging ability ability of the hardened waterproofing material to withstand propagation of the cracks without deterioration 3.6 primer liquid coating applied to the surface, prior to the application of a liquid product, to improve adhesion and durability of the bond 3.7 fundamental characteristics characteristics that a liquid-applied water impermeable product always needs to have 3.8 optional characteristics characteristics for specific service conditions where enhanced levels of performance are required or which provide further information about its general performance 4 Requirements The liquid-applied water impermeable products shall comply with the characteristics specified in Table 1 a. Table 1 b gives the additional characteristics that might be required for special service conditions. The amount of water and/or liquid admixture required for preparing the cementitious liquid-applied water impermeable products shall be the same for all tests. SIST EN 14891:2008
Table 1 — Product requirements 1 a FUNDAMENTAL CHARACTERISTICS Characteristic Requirement Test method Initial tensile adhesion strength ≥ 0,5 N/mm2 A.6.2 Tensile adhesion strength after water contact ≥ 0,5 N/mm2 A.6.3 or A.6.4 Tensile adhesion strength after heat ageing ≥ 0,5 N/mm2 A.6.5 Tensile adhesion strength after freeze-thaw cycles ≥ 0,5 N/mm2 A.6.6 Tensile adhesion strength after contact with lime water ≥ 0,5 N/mm2 A.6.9 Waterproofing No penetration A.7 Crack bridging ability under standard conditions ≥ 0,75 mm A.8.2 1 b OPTIONAL CHARACTERISTICS Characteristic Requirement Test method Tensile adhesion strength after contact with chlorinated water ≥ 0,5 N/mm2 A.6.7 or A.6.8 Crack bridging ability at low temperature (- 5°C) ≥ 0,75 mm A.8.3 Crack bridging ability at very low temperature (- 20°C) ≥ 0,75 mm A.8.3
5 Evaluation of conformity 5.1 Principle The scheme for the evaluation of conformity includes the following elements: initial type tests; Factory Production Control (FPC); registration and traceability. Manufacturers having a Quality System complying with EN ISO 9001 and made specific to the requirements of this European Standard are assumed to meet the requirements related to Factory Production Control. 5.2 Initial type testing On first evaluation of a product to the requirements of this European Standard, or before the beginning of sale of a new product, appropriate initial type testing shall be carried out to confirm that the characteristics of the product meet the requirements of this European Standard. Tests which have previously been performed in accordance with the provisions of this European Standard (same product, same characteristic, test method, sampling procedure etc.) may be taken into account for the purpose of demonstrating satisfactory initial type testing. SIST EN 14891:2008
Table 2 — Initial type testing and production
...
