EN 10243-2:1999
(Main)Steel die forgings - Tolerances on dimensions - Part 2: Upset forging made on horizontal forging machines
Steel die forgings - Tolerances on dimensions - Part 2: Upset forging made on horizontal forging machines
1.1 This European Standard specifies the dimensional tolerances for steel upset forgings made on horizontal forging machines. The second part of this European Standard applies to hot upset forgings, in the delivery condition, made in carbon and alloy steels. The tolerances specified apply to forgings not exceeding 250 kg in mass or 2 500 mm maximum dimension. Tolerances for heavier or layer forgings are subjected to negociation.
Gesenkschmiedeteile - Maßtoleranzen - Teil 2: Warm hergestellt in Waagerecht-Stauchmaschinen
Diese Europäische Norm legt die Maßtoleranzen für Gesenkschmiedeteile aus Stahl, hergestellt auf Waagerecht-Stauchmaschinen, fest. Der zweite Teil dieser Europäischen Norm gilt für warm-gestauchte Schmiedeteile im Lieferzustand, hergestellt aus Kohlenstoff- und legiertem Stahl. Die angegebenen Toleranzen gelten für Schmiedeteile, die 250 kg Masse oder 2.500 mm max. Abmessung nicht überschreiten. Toleranzen für schwere oder größere Schmiedeteile sind Verhandlungssache.
Pièces forgées par estampage en acier - Tolérances dimensionelles - Partie 2: Pièces exécutées à chaud sur machines horizontales à forger
1.1 La présente norme européenne spécifie les tolérances dimensionnelles des pièces en acier exécutées par refoulement à chaud sur machines horizontales à forger. Cette seconde partie de la présente norme européenne s'applique aux pièces en acier au carbone et en acier allié, dans leur état de livraison, exécutées par refoulement à chaud. Les tolérances indiquées sont applicables aux pièces estampées dont la masse n'excède pas 250 kg ou dont la dimension la plus grande n'excède pas 2 500 mm. Les tolérances des pièces estampées plus lourdes ou plus largement dimensionnées doivent faire l'objet d'un accord particulier.
Utopno kovani jekleni izkovki - Mejni odstopki mer - 2. del: Izkovki, izdelani z nakrčevanjem na horizontalnih kovaških strojih
General Information
- Status
- Published
- Publication Date
- 21-Sep-1999
- Withdrawal Date
- 30-Mar-2000
- Technical Committee
- ECISS/TC 111 - Steel castings and forgings
- Drafting Committee
- ECISS/TC 28/SC 1 - Drop forgings
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 22-Apr-2021
- Completion Date
- 14-Apr-2025
Relations
- Effective Date
- 22-Dec-2008
Overview
EN 10243-2:1999 - Steel die forgings: Tolerances on dimensions - Part 2 specifies dimensional tolerances for steel upset forgings produced on horizontal forging machines. Published by CEN, this part covers hot upset forgings in the delivery condition, made from carbon and alloy steels. The tolerances apply to forgings with a mass up to 250 kg or a maximum dimension of 2 500 mm; tolerances for heavier or layered forgings are subject to negotiation between supplier and purchaser.
Key topics and requirements
- Scope and applicability: Defines the range of forgings covered (hot upset forgings on horizontal machines) and material groups (carbon and alloy steels).
- Dimensional tolerances: Sets the method for applying tolerance classes to upset forgings in the delivery condition (note: specific numerical tolerance values are provided in the full standard).
- Size and mass limits: Applies to forgings ≤ 250 kg or ≤ 2 500 mm overall dimension; exceptions and special cases are handled by agreement.
- Delivery condition focus: Tolerances refer to the finished product as supplied, not to intermediate or heat-treated states.
- Negotiation for non-standard items: Provides a basis for contractual negotiation where forgings exceed the standard size/mass limits or for unusual manufacturing methods (e.g., layer forgings).
Practical applications
EN 10243-2 is used to ensure consistent dimensional quality for hot upset forgings produced on horizontal forging presses. Typical applications include:
- Manufacturing and quality control of forgings for automotive, construction, agricultural machinery, valves and fittings, and general engineering.
- Procurement and contract specifications where buyers require standardized forging tolerances for carbon and alloy steel parts.
- Inspection and acceptance testing: quality engineers and inspectors use the standard to verify conformance of delivered upset forgings.
- Product design: designers reference the standard to establish realistic dimensional allowances and reduce costly rework.
Who should use this standard
- Forging manufacturers and foundries working with upset forging on horizontal machines
- Quality assurance and metrology teams specifying and checking dimensional tolerances
- Purchasing and procurement professionals writing supply contracts for steel forgings
- Design engineers specifying tolerances for mechanical and structural components
Related standards
- EN 10243 (other parts) - general series on tolerances for steel die forgings
- National adoption documents (e.g., SIST EN 10243-2) - regional implementations of the EN standard
Keywords: EN 10243-2, steel die forgings, upset forging, horizontal forging machines, dimensional tolerances, hot upset forgings, carbon steels, alloy steels, forging tolerances.
Frequently Asked Questions
EN 10243-2:1999 is a standard published by the European Committee for Standardization (CEN). Its full title is "Steel die forgings - Tolerances on dimensions - Part 2: Upset forging made on horizontal forging machines". This standard covers: 1.1 This European Standard specifies the dimensional tolerances for steel upset forgings made on horizontal forging machines. The second part of this European Standard applies to hot upset forgings, in the delivery condition, made in carbon and alloy steels. The tolerances specified apply to forgings not exceeding 250 kg in mass or 2 500 mm maximum dimension. Tolerances for heavier or layer forgings are subjected to negociation.
1.1 This European Standard specifies the dimensional tolerances for steel upset forgings made on horizontal forging machines. The second part of this European Standard applies to hot upset forgings, in the delivery condition, made in carbon and alloy steels. The tolerances specified apply to forgings not exceeding 250 kg in mass or 2 500 mm maximum dimension. Tolerances for heavier or layer forgings are subjected to negociation.
EN 10243-2:1999 is classified under the following ICS (International Classification for Standards) categories: 77.140.85 - Iron and steel forgings. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 10243-2:1999 has the following relationships with other standards: It is inter standard links to EN 10243-2:1999/AC:2005. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 10243-2:1999 is associated with the following European legislation: EU Directives/Regulations: 97/23/EC; Standardization Mandates: M/005, M/071. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
EN 10243-2:1999 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)

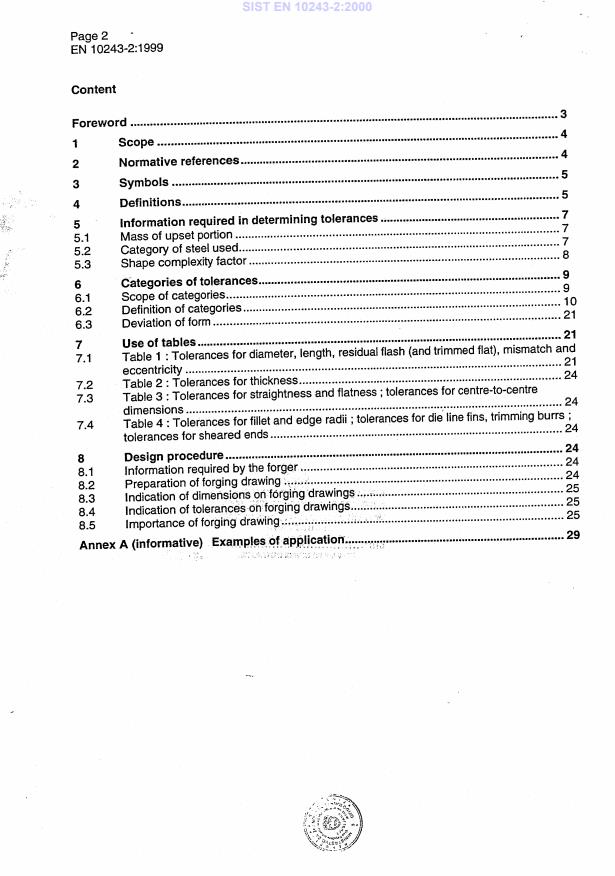

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Gesenkschmiedeteile - Maßtoleranzen - Teil 2: Warm hergestellt in Waagerecht-StauchmaschinenPieces forgées par estampage en acier - Tolérances dimensionelles - Partie 2: Pieces exécutées a chaud sur machines horizontales a forgerSteel die forgings - Tolerances on dimensions - Part 2: Upset forging made on horizontal forging machines77.140.85Železni in jekleni kovani izdelkiIron and steel forgingsICS:Ta slovenski standard je istoveten z:EN 10243-2:1999SIST EN 10243-2:2000en01-november-2000SIST EN 10243-2:2000SLOVENSKI
