EN 12467:2012+A1:2016

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Faserzement-Tafeln - Produktspezifikation und PrüfverfahrenPlaques planes en fibres-ciment - Spécifications du produit et méthodes d'essaiFibre-cement flat sheets - Product specification and test methods91.100.40YODNQLProducts in fibre-reinforced cementICS:Ta slovenski standard je istoveten z:EN 12467:2012+A1:2016SIST EN 12467:2013+A1:2016en,fr,de01-september-2016SIST EN 12467:2013+A1:2016SLOVENSKI
STANDARDSIST EN 12467:20131DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 12467:2012+A1
July
t r s x ICS
{ sä s r rä v r Supersedes EN
s t v x yã t r s tEnglish Version
Fibreæcement flat sheets æ Product specification and test methods Plaques planes en fibresæciment æ Spécifications du produit et méthodes d 5essai
FaserzementæTafeln æ Produktspezifikation und Prüfverfahren This European Standard was approved by CEN on
v August
t r s t and includes Amendment
s approved by CEN on
t v November
t r s wä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels
t r s x CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s t v x yã t r s t ªA sã t r s x ESIST EN 12467:2013+A1:2016

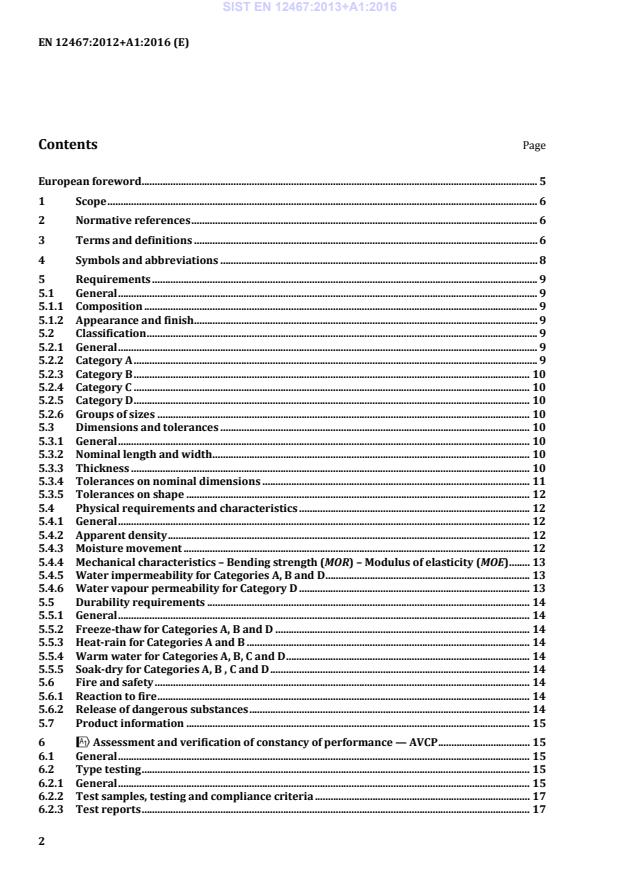

(E) 3 6.3 Factory production control (FPC) . 17 6.3.1 General . 17 6.3.2 Requirements . 17 6.3.3 Product specific requirements . 20 6.3.4 Initial inspection of factory and of FPC . 20 6.3.5 Continuous surveillance of FPC . 21 6.3.6 Procedure for modifications . 21 6.4 Inspection of a consignment of finished products" . 21 7 Test methods . 21 7.1 General . 21 7.2 Dimensional and geometrical tests . 21 7.2.1 Preparation of specimen . 21 7.2.2 Apparatus . 22 7.2.3 Procedure . 22 7.2.4 Expression and interpretation of results . 24 7.3 Tests for physical performance and characteristics . 25 7.3.1 Apparent density . 25 7.3.2 Mechanical characteristics - Bending strength – Modulus of elasticity (Bending modulus) . 25 7.3.3 Water impermeability . 30 7.3.4 Water vapour permeability . 31 7.3.5 Warm water . 31 7.3.6 Soak-dry . 32 7.3.7 Moisture movement test . 33 7.4 Tests for climatic performance. 33 7.4.1 Freeze-thaw . 33 7.4.2 Heat-rain . 35 7.5 Test for reaction to fire performance . 36 7.5.1 Sheets satisfying the requirements for the fire reaction Class A1 without the need for testing . 36 7.5.2 Other sheets . 36 8 Marking, labelling and packaging . 44 Annex A (normative)
Consignment inspection sampling . 45 Annex B (normative)
Statistical method for determining the corresponding wet values or revised dry specifications for the MOR when carrying out the dry method of test or when tested prior to coating for quality control purposes . 46 B.1 Procedure . 46 B.2 Determination of the correlation between the results of testing wet and dry specimens . 46 B.3 Determination of the regression line . 47 B.4 Determination of a value for wet testing from an obtained value for dry testing . 47 B.5 Determination of the minimum value specified for dry testing xstd corresponding to the minimum value specified for wet testing in this document ystd . 48 Annex C (normative)
Test method for the determination of moisture movement characteristic of fibre-cement sheets . 49 C.1 General . 49 C.2 Principle . 49 C.3 Apparatus . 49 C.4 Specimen preparation . 49 C.5 Test procedure . 49 C.6 Calculation of results . 50 C.7 Test report . 50 SIST EN 12467:2013+A1:2016

!Clauses of this European Standard addressing the provisions of the EU Construction Products Regulation . 51 ZA.1 Scope and relevant characteristics . 51 ZA.2 Procedure for AVCP of fibre cement flat sheets . 52 ZA.2.1 Systems of AVCP . 52 ZA.2.2 Declaration of performance (DoP) . 56 ZA.3 CE marking and labelling" . 60 Bibliography . 63
(E) 5 European foreword This document (EN 12467:2012+A1:2016) has been prepared by Technical Committee CEN/TC 128 “Roof covering products for discontinuous laying and products for wall cladding”, the secretariat of which is held by NBN. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by January 2017, and conflicting national standards shall be withdrawn at the latest by April 2018. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights. This document includes Amendment 1 approved by CEN on 24 November 2015. This document supersedes !EN 12467:2012". The start and finish of text introduced or altered by amendment is indicated in the text by tags !". !In comparison with EN 12467:2004, the following sections in EN 12467:2012 had been changed or added:" 3.9, 3.10, 4, 5.1.1, 5.4.3, 5.4.4, Table 7, Table 8, 7.3.2, 7.3.2.4.2, 7.3.3.3, 7.3.3.4, 7.3.7, 7.5.2.2 and Annex C. Annex ZB concerning the EC Directive 76/769/EEC !had been deleted". This document has been prepared under a mandate given to CEN by the European Commission and the European Free Trade Association, and supports essential requirements of !EU Regulation No 305/2011". For relationship with !EU Regulation No 305/2011", see informative Annex ZA, which is an integral part of this document. A distinction !had been made" between product appraisal (type tests) and factory production control requirements (acceptance tests). The performance of a building part constructed with these sheets depends not only on the properties of the product as required by this document, but also on the design, construction and installation of the component as a whole in relation to the environment and conditions of use. According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. SIST EN 12467:2013+A1:2016

(E) 7 3.1 acceptance test test to establish whether a batch of sheets conforms to a specification and which is performed on samples drawn either from continuous production or from a consignment Note 1 to entry: Test methods, specifications and limit values are specified in this document. Sampling levels and acceptance criteria are specified in 6.3.2. 3.2 initial type test test carried out to demonstrate conformity with the requirements of this document or for the approval of a new product and/or when a fundamental change is made in formulation and/or method of manufacture, the effects of which cannot be predicted on the basis of previous experience Note 1 to entry: The test is performed on the as delivered product, but is not required for each production batch. 3.3 acceptable quality level (AQL) quality level which in a sampling plan corresponds to a specified, relatively high probability of acceptance Note 1 to entry: It is the maximum percent defective (or maximum number of defects per 100 units) that for purposes of sampling inspection can be considered satisfactory as a process average. Note 2 to entry: A sampling scheme with an AQL of 4 % means that batches containing up to 4 % defective items have a high probability of acceptance. 3.4 apparent density density based on the external dimensions of the sample to calculate the volume Note 1 to entry: This is an average density of material and pores. 3.5 as delivered same condition as the producer intends to supply the product after completing all aspects of the process including maturing and, when appropriate, painting 3.6 upper face face normally exposed 3.7 under face reverse of upper face 3.8 textured sheets sheets which have a relief pattern embossed or applied as a coating on their upper face before delivery 3.9 NT type of fibre-cement flat sheets which cover products made using a non-asbestos technology SIST EN 12467:2013+A1:2016

2. one of the coefficients of the regression line (see Annex B) d apparent density of the sheet in grams per cubic centimetre e thickness of the sheet, in millimetres F breaking load, in newtons l length, in millimetres ls span between the centres of the test machine supports in the bending strength test, in millimetres m mass of the specimen after drying, in grams n
number of paired specimens MOE modulus of elasticity, in Gigapascals or megapascals MOR modulus of rupture, in megapascals MORfi modulus of rupture of the ith exposed specimen after the type test MORfci
modulus of rupture of the ith unexposed reference specimen MRi individual ratio of the modulus of rupture of the ith pair of exposed and unexposed specimens R average ratio of the modulus of rupture of exposed and unexposed specimens RL lower estimate of the mean of the ratios at 95 % confidence level of the modulus of rupture of exposed and unexposed specimens s standard deviation of the values in the appropriate calculation
water vapour resistance value V volume of the specimen, in cubic centimetres w width, in millimetres xi individual value of the ith specimen tested dry xstd minimum value to be used as the specification for the dry method of test. This value is calculated at the 97,5 % lower confidence level from the value specified for the wet method of test in this document (see B.5) ystd minimum value specified in the standard for wet testing (see B.5) xo actual result obtained when dry testing (see B.4) x mean of the values of xi for i = 1 to n yi individual value of the ith specimen tested wet SIST EN 12467:2013+A1:2016

(E) 9 yo value calculated from the value obtained from a specimen tested dry, which is the estimate at the 97,5 % lower confidence level of the value expected from a specimen tested wet (see B.4) y
mean of the values of yi for i = 1 to n
5 Requirements 5.1 General 5.1.1 Composition Sheets shall consist essentially of cement or a calcium silicate formed by a chemical reaction of a siliceous and a calcareous material, reinforced by fibres. The cement shall comply with EN 197-1 or with technical specifications relevant in the country of use. This European Standard covers fibre-reinforced cement flat sheets of type NT. The reinforcing fibres shall be one or more of the following forms: — discrete elements randomly dispersed; — continuous strands or tapes; — nets or webs. Process aids, fillers, aggregates and pigments may be added. 5.1.2 Appearance and finish The exposed face of the sheets can be with or without texture. The sheets can be coloured or left in their natural colour. The sheets can also receive adherent coloured or uncoloured coatings on their surface. Variations of the surface appearance which do not impair the fitness for purpose of the sheets are permitted. The sheets may be supplied with holes for fixing and/or cut to size. 5.2 Classification 5.2.1 General Sheets covered by this document are divided into: — four categories in accordance with their weather resistance (see 5.2.2 to 5.2.5); — five classes in accordance with their bending strength (see 5.4.3); — two groups of sizes in accordance with their method of installation (see 5.2.6); — two levels in accordance with their dimensional tolerances (see 5.3.4). Type tests for each category are specified in Table 7. 5.2.2 Category A Sheets which are intended for applications where they may be subjected to heat, high moisture and severe frost. SIST EN 12467:2013+A1:2016

3. 5.2.6.2 Large size sheets Sheets which do not correspond to indicators for small size sheets. Large sheets may be declared as "small size sheets" provided tolerances for small size sheets apply and are specified in the manufacturer's literature. 5.3 Dimensions and tolerances 5.3.1 General There are two levels of tolerances for length, width, straightness and squareness of edges. Sheets shall comply with the requirements of the same level for the four sets of tolerances. 5.3.2 Nominal length and width The manufacturer shall specify the nominal length and width of the sheets. NOTE Sheets are normally available in nominal lengths up to 3 000 mm and nominal width up to 1 250 mm. Greater nominal lengths and widths can be supplied. 5.3.3 Thickness The manufacturer shall specify the nominal thickness of the sheets. For non-textured sheets, the nominal thickness refers to the average thickness. For textured sheets, the nominal thickness refers to the maximum thickness. NOTE 1 The nominal thickness of textured sheets cannot be used for the calculation of mechanical performance. Sheets are normally available in thickness from 3 mm to 30 mm. NOTE 2 Thicker sheets can be supplied. SIST EN 12467:2013+A1:2016

(E) 11 5.3.4 Tolerances on nominal dimensions1) 5.3.4.1 Tolerances on length and width Tolerances on length and width shall be in accordance with Table 1, for the appropriate level. Table 1 — Tolerances on nominal dimensions in accordance with value and level Nominal dimension aa Level I Level II a
¶
x r r mm ± 3 mm ± 4 mm 600 mm < a
¶
s
r r r mm ± 3 mm ± 5 mm 1 000 mm < a
¶
s
x r r mm ± 0,3% a ± 0,5% a 1 600 mm < a ± 5 mm ± 8 mm a a is the nominal width or length.
These tolerances are not applicable to oversize sheets. The method of measurement is given in 7.2.3.1. 5.3.4.2 Tolerances on thickness For non-textured sheets, tolerances shall be in accordance with Table 2. Table 2 — Tolerances on thickness for non-textured sheets e
¶
x mm ± 0,6 mm 6 mm < e
¶
t r mm ± 10 % e e > 20 mm ± 2 mm
For sheets without texture, the maximum difference between extreme values of the thickness measurements within one sheet shall not exceed 10 % of the maximum measured value. For textured sheets, tolerances shall be in accordance with Table 3. Table 3 — Tolerances on thickness for textured sheets e
¶
x mm - 0,6 mm + 0,9 mm 6 mm < e
¶
t r mm - 10 % e + 15 % e e > 20 mm - 2 mm + 3 mm
For textured sheets, the maximum difference between extreme values of the eight thickness measurements within one sheet shall not exceed 15 % of the maximum measured value. The method of measurement is given in 7.2.3.2.
1) For certain applications, tighter tolerances could be demanded. SIST EN 12467:2013+A1:2016

The method of measurement is given in 7.2.3.3. These tolerances are not applicable for oversize sheets. 5.3.5.2 Squareness of edges The tolerances on squareness of sheets shall be in accordance with Table 5 for the appropriate level. Table 5 — Tolerances on squareness of edges Level I Level II 2 mm/m 4 mm/m
The method of measurement is given in 7.2.3.4. These tolerances are not applicable for oversize sheets. 5.4 Physical requirements and characteristics 5.4.1 General Mechanical and material properties are normally determined on sheets as delivered. The results shall be identified as applying to coated or uncoated material. NOTE See Annex B for statistic interpretation. 5.4.2 Apparent density The manufacturer shall specify in his literature the minimum apparent density for each category and each class of sheet. When tested in accordance with the method specified in 7.3.1, the density shall be not less than this value. 5.4.3 Moisture movement The manufacturer's literature shall state the percentage value of linear sheet moisture movement measured when the sheet is exposed to a relative humidity change from 30 % to 90 %. The stated value shall be determined in accordance with 7.3.7 using the test method given in Annex C.
2) For certain applications, tighter tolerances are demanded and should be agreed on between the manufacturer and the purchaser. SIST EN 12467:2013+A1:2016

(E) 13 5.4.4 Mechanical characteristics – Bending strength (MOR) – Modulus of elasticity (MOE) When tested as specified in 7.3.2, the minimum modulus of rupture of the sheets, expressed in megapascals, shall be as specified in Table 6. The MOR shall be the average of the values obtained from testing the samples in both directions. NOTE For non-homogeneous e.g. coated sheets, Table 6 refers to the apparent MOR. Category A and B sheet strengths are specified in the wet condition (see Table 10). Category C and D sheet strengths are specified in the ambient condition (see Table 10). The manufacturer shall specify the characteristic value for mechanical strength. Characteristic values of bending strength are based on statistical data on results of tests in ambient conditions. The statistical interpretation of test results is based on the procedure prescribed in EN 1990:2002, Eurocode — Basis of structural design, Table D.1, Vx, unknown). If a correlation has been established (see Annex B) between the MOR from production control and the MOR from products as delivered, the k-value of V x,known can be used. The minimum modulus of rupture of the sheets in the weaker direction shall be not less than 70 % of the specified value in Table 6 for the average of the two directions. This requirement does not apply to textured sheets. The modulus of elasticity of the sheets, expressed in Giga- or Megapascals, shall be specified on test results of tests in ambient conditions. The MOE shall be the average of the values obtained from testing the sampling in both directions with indication of the standard deviation. It is up to the manufacturer to determine the MOE for information purposes, i.e. with type testing. Table 6 — Minimum modulus of rupture (MOR) min. MOR in the wet condition MPa min. MOR in the ambient laboratory conditions MPa Classes 1 2 3 4 5 Category A & B 4 7 13 18 24 Classes 1 2 3 4 5 Category C & D 4 7 10 16 22 Where manufacturers state minimum product MOR this should be at the 4 % acceptable quality level (AQL). NOTE For textured sheets, the MOR cannot be used for calculating mechanical performance.
5.4.5 Water impermeability for Categories A, B and D When tested in accordance with 7.3.3, traces of moisture may appear on the under face of the sheet, but in no instance shall there be any formation of drops of water. 5.4.6 Water vapour permeability for Category D For flat sheets used as rigid underlays, the water vapour resistance value
shall be determined according to 7.3.4 and shall be specified in the manufacturer's literature. The
value obtained from the test shall not be higher than the value specified by the manufacturer. SIST EN 12467:2013+A1:2016

(E) 15 5.7 Product information The manufacturer shall include the following in his literature: a) designation of the sheet: 1) type of product: NT (see 5.1.1); 2) name of the sheet; 3) category; 4) class; 5) level of tolerances. b) nominal values for: 1) thickness; 2) length and width. c) minimum apparent density; d) instructions relevant to the handling and installation. 6 !Assessment and verification of constancy of performance — AVCP 6.1 General The compliance of fibre-cement flat sheets with the requirements of this standard and with the performances declared by the manufacturer in the DoP shall be demonstrated by: — determination of the product type; — factory production control by the manufacturer, including product assessment. The manufacturer shall always retain the overall control and shall have the necessary means to take responsibility for the conformity of the product with its declared performance(s). 6.2 Type testing 6.2.1 General Type tests shall be carried out on products as delivered. If several formats or sizes of the same category and class are being produced from the same composition and by the same production method, type tests only need to be carried out on maximum and minimum thickness. If the ratio of the maximum to minimum thickness is greater than three then an additional intermediate thickness shall be tested. All characteristics listed in Table 8 shall be subject to product type determination, except reaction to fire Class A1 without testing. The type tests relevant for each category are listed in Table 7. Product type determination shall be performed to demonstrate conformity to this standard. Tests previously performed in accordance with the provisions of this standard (same product, same characteristic(s), test method, sampling procedure, same attestation of conformity, etc.) may be taken into account. In addition, product type determination shall be performed for the approval of a new SIST EN 12467:2013+A1:2016

Category
A B C D Water impermeability Warm water Soak-dry Freeze-thaw Heat-rain Water vapour permeability Reaction to fire Release of dangerous substances yes yes 50 cycles 100 cycles 50 cycles n.a. a yes yes
yes yes 25 cycles 25 cycles 25 cycles n.a. a yes
yes
n.a. a yes 25 cycles n.a. a n.a. a n.a a yes
yes
yes yes 25 cycles 25 cycles n.a. a yes yes
yes
a
Not applicable.
Table 8 — Number of samples and compliance criteria Characteristic Requirement Assessment method Number of samples Compliance criteria Mechanical resistance 5.4.4 7.3.2 at least 10 samples 5.4.4 Table 6 apply 4 % AQL Density 5.4.2 7.3.1 Inspection by variable; method
or s 5.4.2 Reaction to fire 5.6.1 7.5.2 7.5.2 7.5 Water impermeability 5.4.5 7.3.3 3 test sheets 5.4.5 Water vapour permeability 5.4.6 7.3.4 3 test sheets 5.4.6 Dimensional variations 5.3 7.2 at least 10 samples 5.3.4 and 5.3.5 Release of dangerous substances 5.6.2 5.6.2
5.6.2 Warm water 5.5.4 7.3.5 10 samples 5.5.4 and 7.3.5.4 Soak-dry 5.5.5 7.3.6 10 samples 5.5.5 and 7.3.6.4 Freeze-thaw 5.5.2 7.4.1 10 samples 5.5.2 and 7.4.1.4 Heat rain 5.5.3 7.4.2 7.4.2.4 5.5.3 and 7.4.2.5
(E) 17 6.2.2 Test samples, testing and compliance criteria The number of samples of fibre-cement flat sheets to be tested / assessed shall be in accordance with Table 8 of this standard. 6.2.3 Test reports The results of the determination of the product type shall be documented in the test reports. All test reports shall be retained by the manufacturer for at least 10 years after the last date of production of the fibre-cement flat sheets to which they relate. 6.3 Factory production control (FPC) 6.3.1 General The manufacturer shall establish, document and maintain a FPC system to ensure that the products placed on the market comply with the declared performance of the essential characteristics. The FPC system shall consist of procedures, regular inspections and tests and/or assessments and the use of the results to control raw and other incoming materials or components, equipment, the production process and the product.
All the elements, requirements and provisions adopted by the manufacturer shall be documented in a systematic manner in the form of written policies and procedures.
This factory production control system documentation shall ensure a common understanding of the evaluation of the constancy of performance and enable the achievement of the required product performances and the effective operation of the production control system to be checked. Factory production control therefore brings together operational techniques and all measures allowing maintenance and control of the compliance of the product with the declared performances of the essential characteristics. 6.3.2 Requirements 6.3.2.1 General The manufacturer is responsible for organizing the effective implementation of the FPC system in line with the content of this product standard. Tasks and responsibilities in the production control organization shall be documented and this documentation shall be kept up-to-date.
The responsibility, authority and the relationship between personnel that manages, perfor
...
