EN 12385-5
EUROPEAN STANDARD
NORME EUROPÉENNE
March 2021
EUROPÄISCHE NORM
ICS 77.140.65 Supersedes EN 12385-5:2002
English Version
Steel wire ropes - Safety - Part 5: Stranded ropes for lifts
Câbles en acier - Sécurité - Partie 5 : Câbles à torons Drahtseile aus Stahldraht - Sicherheit - Teil 5:
pour ascenseurs Litzenseile für Aufzüge
This European Standard was approved by CEN on 15 February 2021.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 12385-5:2021 E
worldwide for CEN national Members.

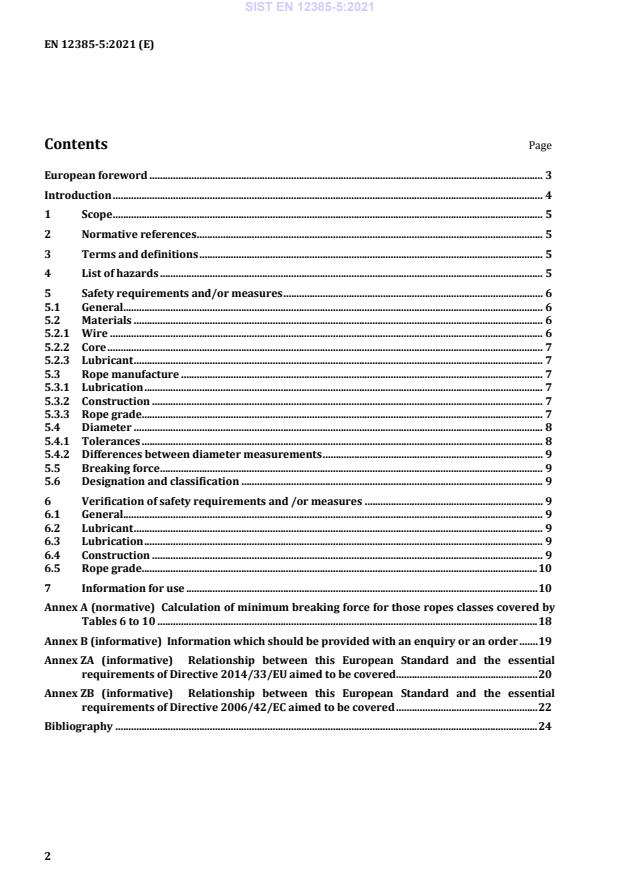

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 List of hazards . 5
5 Safety requirements and/or measures . 6
5.1 General. 6
5.2 Materials . 6
5.2.1 Wire . 6
5.2.2 Core . 7
5.2.3 Lubricant . 7
5.3 Rope manufacture . 7
5.3.1 Lubrication . 7
5.3.2 Construction . 7
5.3.3 Rope grade. 7
5.4 Diameter . 8
5.4.1 Tolerances . 8
5.4.2 Differences between diameter measurements . 9
5.5 Breaking force . 9
5.6 Designation and classification . 9
6 Verification of safety requirements and /or measures . 9
6.1 General. 9
6.2 Lubricant . 9
6.3 Lubrication . 9
6.4 Construction . 9
6.5 Rope grade. 10
7 Information for use . 10
Annex A (normative) Calculation of minimum breaking force for those ropes classes covered by
Tables 6 to 10 . 18
Annex B (informative) Information which should be provided with an enquiry or an order . 19
Annex ZA (informative) Relationship between this European Standard and the essential
requirements of Directive 2014/33/EU aimed to be covered . 20
Annex ZB (informative) Relationship between this European Standard and the essential
requirements of Directive 2006/42/EC aimed to be covered . 22
Bibliography . 24

European foreword
This document (EN 12385-5:2021) has been prepared by Technical Committee CEN/TC 168, “Chains,
ropes, webbing, slings and accessories – Safety”, the secretariat of which is held by BSI.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by September 2021 and conflicting national standards shall
be withdrawn at the latest by September 2021.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 12385-5:2002.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive(s).
For relationship with EU Directive(s), see informative Annex ZA and Annex ZB, which are integral parts
of this document.
This document includes amendment to Annex ZB – Machinery Directive related – and inclusion of
Annex ZA – Lift Directive related.
The other Parts of EN 12385 are:
— Part 1: General requirements;
— Part 2: Definitions, designation and classification;
— Part 3: Information for use and maintenance;
— Part 4: Stranded ropes for general lifting applications;
— Part 6: Stranded ropes for mine shafts;
— Part 7: Locked coil ropes for mine shafts;
— Part 8: Stranded hauling and carrying-hauling ropes for cableway installations designed to carry
persons;
— Part 9: Locked coil carrying ropes for cableway installations designed to carry persons;
— Part 10: Spiral ropes for general structural applications.
Part 1 provides the general requirements of Parts 4 to 10.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United
Kingdom.
Introduction
This document is a type C standard as stated in EN ISO 12100.
This document has been prepared to be a harmonized standard to provide a means of complying with the
essential safety requirements of the Lifts Directive and the Machinery Directive.
During the preparation of this standard, it was assumed that a negotiation would take place between the
purchaser and the manufacturer concerning the intended purpose of the rope.
Although tables of breaking forces and masses are provided for a number of the more common classes,
diameters and rope grades, this Part of this standard is not limited to those given, providing all of the
other requirements are met.
When provisions of this type C standard are different from those which are stated in type A or B
standards, the provisions of this type C standard take precedence over the provisions of the other
standards for wire ropes that have been designed and produced according to the provisions of this type
C standard.
1 Scope
This document specifies the particular materials, manufacturing and testing requirements for stranded
ropes for suspension, compensating and governor duties for traction drive and hydraulic lifts moving
between guides and similar applications.
The particular hazards covered by this Part are identified in Clause 4.
This document does not establish requirements for information for use other than those given in Clause 7
of Part 1. Neither does it cover the requirements for ropes fitted with terminations.
Minimum breaking force values for the more common classes, sizes and grades of rope are provided in
Tables 6 to 10.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 10264-2:2012, Steel wire and wire products — Steel wire for ropes — Part 2: Cold drawn non alloy steel
wire for ropes for general applications
EN 12385-1:2002+A1:2008, Steel wire ropes — Safety — Part 1: General requirements
EN 12385-2:2002+A1:2008, Steel wire ropes — Safety — Part 2: Definitions, designation and classification
EN ISO 12100:2010, Safety of machinery — General principles for design — Risk assessment and risk
reduction (ISO 12100:2010)
ISO 4346:1977, Steel wire ropes for general purposes — Lubricants — Basic requirements
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN ISO 12100:2010 and
EN 12385-2:2002+A1:2008 apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http://www.electropedia.org/
— ISO Online browsing platform: available at http://www.iso.org/obp
4 List of hazards
In addition to the general hazards identified in Clause 4 of Part 1, Table 1 contains all the particular
hazards which require action to reduce risk as being specific and significant for steel wire ropes for lifts.
Table 1— Hazards and associated requirements
Hazards relevant to this standard identified Relevant clause of this standard
by reference to EN ISO 12100:2010
5.1
Inadequate mechanical strength
5.2
5.3
5.5
Annex A
5.4
Inadequate dimensional tolerances
Inadequate information about the handling,
storage, cutting and packaging of the wire rope
5.6
Inadequate information about the
specification, designation and performance of
the wire rope
Inadequate information for the selection of Annex B
ropes suitable for the particular application
NOTE For the purposes of this Part of EN 12385, inadequate strength of parts means failur
...
