EN ISO 16484-6:2005

SLOVENSKI STANDARD
01-marec-2006
Avtomatizacija stavb in sistemi za regulacijo – 6. del: Protokol izmenjave
preskušanja skladnosti (ISO 16484-6:2005)
Building automation and control systems (BACS) - Part 6: Data communication
conformance testing (ISO 16484-6:2005)
Systeme der Gebäudeautomation - Teil 6: Datenübertragungsprotokoll
Konformitätsprüfung (ISO 16484-6:2005)
Systemes d'automatisation et de gestion technique du bâtiment - Partie 6: Essais de
conformité de la communication de données (ISO 16484-6:2005)
Ta slovenski standard je istoveten z: EN ISO 16484-6:2005
ICS:
35.240.99 8SRUDEQLãNHUHãLWYH,7QD IT applications in other fields
GUXJLKSRGURþMLK
97.120 Avtomatske krmilne naprave Automatic controls for
za dom household use
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN ISO 16484-6
NORME EUROPÉENNE
EUROPÄISCHE NORM
December 2005
ICS 91.040.01
English Version
Building automation and control systems (BACS) - Part 6: Data
communication conformance testing (ISO 16484-6:2005)
Systèmes d'automatisation et de gestion technique du Systeme der Gebäudeautomation - Teil 6:
bâtiment - Partie 6: Essais de conformité de la Datenübertragungsprotokolle Konformitätsprüfung (ISO
communication de données (ISO 16484-6:2005) 16484-6:2005)
This European Standard was approved by CEN on 14 December 2005.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,
Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2005 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 16484-6:2005: E
worldwide for CEN national Members.

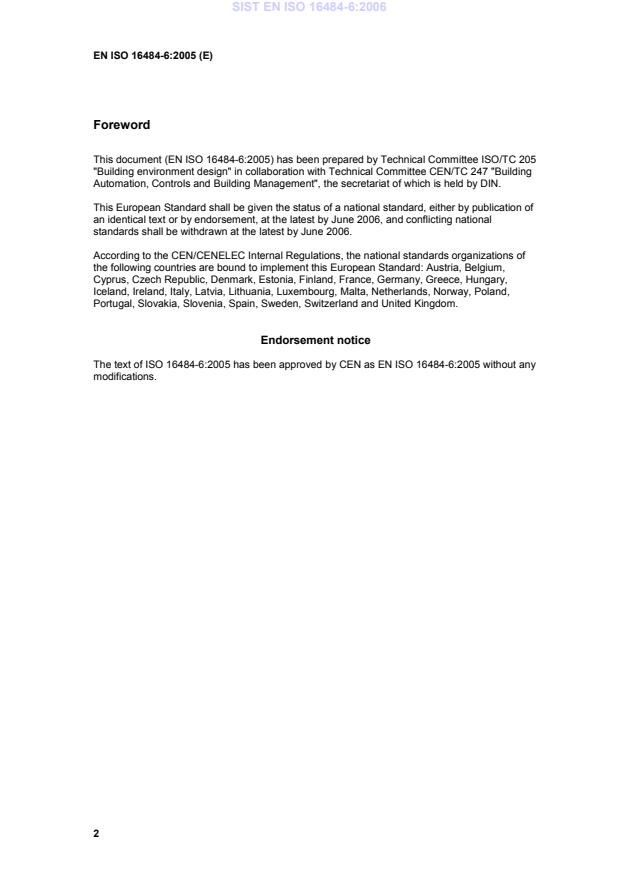

Foreword
This document (EN ISO 16484-6:2005) has been prepared by Technical Committee ISO/TC 205
"Building environment design" in collaboration with Technical Committee CEN/TC 247 "Building
Automation, Controls and Building Management", the secretariat of which is held by DIN.

This European Standard shall be given the status of a national standard, either by publication of
an identical text or by endorsement, at the latest by June 2006, and conflicting national
standards shall be withdrawn at the latest by June 2006.

According to the CEN/CENELEC Internal Regulations, the national standards organizations of
the following countries are bound to implement this European Standard: Austria, Belgium,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary,
Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,
Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.

Endorsement notice
The text of ISO 16484-6:2005 has been approved by CEN as EN ISO 16484-6:2005 without any
modifications.
INTERNATIONAL ISO
STANDARD 16484-6
First edition
2005-12-15
Building automation and control systems
(BACS) —
Part 6:
Data communication conformance testing
Systèmes d'automatisation et de gestion technique du bâtiment —
Partie 6: Essais de conformité de la communication de données

Reference number
ISO 16484-6:2005(E)
©
ISO 2005
ISO 16484-6:2005(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2005
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii
ISO 16484-6:2005(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this Technical Report may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 16484-6 was prepared by the American Society of Heating, Refrigerating and Air-Conditioning
Engineers (ASHRAE) as ANSI/ASHRAE 135.1-2003, and was adopted (without modifications except those
stated in Clause 2 of this International Standard) by Technical Committee ISO/TC 205, Building environment
design.
ISO 16484 consists of the following parts, under the general title Building automation and control
systems (BACS):
Part 2: Hardware
Part 3: Functions
Part 5: Data communication protocol
Part 6: Data communication conformance testing
The task of updating this part of ISO 16484 has been delegated to an ISO Maintenance Agency. Details are
given in the "Maintenance" clause overleaf.

INTERNATIONAL STANDARD ISO 16484-6:2005(E)

Building automation and control systems (BACS) —
Part 6:
Data communication conformance testing
Scope
This part of ISO 16484 defines a standard method for verifying that an implementation of the BACnet protocol
provides each capability claimed in its Protocol Implementation Conformance Statement (PICS) in conformance
with the BACnet standard (ISO 16484-5).
The scope is further detailed in Clause 2 of the enclosed ANSI/ASHRAE publication.
Recommendations
The technical recommendations are those made in the following publication (reproduced on the following pages),
which is adopted as an International Standard:
ANSI/ASHRAE 135.1-2003, Method for Test for Conformance to BACnet
International Standards cited in the text are the following:
ISO 16484-5, Building automation and control systems — Part 5: Data communication protocol
ISO 10646, Information technology — Universal Multiple-Octet Coded Character Set (UCS)
ISO/IEC 8802-2, Information technology — Telecommunications and information exchange between
systems — Local and metropolitan area networks — Specific requirements — Part 2: Logical link control
ISO/IEC 8802-3, Information technology — Telecommunications and information exchange between
systems — Local and metropolitan area networks — Specific requirements — Part 3: Carrier sense multiple
access with collision detection (CSMA/CD) access method and physical layer
ISO/IEC 8859-1, Information technology — 8-bit single-byte coded graphic character sets — Part 1: Latin
alphabet No. 1
Maintenance
The ISO Maintenance Agency for ISO 16484-5 and ISO 16484-6, as designated by the ISO Council, is
American Society of Heating, Refrigerating and Air-Conditioning Engineers, Inc.,
1791 Tullie Circle NE,
Atlanta,
GA 30329,
USA.
E-mail: ISOMA@ashrae.org
The procedures for the maintenance of ISO 16484-5 and ISO 16484-6 are available at
http://www.iso.org/tc205
or from the Maintenance Agency Secretariat at the above address.
ISO 16484-6:2005(E)
ISO 16484-6:2005(E)
Contents
CLAUSE PAGE
1. PURPOSE.7
2. SCOPE.7
3. DEFINITIONS .7
4. ELECTRONIC PICS FILE FORMAT .7
4.1 Character Encoding.7
4.2 Structure of EPICS Files.8
4.3 Character Strings.9
4.4 Notational Rules for Parameter Values.9
4.5 Sections of the EPICS File.10
5. EPICS CONSISTENCY TESTS .27
6. CONVENTIONS FOR SPECIFYING BACnet CONFORMANCE TESTS .28
6.1 TCSL Components.28
6.2 TCSL Statements .29
6.3 Time Dependencies.34
6.4 BACnet References.34
7. OBJECT SUPPORT TESTS.35
7.1 Read Support for Properties in the Test Database.35
7.2 Write Support for Properties in the Test Database.35
7.3 Object Functionality Tests .36
8. APPLICATION SERVICE INITIATION TESTS .106
8.1 AcknowledgeAlarm Service Initiation Tests .106
8.2 ConfirmedCOVNotification Service Initiation Tests.107
8.3 UnconfirmedCOVNotification Service Initiation Tests.116
8.4 ConfirmedEventNotification Service Initiation Tests.118
8.5 UnconfirmedEventNotification Service Initiation Tests.151
8.6 GetAlarmSummary Service Initiation Tests .158
8.7 GetEnrollmentSummary Service Initiation Tests .158
8.8 GetEventInformation Service Initiation Tests.160
8.9 LifeSafetyOperation Service Initiation Tests.160
8.10 SubscribeCOV Service Initiation Tests .161
8.11 SubscribeCOVProperty Service Initiation Tests.162
8.12 AtomicReadFile Service Initiation Tests .163
8.13 AtomicWriteFile Service Initiation Tests .163
8.14 AddListElement Service Initiation Tests .164
8.15 RemoveListElement Service Initiation Tests.165
8.16 CreateObject Service Initiation Tests.165
8.17 DeleteObject Service Initiation Tests.166
8.18 ReadProperty Service Initiation Tests.167
8.19 ReadPropertyConditional Service Initiation Tests.167
8.20 ReadPropertyMultiple Service Initiation Tests.168
8.21 ReadRange Service Initiation Tests .169
8.22 WriteProperty Service Initiation Tests.170
8.23 WritePropertyMultiple Service Initiation Tests .171
8.24 DeviceCommunicationControl Service Initiation Tests.173
8.25 ConfirmedPrivateTransfer Service Initiation Test .174
8.26 UnconfirmedPrivateTransfer Service Initiation Test .174
ISO 16484-6:2005(E)
8.27 ReinitializeDevice Service Initiation Tests .175
8.28 ConfirmedTextMessage Service Initiation Tests .176
8.29 UnconfirmedTextMessage Service Initiation Tests .177
8.30 TimeSynchronization Service Initiation Tests .178
8.31 UTCTimeSynchronization Service Initiation Tests .178
8.32 Who-Has Service Initiation Tests.178
8.33 I-Have Service Initiation Tests.179
8.34 Who-Is Service Initiation Tests.179
8.35 I-Am Service Initiation Tests .180
8.36 VT-Open Service Initiation Tests.180
8.37 VT-Close Service Initiation Tests .181
8.38 VT-Data Service Initiation Tests.183
8.39 RequestKey Service Initiation Tests .184
8.40 Authenticate Service Initiation Tests .185
9. APPLICATION SERVICE EXECUTION TESTS.190
9.1 AcknowledgeAlarm Service Execution Tests.190
9.2 ConfirmedCOVNotification Service Execution Tests .203
9.3 UnconfirmedCOVNotification Service Execution Tests .207
9.4 ConfirmedEventNotification Service Execution Tests.207
9.5 UnconfirmedEventNotification Service Execution Tests.209
9.6 GetAlarmSummary Service Execution Tests.209
9.7 GetEnrollmentSummary Service Execution Tests .210
9.8 GetEventInformation Service Execution Tests .214
9.9 LifeSafetyOperation Service Execution Test .216
9.10 SubscribeCOV Service Execution Tests .218
9.11 SubscribeCOVProperty Service Execution Tests.223
9.12 AtomicReadFile Service Execution Tests.230
9.13 AtomicWriteFile Service Execution Tests .237
9.14 AddListElement Service Execution Tests.248
9.15 RemoveListElement Service Execution Tests.250
9.16 CreateObject Service Execution Tests .252
9.17 DeleteObject Service Execution Tests .255
9.18 ReadProperty Service Execution Tests .256
9.19 ReadPropertyConditional Service Execution Tests.258
9.20 ReadPropertyMultiple Service Execution Tests.259
9.21 ReadRange Service Execution Tests.264
9.22 WriteProperty Service Execution Tests .267
9.23 WritePropertyMultiple Service Execution Tests.270
9.24 DeviceCommunicationControl Service Execution Test.274
9.25 ConfirmedPrivateTransfer Service Execution Tests .278
9.26 UnconfirmedPrivateTransfer Service Execution Tests .278
9.27 ReinitializeDevice Service Execution Tests.278
9.28 ConfirmedTextMessage Service Execution Tests.281
9.29 UnconfirmedTextMessage Service Execution Tests.282
9.30 TimeSynchronization Service Execution Tests.282
9.31 UTCTimeSynchronization Service Execution Tests.284
9.32 Who-Has Service Execution Tests.284
9.33 Who-Is Service Execution Tests .290
9.34 VT-Open Service Execution Tests.293
9.35 VT-Close Service Execution Tests.295
9.36 VT-Data Service Execution Tests .296
9.37 RequestKey Service Execution Test .296
9.38 Authenticate Service Execution Tests.298
ISO 16484-6:2005(E)
10. NETWORK LAYER PROTOCOL TESTS.304
10.1 Processing Application Layer Messages Originating from Remote Networks.304
10.2 Router Functionality Tests.304
10.3 Half-Router Functionality Tests.328
10.4 B/IP PAD Tests.336
10.5 Initiating Network Layer Messages .338
11. LOGICAL LINK LAYER PROTOCOL TESTS.340
11.1 UI Command and Response.340
11.2 XID Command and Response.340
11.3 TEST Command and Response .341
12. DATA LINK LAYER PROTOCOLS TESTS.342
12.1 MS/TP State Machine Tests.342
12.2 PTP State Machine Tests .399
13. SPECIAL FUNCTIONALITY TESTS.440
13.1 Segmentation .440
13.2 Time Master.449
13.3 Character Sets .450
13.4 Malformed PDUs.450
14. BACnet/IP Functionality Tests .453
14.1 Non-BBMD B/IP Device.453
14.2 Non-BBMD B/IP device Device with a Server Application.455
14.3 Broadcast Distribution Table Operations.456
14.4 Foreign Device Table Operations (Negative Tests).459
14.5 BACnet Broadcast Management (No Foreign Device Table, No Applications).460
14.6 Foreign Device Management.460
14.7 Broadcast Management (BBMD, Foreign Devices, Local Application).463
15. Reporting Test Results.467
ANNEX A - Example EPICS (INFORMATIVE) .468

ISO 16484-6:2005(E)
ISO 16484-6:2005(E)
1. PURPOSE
To define a standard method for verifying that an implementation of the BACnet protocol provides each capability claimed in
its Protocol Implementation Conformance Statement (PICS) in conformance with the BACnet standard.

2. SCOPE
This standard provides a comprehensive set of procedures for verifying the correct implementation of each capability claimed
on a BACnet PICS including:
(a) support of each claimed BACnet service, either as an initiator, executor, or both,
(b) support of each claimed BACnet object-type, including both required properties and each claimed optional property,
(c) support of the BACnet network layer protocol,
(d) support of each claimed data link option, and
(e) support of all claimed special functionality.

3. DEFINITIONS
All definitions from ISO 16484-5 also apply to this standard.

3.1 local network: the network to which a BACnet device is directly connected.

3.2 remote network: a network that is accessible from a BACnet device only by passing through one or more routers.

3.3 test database: a database of BACnet functionality and objects created by reading the contents of an EPICS.

3.4 Abbreviations and Acronyms Used in the Standard

BNF Backus-Naur Form syntax
EPICS electronic protocol implementation conformance statement
IUT implementation under test
TCSL testing and conformance scripting language
TD testing device
TPI text protocol information
4. ELECTRONIC PICS FILE FORMAT
An electronic protocol implementation conformance statement (EPICS) file contains a BACnet protocol implementation
conformance statement expressed in a standardized text form. EPICS files are machine and human readable representations
of the implementation of BACnet objects and services within a given device. EPICS files shall use the extension ".TPI" (text
protocol information) and contain normal editable text lines consisting of text character codes ending in carriage
return/linefeed pairs (X'0D', X'0A').

EPICS files are used by software testing tools to conduct and interpret the results of tests defined in this standard. An EPICS
file shall accompany any device tested according to the procedures of this standard.
4.1 Character Encoding
BACnet provides for a variety of possible character encodings. The character encodings in BACnet fall into three groups:
octet streams, double octet streams and quad octet streams. Octet streams represent characters as single octet values. In some
cases, such as Microsoft DBCS and JIS C 6226, certain octet values signal that the second octet which follows should be
viewed along with the leading octet as a single value, thus extending the range to greater than 256 possible characters. In
contrast, double octet streams view pairs of octets as representing single characters. The ISO 10646 UCS-2 encoding is an
example. The first or leading octet of the pair is the most significant part of the value. Quad octet streams, such as ISO 10646
UCS-4, treat tuples of four octets at a time as single characters with the first or leading octet being the most significant.

To accommodate the various encodings that may be used with BACnet device descriptions, EPICS files begin with a header
that serves both to identify the file as an EPICS file, and to identify the particular encoding used. The header begins with the
string "PICS #" where # is replaced by a numeral representing the character set as shown in Table 4-1.

ISO 16484-6:2005(E)
Table 4-1. Character Set Codes
code character set
0 ANSI 3.4
1 Microsoft DBCS
2 JIS C 6226
3 ISO 10646 (UCS-4)
4 ISO 10646 (UCS-2)
5 ISO 8859-1
An octet stream format can be recognized by examining the first eight octets of the EPICS file. Using ANSI 3.4 encoding as
an example these eight octets will contain: X'50' X'49' X'43' X'53' X'20' X'30' X'0D' X'0A'. This represents the text "PICS 0"
followed by carriage return and linefeed.

A double octet stream format can be recognized by examining the first 16 octets of the EPICS file. Using ISO 10646 UCS-2
encoding as an example these 16 octets will contain:

X'00' X'50' X'00' X'49' X'00' X'43' X'00' X'53'
X'00' X'20' X'00' X'34' X'00' X'0D' X'00' X'0A'

This represents the text "PICS 4" followed by carriage return and linefeed.

A quad octet stream format can be recognized by examining the first 32 octets of the EPICS file. Using ISO 10646 UCS-4 as
an example these 32 octets will contain:

X'00' X'00' X'00' X'50' X'00' X'00' X'00' X'49'
X'00' X'00' X'00' X'43' X'00' X'00' X'00' X'53'
X'00' X'00' X'00' X'20' X'00' X'00' X'00' X'33'
X'00' X'00' X'00' X'0D' X'00' X'00' X'00' X'0A'

This represents the text "PICS 3" followed by carriage return and linefeed.
4.2 Structure of EPICS Files
EPICS files consist of text lines ending in carriage return/linefeed pairs (X'0D', X'0A') encoded as octet, double octet or quad
octet streams as defined in 4.1. In the rest of this standard, the term "character" will be used to mean one symbol encoded as
one, two, or four octets based on the character encoding used in the EPICS file header. For example, the character space may
be encoded as X'20' or X'0020' or X'00000020'. In this standard all characters will be shown in their single octet form.

The special symbol ↵ is used in this Clause to signify the presence of a carriage return/linefeed pair (X'0D0A'). Except within
character strings, the character codes tab (X'09'), space (X'20'), carriage return (X'0D') and linefeed (X'0A') shall be
considered to be white space. Any sequence of 1 or more white space characters shall be equivalent to a single white space
character. Except within a character string, a sequence of two dashes (X'2D') shall signify the beginning of a comment which
shall end with the next carriage return/linefeed pair, i.e., the end of the line upon which the -- appears. Comments shall be
considered to be white space, and may thus be inserted freely.

EPICS files shall have, as their first line following the header, the literal text:
BACnet Protocol Implementation Conformance Statement ↵
This text serves as a signature identifying the EPICS file format.

Lines that define the sections of the EPICS (see 4.5) and the particular implementation data for a given device follow the
signature line.
The EPICS file ends with a line containing the following literal text:
End of BACnet Protocol Implementation Conformance Statement ↵
ISO 16484-6:2005(E)
4.3 Character Strings
The occurrence of a double quote (X'22'), single quote (X'27') or accent grave (X'60') shall signify character strings. For
double quotes, the end of the string shall be signified by the next occurrence of a double quote, or the end of the line. For
single quote or accent grave, the end of the string shall be signified by the next occurrence of a single quote (X'27'), or the
end of the line. Thus strings which need to include a single quote or accent grave as a literal character in the string shall use
the double quote quoting method, while strings which need to include double quote shall use the single quote or accent grave
quoting method.
4.4 Notational Rules for Parameter Values
Within each section, parameters may need to be expressed in one of several forms. The following rules govern the format for
parameters:
(a) key words are case insensitive so that X'41' through X'5A' are equivalent to X'61' through X'7A';
(b) null values are shown by the string "NULL";
(c) Boolean values are shown by the strings "T" or "TRUE" if the value is true, or "F" or "FALSE" if the value is false;
(d) integer values are shown as strings of digits, possibly with a leading minus (-): 12345 or -111;
(e) real values are shown with a decimal point, which may not be the first or last character: 1.23, 0.02, 1.0 but not .02;
(f) octet strings are shown as pairs of hex digits enclosed in either single quotes (X'2D') or accent graves (X'60'), and
preceded by the letter "X": X'001122';
(g) character strings are represented as one or more characters enclosed in double, single or accent grave quotes as
defined in 4.3: 'text' or 'text' or "text";
(h) bitstrings are shown as a list, enclosed by curly brackets ({ } or X'7B' and X'7D'), of true and false values: {T,T,F}
or {TRUE, TRUE, FALSE}. When the actual value of a bit does not matter, a question mark is used: {T,T,?};
(i) enumerated values are represented as named, rather than numeric, values. Enumeration names are case insensitive so
that X'41' through X'5A' are equivalent to X'61' through X'7A'. The underscore (X'5F') and dash (X'2D') are
considered equivalent in enumeration names. Proprietary values are shown as a named text with no whitespace and
ending in a non-negative decimal numeric. Each must start with the word "proprietary": Object_Type, proprietary-
object-type-653;
(j) dates are represented enclosed in parenthesis: (Monday, 24-January-1998). Any "wild card" or unspecified field is
shown by an asterisk (X'2A').: (Monday, *-January-1998). The omission of day of week implies that the day is
unspecified: (24-January-1998);
(k) times are represented as hours, minutes, seconds, hundredths in the format hh:mm:ss.xx: 2:05:44.00, 16:54:59.99.
Any "wild card" field is shown by an asterisk (X'2A'): 16:54:*.*;
(l) object identifiers are shown enclosed by parentheses, with commas separating the object type and the instance
number: (analog-input, 56). Proprietary object types replace the object type enumeration with the word "proprietary"
followed by the numeric value of the object type: (proprietary 700,1);
(m) constructed data items are represented enclosed by curly brackets ({ } or X'7B' and X'7D'), with elements separated
by commas. If an element is itself a constructed value, then that element shall be enclosed in curly brackets.
4.4.1 Complex Parameter Values
Some parameter values, notably property values for constructed or CHOICE types of encoded values, need to use a more
complex notation to represent their values. This notation is tied to the ASN.1 encoding for those property values and may
appear obscure out of context. These additional rules govern the presentation of those types of parameter values:

(a) values which are a CHOICE of application-tagged values are represented by the value of the chosen item encoded as
described in 4.4;
(b) values which are a CHOICE of context-tagged values are represented by the context tag number enclosed in square
brackets, followed by the representation of the value of the chosen item;
(c) list values (ASN.1 "SEQUENCE OF") are represented enclosed in parenthsis, with the elements of the list separated
by commas. If an element is itself a constructed value, then that element shall be enclosed in curly brackets;
(d) array values are represented enclosed in curly brackets, with the elements of the array separated by commas. If an
element is itself a constructed value, then that element shall be enclosed in curly brackets.
ISO 16484-6:2005(E)
4.4.2 Specifying Limits on Parameter Values
Some properties may have restrictions on the range or resolution of their values. In order to correctly interpret the results of
tests in which the value of a property is changed using WriteProperty, WritePropertyMultiple, or AddListElement then read
back using ReadProperty or ReadPropertyMultiple, it is necessary to know what these restrictions are. The test database may
contain restriction statements that define these constraints. The permissible restrictions and the datatypes they apply to are:

(a) minimum - the minimum value for Unsigned, Integer, Real, or Double datatypes. The earliest date for the Date
datatype;
(b) maximum - the maximum value for Unsigned, Integer, Real, or Double datatypes. The latest date for the Date
datatype;
(c) resolution - the minimum guaranteed resolution for Real and Double datatypes. The minimum time resolution in
seconds for the Time datatype;
(d) maximum length string - the maximum length of a CharacterString or OctetString;
(e) maximum length list - the maximum number of elements guaranteed to fit in a list;
(f) maximum length array - the maximum number of elements in an array;
(g) allowed values - a comma-delimited list of supported enumerations for an Enumerated datatype. A comma-
delimited list of object types for properties that reference an external object identifier.

Restriction statements shall be listed within pointed brackets (< and >) following the default value. If there are multiple
restrictions within a single set of angle brackets, then the restrictions shall be separated by a semicolon (;). A restriction
statement consists of the restric
...
