Plastics piping systems for soil and waste discharge (low and high temperature) within the building structure - Unplasticized poly(vinyl chloride) (PVC-U) - Part 1: Specifications for pipes, fittings and the system
Systèmes de canalisations en plastique pour l'évacuation des eaux-vannes et des eaux usées (à basse et à haute température) à l'intérieur de la structure des bâtiments - Poly(chlorure de vinyle) non plastifié (PVC-U) - Partie 1: Spécifications pour tubes, raccords et le système
Kunststoff-Rohrleitungssysteme zum Ableiten von Abwasser (niedriger und hoher Temperatur) innerhalb der Gebäudestruktur - Weichmacherfreies Polyvinylchlorid (PVC U) - Teil 1: Anforderungen an Rohre, Formstücke und das Rohrleitungssystem This European Standard was approved by CEN on 1 December 2013.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2014 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 1329-1:2014 ESIST EN 1329-1:2014

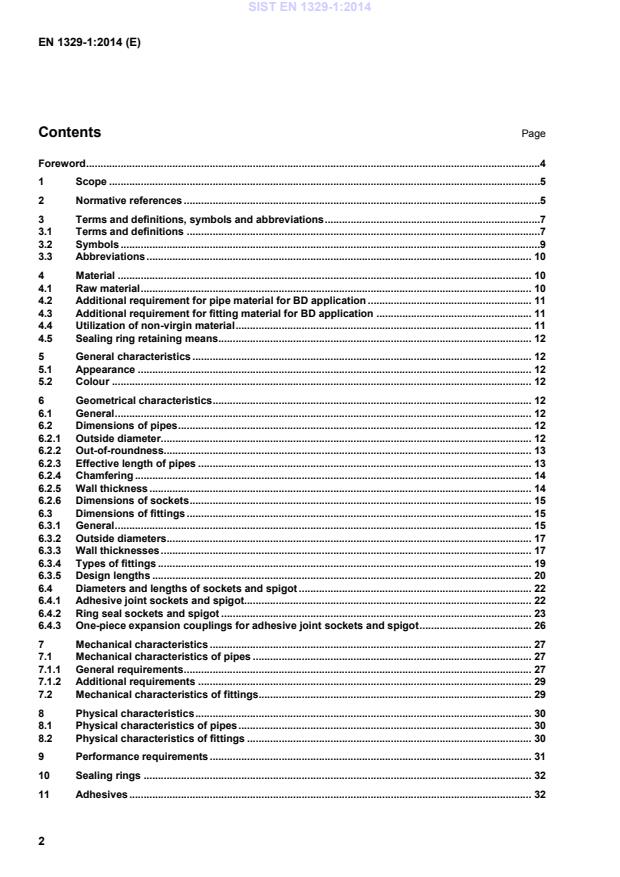

Page Foreword .4 1 Scope .5 2 Normative references .5 3 Terms and definitions, symbols and abbreviations .7 3.1 Terms and definitions .7 3.2 Symbols .9 3.3 Abbreviations . 10 4 Material . 10 4.1 Raw material . 10 4.2 Additional requirement for pipe material for BD application . 11 4.3 Additional requirement for fitting material for BD application . 11 4.4 Utilization of non-virgin material . 11 4.5 Sealing ring retaining means . 12 5 General characteristics . 12 5.1 Appearance . 12 5.2 Colour . 12 6 Geometrical characteristics . 12 6.1 General . 12 6.2 Dimensions of pipes . 12 6.2.1 Outside diameter. 12 6.2.2 Out-of-roundness. 13 6.2.3 Effective length of pipes . 13 6.2.4 Chamfering . 14 6.2.5 Wall thickness . 14 6.2.6 Dimensions of sockets . 15 6.3 Dimensions of fittings . 15 6.3.1 General . 15 6.3.2 Outside diameters. 17 6.3.3 Wall thicknesses . 17 6.3.4 Types of fittings . 19 6.3.5 Design lengths . 20 6.4 Diameters and lengths of sockets and spigot . 22 6.4.1 Adhesive joint sockets and spigot. 22 6.4.2 Ring seal sockets and spigot . 23 6.4.3 One-piece expansion couplings for adhesive joint sockets and spigot . 26 7 Mechanical characteristics . 27 7.1 Mechanical characteristics of pipes . 27 7.1.1 General requirements . 27 7.1.2 Additional requirements . 29 7.2 Mechanical characteristics of fittings. 29 8 Physical characteristics . 30 8.1 Physical characteristics of pipes . 30 8.2 Physical characteristics of fittings . 30 9 Performance requirements . 31 10 Sealing rings . 32 11 Adhesives . 32 SIST EN 1329-1:2014

Utilization of non-virgin material . 35 A.1 Own reprocessed material. 35 A.2 External reprocessed and recycled materials with agreed specifications . 35 A.3 External reprocessed and recycled material not covered by an agreed specification . 37 A.4 Summary of use of non-virgin material . 38 Annex B (informative)
Product standards . 39 Annex C (informative)
Correspondence between ISO test methods and CEN test methods . 40 Bibliography . 41
: outside diameter dem : mean outside diameter SIST EN 1329-1:2014

4.2 Additional requirement for pipe material for BD application The material of pipes intended to be used in application area BD shall comply with the additional requirement given in Table 1, when tested in accordance with the methods and the parameters indicated in Table 1. The pipe material shall be tested in the form of a pipe. Table 1 — Material characteristics of pipes intended for BD application Characteristic Requirements Test parameters Test method Resistance to internal pressure No failure during the test period End caps Test temperature Orientation Number of test pieces Circumferential (hoop) stress Conditioning period Type of test Test period Type A or B 60 °C Free 3 10,0 MPa 1 h Water-in-water 1 000 h EN ISO 1167-1 and EN ISO 1167-2 4.3 Additional requirement for fitting material for BD application The material of fittings intended to be used in application area BD shall comply with the additional requirement given in Table 2, when tested in accordance with the methods and the parameters indicated in Table 2. The fitting material shall be tested in the form of an extruded or injection-moulded pipe. Table 2 — Material characteristics of fittings intended for BD application Characteristic Requirements Test parameters Test method Resistance to internal pressure No failure during the test period End caps Dimensions Test temperature Orientation Free length for injection-moulded pipe Number of test pieces Circumferential (hoop) stress Conditioning period Type of test Test period Type A or B 50 mm ≤ dn ≤ 110 mm 60 °C Free ≥ 140 mm 3 6,3 MPa 1 h Water-in-water 1 000 h EN ISO 1167-1
and
EN ISO 1167-2 4.4 Utilization of non-virgin material Conditions and requirements for the utilization of non-virgin material are given in Annex A. SIST EN 1329-1:2014

DN/OD Nominal outside diameter Mean outside diameter
dn dem,min dem,max 32 40 50 63
75 80 82 90
100 110 125 140
160 180 200 250 315 32 40 50 63
75 80 82 90
100 110 125 140
160 180 200 250 315 32,0 40,0 50,0 63,0
75,0 80,0 82,0 90,0
100,0 110,0 125,0 140,0
160,0 180,0 200,0 250,0 315,0 32,2 40,2 50,2 63,2
75,3 80,3 82,3 90,3
100,3 110,3 125,3 140,4
160,4 180,4 200,5 250,5 315,6 Table 4 — Mean outside diameters (series based on inch dimensions) Dimensions in millimetres Nominal size DN/OD Nominal outside diameter Mean outside diameter
dn dem,min dem,max 36 43 56 36 43 56 36,2 42,8 55,8 36,5 43,1 56,1 6.2.2 Out-of-roundness The out-of-roundness, measured directly after production shall be less than or equal to 0,024 dn. 6.2.3 Effective length of pipes The effective length (useful length) of a pipe, l, shall be not less than that specified by the manufacturer when measured as shown in Figure 1. SIST EN 1329-1:2014

Figure 1 — Effective length of pipes 6.2.4 Chamfering If a chamfer is applied, the angle of chamfering shall be between 15° and 45° to the axis of the pipe. The remaining wall thickness of the end of the pipe shall be at least 1/3 of emin. 6.2.5 Wall thickness The wall thickness shall conform to Table 5 or Table 6 respectively, where for metric series a wall thickness at any point up to 1,2emin is permitted provided that the mean value, em, is less than or equal to the specified em,max. SIST EN 1329-1:2014

B a BD b
dn emin em,max emin em,max 32 40 50 63
75 80 82 90
100 110 125 140
160 180 200 250 315 32 40 50 63
75 80 82 90
100 110 125 140
160 180 200 250 315 3,0 3,0 3,0 3,0
3,0 3,0 3,0 3,0
3,0 3,2 3,2 3,2
3,2 3,6 3,9 4,9 6,2 3,5 3,5 3,5 3,5
3,5 3,5 3,5 3,5
3,5 3,8 3,8 3,8
3,8 4,2 4,5 5,6 7,1 −− −− −− −−
3,0 3,0 3,0 3,0
3,0 3,2 3,2 3,5
4,0 4,4 4,9 6,2 7,7 −− −− −− −−
3,5 3,5 3,5 3,5
3,5 3,8 3,8 4,1
4,6 5,0 5,6 7,1 8,7 a This serie results from a SDR 51. b This serie results from a SDR 41, which is classified SN4. Table 6 — Wall thickness (series based on inch dimensions) Dimensions in millimetres Nominal size DN/OD Nominal outside diameter Wall thickness
Application area B
dn emin em,max 36 43 56 36 43 56 3,0 3,0 3,0 3,5 3,5 3,5 6.2.6 Dimensions of sockets When applicable, the dimensions of pipes sockets shall comply with the relevant requirements of sockets as specified in 6.4. 6.3 Dimensions of fittings 6.3.1 General The dimensions of the fittings shall be measured according to Figures 2 and 3 and shall comply with the requirements given in 6.3 and 6.4. SIST EN 1329-1:2014

Key A length of engagement C depth of sealing zone de outside diameter of a spigot ds inside diameter of a socket e wall thickness e2 wall thickness of socket e3 wall thickness at the groove L1 length of spigot Figure 2 — General dimensions of sockets and spigots for elastomeric sealing joints
Key de outside diameter of a spigot ds inside diameter of a socket e wall thickness e2 wall thickness of socket L1 length of spigot L2 length of socket Figure 3 — Basic dimensions of sockets and spigots for adhesive joints SIST EN 1329-1:2014

DN/OD Nominal outside diameter Wall thickness Wall thickness of sockets a (e2 = 0,75e)
Application area Application area
B BD B BD
dn emin emin e2,min e2,min 32 40 50 63
75 80 82 90
100 110 125 140
160 180 200 250 315 32 40 50 63
75 80 82 90
100 110 125 140
160 180 200 250 315 3,0 3,0 3,0 3,0
3,0 3,0 3,0 3,0
3,0 3,2 3,2 3,2
3,2 3,6 3,9 4,9 6,2 −− −− −− −−
3,0 3,0 3,0 3,0
3,0 3,2 3,2 3,5
4,0 4,4 4,9 6,2 7,7 2,0 b
2,0 b 2,0 b 2,0 b
2,0 b 2,3 2,3 2,3
2,3 2,4 2,4 2,4
2,4 2,7 2,9 3,7 4,7 −− −− −− −−
2,0 b 2,3 2,3 2,3
2,3 2,4 2,4 2,6
3,0 3,3 3,7 4,7 5,8 a This requirement is also applicable to the wall thickness of the spigot. b e2 = 0,65e. This kind of fittings may only be used in an adhesive joint system and shall be marked accordingly. SIST EN 1329-1:2014

DN/OD Nominal outside diameter Wall thickness a Wall thickness of sockets a b
(e2
= 0,75e)
Application area Application area
B B
dn emin e2,min 36 43 56 36 43 56 3,0 3,0 3,0 2,3 2,3 2,3 a For existing tools the following values for the wall thickness are allowed, provided that the deviating value for the wall thickness, e, is marked on the fitting:
dn emin e2,min
36 43 56 2,7 2,7 2,7 2,0 2,0 2,0 b This requirement is also applicable to the wall thickness of the spigot. 6.3.3.3 Ring seal fittings For ring seal fittings the wall thicknesses e, e2 and e3 (see Figure 2), shall comply with the requirements given in Table 9 or Table 10, as applicable. For ring seal fittings a reduction of 5 % of the wall thickness resulting from core shifting is permitted. In such case the average of two opposite wall thicknesses shall be equal to, or exceed, the values given in Table 9 or Table 10, as applicable. Where a sealing ring is located by means of a retaining cap or ring (see Figure 4) the wall thickness in this area shall be calculated by addition of the wall thickness of the socket and the wall thickness of the retaining cap or ring at the corresponding places in the same cross section.
Figure 4 — Example for calculation of the wall thickness of sockets with retaining cap SIST EN 1329-1:2014

(e2 = 0,9e) Wall thickness in the groove area
(e3 = 0,75e)
Application area Application area Application area
dn B emin BD emin B e2,min BD e2,min B e3,min BD e3,min 32 40 50 63
75 80 82 90
100 110 125 140
160 180 200 250 315 32 40 50 63
75 80 82 90
100 110 125 140
160 180 200 250 315 3,0 3,0 3,0 3,0
3,0 3,0 3,0 3,0
3,0 3,2 3,2 3,2
3,2 3,6 3,9 4,9 6,2 −− −− −− −−
3,0 3,0 3,0 3,0
3,0 3,2 3,2 3,5
4,0 4,4 4,9 6,2 7,7 2,7 2,7 2,7 2,7
2,7 2,7 2,7 2,7
2,7 2,9 2,9 2,9
2,9 3,2 3,5 4,5 5,6 −− −− −− −−
2,7 2,7 2,7 2,7
2,7 2,9 2,9 3,1
3,6 4,0 4,4 5,6 6,9 2,3 2,3 2,3 2,3
2,3 2,3 2,3 2,3
2,3 2,4 2,4 2,4
2,4 2,7 2,9 3,7 4,7 −− −− −− −−
2,3 2,3 2,3 2,3
2,3 2,4 2,4 2,6
3,0 3,3 3,7 4,7 5,8 Table 10 — Wall thicknesses for expansion coupling (series based on inch dimensions) Dimensions in millimetres Nominal size DN/OD Nominal outside diameter Wall thickness a Wall thickness of sockets a (e2 = 0,9e) Wall thickness in the groove area a (e3 = 0,75e)
Application area Application area Application area
dn B emin B e2,min B e3,min 36 43 56 36 43 56 3,0 3,0 3,0 2,7 2,7 2,7 2,2 2,2 2,2 a For existing tools the following values for the wall thickness are allowed, provided that the deviating value for the wall thickness, e, is marked on the fitting:
dn emin e2,min e3,min
36 43 56 2,7 2,7 2,7 2,4 2,4 2,4 2,0 2,0 2,0 6.3.4 Types of fittings This standard is applicable to the following types of fittings. Other types and/or designs of fittings (e.g. plugs, access fittings, etc.) are permitted. SIST EN 1329-1:2014

Figure 5 — Bend with single socket (unswept) Figure 6 — Bend with all sockets (unswept)
Figure 7 — Bend with single socket (swept) Figure 8 — Bend with all sockets (swept)
Figure 9 — Coupler Figure 10 — Reducer
Figure 11 — Branch with single socket (unswept) Figure 12 — Branch with all sockets (unswept)
Figure 13 — Reducing branch with single socket (swept) Figure 14 — Reducing branch with all sockets (swept) 6.4 Diameters and lengths of sockets and spigot 6.4.1 Adhesive joint sockets and spigot The diameters and lengths of adhesive joint sockets and spigot shall conform to Table 11 or Table 12, as applicable (see Figure 3). SIST EN 1329-1:2014

dn dem,min dem,max dsm,min dsm,max L2,min and L1,min 32 40 50 63
75 80 82 90
100 110 125 140
160 180 200 250 315 32 40 50 63
75 80 82 90
100 110 125 140
160 180 200 250 315 32,0 40,0 50,0 63,0
75,0 80,0 82,0 90,0
100,0 110,0 125,0 140,0
160,0 180,0 200,0 250,0 315,0 32,2 40,2 50,2 63,2
75,3 80,3 82,3 90,3
100,3 110,3 125,3 140,4
160,4 180,4 200,5 250,5 315,6 32,1 40,1 50,1 63,1
75,2 80,2 82,2 90,2
100,2 110,2 125,2 140,3
160,3 180,3 200,4 250,4 315,5 32,4 40,4 50,4 63,4
75,5 80,5 82,5 90,5
100,5 110,6 125,7 140,8
160,8 180,8 200,9 250,9 316,0 22 26 30 36
40 42 43 46
46 48 51 54
58 60 60 60 60 a The manufacturer shall state whether the fittings are designed with a tapered or parallel socket. If they are tapered, then the minimum and maximum values given for dsm shall apply at the mid mean point of the socket with a maximum taper angle of 0°30 per side. ltherwise these values for dsm shall apply over the entire length of the socket b For joints intended for fabrication within a workshop L2-values may be reduced to the Cmax values (see Table 13). Table 12 — Diameters and lengths of adhesive joint sockets and spigot
(series based on inch dimensions) Dimensions in millimetres Nominal size DN/OD Nominal outside diameter Mean outside diameter of spigot Mean inside diameter of socket Length of socket and spigot
dn dem,min dem,max dsm,min dsm,max L2,min and L1,min 36 43 56 36 43 56 36,1 42,7 55,7 36,5 43,1 56,1 36,1 42,7 55,7 36,7 43,3 56,3 18 21 27 Tolerances apply to the complete length of the socket. ff a taper is incorporatedf it shall not exceed 0°30. 6.4.2 Ring seal sockets and spigot The diameters and lengths of ring seal sockets and spigots type S I (short type system I), type S II (short type system II) and type M (medium type) shall conform to Tables 13 to 15, as applicable (see Figure 2). An example of designs for grooves for elastomeric ring seal sockets is given in Figure 15. Other designs are permitted. SIST EN 1329-1:2014

Figure 15 — Typical groove designs for elastomeric ring seal sockets Where sealing rings are firmly retained, the minimum value for A and the maximum value for C (see Figure 15) shall be measured to the effective sealing point (see Figure 16) as specified by the manufacturer and, if applicable, in agreement with a certification body.
Figure 16 — Example for measuring the effective sealing point SIST EN 1329-1:2014

for application area B Dimensions in millimetres Nominal size Mean outside diameter of spigot Mean inside diameter of socket Lengths of socket and spigot DN/OD dem,min dem,max dsm,min Amin Cmax L1,min 32 40 50 63
75 80 82 90
100 110 125 140
160 180 200 32,0 40,0 50,0 63,0
75,0 80,0 82,0 90,0
100,0 110,0 125,0 140,0
160,0 180,0 200,0 32,2 40,2 50,2 63,2
75,3 80,3 82,3 90,3
100,3 110,3 125,3 140,4
160,4 180,4 200,5 32,3 40,3 50,3 63,3
75,4 80,4 82,4 90,4
100,4 110,4 125,4 140,5
160,5 180,5 200,6 16 18 20 22
25 26 26 28
30 32 35 38
42 46 50 18 18 18 20
20 21 21 22
22 26 26 26
32 36 40 34 36 37 37
43 44 44 46
46 54 60 60
60 60 60 Table 14 — Diameters and lengths of ring seal sockets and spigot type S II (short type, system II)
for application areas B and BD Dimensions in millimetres Nominal size Mean outside diameter of spigot Mean inside diameter of socket Lengths of socket and spigot DN/OD dem,min dem,max dsm,min Amin Cmax L1,min 32 40 50 63
75 80 82 90
100 110 125 140
160 180 200 250 315 32,0 40,0 50,0 6
...
