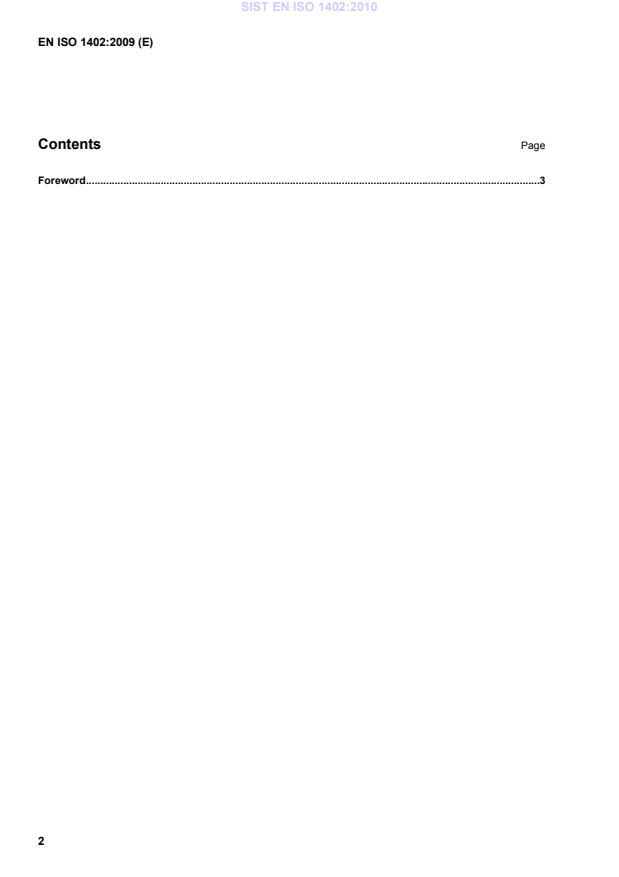

Contents Page
Foreword .3

Foreword
This document (EN ISO 1402:2009) has been prepared by Technical Committee ISO/TC 45 "Rubber and
rubber products" in collaboration with Technical Committee CEN/TC 218 “Rubber and plastics hoses and
hose assemblies”, the secretariat of which is held by BSI.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by April 2010, and conflicting national standards shall be withdrawn at the
latest by April 2010.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN ISO 1402:1996.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.
Endorsement notice
The text of ISO 1402:2009 has been approved by CEN as a EN ISO 1402:2009 without any modification.

INTERNATIONAL ISO
STANDARD 1402
Fourth edition
2009-10-15
Rubber and plastics hoses and hose
assemblies — Hydrostatic testing
Tuyaux et flexibles en caoutchouc et en plastique — Essais
hydrostatiques
Reference number
ISO 1402:2009(E)
©
ISO 2009
ISO 1402:2009(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2009
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2009 – All rights reserved

ISO 1402:2009(E)
Contents Page
Foreword .iv
1 Scope.1
2 Normative references.1
3 Terms and definitions .1
4 General .1
5 Apparatus.1
6 Test pieces .2
6.1 Hose assemblies .2
6.2 Hoses.2
6.3 Number of test pieces.2
7 Application of hydrostatic pressure.2
7.1 General .2
7.2 Procedure.2
8 Hydrostatic pressure tests .3
8.1 Proof pressure hold test.3
8.2 Measurement of deformation under pressure.3
8.3 Burst pressure test.5
8.4 Leakage test.6
9 Test report.6

ISO 1402:2009(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 1402 was prepared by Technical Committee ISO/TC 45, Rubber and rubber products, Subcommittee
SC 1, Hoses (rubber and plastics).
This fourth edition cancels and replaces the third edition (ISO 1402:1994), which has been technically revised.

iv © ISO 2009 – All rights reserved

INTERNATIONAL STANDARD ISO 1402:2009(E)

Rubber and plastics hoses and hose assemblies — Hydrostatic
testing
1 Scope
This International Standard specifies methods for the hydrostatic testing of rubber and plastics hoses and
hose assemblies, including methods for the determination of dimensional stability.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 4671, Rubber and plastics hoses and hose assemblies — Methods of measurement of the dimensions of
hoses and the lengths of hose assemblies
ISO 7751, Rubber and plastics hoses and hose assemblies — Ratios of proof and burst pressure to design
working pressure
ISO 8330, Rubber and plastics hoses and hose assemblies — Vocabulary
ISO 23529, Rubber — General procedures for preparing and conditioning test pieces for physical test
methods
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 8330 apply.
4 General
Unless otherwise specified, all tests shall be carried out at standard temperature (see ISO 23529).
5 Apparatus
5.1 Pressure source, capable of applying pressure at the rate specified in 7.2.2, up to the required test
pressure.
5.2 Calibrated pressure gauge or pressure transducer with digital readout, chosen for each test so
that the test pressure is between 15 % and 85 % of the full-scale reading.
In the interest of accuracy, calibrated pressure gauges or pressure transducers with digital readouts shall be
checked at frequent intervals and the fitting of restrictors is recommended to minimize shock damage.
ISO 1402:2009(E)
5.3 Dimensional equipment, sliding vernier callipers or micrometer, length measuring tape, circumferential
measuring tape (π tape).
6 Test pieces
6.1 Hose assemblies
When hose assemblies are to be tested, the manufactured assembly length shall be used for the test.
6.2 Hoses
The hydrostatic pressure and burst tests shall be carried out on a hose test piece with a minimum free length,
excluding end fittings and end reinforcements, of 600 mm when deformation is to be measured and 300 mm
when it is not. When a longer test length is requ
...
