Acceptance tests for CO2-laser beam machines for high quality welding and cutting - Part 3: Calibration of instruments for measurement of gas flow and pressure (ISO 15616-3:2003)

ISO 15616-3:2003 is applicable to the measurement of the process-oriented gas parameters for the acceptance tests for CO2-laser beam machines for high quality welding and cutting in two operation directions in accordance with ISO 15616-1:2003.
This international Standard specifies examination procedures for instruments used for control of process-oriented gas parameters.

Abnahmeprüfungen für CO2-Laserstrahlanlagen zum Qualitätsschweißen und -schneiden - Teil 3: Kalibrieren von Instrumenten zum Messen des Gasdurchflusses und -drucks (ISO 15616-3:2003)

Dieser Teil der Norm gilt für die Messung der Prozeßgasparameter für die Abnahmeprüfungen für CO2-Laserstrahlanlagen für zweidimensionales Schneiden und Schweißen (2D), nach prEN ISO 15616-1. Diese Norm enthält Anweisungen zur Gewinnung von Parametern, die erforderlich sind, um die Strahleigenschaften festschreiben zu können.

Essais de réception des machines de soudage et de coupage de qualité par faisceau laser CO2 - Partie 3: Etalonnage des instruments de mesure de débit et de pression des gaz d'assistance (ISO 15616-3:2003)

L'ISO 15616-3:2003 est applicable pour la mesure des paramètres relatifs aux gaz liés au procédé, dans le cadre de l'essai de réception des machines de soudage et de coupage de qualité par faisceau laser CO2 mobile dans deux directions (2D) conformément à l'ISO 15616-1:2003.
L'ISO 15616-3:2003 spécifie des modes opératoires d'examen pour les instruments utilisés pour le contrôle des paramètres relatifs aux gaz liés au procédé.

Prevzemni preskusi strojev za visokokakovostno varjenje in rezanje z laserji CO2 - 3. del: Umerjanje instrumentov za merjenje pretoka in tlaka plina (ISO 15616-3-2003)

General Information

Status
Published
Publication Date
28-Feb-2003
ICS
25.160.30 - Welding equipment
Technical Committee
CEN/TC 121 - Welding
Drafting Committee
CEN/TC 121/SC 4 - Quality management in the field of welding
Current Stage
9093 - Decision to confirm - Review Enquiry
Start Date
02-Mar-2009
Completion Date
02-Mar-2009
Ref Project
SIST EN ISO 15616-3:2003 - Acceptance tests for CO2-laser beam machines for high quality welding and cutting - Part 3: Calibration of instruments for measurement of gas flow and pressure (ISO 15616-3:2003)

Relations

Referred By
EN ISO 15616-1:2003 - Acceptance tests for CO2-laser beam machines for high quality welding and cutting - Part 1: General principles, acceptance conditions (ISO 15616-1:2003)
Effective Date
28-Jan-2026
Referred By
EN 4678:2011 - Aerospace series - Weldments and brazements for aerospace structures - Joints of metallic materials by laser beam welding - Quality of weldments
Effective Date
28-Jan-2026

Overview

EN ISO 15616-3:2003 - Acceptance tests for CO2-laser beam machines for high quality welding and cutting - Part 3 covers the calibration and examination procedures for instruments used to measure process-oriented gas parameters (gas flow and gas pressure). It applies to acceptance testing of CO2-laser beam machines operating in two directions (2D) in accordance with EN ISO 15616-1:2003. The standard ensures that gas supply instruments give reliable, reproducible readings required for high-quality laser welding and cutting.

Key Topics and Requirements

  • Scope: Measurement of process-oriented gas parameters (gas flow in litres per minute [l/min], gas pressure in two ranges: < 1 MPa (< 10 bar) and > 1 MPa (> 10 bar)).
  • Instrument selection: Measuring devices must be suitable for the required range, maximum value and accuracy for the test application.
  • Accuracy requirement: Test instruments shall have a limit error of at least ±2% of their maximum scale reading.
  • Gauge ranges guidance: For pressure gauges, recommended instrument ranges are 10/16 (up to 10 bar) and 20/40 (up to 20 bar) to minimize measurement error.
  • Measurement conditions: Tests are performed with flowing gas and without the laser beam or workpiece present. The first reading is taken after 2 seconds and values are recorded continuously for 1 minute. Measurements should cover the machine’s intended working range.
  • Test setup and safety: All components (fittings, hoses, pickups) must be compatible with the gas and pressure used. Equipment must be leak-checked, systems purged before switching gases, and fume extraction used during testing.
  • Gas flow testing: Flow gauges should be chosen per test needs; where flow meters require pressure compensation, pressure pickups must be placed close to the flow meter. Manufacturer corrective factors are applied when evaluating results.

Applications and Users

Practical uses of EN ISO 15616-3:2003 include:

  • Acceptance testing during commissioning of CO2-laser welding and cutting machines.
  • Periodic verification and calibration of gas flow and pressure instruments in production lines.
  • Quality assurance to maintain reproducible welding/cutting results by ensuring stable gas supply.
  • Support for machine manufacturers, system integrators, calibration laboratories, test engineers, quality managers, and inspection bodies responsible for compliance and performance validation.

Related Standards

  • EN ISO 15616-1:2003 - Acceptance tests for CO2-laser beam machines - Part 1: General principles, acceptance conditions.
  • EN ISO 15616-2:2003 - Part 2 covers measurement of static and dynamic accuracy (part of the same acceptance test series).

Keywords: EN ISO 15616-3:2003, CO2-laser beam machines, gas flow measurement, gas pressure calibration, acceptance tests, laser welding, laser cutting, instrument calibration, process-oriented gas parameters.

Get Certified

Connect with accredited certification bodies for this standard

National Aerospace and Defense Contractors Accreditation Program (NADCAP)

Global cooperative program for special process quality in aerospace.

ANAB United States Verified
Visit Website

CARES (UK Certification Authority for Reinforcing Steels)

UK certification for reinforcing steels and construction.

UKAS United Kingdom Verified
Visit Website

DVS-ZERT GmbH

German welding certification society.

DAKKS Germany Verified
Visit Website

Sponsored listings

Frequently Asked Questions

EN ISO 15616-3:2003 is a standard published by the European Committee for Standardization (CEN). Its full title is "Acceptance tests for CO2-laser beam machines for high quality welding and cutting - Part 3: Calibration of instruments for measurement of gas flow and pressure (ISO 15616-3:2003)". This standard covers: ISO 15616-3:2003 is applicable to the measurement of the process-oriented gas parameters for the acceptance tests for CO2-laser beam machines for high quality welding and cutting in two operation directions in accordance with ISO 15616-1:2003. This international Standard specifies examination procedures for instruments used for control of process-oriented gas parameters.

ISO 15616-3:2003 is applicable to the measurement of the process-oriented gas parameters for the acceptance tests for CO2-laser beam machines for high quality welding and cutting in two operation directions in accordance with ISO 15616-1:2003. This international Standard specifies examination procedures for instruments used for control of process-oriented gas parameters.

EN ISO 15616-3:2003 is classified under the following ICS (International Classification for Standards) categories: 25.160.30 - Welding equipment. The ICS classification helps identify the subject area and facilitates finding related standards.

EN ISO 15616-3:2003 has the following relationships with other standards: It is inter standard links to EN ISO 15616-1:2003, EN 4678:2011. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.

EN ISO 15616-3:2003 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

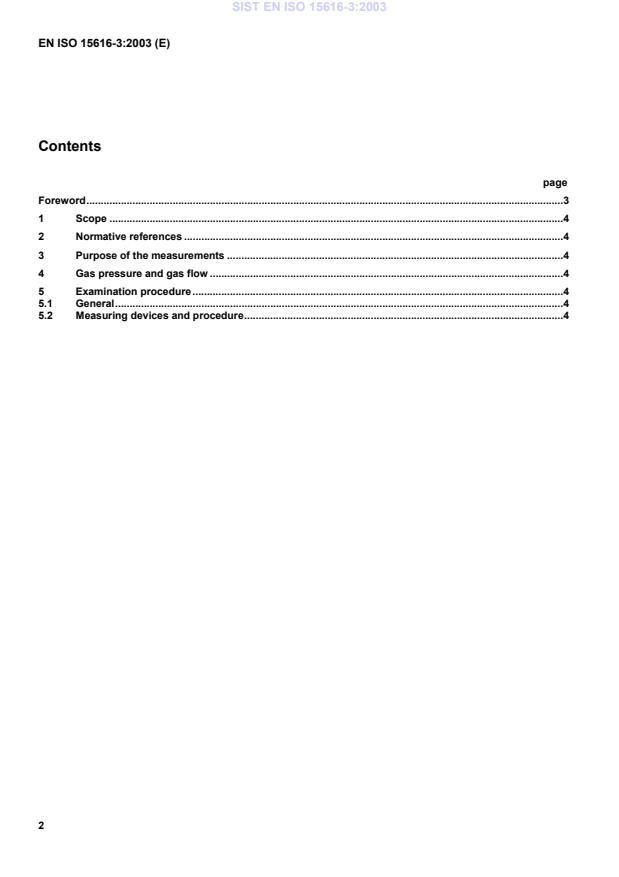

Standards Content (Sample)


2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Prevzemni preskusi strojev za visokokakovostno varjenje in rezanje z laserji CO2
- 3. del: Umerjanje instrumentov za merjenje pretoka in tlaka plina (ISO 15616-3-2003)Abnahmeprüfungen für CO2-Laserstrahlanlagen zum Qualitätsschweißen und -schneiden - Teil 3: Kalibrieren von Instrumenten zum Messen des Gasdurchflusses und -drucks (ISO 15616-3:2003)Essais de réception des machines de soudage et de coupage de qualité par faisceau laser CO2 - Partie 3: Etalonnage des instruments de mesure de débit et de pression des gaz d'assistance (ISO 15616-3:2003)Acceptance tests for CO2-laser beam machines for high quality welding and cutting - Part 3: Calibration of instruments for measurement of gas flow and pressure (ISO 15616-3:2003)25.160.30Varilna opremaWelding equipmentICS:Ta slovenski standard je istoveten z:EN ISO 15616-3:2003SIST EN ISO 15616-3:2003en01-december-2003SIST EN ISO 15616-3:2003SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN ISO 15616-3March 2003ICS 25.160.30English versionAcceptance tests for CO2-laser beam machines for high qualitywelding and cutting - Part 3: Calibration of instruments formeasurement of gas flow and pressure (ISO 15616-3:2003)Essais de réception des machines de soudage et decoupage de qualité par faisceau laser CO2 - Partie 3:Etalonnage des instruments de mesure de débit et depression des gaz d'assistance (ISO 15616-3:2003)Abnahmeprüfungen für CO2-Laserstrahlanlagen zumQualitätsschweißen und -schneiden - Teil 3: Kalibrieren vonInstrumenten zum Messen des Gasdurchflusses und -drucks (ISO 15616-3:2003)This European Standard was approved by CEN on 21 November 2002.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,Hungary, Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Slovak Republic, Spain, Sweden, Switzerland andUnited Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2003 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN ISO 15616-3:2003 ESIST EN ISO 15616-3:2003
...
