Steel cord conveyor belts - Adhesion strength test of the cover to the core layer (ISO 8094:2013)

ISO 8094:2013 specifies a test method for determining the adhesion strength of the cover to the core layer. It applies exclusively to steel cord conveyor belts.

Stahlseilfördergurte - Prüfung der Haftfestigkeit zwischen der Deckplatte und der Kernschicht (ISO 8094:2013)

Courroies transporteuses à câbles d'acier - Essai d'adhérence du revêtement à la couche de câbles (ISO 8094:2013)

L'ISO 8094:2013 spécifie une méthode d'essai pour déterminer l'adhérence du revêtement à la couche de câbles. Elle est applicable exclusivement aux courroies transporteuses à câbles d'acier.

Naprave za kontinuirni transport - Trakovi tračnih transporterjev z jeklenim vložkom - Preskus vezalne sposobnosti med krovnim in osnovnim vložkom (ISO 8094:2013)

Ta mednarodni standard opredeljuje preskusni postopek določanja vezalne sposobnosti med krovnim in osnovnim vložkom. Uporablja se izključno za trakove tračnih transporterjev z jeklenim vložkom.

General Information

Status
Published
Publication Date
30-Apr-2013
Withdrawal Date
29-Nov-2013
ICS
53.040.20 - Components for conveyors
Technical Committee
CEN/TC 188 - Conveyor belts
Drafting Committee
CEN/TC 188/WG 1 - Technical test methods
Current Stage
6060 - Definitive text made available (DAV) - Publishing
Start Date
01-May-2013
Completion Date
01-May-2013
Ref Project
SIST EN ISO 8094:2013 - Steel cord conveyor belts - Adhesion strength test of the cover to the core layer (ISO 8094:2013)

Relations

Replaces
EN 28094:1994 - Steel cord conveyor belts - Adhesion strength test of the cover to the core layer (ISO 8094:1984)
Effective Date
08-Jun-2022

Overview

EN ISO 8094:2013 (ISO 8094:2013) specifies a laboratory test method for determining the adhesion strength of the cover to the core layer of steel cord conveyor belts. Applied exclusively to steel cord conveyor belts, the standard defines specimen preparation, test apparatus, test conditions and the calculation and reporting of adhesion strength results. EN ISO 8094:2013 is the CEN-adopted version of ISO 8094:2013 and supersedes earlier regional documents.

Key topics and requirements

  • Scope: Applies only to steel cord conveyor belts and addresses the adhesion (bond) between cover rubber and the steel-cord core layer.
  • Test principle: Stripping test - measure the force required to separate (strip) the cover from the core layer.
  • Apparatus: Use a tensile test machine with jaws as described in ISO 36.
  • Specimens:
    • Six specimens minimum, cut parallel to belt axis and ≥50 mm from the belt edge.
    • Typical specimen dimensions: length ≥150 mm, width ≈25 mm (specific tolerances given for belts with metallic weft), full belt thickness, and each specimen must include at least two steel cords.
    • Cover rubber is cut back along the cords to allow safe gripping in the jaws.
  • Procedure:
    • Tests performed at least five days after manufacture.
    • Conditioning/atmosphere: default 23 °C ±2 °C and 50 % ±5 % RH (Atmosphere B) per ISO 18573, unless otherwise specified.
    • Run three tests for the top cover and three for the bottom cover. Jaws gap widening speed: 100 mm/min ±10 mm/min.
    • Record a force-versus-displacement plot for each test.
  • Result calculation:
    • Determine median force F (per ISO 6133) from the force trace.
    • Adhesion strength T (N/mm) = F / b, where b is specimen width in mm. Round values to 0.1 N/mm.
  • Test report must reference ISO 8094 and include belt identification, specimen width, adhesion results for top and bottom covers and any non‑standard test details or events.

Applications

  • Quality control and acceptance testing of steel cord conveyor belts used in mining, bulk handling, ports, and heavy industry.
  • Supplier verification of cover-to-core bonding performance.
  • Failure investigation and R&D for belt compound or construction changes.
  • Contractual specification and compliance testing for end-users, procurement teams and testing laboratories.

Who uses this standard

  • Conveyor belt manufacturers and compound formulators
  • Independent test laboratories and certification bodies
  • Mining, quarrying and bulk-material handling operators
  • Conveyor designers, maintenance engineers and procurement/specification specialists

Related standards

  • ISO 36 - rubber adhesion test apparatus and methods
  • ISO 6133 - analysis of multi-peak traces for tear and adhesion strength
  • ISO 18573 - conveyor belts test atmospheres and conditioning

Keywords: ISO 8094:2013, EN ISO 8094:2013, steel cord conveyor belts, adhesion strength test, cover to the core layer, tensile test machine, ISO 36, ISO 6133, ISO 18573.

Frequently Asked Questions

EN ISO 8094:2013 is a standard published by the European Committee for Standardization (CEN). Its full title is "Steel cord conveyor belts - Adhesion strength test of the cover to the core layer (ISO 8094:2013)". This standard covers: ISO 8094:2013 specifies a test method for determining the adhesion strength of the cover to the core layer. It applies exclusively to steel cord conveyor belts.

ISO 8094:2013 specifies a test method for determining the adhesion strength of the cover to the core layer. It applies exclusively to steel cord conveyor belts.

EN ISO 8094:2013 is classified under the following ICS (International Classification for Standards) categories: 53.040.20 - Components for conveyors. The ICS classification helps identify the subject area and facilitates finding related standards.

EN ISO 8094:2013 has the following relationships with other standards: It is inter standard links to EN 28094:1994. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.

EN ISO 8094:2013 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

Standards Content (Sample)


SLOVENSKI STANDARD
01-december-2013
1DGRPHãþD
SIST EN 28094:1997
1DSUDYH]DNRQWLQXLUQLWUDQVSRUW7UDNRYLWUDþQLKWUDQVSRUWHUMHY]MHNOHQLP
YORåNRP3UHVNXVYH]DOQHVSRVREQRVWLPHGNURYQLPLQRVQRYQLPYORåNRP ,62

Steel cord conveyor belts - Adhesion strength test of the cover to the core layer (ISO
8094:2013)
Stahlseilfördergurte - Prüfung der Haftfestigkeit zwischen der Deckplatte und der
Kernschicht (ISO 8094:2013)
Courroies transporteuses à câbles d'acier - Essai d'adhérence du revêtement à la
couche de câbles (ISO 8094:2013)
Ta slovenski standard je istoveten z: EN ISO 8094:2013
ICS:
53.040.20 Deli za transporterje Components for conveyors
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN ISO 8094
NORME EUROPÉENNE
EUROPÄISCHE NORM
May 2013
ICS 53.040.20 Supersedes EN 28094:1994
English Version
Steel cord conveyor belts - Adhesion strength test of the cover
to the core layer (EN ISO 8094:2013)
Courroies transporteuses à câbles d'acier - Essai
d'adhérence du revêtement à la couche de câbles (EN ISO
8094:2013)
This European Standard was approved by CEN on 2 April 2013.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same
status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United
Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2013 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 8094:2013: E
worldwide for CEN national Members.

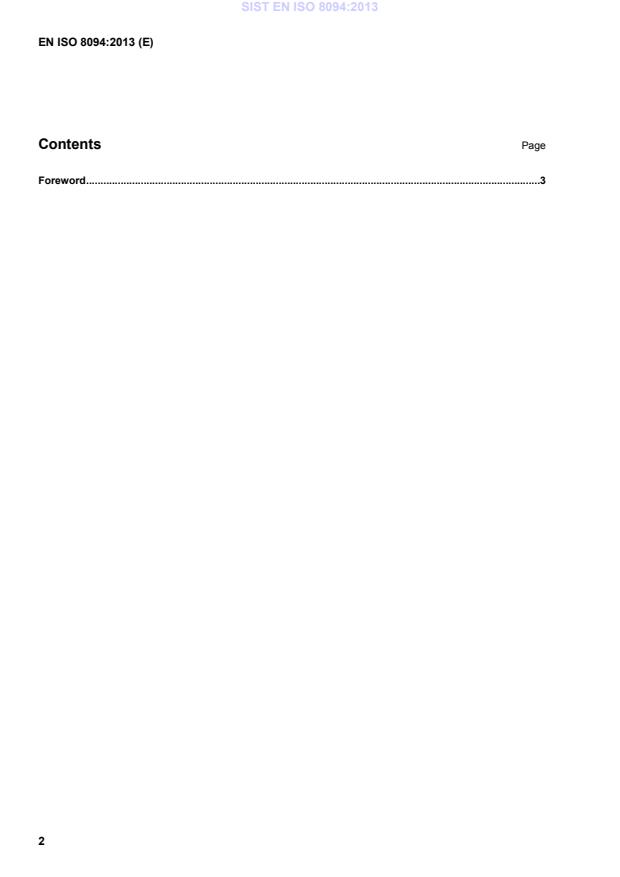

Contents Page
Foreword .3

Foreword
This document (EN ISO 8094:2013) has been prepared by Technical Committee ISO/TC 41 “Pulleys and belts
(including veebelts)” in collaboration with Technical Committee CEN/TC 188 “Conveyor belts” the secretariat
of which is held by SNV.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by November 2013, and conflicting national standards shall be withdrawn
at the latest by November 2013.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 28094:1994.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech
Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece,
Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.
Endorsement notice
The text of ISO 8094:2013 has been approved by CEN as EN ISO 8094:2013 without any modification.

INTERNATIONAL ISO
STANDARD 8094
Second edition
2013-05-01
Steel cord conveyor belts —
Adhesion strength test of the cover
to the core layer
Courroies transporteuses à câbles d’acier — Essai d’adhérence du
revêtement à la couche de câbles
Reference number
ISO 8094:2013(E)
©
ISO 2013
ISO 8094:2013(E)
© ISO 2013
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2013 – All rights reserved

ISO 8094:2013(E)
Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Test principle . 1
4 Apparatus .
...
