ISO 8094:2013
(Main)Steel cord conveyor belts - Adhesion strength test of the cover to the core layer
Steel cord conveyor belts - Adhesion strength test of the cover to the core layer
ISO 8094:2013 specifies a test method for determining the adhesion strength of the cover to the core layer. It applies exclusively to steel cord conveyor belts.
Courroies transporteuses à câbles d'acier — Essai d'adhérence du revêtement à la couche de câbles
L'ISO 8094:2013 spécifie une méthode d'essai pour déterminer l'adhérence du revêtement à la couche de câbles. Elle est applicable exclusivement aux courroies transporteuses à câbles d'acier.
General Information
- Status
- Published
- Publication Date
- 16-Apr-2013
- Technical Committee
- ISO/TC 41/SC 3 - Conveyor belts
- Drafting Committee
- ISO/TC 41/SC 3 - Conveyor belts
- Current Stage
- 9093 - International Standard confirmed
- Start Date
- 27-Apr-2025
- Completion Date
- 13-Dec-2025
Relations
- Effective Date
- 06-Jun-2022
- Revises
ISO 8094:1984 - Steel cord conveyor belts - Adhesion strength test of the cover to the core layer - Effective Date
- 26-Nov-2011
Overview
ISO 8094:2013 specifies a standardized test method to determine the adhesion strength of the rubber cover to the steel cord core layer of steel cord conveyor belts. The standard applies exclusively to steel cord conveyor belts and is intended for use in quality control, acceptance testing and product development to ensure reliable belt performance and operational safety.
Key Topics
- Test principle: measurement of the force required to peel the rubber cover from the steel cord core (core layer).
- Apparatus: tensile testing machine with suitable jaws, in accordance with the apparatus described in ISO 36.
- Specimen preparation:
- Six specimens are taken from the belt.
- For belts without fabric ply (with or without textile reinforcement): length ≥ 150 mm (longitudinal), width ≥ 25 mm and must contain at least two cords, thickness = full belt thickness.
- For belts with metallic weave: length ≥ 150 mm (in weft direction), width 25 mm ± 0.5 mm, thickness = full belt thickness.
- Specimens must be cut parallel to the belt axis and at least 50 mm from the belt edge. The rubber cover is trimmed alongside the cord edges to allow reliable gripping in the test jaws.
- Conditioning and timing: test performed at least five days after belt manufacture; unless otherwise specified, conduct at 23 °C ± 2 °C and 50 % ± 5 % relative humidity in accordance with ISO 18573 (Atmosphere B).
- Test procedure:
- Fix the upper cover of three specimens in one jaw and the cord layer (without lower cover) in the other; perform peel test.
- Repeat for the remaining three specimens with the lower cover fixed.
- Maintain jaw separation speed at 100 mm/min ± 10 mm/min and record force graphically.
- Carry out three tests per side.
- Result expression:
- Determine the median force (F̃) from the recorded peel-force traces using ISO 6133.
- Adhesion T (N/mm) is computed as T = F̃ / b, where b is specimen width in millimetres.
- Report separate averages for upper and lower cover adhesion and round values to 0.1 N/mm.
Applications
- Quality control: routine verification of cover-to-core bonding during production.
- Acceptance testing: contractual checks on delivered belts.
- Failure analysis: investigating belt delamination or premature wear.
- Design validation: comparing cover compounds or bonding procedures.
Related Standards
- ISO 36 - Apparatus and procedures for adhesion testing of rubber to textiles.
- ISO 6133 - Analysis of multi-peak traces for tear and adhesion tests.
- ISO 18573 - Conditioning atmospheres and durations for conveyor belt testing.
Practical value: ISO 8094:2013 provides a reproducible, traceable method for measuring cover adhesion on steel cord conveyor belts, helping manufacturers, inspectors and end users improve belt reliability, safety and service life.
ISO 8094:2013 - Steel cord conveyor belts -- Adhesion strength test of the cover to the core layer
ISO 8094:2013 - Courroies transporteuses a câbles d'acier -- Essai d'adhérence du revetement a la couche de câbles
Frequently Asked Questions
ISO 8094:2013 is a standard published by the International Organization for Standardization (ISO). Its full title is "Steel cord conveyor belts - Adhesion strength test of the cover to the core layer". This standard covers: ISO 8094:2013 specifies a test method for determining the adhesion strength of the cover to the core layer. It applies exclusively to steel cord conveyor belts.
ISO 8094:2013 specifies a test method for determining the adhesion strength of the cover to the core layer. It applies exclusively to steel cord conveyor belts.
ISO 8094:2013 is classified under the following ICS (International Classification for Standards) categories: 53.040.20 - Components for conveyors. The ICS classification helps identify the subject area and facilitates finding related standards.
ISO 8094:2013 has the following relationships with other standards: It is inter standard links to ISO 10303-42:2003, ISO 8094:1984. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
ISO 8094:2013 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
INTERNATIONAL ISO
STANDARD 8094
Second edition
2013-05-01
Steel cord conveyor belts —
Adhesion strength test of the cover
to the core layer
Courroies transporteuses à câbles d’acier — Essai d’adhérence du
revêtement à la couche de câbles
Reference number
©
ISO 2013
© ISO 2013
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2013 – All rights reserved
Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Test principle . 1
4 Apparatus . 1
5 Specimens . 1
6 Procedure. 2
7 Expression of results . 2
8 Test report . 2

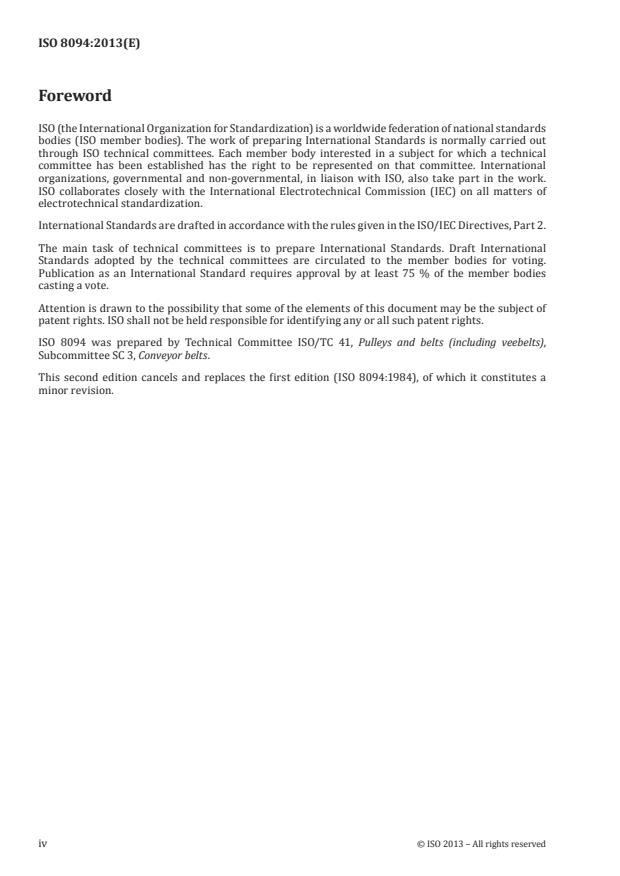

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International
Standards adopted by the technical committees are circulated to the member bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the member bodies
casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 8094 was prepared by Technical Committee ISO/TC 41, Pulleys and belts (including veebelts),
Subcommit
...
NORME ISO
INTERNATIONALE 8094
Deuxième édition
2013-05-01
Courroies transporteuses à câbles
d’acier — Essai d’adhérence du
revêtement à la couche de câbles
Steel cord conveyor belts — Adhesion strength test of the cover to
the core layer
Numéro de référence
©
ISO 2013
DOCUMENT PROTÉGÉ PAR COPYRIGHT
© ISO 2013
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni utilisée
sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie, l’affichage sur
l’internet ou sur un Intranet, sans autorisation écrite préalable. Les demandes d’autorisation peuvent être adressées à l’ISO à
l’adresse ci-après ou au comité membre de l’ISO dans le pays du demandeur.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Publié en Suisse
ii © ISO 2013 – Tous droits réservés
Sommaire Page
Avant-propos .iv
1 Domaine d’application . 1
2 Références normatives . 1
3 Principe de l’essai . 1
4 Appareillage . 1
5 Éprouvettes . 1
6 Mode opératoire. 2
7 Expression des résultats. 2
8 Rapport d’essai . 2

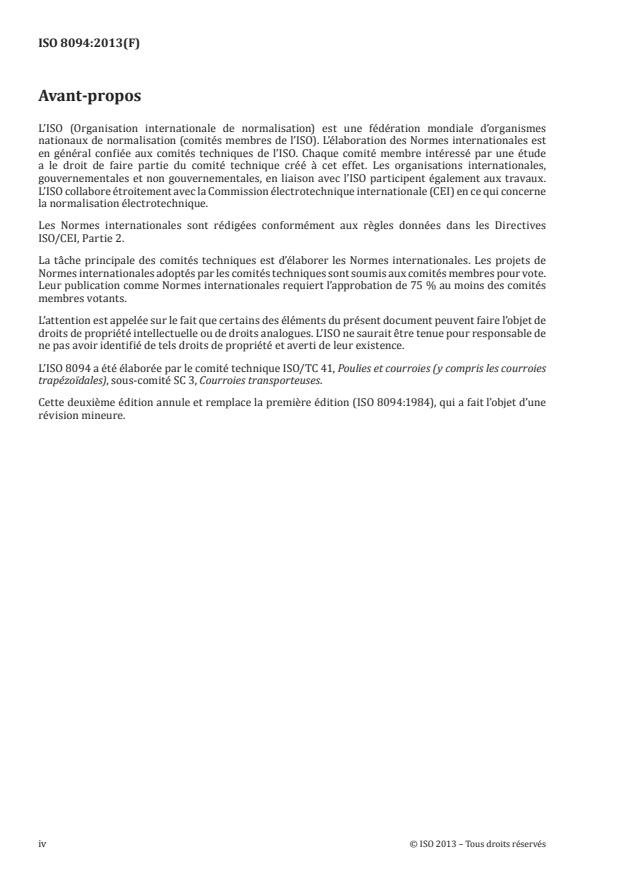

Avant-propos
L’ISO (Organisation internationale de normalisation) est une fédération mondiale d’organismes
nationaux de normalisation (comités membres de l’ISO). L’élaboration des Normes internationales est
en général confiée aux comités techniques de l’ISO. Chaque comité membre intéressé par une étude
a le droit de faire partie du comité technique créé à cet effet. Les organisations internationales,
gouvernementales et non gouvernementales, en liaison avec l’ISO participent également aux travaux.
L’ISO collabore étroitement avec la Commission électrotechnique internationale (CEI) en ce qui concerne
la normalisation électrotechnique.
Les Normes internationales sont rédigées conformément aux règles données dans les Directives
ISO/CEI, Partie 2.
La tâche principale des comités techniques est d’élaborer les Normes internationales. Les projets de
Normes internationales adoptés par les comités techniques sont soumis aux comités membres pour vote.
Leur publication comme Normes internationales requiert l’approbation de 75 % au moins des comités
membres votants.
L’attention est appelée sur le fait que certains des éléments du présent document peuvent faire l’objet de
droits de propriété intellectuelle ou de droits analogues. L’ISO ne saurait être tenue pour responsable de
ne pas avoir identifié de tels droits de propriété et averti de leur existence.
L’ISO 8094 a été élaborée par le comité technique ISO/TC 41, Poulies et courroies (y compris les courroies
trapézoïdales), sous-comité SC 3, Courroies transporteuses.
Cette deuxième édition annule et remplace la première édition (ISO 8094:1984), qui a fait l’objet d’u
...
