EN 572-3:2004

SLOVENSKI STANDARD
01-september-2004
1DGRPHãþD
SIST EN 572-3:1999
6WHNORYVWDYEDK2VQRYQLSURL]YRGLL]QDWULMNDOFLMHYHJDVLOLNDWQHJDVWHNODGHO
3ROLUDQRåLþQRVWHNOR
Glass in Building - Basic soda lime silicate glass products - Part 3: Polished wire glass
Glas im Bauwesen - Basiserzeugnisse aus Kalk-Natronsilicatglas Teil 3: Poliertes
Drahtglas
Verre dans la construction - Produits de base : verre de silicate sodocalcique - Partie 3:
Verre armé poli
Ta slovenski standard je istoveten z: EN 572-3:2004
ICS:
81.040.20 Steklo v gradbeništvu Glass in building
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 572-3
NORME EUROPÉENNE
EUROPÄISCHE NORM
June 2004
ICS 81.040.20 Supersedes EN 572-3:1994
English version
Glass in Building - Basic soda lime silicate glass products - Part
3: Polished wire glass
Verre dans la construction - Produits de base : verre de Glas im Bauwesen - Basiserzeugnisse aus Kalk-
silicate sodocalcique - Partie 3: Verre armé poli Natronsilicatglas Teil 3: Poliertes Drahtglas
This European Standard was approved by CEN on 1 April 2004.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,
Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2004 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 572-3:2004: E
worldwide for CEN national Members.

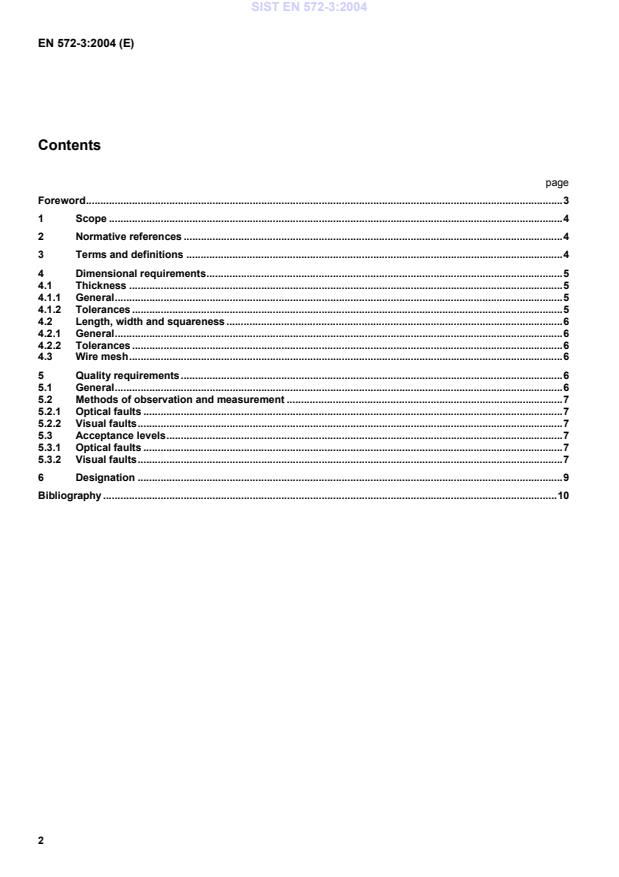

Contents
page
Foreword.3
1 Scope.4
2 Normative references.4
3 Terms and definitions .4
4 Dimensional requirements.5
4.1 Thickness.5
4.1.1 General.5
4.1.2 Tolerances.5
4.2 Length, width and squareness .6
4.2.1 General.6
4.2.2 Tolerances.6
4.3 Wire mesh.6
5 Quality requirements.6
5.1 General.6
5.2 Methods of observation and measurement .7
5.2.1 Optical faults.7
5.2.2 Visual faults.7
5.3 Acceptance levels.7
5.3.1 Optical faults.7
5.3.2 Visual faults.7
6 Designation.9
Bibliography .10

Foreword
This document (EN 572-3:2004) has been prepared by Technical Committee CEN/TC 129 "Glass in building", the
secretariat of which is held by IBN.
This document supersedes EN 572-3:1994.
This European Standard shall be given the status of a national standard, either by publication of an identical text or
by endorsement, at the latest by December 2004, and conflicting national standards shall be withdrawn at the latest
by December 2004.
This document has been prepared under a mandate given to CEN by the European Commission and the European
Free Trade Association, and supports essential requirements of EU Directive(s).
This European Standard “Glass in building – Basic soda lime silicate glass products” consists of the following parts:
EN 572-1 Definitions and general physical and mechanical properties
EN 572-2 Float glass
EN 572-3 Polished wired glass
EN 572-4 Drawn sheet glass
EN 572-5 Patterned glass
EN 572-6 Wired patterned glass
EN 572-7 Wired or unwired channel shaped glass
EN 572-8 Supplied and final cut sizes
EN 572-9 Evaluation of conformity/Product standard
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Cyprus, Czech Republic, Denmark,
Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
1 Scope
This Part of this European Standard specifies dimensional and minimum quality requirements (in respect of optical,
visual and wire faults) for polished wired glass, as defined in EN 572-1, for use in building.
This Part of this standard applies only to polished wired glass supplied in rectangular panes and in stock sizes.
EN 572-8 gives information on polished wired glass in sizes other than those covered by this Part.
2 Normative references
This European Standard incorporates by dated or undated references, provisions from other publications. These
normative ref
...
