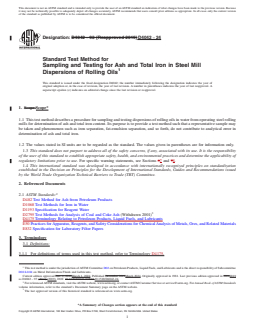

ASTM D4042-24

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

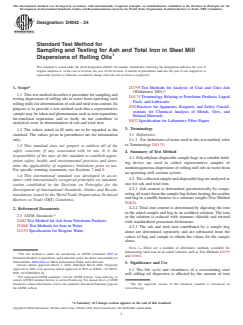

Designation: D4042 − 93 (Reapproved 2019) D4042 − 24
Standard Test Method for
Sampling and Testing for Ash and Total Iron in Steel Mill
Dispersions of Rolling Oils
This standard is issued under the fixed designation D4042; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope Scope*
1.1 This test method describes a procedure for sampling and testing dispersions of rolling oils in water from operating steel rolling
mills for determination of ash and total iron content. Its purpose is to provide a test method such that a representative sample may
be taken and phenomenon such as iron separation, fat-emulsion separation, and so forth, do not contribute to analytical error in
determination of ash and total iron.
1.2 The values stated in SI units are to be regarded as the standard. The values given in parentheses are for information only.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of
regulatory limitations prior to use. For specific warning statements, see Sections 67 and 78.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 ASTM Standards:
D482 Test Method for Ash from Petroleum Products
D1068 Test Methods for Iron in Water
D1193 Specification for Reagent Water
D2795 Test Methods for Analysis of Coal and Coke Ash (Withdrawn 2001)
D4175 Terminology Relating to Petroleum Products, Liquid Fuels, and Lubricants
E50 Practices for Apparatus, Reagents, and Safety Considerations for Chemical Analysis of Metals, Ores, and Related Materials
E832 Specification for Laboratory Filter Papers
3. Terminology
3.1 Definitions:
3.1.1 For definitions of terms used in this test method, refer to Terminology D4175.
This test method is under the jurisdiction of ASTM Committee D02 on Petroleum Products, Liquid Fuels, and Lubricants and is the direct responsibility of Subcommittee
D02.L0.04 on Metal Deformation Fluids and Lubricants.
Current edition approved Dec. 1, 2019March 1, 2024. Published December 2019March 2024. Originally approved in 1981. Last previous edition approved in 20142019
as D4042 – 93 (2014).(2019). DOI: 10.1520/D4042-93R19.10.1520/D4042-24.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
The last approved version of this historical standard is referenced on www.astm.org.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
D4042 − 24

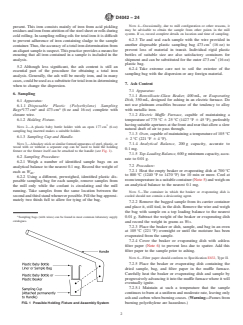

4. Summary of Test Method
4.1 Polyethylene disposable sample bags in a suitable holding device are used to collect representative samples of nonhomoge-
neous dispersions of rolling mill oils in water from an operating mill coolant system.
4.2 The collected sample and disposable bag are analyzed as one for ash and total iron.
4.2.1 Ash content is determined gravimetrically by evaporating all water from the sample bag before heating the residue and bag
in a muffle furnace to a constant weight (Test Method D482).
4.2.2 Total iron content is determined by digesting the iron in the ashed sample and bag in an acidified solution. The iron in the
solution is reduced with stannous chloride and titrated with standardized potassium dichromate.
4.2.3 The ash and total iron contributed by a sample bag alone are determined separately and are subtracted from the values of
bag and sample to obtain the values for the sample alone.
NOTE 1—There are a number of alternative methods available for determining total iron in an ashed solution such as Test Methods D2795 and D1068.
5. Significance and Use
5.1 The life cycle and cleanliness of a recirculating steel mill rolling oil dispersion is affected by the amount of iron present. This
iron consists mainly of iron from acid pickling residues and iron from attrition of the steel sheet or rolls during cold rolling. In
sampling rolling oils for total iron it is difficult to prevent adherence of iron containing sludge to the sample container. Thus, the
accuracy of a total iron determination from an aliquot sample is suspect. This practice provides a means for ensuring that all iron
contained in a sample is included in the analysis.
5.2 Although less significant, the ash content is still an essential part of the procedure for obtaining a total iron analysis. Generally,
the ash will be mostly iron, and in many cases, could be used as a substitute for total iron in determining when to change the
dispersion.
6. Sampling
6.1 Apparatus:
4 3 3
6.1.1 Disposable Plastic (Polyethylene) Sampling Bags 177 cm and 473 cm (6 oz and 16 oz) complete with closure wire.
6.1.2 Holding Fixture.

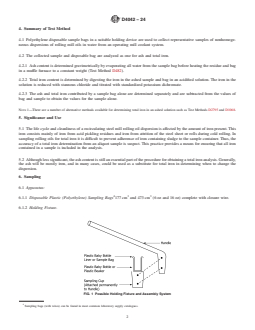

FIG. 1 Possible Holding Fixture and Assembly System
Sampling bags (with wires) can be found in most common laboratory supply catalogues.
D4042 − 24

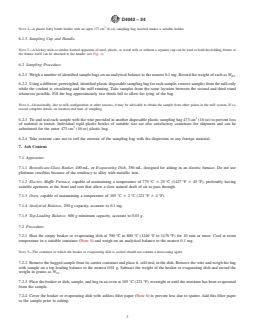

NOTE 2—A plastic baby bottle holder with an open 177 cm (6 oz) sampling bag inserted makes a suitable holder.
6.1.3 Sampling Cup and Handle.
NOTE 3—A hockey stick or similar formed apparatus of steel, plastic, or wood with or without a separate cup can be used to hold the holding fixture or
the fixture itself can be attached to the handle (see Fig. 1).
6.2 Sampling Procedure:
6.2.1 Weigh a number of identified sample bags on an analytical balance to the nearest 0.1 mg. Record the weight of each as W .
B1
6.2.2 Using a different, preweighed, identified plastic disposable sampling bag for each sample, remove samples from the mill only
while the coolant is circulating and the mill running. Take samples from the same location between the second and third stand
whenever possible. Fill the bag approximately two thirds full to allow for tying of the bag.
NOTE 4—Occasionally, due to mill configuration or other reasons, it may be advisable to obtain the sample from other points in the mill system. If so,
record complete details on location and time of sampling.
6.2.3 Tie and seal each sample with the wire provided in another disposable plastic sampling bag 473 cm (16 oz) to prevent loss
of material in transit. Individual rigid plastic bottles of suitable size are also satisfactory containers for shipment and can be
substituted for the outer 473 cm (16 oz) plastic bag.
6.2.4 Take extreme care not to soil the exterior of the sampling bag with the dispersion or any foreign material.
7. Ash Content
7.1 Apparatus:
7.1.1 Borosilicate-Glass Beaker, 400 mL, or Evaporating Dish, 350 mL, designed for ashing in an electric furnace. Do not use
platinum crucibles because of the tendency to alloy with metallic iron.
7.1.2 Electric Muffle Furnace, capable of maintaining a temperature of 775 °C 6 25 °C (1427 °F 6 45 °F), preferably having
suitable apertures at the front and rear that allow a slow natural draft of air to pass through.
7.1.3 Oven, capable of maintaining a temperature of 105 °C 6 2 °C (221 °F 6 4 °F).
7.1.4 Analytical Balance, 200 g capacity, accurate to 0.1 mg.
7.1.5 Top-Loading Balance, 600 g minimum capacity, accurate to 0.01 g.
7.2 Procedure:
7.2.1 Heat the empty beaker or evaporating dish at 700 °C to 800 °C (1240 °F to 1470 °F) for 10 min or more. Cool at room
temperature in a suitable container (Note 5) and weigh on an analytical balance to the nearest 0.1 mg.
NOTE 5—The container in which the beaker or evaporating dish is cooled should not contain a desiccating agent.
7.2.2 Remove the bagged sample from its carrier container and place it, still tied, in the dish. Remove the wire and weigh the bag
with sample on a top loading balance to the nearest 0.01 g. Subtract the weight of the beaker or evaporating dish and record the
weight in grams as W .
S1
7.2.3 Place the beaker or dish, sample, and bag in an oven at 105 °C (221 °F) overnight or until the moisture has been evaporated
from the sample.
7.2.4 Cover the beaker or evaporating dish with ashless filter paper (Note 6) to prevent loss due to spatter. Add this filter paper
to the sample prior to ashing.
D4042 − 24

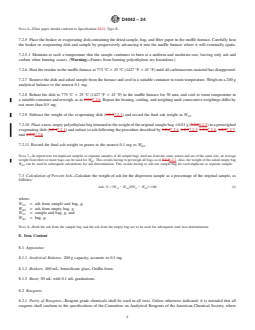

NOTE 6—Filter paper should conform to Specification E832, Type II.
7.2.5 Place the beaker or evaporating dish containing the dried sample, bag, and filter paper in the muffle furnace. Carefully heat
the beaker or evaporating dish and sample by progressively advancing it into the muffle furnace where it will eventually ignite.
7.2.5.1 Maintain at such a temperature that the sample continues to burn at a uniform and moderate rate, leaving only ash and
carbon when burning ceases. (Warning—Fumes from burning polyethylene are hazardous.)
7.2.6 Heat the residue in the muffle furnace at 775 °C 6 25 °C (1427 °F 6 45 °F) until all carbonaceous material has disappeared.
7.2.7 Remove the dish and ashed sample from the furnace and cool in a suitable container to room temperature. Weigh on a 200 g
analytical balance to the nearest 0.1 mg.
7.2.8 Reheat the dish to 775 °C 6 25 °C (1427 °F 6 45 °F) in the muffle furnace for 30 min, and cool to room temperature in
a suitable container and reweigh, as in 6.2.67.2.6. Repeat the heating, cooling, and weighing until consecutive weighings differ by
not more than 0.5 mg.
7.2.9 Subtract the weight of the evaporating dish (6.2.17.2.1) and record the final ash weight as W .
S2
7.2.10 Place a new, empty polyethylene bag trimmed to the weight of the original sample bag 60.01 g (5.2.26.2
...
