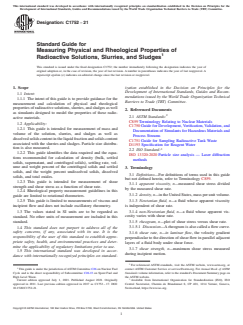

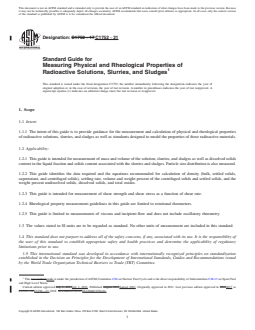

Designation: C1752 − 17 C1752 − 21
Standard Guide for
Measuring Physical and Rheological Properties of
Radioactive Solutions, Slurries, and Sludges
This standard is issued under the fixed designation C1752; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope
1.1 Intent:
1.1.1 The intent of this guide is to provide guidance for the measurement and calculation of physical and rheological properties
of radioactive solutions, slurries, and sludges as well as simulants designed to model the properties of these radioactive materials.
1.2 Applicability:
1.2.1 This guide is intended for measurement of mass and volume of the solution, slurries, and sludges as well as dissolved solids
content in the liquid fraction and solids content associated with the slurries and sludges. Particle size distribution is also measured.
1.2.2 This guide identifies the data required and the equations recommended for calculation of density (bulk, settled solids,
supernatant, and centrifuged solids), settling rate, volume and weight percent of the centrifuged solids and settled solids, and the
weight percent undissolved solids, dissolved solids, and total oxides.
1.2.3 This guide is intended for measurement of shear strength and shear stress as a function of shear rate.
1.2.4 Rheological property measurement guidelines in this guide are limited to rotational rheometers.
1.2.5 This guide is limited to measurements of viscous and incipient flow and does not include oscillatory rheometry.
1.3 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of
the user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory
limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
This test method guide is under the jurisdiction of ASTM Committee C26 on Nuclear Fuel Cycle and is the direct responsibility of Subcommittee C26.13 on Spent Fuel
and High Level Waste.
Current edition approved July 1, 2017July 1, 2021. Published August 2017August 2021. Originally approved in 2011. Last previous edition approved in 20112017 as
C1752 – 11.C1752 – 17. DOI: 10.1520/C1752-17.10.1520/C1752-21.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
C1752 − 21

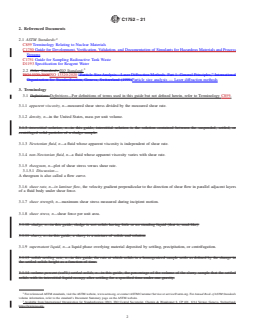

2. Referenced Documents
2.1 ASTM Standards:
C859 Terminology Relating to Nuclear Materials
C1750 Guide for Development, Verification, Validation, and Documentation of Simulants for Hazardous Materials and Process
Streams
C1751 Guide for Sampling Radioactive Tank Waste
D1193 Specification for Reagent Water
2.2 Other Standards:ISO Standard:
ISO13320;2009ISO 13320:2020 “Particle Size Analysis—Laser Diffraction Methods. Part 1: General Principles,” International
Organization for Standardization, Geneva, Switzerland (1999)Particle size analysis — Laser diffraction methods
3. Terminology
3.1 Definitions:Definitions—For definitions of terms used in this guide but not defined herein, refer to Terminology C859.
3.1.1 apparent viscosity, n—measured shear stress divided by the measured shear rate.
3.1.2 density, n—in the United States, mass per unit volume.
3.1.3 interstitial solution, n—in this guide, interstitial solution is the solution contained between the suspended, settled, or
centrifuged solid particles of a sludge sample.
3.1.3 Newtonian fluid, n—a fluid whose apparent viscosity is independent of shear rate.
3.1.4 non-Newtonian fluid, n—a fluid whose apparent viscosity varies with shear rate.
3.1.5 rheogram, n—plot of shear stress versus shear rate.
3.1.5.1 Discussion—
A rheogram is also called a flow curve.
3.1.6 shear rate, n—in laminar flow, the velocity gradient perpendicular to the direction of shear flow in parallel adjacent layers
of a fluid body under shear force.
3.1.7 shear strength, n—maximum shear stress measured during incipient motion.
3.1.8 shear stress, n—shear force per unit area.
3.1.10 sludge, n—in this guide, sludge is wet solids having little or no standing liquid (that is, mud-like).
3.1.11 slurry, n—in this guide, a slurry is a mixture of solids and solution
3.1.9 supernatant liquid, n—a liquid phase overlying material deposited by settling, precipitation, or centrifugation.
3.1.13 solids settling rate, n—in this guide, the rate at which solids in a homogenized sample settle as defined by the change in
the settled solids height as a function of time.
3.1.14 volume percent (vol%) settled solids, n—in this guide, the percentage of the volume of the slurry sample that the settled
solids with its interstitial liquid occupy after settling for a specified time under one gravity.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
Available from International Organization for Standardization (ISO), ISO Central Secretariat, Chemin de Blandonnet 8, CP 401, 1214 Vernier, Geneva, Switzerland,
https://www.iso.org.
C1752 − 21

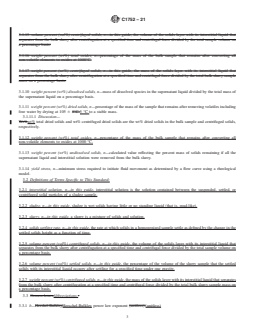

3.1.15 volume percent (vol%) centrifuged solids, n—in this guide, the volume of the solids layer with its interstitial liquid that
separates from the bulk slurry after centrifugation at a specified time and centrifugal force divided by the total sample volume on
a percentage basis.
3.1.16 weight percent (wt%) total oxides, n—percentage of the mass of the bulk sample that remains after converting all
non-volatile elements to oxides at 1000°C.
3.1.17 weight percent (wt%) centrifuged solids, n—in this guide, the mass of the solids layer with its interstitial liquid that
separates from the bulk slurry after centrifugation at a specified time and centrifugal force divided by the total bulk slurry sample
mass on a percentage basis.
3.1.10 weight percent (wt%) dissolved solids, n—mass of dissolved species in the supernatant liquid divided by the total mass of
the supernatant liquid on a percentage basis.
3.1.11 weight percent (wt%) dried solids, n—percentage of the mass of the sample that remains after removing volatiles including
free water by drying at 105 6 5°C 5 °C to a stable mass.
3.1.11.1 Discussion—
Wt%wt% total dried solids and wt% centrifuged dried solids are the wt% dried solids in the bulk sample and centrifuged solids,
respectively.
3.1.12 weight percent (wt%) total oxides, n—percentage of the mass of the bulk sample that remains after converting all
non-volatile elements to oxides at 1000 °C.
3.1.13 weight percent (wt%) undissolved solids, n—calculated value reflecting the percent mass of solids remaining if all the
supernatant liquid and interstitial solution were removed from the bulk slurry.
3.1.14 yield stress, n—minimum stress required to initiate fluid movement as determined by a flow curve using a rheological
model.
3.2 Definitions of Terms Specific to This Standard:
3.2.1 interstitial solution, n—in this guide, interstitial solution is the solution contained between the suspended, settled, or
centrifuged solid particles of a sludge sample.
3.2.2 sludge, n—in this guide, sludge is wet solids having little or no standing liquid (that is, mud-like).
3.2.3 slurry, n—in this guide, a slurry is a mixture of solids and solution.
3.2.4 solids settling rate, n—in this guide, the rate at which solids in a homogenized sample settle as defined by the change in the
settled solids height as a function of time.
3.2.5 volume percent (vol%) centrifuged solids, n—in this guide, the volume of the solids layer with its interstitial liquid that
separates from the bulk slurry after centrifugation at a specified time and centrifugal force divided by the total sample volume on
a percentage basis.
3.2.6 volume percent (vol%) settled solids, n—in this guide, the percentage of the volume of the slurry sample that the settled
solids with its interstitial liquid occupy after settling for a specified time under one gravity.
3.2.7 weight percent (wt%) centrifuged solids, n—in this guide, the mass of the solids layer with its interstitial liquid that separates
from the bulk slurry after centrifugation at a specified time and centrifugal force divided by the total bulk slurry sample mass on
a percentage basis.
3.3 NomenclatureAbbreviations::
3.3.1 b—Hershel-BulkleyHerschel-Bulkley power law exponent (unitless).(unitless)
C1752 − 21

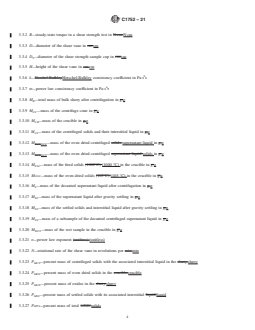

3.3.2 B—steady-state torque in a shear strength test in N·cm.N·cm
3.3.3 D—diameter of the shear vane in cm.cm
3.3.4 D —diameter of the shear strength sample cup in cm.cm
T
3.3.5 H—height of the shear vane in cm.cm
b
3.3.6 k—Hershel-BulkleyHerschel-Bulkley consistency coefficient in Pa·s .
n
3.3.7 m—power law consistency coefficient in Pa·s .
3.3.8 M —total mass of bulk slurry after centrifugation in g.g
B
3.3.9 M —mass of the centrifuge cone in g.g
CC
3.3.10 M —mass of the crucible in g.g
CR
3.3.11 M —mass of the centrifuged solids and their interstitial liquid in g.g
CS
3.3.12 M —mass of the oven dried centrifuged solids supernatant liquid in g.g
DCSDCL
3.3.13 M —mass of the oven dried centrifuged supernatant liquid solids in g.g
DCLDCS
3.3.14 M —mass of the fired solids (1000°C) (1000 °C) in the crucible in g.g
FSC
3.3.15 M —mass of the oven dried solids (105°C) (105 °C) in the crucible in g.g
OSC
3.3.16 M —mass of the decanted supernatant liquid after centrifugation in g.g
S
3.3.17 M —mass of the supernatant liquid after gravity settling in g.g
SL
3.3.18 M —mass of the settled solids and interstitial liquid after gravity settling in g.g
SS
3.3.19 M —mass of a subsample of the decanted centrifuged supernatant liquid in g.g
VL
3.3.20 M —mass of the wet sample in the crucible in g.g
WCS
3.3.21 n—power law exponent (unitless).(unitless)
3.3.22 N—rotational rate of the shear vane in revolutions per min.min
3.3.23 P —percent mass of centrifuged solids with the associated interstitial liquid in the slurry.slurry
MCS
3.3.24 P —percent mass of oven dried solids in the crucible.crucible
MDS
3.3.25 P —percent mass of oxides in the slurry.slurry
MOX
3.3.26 P —percent mass of settled solids with its associated interstitial liquid.liquid
MSS
3.3.27 P —percent mass of total solids.solids
MTS
C1752 − 21
3.3.28 P —percent mass of undissolved solids in the slurry.slurry
MUS
3.3.29 P —percent mass of oven dried solids in the centrifuged solids including interstitial liquid.liquid
ODS
3.3.30 P —percent volume of centrifuged solids with its associated interstitial liquid in the slurry.slurry
VCS
3.3.31 P —percent volume of settled solids with its associated interstitial liquid in the slurry.slurry
VSS
3.3.32 r —correlation coefficient (unitless).(unitless)
3.3.33 R —radius of the inner cylinder of the viscometer concentric cylinder geometry in cm.cm
3.3.34 R —radius of the outer cylinder of the viscometer concentric cylinder geometry in cm.cm
3.3.35 R —Reynolds number (unitless). (unitless)
e
3.3.36 R —maximum torque in a shear strength test in N·cm.N·cm
t
3.3.37 V —total volume of bulk sample after centrifugation in mL.mL
B
3.3.38 V —volume centrifuged solids and the associated interstitial liquid in mL.mL
CS
3.3.39 V —volume of decanted supernatant liquid after centrifugation in mL.mL
S
3.3.40 V —total volume of bulk sample after gravity settling in mL.mL
SB
3.3.41 V —volume of supernatant liquid after gravity settling in mL.mL
SL
3.3.42 V —volume of settled solids with its associated interstitial liquid after gravity settling in mL.mL
SS
3.3.43 Z —height of the sample above the top of the immersed shear vane in cm.cm
3.3.44 Z —depth of the sample below the immersed shear vane in cm.cm
3.3.45 ρ —bulk density of slurry in g/mL.g/mL
B
3.3.46 ρ —density of centrifuged solids in g/mL.g/mL
CS
3.3.47 ρ —density of supernatant liquid in g/mL.g/mL
S
3.3.48 ρ —density of settled solids in g/mL.g/mL
SS
3.3.49 τ—shear stress in Pa.Pa
3.3.50 τ —shear strength in Pa.Pa
o
B
3.3.51 τ —Bingham yield stress in Pa.Pa
o
H
3.3.52 τ —Herschel-Bulkley yield stress in Pa.Pa
o
3.3.53 η—Newtonian viscosity in Pa·s. Pa·s
C1752 − 21
3.3.54 η —plastic viscosity in Pa·s.Pa·s
p
-1
3.3.55 γ˙—shear rate in s .
3.3.56 μ—apparent viscosity in Pa·s. Pa·s
3.4 Other unique terms used throughout the nuclear industry are defined in the terminology standard for the ASTM committee on
the nuclear fuel cycle (Terminology C859).
4. Summary of Guide
4.1 Guidance for the measurement and calculation of physical and rheological properties of radioactive solutions, slurries, and
sludges is provided. Methods are applicable to remote handling and measurement of samples with significant radiation doses.
4.2 Physical properties including bulk density, settled solids density, centrifuged solids density, supernatant density, settling rate,
and volume and weight percent centrifuged and settled solids are determined by measuring the solids with their interstitial liquid
and supernatant liquid masses and volumes as a function of time during settling and centrifugation of slurry and sludge samples.
4.3 Dissolved and undissolved solids content of solutions, slurries, and sludges as well as the solids separated by settling or
centrifugation, or both, are calculated by measuring the mass of the sample prior to before and after drying the sample. Oxide
content is determined by measuring the mass of the sample before and after heating the sample in air at high enough temperatures
(~1000°C)(~1000 °C) to oxidize the solids in the sample.
4.3.1 Automated moisture analyzers may be used to measure solids content after the automated method has been verified to
provide comparable results for similar samples to the oven drying method described in this standard.
4.4 The flow behavior of solutions, slurries, and sludges is characterized by the shear strength, apparent viscosity, and yield stress
of the material by measuring the shear stress of a sample as the sample shear rate is systematically varied.
5. Significance and Use
5.1 Measurements performed in this guide are limited to radioactive solutions, slurries, and sludges as well as simulants designed
to model the properties of these radioactive materials.
5.2 Data obtained from the measurement and calculation of physical and rheological properties of radioactive solutions, slurries,
and sludges are essential in developing appropriate simulants for design and testing of retrieval, transport, mixing, and storage
systems for treatment of radioactive materials. Details on methods to develop representative simulants are provided in the Guide
C1750. These data also provide input parameters for modeling the flow behavior, processing, transport, safety, and storage of these
radioactive materials.
5.3 Consistency in the handling of samples, measurement methods, and calculations is essential in obtaining reproducible results
of rheological and physical property measurements.
5.4 This guide will be used to measure or calculate the physical properties listed below.below:
5.4.1 Bulk slurry densitySettled solids density.
5.4.2 Settled solids densityBulk slurry density.
5.4.3 Centrifuged solids densitydensity.
5.4.4 Supernatant densitydensity.
5.4.5 Settling raterate.
C1752 − 21
5.4.6 Volume percent centrifuged solidssolids.
5.4.7 Volume percent settled solids after settlingsettling.
5.4.8 Undissolved solids contentcontent.
5.4.9 Dissolved solids content content.
5.4.10 Weight percent centrifuged solidssolids.
5.4.11 Weight percent total oxidesoxides.
5.4.12 Solids content of the centrifuged solidssolids.
5.4.13 Total solids contentcontent.
5.5 This guide describes the process of performing measurement of the rheological properties. The rheological measurements and
calculations described in this guide are limited to shear strength, shear stress versus shear rate, apparent viscosity, consistency, and
yield stress.
5.6 Due to the nature of some solutions, slurries, and sludges, not all of the measurements described in this standard may be
applicable to all samples. For example, some sludges do not settle; therefore, settling rate measurements are not applicable for these
samples.
6. Reagents and Materials
6.1 Purity of Reagents—Reagent grade chemicals shall be used in all measurements. Unless otherwise indicated, it is intended that
all reagents conform to the specifications of the Committee on Analytical Reagents of the American Chemical Society where such
specifications are available. Other grades may be used, provided it is first ascertained that the reagent is of sufficiently high purity
to permit its use without lessening the accuracy of the determination.
6.2 Purity of Water—Unless otherwise indicated, reference to water shall be understood to mean reagent water as defined by Type
II of Specification D1193 or purer.
6.3 Viscosity standards certified to a national standards body should be used to calibrate the rheometer.
7. Hazards
7.1 Radiological hazards including external dose, internal dose, and contamination are present when handling radioactive
solutions, slurries, and sludges.
7.2 Drying and muffle furnaces are maintained at high temperatures (105°C(105 and 1000°C, 1000 °C, respectively) during the
measurement of solid and oxide content.
8. Sampling, Test Specimens, and Test Units
8.1 At least duplicate samples should be analyzed for physical and rheological property determinations.
8.2 Care should be taken to obtain representative samples during all sampling activities. Details on methods to obtain
representative samples from slurries and sludges are provided in the Guide for Sampling Radioactive Tank Waste (Guide C1751).
Reagent Chemicals, American Chemical Society Specifications, American Chemical Society, Washington, D. C. For suggestions on the testing of reagents not listed by
the American Chemical Society see Analar Standards for Laboratory Chemicals, BDH Ltd., Poole, Dorset, U. K., and the United States Pharmacopeia and National Formulary,
U. S. Pharmacopeial Convention, Inc. (USPC), Rockville, MD.
C1752 − 21
9. Procedure
9.1 Physical Properties Determination:
9.1.1 Mix the sample to combine any separated liquid and solids phases.
9.1.2 Weigh and record the masses of the clean, volume-graduated containers for both the sample and replicate.
9.1.2.1 Volume-graduated labware, appropriate to accommodate 10 to 50 mL of sample, should be used when determining
physical properties requiring volume measurements. Generally, this labware is either a graduated cylinder or a volume graduated
centrifuge cone with a cap. For solutions and slurries with low solids content, such that the sample can be easily poured without
smearing on the labware, a volumetric flask may be used for density measurements.
(1) Some samples may stick to the side of the volume-graduated labware. For these types of samples, it is preferred to perform
the work in volume-graduated centrifuge cones. Volumes will normally be measured to 60.2 mL when using a 15 mL 15 mL
centrifuge cone, and 61 mL when using the 50 mL centrifuge cones. The recommended sample volumes are ≥10 mL and ≥30 mL
for the 15 mL and 50 mL centrifuge cones, respectively.
9.1.2.2 If centrifuge cones are used as the volume-graduated container, measure the distance between the graduation marks on the
cylindrical portion of each centrifuge cone (at least from the 10-mL10 to the 4-mL 4 mL graduation marks on the 15-mL 15 mL
centrifuge cone or the 30-mL30 to the 10-mL 10 mL graduation marks on the 50-mL 50 mL centrifuge cone). Volume-graduated
centrifuge cones should be cylindrical between 10 and 4 mL and 30 and 10 mL for 15-mL15 and 50-mL 50 mL centrifuge cones,
respectively. Record these data as well as the volume mark just above where the centrifuge cone departs from a cylindrical shape.
9.1.3 Transfer sub-samples into each of the containers and weigh the filled container. Record the total mass of each filled container.
9.1.4 Mobilize the settled solids in the container to obtain a homogenous sample. This may be done by shaking the container, using
a vortex mixer, or a comparable method. Homogenization of thick sludges such as pastes may be difficult and require longer mixing
times with more rigorous mixing systems.
9.1.5 Record the volume of the total sample and the volume of the settled solids as a function of settling time. If multiple solid
layers are visible, record the volume at the interface of each solids layer as a function of time. Some samples may not settle;
therefore, settling measurements may not be applicable for all samples.
9.1.5.1 Measurements should be recorded at appropriate time intervals based on the settling rate of the sample. The final
measurement provides the data for the volume percent settled solids.
9.1.5.2 Volume data could be biased due to entrained gas as well as the inability to clearly measure the total sample volume due
to material smeared on the sides of the centrifuge cone.
9.1.6 Centrifuge the cones containing the sample at a specific centrifugal force and time. Record the centrifugal force, time,
volume of the total sample, and the volume of the centrifuged solids.
9.1.7 Decant the centrifuged supernatant liquid to a pre-weighed graduated cylinder and record the mass and volume of the
supernatant liquid.
9.1.8 Weigh and record the mass of the centrifuge cone with the remaining solids (centrifuged solids) after decanting the
supernatant liquid.
9.1.9 Transfer the decanted supernatant liquid to a pre-weighed vial with a lid. The vial shall be rated to at least 105°C.105 °C.
Weigh the vial with the transferred liquid. Record the masses of the vial and the vial plus the transferred liquid.
9.1.10 Air dry the solids and liquids overnight to minimize possible splattering during the oven drying steps.
9.1.11 Transfer the air dried samples (without lids) to a drying oven controlled at 105°C. 105 °C. Centrifuge cones used in this
step should be rated for at least 105°C. 105 °C. Allow the samples to dry for at least 24 h.
9.1.12 Remove the dried solid and liquid samples from the oven and cap the vials and centrifuge cones. Allow the samples to cool
for at least 10 min, or to ambient temperature, in a desiccate environment. Weigh the samples and record the masses.
C1752 − 21
9.1.13 Remove the lids and return the solid and liquid samples to the drying oven controlled at 105°C. 105 °C. Allow the samples
to dry for at least another 24 h.
9.1.14 Repeat the drying and weighing steps (9.1.11 and 9.1.12) until a stable mass is achieved. A stable mass is defined as a
change in mass between the last two measurements of less than 0.1 %. Record this mass which is the mass of the oven dried
centrifuged solids.
9.1.14.1 Calculation of the total solids content, including both the dissolved and undissolved solids, is based upon the assumption
that all of the volatile components lost during the drying process at 105°C 105 °C are water molecules and that all of the water
is lost during this drying process. Waters of hydration may not be lost at this temperature; therefore, they will bias the calculation
of the total solids content high since the mass of the dried centrifuged solids will be high. Volatile organics may bias the total solids
content low, because the mass of the dried centrifuge solids may be biased low.
9.1.15 An example of a data sheet for recording the physical property determination data is provided in Table 1.
9.2 Total Oxides Content:
9.2.1 Mix the bulk slurry sample to combine any separated liquid and solids phases.
9.2.2 Weigh (60.001 g) pre-fired crucibles rated for at least 1200°C. 1200 °C. Record this tare weight.
9.2.3 Transfer sub-samples of approximately three or more grams to each crucible. Weigh (60.001 g) the samples in the crucible
...
