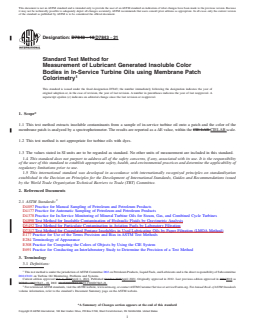

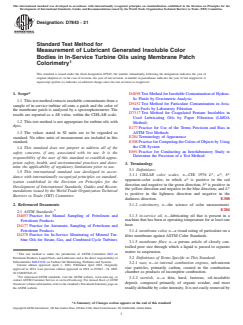

Designation: D7843 − 18 D7843 − 21
Standard Test Method for
Measurement of Lubricant Generated Insoluble Color
Bodies in In-Service Turbine Oils using Membrane Patch
Colorimetry
This standard is issued under the fixed designation D7843; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope*
1.1 This test method extracts insoluble contaminants from a sample of in-service turbine oil onto a patch and the color of the
membrane patch is analyzed by a spectrophotometer. The results are reported as a ΔE value, within the CIE LAB CIELAB scale.
1.2 This test method is not appropriate for turbine oils with dyes.
1.3 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of
regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 ASTM Standards:
D4057 Practice for Manual Sampling of Petroleum and Petroleum Products
D4177 Practice for Automatic Sampling of Petroleum and Petroleum Products
D4378 Practice for In-Service Monitoring of Mineral Turbine Oils for Steam, Gas, and Combined Cycle Turbines
D4898 Test Method for Insoluble Contamination of Hydraulic Fluids by Gravimetric Analysis
D5452 Test Method for Particulate Contamination in Aviation Fuels by Laboratory Filtration
D7317 Test Method for Coagulated Pentane Insolubles in Used Lubricating Oils by Paper Filtration (LMOA Method)
E177 Practice for Use of the Terms Precision and Bias in ASTM Test Methods
E284 Terminology of Appearance
E308 Practice for Computing the Colors of Objects by Using the CIE System
E691 Practice for Conducting an Interlaboratory Study to Determine the Precision of a Test Method
3. Terminology
3.1 Definitions:
This test method is under the jurisdiction of ASTM Committee D02 on Petroleum Products, Liquid Fuels, and Lubricants and is the direct responsibility of Subcommittee
D02.C0.01 on Turbine Oil Monitoring, Problems and Systems.
Current edition approved Oct. 1, 2018April 1, 2021. Published October 2018April 2021. Originally approved in 2012. Last previous edition approved in 20162018 as
D7843 – 16.D7843 – 18. DOI: 10.1520/D7843-18.10.1520/D7843-21.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
D7843 − 21

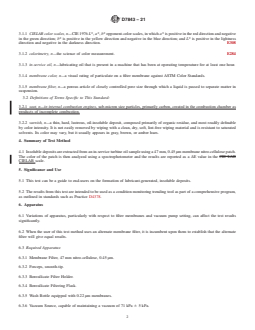

3.1.1 CIELAB color scales, n—CIE 1976 L*, a*, b* opponent-color scales, in which a* is positive in the red direction and negative
in the green direction; b* is positive in the yellow direction and negative in the blue direction; and L* is positive in the lightness
direction and negative in the darkness direction. E308
3.1.2 colorimetry, n—the science of color measurement. E284
3.1.3 in-service oil, n—lubricating oil that is present in a machine that has been at operating temperature for at least one hour.
3.1.4 membrane color, n—a visual rating of particulate on a filter membrane against ASTM Color Standards.
3.1.5 membrane filter, n—a porous article of closely controlled pore size through which a liquid is passed to separate matter in
suspension.
3.2 Definitions of Terms Specific to This Standard:
3.2.1 soot, n—in internal combustion engines, sub-micron size particles, primarily carbon, created in the combustion chamber as
products of incomplete combustion.
3.2.2 varnish, n—a thin, hard, lustrous, oil-insoluble deposit, composed primarily of organic residue, and most readily definable

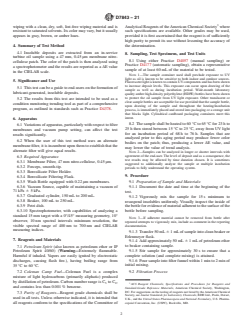

by color intensity. It is not easily removed by wiping with a clean, dry, soft, lint-free wiping material and is resistant to saturated
solvents. Its color may vary, but it usually appears in gray, brown, or amber hues.
4. Summary of Test Method
4.1 Insoluble deposits are extracted from an in-service turbine oil sample using a 47 mm, 0.45 μm membrane nitro-cellulose patch.
The color of the patch is then analyzed using a spectrophotometer and the results are reported as a ΔE value in the CIE LAB
CIELAB scale.
5. Significance and Use
5.1 This test can be a guide to end-users on the formation of lubricant-generated, insoluble deposits.
5.2 The results from this test are intended to be used as a condition monitoring trending tool as part of a comprehensive program,
as outlined in standards such as Practice D4378.
6. Apparatus
6.1 Variations of apparatus, particularly with respect to filter membranes and vacuum pump setting, can affect the test results
significantly.
6.2 When the user of this test method uses an alternate membrane filter, it is incumbent upon them to establish that the alternate
filter will give equal results.
6.3 Required Apparatus:
6.3.1 Membrane Filter, 47 mm nitro-cellulose, 0.45 μm.
6.3.2 Forceps, smooth-tip.
6.3.3 Borosilicate Filter Holder.
6.3.4 Borosilicate Filtering Flask.
6.3.5 Wash Bottle equipped with 0.22 μm membranes.
6.3.6 Vacuum Source, capable of maintaining a vacuum of 71 kPa 6 5 kPa.
D7843 − 21

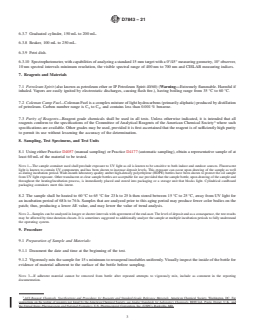

6.3.7 Graduated cylinder, 150 mL to 200 mL.
6.3.8 Beaker, 100 mL to 250 mL.
6.3.9 Petri dish.
6.3.10 Spectrophotometer, with capabilities of analyzing a standard 15 mm target with a 0°/45° measuring geometry, 10° observer,
10 nm spectral intervals minimum resolution, the visible spectral range of 400 nm to 700 nm and CIELAB measuring indices.
7. Reagents and Materials
7.1 Petroleum Spirit (also known as petroleum ether or IP Petroleum Spirit 40/60) (Warning—Extremely flammable. Harmful if
inhaled. Vapors are easily ignited by electrostatic discharges, causing flash fire.), having boiling range from 35 °C to 60 °C.
7.2 Coleman Camp Fuel—Coleman Fuel is a complex mixture of light hydrocarbons (primarily aliphatic) produced by distillation
of petroleum. Carbon number range is C to C , and contains less than 0.001 % benzene.
5 9
7.3 Purity of Reagents—Reagent grade chemicals shall be used in all tests. Unless otherwise indicated, it is intended that all
reagents conform to the specifications of the Committee of Analytical Reagents of the American Chemical Society where such
specifications are available. Other grades may be used, provided it is first ascertained that the reagent is of sufficiently high purity
to permit its use without lessening the accuracy of the determination.
8. Sampling, Test Specimens, and Test Units
8.1 Using either Practice D4057 (manual sampling) or Practice D4177 (automatic sampling), obtain a representative sample of at
least 60 mL of the material to be tested.
NOTE 1—The sample container used shall preclude exposure to UV light as oil is known to be sensitive to both indoor and outdoor sources. Fluorescent
light is known to contain UV components and has been shown to increase deposit levels. This exposure can occur upon drawing of the sample as well
as during incubation period. Wide-mouth laboratory quality amber high-density polyethylene (HDPE) bottles have been shown to protect the oil sample
from UV light exposure. Other translucent or clear sample bottles are acceptable for use provided that the sample bottle, upon drawing of the sample and
throughout the heating/incubation process, is immediately placed and stored into packaging or a storage unit that blocks light. Cylindrical cardboard
packaging containers meet this intent.
8.2 The sample shall be heated to 60 °C to 65 °C for 23 h to 25 h then stored between 15 °C to 25 °C, away from UV light for
an incubation period of 68 h to 76 h. Samples that are analyzed prior to this aging period may produce fewer color bodies on the
patch; thus, producing a lower ΔE value, and may lower the value of trend analysis.
NOTE 2—Samples can be analyzed in longer or shorter intervals with agreement of the end-user. The level of deposit and as a consequence, the test results
may be affected by time duration chosen. It is sometimes suggested to additionally analyze the sample at multiple incubation periods to fully understand
the operating system.
9. Procedure
9.1 Preparation of Sample and Materials:
9.1.1 Document the date and time at the beginning of the test.
9.1.2 Vigorously mix the sample for 15 s minimum to resuspend insolubles uniformly. Visually inspect the inside of the bottle for
evidence of material adherent to the surface of the bottle before sampling.
NOTE 3—If adherent material cannot be removed from bottle after repeated attempts to vigorously mix, include as comment in the reporting
documentation.
ACS Reagent Chemicals, Specifications and Procedures for Reagents and Standard-Grade Reference Materials, American Chemical Society, Washington, DC. For
suggestions on the testing of reagents not listed by the American Chemical Society, see Analar Standards for Laboratory Chemicals, BDH Ltd., Poole, Dorset, U.K., and
the United States Pharmacopeia and National Formulary, U.S. Pharmacopeial Convention, Inc. (USPC), Rockville, MD.
D7843 − 21

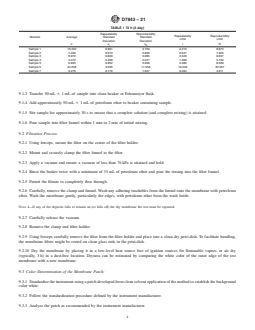

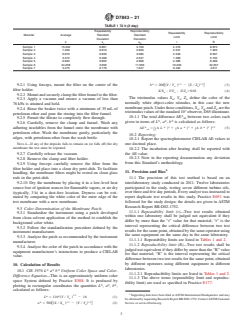

TABLE 1 72 h (3 day)
Repeatability Reproducibility
Repeatability Reproducibility
Material Average Standard Standard
Limit Limit
Deviation Deviation
x¯ s s r R
r R
Sample 1 15.332 0.861 3.169 2.410 8.874
Sample 2 7.409 0.910 2.830 2.547 7.925
Sample 3 6.970 0.839 3.085 2.349 8.637
Sample 4 3.472 0.468 2.047 1.309 5.732
Sample 5 6.993 0.852 2.968 2.386 8.309
Sample 6 34.258 3.656 11.556 10.236 32.357
Sample 7 3.475 0.176 1.647 0.494 4.611
9.1.3 Transfer 50 mL 6 1 mL of sample into clean beaker or Erlenmeyer flask.
9.1.4 Add approximately 50 mL 6 1 mL of petroleum ether to beaker containing sample.
9.1.5 Stir sample for approximately 30 s to ensure that a complete solution (and complete mixing) is attained.
9.1.6 Pour sample into filter funnel within 1 min to 2 min of initial mixing.
9.2 Filtration Process:
9.2.1 Using forceps, mount the filter on the center of the filter holder.
9.2.2 Mount and securely clamp the filter funnel to the filter.
9.2.3 Apply a vacuum and ensure a vacuum of less than 76 kPa is attained and held.
9.2.4 Rinse the beaker twice with a minimum of 35 mL of petroleum ether and pour the rinsing into the filter funnel.
9.2.5 Permit the filtrate to completely flow through.
9.2.6 Carefully, remove the clamp and funnel. Wash any adhering insolubles from the funnel onto the membrane with petroleum
ether. Wash the membrane gently, particularly the edges, with petroleum ether from the wash bottle.
NOTE 4—If any of the deposits fails to remain on (or falls off) the dry membrane the test must be repeated.
9.2.7 Carefully release the vacuum.
9.2.8 Remove the clamp and filter holder.
9.2.9 Using forceps carefully remove the filter from the filter holder and place into a clean dry petri-dish. To facilitate handling,
the membrane filters might be rested on clean glass rods in the petri-dish.
9.2.10 Dry
...
