ASTM D4289-21

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
Designation: D4289 − 19 D4289 − 21
Standard Test Method for
Elastomer Compatibility of Lubricating Greases and Fluids
This standard is issued under the fixed designation D4289; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope*
1.1 This test method evaluates the compatibility of lubricating greases and fluids with coupons cut from standard elastomer sheets
(Practice D3182) or, optionally, from SAE Specification AMS 3217/2C (NBR-L) and AMS 3217/3B (CR) sheets. ). Compatibility
is evaluated by determining the changes in volume and Durometer A hardness that occur when elastomer coupons are totally
immersed in a lubricant sample for 70 h or for a duration as required by the lubricant specification at either 100 °C or 150 °C or
at a test temperature as required by the lubricant specification.
1.1.1 Some lubricant specifications may require different elastomers or test conditions, such as longer durations or lower or higher
temperatures. In such instances, the repeatability and reproducibility values stated in Section 12 do not apply, and the user and
supplier should agree on acceptable limits of precision.
NOTE 1—The scope of this test method now includes the evaluation of the elastomer compatibility of both lubricating fluids and greases. Testing of fluids
was not included in Test Method D4289–95 and earlier versions.
1.2 This test method can also be used as a guide to evaluate the compatibility of greases with rubber products not in standard sheet
form (Practice D3183).
1.3 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.3.1 Exception—When listed, Durometer A units shall be regarded as the standard.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of
regulatory limitations prior to use. For specific warning statements, see 8.4 – 8.6.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 ASTM Standards:
This test method is under the jurisdiction of ASTM Committee D02 on Petroleum Products, Liquid Fuels, and Lubricants and is the direct responsibility of Subcommittee
D02.G0.01 on Chemical and General Laboratory Tests.
Current edition approved Nov. 1, 2019Dec. 15, 2021. Published December 2019January 2022. Originally approved in 1989. Last previous edition approved in 20142019
ɛ1
as D4289 – 13 (2014)D4289 – 19. . DOI: 10.1520/D4289-19.10.1520/D4289-21.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
D4289 − 21
D217 Test Methods for Cone Penetration of Lubricating Grease
D297 Test Methods for Rubber Products—Chemical Analysis
D412 Test Methods for Vulcanized Rubber and Thermoplastic Elastomers—Tension
D471 Test Method for Rubber Property—Effect of Liquids
D1193 Specification for Reagent Water
D2240 Test Method for Rubber Property—Durometer Hardness
D3182 Practice for Rubber—Materials, Equipment, and Procedures for Mixing Standard Compounds and Preparing Standard
Vulcanized Sheets
D3183 Practice for Rubber—Preparation of Pieces for Test Purposes from Products
D4175 Terminology Relating to Petroleum Products, Liquid Fuels, and Lubricants
D4950 Classification and Specification for Automotive Service Greases
2.2 Federal Standards:
Federal Test Method Standard 791C, Method 3603.5, Swelling of Synthetic Rubbers
2.3 U.S. Air Force Specifications:
USAF-539 Specification Bulletin for Standard Elastomer Stocks
Available from Standardization Documents Order Desk, Bldg. 4, Section D, 700 Robbins Ave., Philadelphia, PA 19111-5094, Attn: NPODS.
USAF-539 is obsolete, but reproductions have been filed at ASTM International Headquarters and may be obtained by requesting Research Report RR:D02-1165.
D4289 − 21
2.4 SAE Standards:
AMS 3217A Standard Elastomer Stocks—Test Slabs
AMS 3217/2C Test Slabs, Acrylonitrile Butadiene (NBR-L)—Low Acrylonitrile, 65–75
AMS 3217/3B Test Slabs, Chloroprene (CR)—65–75
NOTE 2—USAF-539 was specified in Test Method D4289–94 and earlier versions. This specification is obsolete and has been replaced by SAE Standard
AMS 3217A. USAF-539 NBR-L was replaced by SAE AMS 3217/2C (NBR-L), which is virtually identical. USAF-539 CR has been replaced by the
similar, but not identical, SAE AMS 3217/3B (CR). Elastomer sheets prepared to this latter specification are not known or expected to provide test results
identical with those of the USAF-539 counterpart.
NOTE 3—With respect to elastomer AMS 3217/2A, the elastomer specification was superseded by AMS 3217/2B. Per SAE, the elastomers are identical,
however, the synthetic lubricant immersion fluid used to reference the elastomer has been exchanged from ARM-200 to AMS 3021. Reference fluid AMS
3021 better represents current market aviation fluids.
NOTE 4—With respect to elastomer AMS 3217/2B, the elastomer is no longer being made by the original supplier and has been superseded by AMS
3217/2C. Limited testing of the new material compared with AMS 3217/2B material appears to show no bias but more in-depth evaluation is impossible
due to lack of the older material.
3. Terminology
3.1 Definitions:
3.1.1 For definitions of terms used in this test method, refer to Terminology D4175.
3.1.2 elastomer, n—a natural or synthetic polymer having the rubber-like property of substantially recovering its size and shape
after removal of a deforming force.
3.1.3 hardness, n—of an elastomer, the resistance to deformation or indentation.
3.1.3.1 Discussion—
In this test method the hardness of an elastomer is measured with a Shore Durometer A (see Test Method D2240).
3.1.4 lubricant, n—any material interposed between two surfaces that reduces the friction or wear wear, or both, between them.
D4175
3.1.5 lubricating grease, n—a semifluid to solid product of a dispersion of a thickener in a liquid lubricant.
3.1.5.1 Discussion—
The dispersion of the thickener forms a two-phase system and immobilizes the liquid lubricant by surface tension and other
physical forces. Other ingredients imparting special properties are often included. D217
3.1.6 relative density, n—the ratio of the density of a material at temperature, t , to the density of water at a reference temperature,
t .
3.1.6.1 Discussion—
In this test method relative density is determined with the temperature of the elastomer and water being equal and within the range
from 20 °C to 25 °C, and the temperature correction for the density of water is not applied. The term, relative density, replaces
the synonymous, deprecated term, specific gravity, used in some earlier editions of this test method.
3.1.7 thickener, n—in a lubricating grease, a substance composed of finely divided particles dispersed in a liquid lubricant to form
the product’s structure.
3.1.7.1 Discussion—
The thickener can be fibers (such as various metallic soaps) or plates or spheres (such as certain non-soap thickeners) which are
insoluble or, at most, only very slightly soluble in the liquid lubricant. The general requirements are that the solid particles be
extremely small, uniformly dispersed, and capable of forming a relatively stable, gel-like structure with the liquid lubricant. D217
3.2 Definitions of Terms Specific to This Standard:
3.2.1 coupon, n—a test piece of specified dimensions cut from standard elastomer sheets. D3182
3.3 Symbols:
Available from Society of Automotive Engineers (SAE), 400 Commonwealth Dr., Warrendale, PA 15096-0001, http://www.sae.org.
D4289 − 21
3.3.1 Symbols used in the calculation of hardness change (see Eq 1 in 10.1):
ΔH = hardness change, Durometer A units,
H = initial hardness, Durometer A units,
i
H = final hardness, Durometer A units.
f
3.3.2 Symbols used in the calculation of relative density (see Eq 2 in 10.2) and volume change (see Eq 3 in 10.3):
RD = relative density,
ΔV = volume change, %,
M1 = initial mass of coupon in air, g,
M 2 = initial mass of coupon and hanger wire in water less mass of hanger wire partially submerged in water, g,
M3 = final mass of coupon in air, g,
M4 = final mass of coupon and hanger wire in water less mass of hanger wire partially submerged in water, g.
4. Summary of Test Method
4.1 A prepared elastomer coupon is measured for initial hardness (Durometer A), density or relative density (to ensure that the
coupon is within specified limits), and volume by water displacement. The coupon is immersed in test grease or fluid and aged
for 70 h at either 100 °C (for chloroprene and similar flex-resistant elastomers) or 150 °C (for nitrile and similar heat-resistant
elastomers) or at other conditions This test method provides procedures for exposing test specimens to the influence of lubricating
greases and fluids under defined conditions of temperature and time as required by the lubricant specification. The resulting
changes in hardness and volume are determined.deterioration is determined by measuring the changes in physical properties, such
as hardness, and changes in volume, before and after immersion in the test lubricant.
5. Significance and Use
5.1 Measurement of the changes in the volume and hardness of an elastomer that occur from immersion in a lubricating grease
or fluid provides a means for evaluating relative compatibility. Much of this test method was derived from procedures described
in Test Method D471 and Federal Test Method 791C ⁄3603.5. In contrast to these two test methods, which emphasize the evaluation
of rubber and rubber-like compounds, Test Method D4289 was developed specifically to evaluate lubricating greases and fluids,
especially those used in automotive applications, although the test method can be applied to lubricants used in industrial
applications as well. Excepting the Shore Durometer A, this test method requires no specialized, rubber-testing equipment.
Virtually all other equipment and supplies specified in the procedure are stock items in lubricants laboratories.
5.2 The volume and hardness-change values determined by this test method do not duplicate similar changes that occur in
elastomeric seals under actual service conditions. However, they can be correlated in many instances. In one such instance, the
volume-change values determined by the antecedent of this test method correlated (r = 0.99) with those that occurred during a
vehicle test. Because of wide variations in service conditions and differences in grease and elastomer formulations, correlations
between the results obtained with this test method and particular applications should be determined on an individual basis.
5.3 When the optional Reference Elastomers AMS 3217/2C (acrylonitrile-butadiene, NBR-L) and AMS 3217/3B (chloroprene,
CR) are used to evaluate compatibility, the results can be used to judge a service characteristic of lubricants. In this respect, this
test method is useful for lubricant specifications (for example, Specification D4950). Similarly, this test method can be used in
specifications for lubricating fluids as well.
5.3 With specifications requiring elastomers other than Reference Elastomers AMS 3217/2C or AMS 3217/3B, coupons cut from
standard sheets (Practice D3182) should be used. When the preparation of such coupons is not feasible, or the lubricant
specification requires the use of rubber products that do not have a suitable size or configuration for use in preparing coupons for
testing (Practice D3183), this test method can be used as a guide for evaluating compatibility.
NOTE 5—Inasmuch as the precision values apply only to the elastomers specified in Annex A1 of Test Method D4289, when a lubricant specification
Verdura, T. M., “Evaluating Compatibility of Greases with Elastomeric Seals,” NLGI Spokesman, Vol 42, 1978, pp. 20–29.
D4289 − 21
requires some other elastomer, the user and supplier of the lubricant should agree to the values of acceptable precision. Such values may or may not be
the same as those of Test Method D4289. It is recommended that the agreed upon precision values be stated in the user’s lubricant specification.
5.4 The results of this test method are most applicable to the use of lubricating greases and fluids in contact with elastomeric seals,
boots, O-rings, and similar products, where the physical demands on the elastomer are not extreme. In critical applications where
the lubricant will be in contact with rubber parts subject to severe flexing, extreme temperatures, or similar stresses, other rubber
properties, such as tensile strength and elongation, should also be evaluated as they may be more indicative of the true
compatibility characteristics.
6. Interferences
6.1 (Warning—Although greases and elastomers typically have long shelf lives, there is potential for change in time. Therefore,
in order to ensure acceptable precision in this test method, neither test greases nor test elastomers should be more than
approximately one year old.)
6.1.1 Before testing with reference elastomers stored for extended periods (approaching one year or more) or in an adverse
environment (high ambient temperatures, solvent vapors, and so forth), the elastomers should be checked for conformance with
the requirements inof Table A1.1. the reference elastomer.
NOTE 6—Experience has shown that storage conditions can affect the shelf life of the reference elastomers. Shelf life can be extended by storing
elastomers in the dark in an inert atmosphere (such as a glass or metal, but not plastic, container, for example, vacuum desiccator, in which the air has
been replaced by nonreactive gas (such as argon or nitrogen) at refrigerator temperatures. Elastomers should not be stored at temperatures lower than 5 °C
because of crystallinity and solubility changes that can affect test performance. Neither should they be stored at reduced pressures or in permeable
containers or wrappers which could allow them to be affected by the normal atmosphere.
7. Apparatus
7.1 Sample Beaker, heat-resistant glass, Griffin low form, approximately 50 mm in diameter by 70 mm deep (100 mL nominal
capacity), having volumetric markings.
7.2 Beaker Cover, disposable, aluminum foil weighing (moisture) dish, with crimped sides and flat, smooth bottom, about 0.1 mm
thick, having bottom inside diameter approximately 52 mm and a depth of approximately 14 mm, and a capacity of about 50 mL.
7.3 Analytical Balance, having a sensitivity of at least 1 mg, equipped with a suspension hook and a platform to locate a
hydrostatic-weighing beaker above the balance pan.
7.4 Hanger Wire, stainless steel, about 0.5 mm diameter (No. 25 U.S. Steel Wire Gage or Imperial Wire Gage) of suitable length,
having a fish-hook configuration, that is, with a suitably sized eye at one end and a hook configuration (approximately 8 mm gape)
at the other.
7.5 Coupon Suspension Wire, stainless steel, about 0.71 mm to 0.72 mm diameter (No. 22 U.S. Steel Wire Gage or Imperial Wire
Gage), configured as shown in Fig. 1, to suspend the coupon below the surface of a fluid sample.

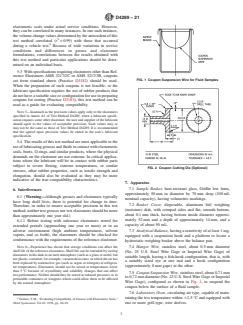

FIG. 1 Coupon Suspension Wire for Fluid Samples
D4289 − 21
FIG. 2 Coupon Cutting Die (Optional)
7.6 Laboratory Oven, circulating-air type, capable of maintaining the test temperature within 62.5 °C and equipped with one or
more grill-type, wire shelves.
7.7 Shore Durometer A, stand-mounted type (see Test Method D2240).
7.8 Coupon Cutting Die, optional, as shown in Fig. 2 (recommended).
8. Reagents and Materials
8.1 Purity of Reagents—It is intended that reagent grade chemicals be used in all tests. Unless otherwise indicated, all reagents
shall conform to the specifications of the Committee on Analytical Reagents of the American Chemical Society, where such
specifications are available. Other grades may be used, provided it is first ascertained that the reagent is of sufficiently high purity
to permit its use without lessening the accuracy of the determination.
8.2 Purity of Water—References to water shall be understood to mean distilled or deionized reagent water conforming to the
requirements of Specification D1193, Type III.
8.3 Reference Elastomers—Optional, sheets, SAE Aerospace Material Specifications AMS 3217/2C (acrylonitrile-butadiene,
NBR-L) and AMS 3217/3B (polychloroprene, CR).3217/3C (polychloroprene, CR). SAE J2643 Standard Reference Elastomers
(SRE) for Characterizing the Effect of Liquids on Vulcanized Rubbers or ISO 13226 Rubber – Standard reference elastomers
(SREs) for characterizing the effect of liquids on vulcanized rubbers.
NOTE 7—Contact ASTM International for information regarding reference elastomer suppliers (see Research Report RR:D02-1166 listed in Section 12).
When placing purchase orders with suppliers, Reference Elastomers, SAE Specification AMS 3217/2C or AMS 3217/3B, respectively, must be specified
to ensure shipment of the proper compound. Orders should require that each slab should be identified with the specification number, including suffix letter,
and date of manufacture and should be accompanied by a report of normal inspection data for that batch.
8.3.1 Although the use of SAE Reference Elastomers AMS 3217/2C and AMS 3217/3B is optional in the operation of this test
method, when used, they must conform to the requirements of SAE Specifications AMS 3217A, AMS 3217/2C, and AMS 3217/3B,
which describes their composition, preparation, and properties. The physical properties used for inspection of these reference
elastomers are summarized in specifications.Annex A1.
ACS Reagent Chemicals, Specifications and Procedures for Reagents and Standard-Grade Reference Materials, American Chemical Society, Washington, DC. For
suggestions on the testing of reagents not listed by the American Chemical Society, see Analar Standards for Laboratory Chemicals, BDH Ltd., Poole, Dorset, U.K., and
the United States Pharmacopeia and National Formulary, U.S. Pharmacopeial Convention, Inc. (USPC), Rockville, MD.
D4289 − 21
8.3.2 To ensure procurement of the proper compound, purchase orders for Reference Elastomers, SAE Specification AMS
3217/2C or AMS 3217/3B, shall specify that each reference elastomer sheet be identified with the SAE specification number,
including the correct suffıx letter (see 8.3 or the lubricant specification), and the date of manufacture, and that the shipment of each
batch should be accompanied by a report of normal inspection data for that batch (see Annex A1, for example).
NOTE 8—Revisions to the parent specification, SAE AMS 3217A, and its collateral specifications, AMS 3217/2C (NBR-L) and AMS 3217/3B (CR), are
indicated by changes in the suffix letter. Lubricant specifications should specify the required suffix letter; which may not be the same as that of the most
recent version of SAE AMS 3217. Purchasers of reference elastomers should inform suppliers that reference compounds must be exactly as specified and
that substitutions are not allowed even if the SAE specification has been updated.
NOTE 8—Revisions to the parent specification, SAE AMS 3217A, and its collateral specifications, AMS 3217/2C (NBR-L) and AMS 3217/3B (CR), are
indicated by changes in the suffix letter. Lubricant specifications should specify the required suffix letter; which may not be the same as that of the most
recent version of SAE AMS 3217. Purchasers of reference elastomers should inform suppliers that reference compounds must be exactly as specified and
that substitutions are not allowed even if the SAE specification has been updated.
8.4 n-Heptane, reagent grade. (Warning—Flammable. Health hazard.)
8.5 Methanol (Absolute), reagent grade. (Warning—Flammable. Health
...
