SIGNIFICANCE AND USE
6.1 Methods A or B are useful in testing hermetically-sealed devices with internal volumes. Maximum acceptable leak rates have been established for microelectronic devices to assure performance characteristics will not be affected by in-leakage of air, water vapor or other contaminants over the projected life expected. Care must be taken to control the bombing pressure, bombing time and dwell time after bombing or the results can vary substantially.
SCOPE
1.1 This practice2 covers procedures for testing devices that are sealed prior to testing, such as semiconductors, hermetically enclosed relays, pyrotechnic devices, etc., for leakage through the walls of the enclosure. They may be used with various degrees of sensitivity (depending on the internal volume, the strength of the enclosure, the time available for preparation of test, and on the sorption characteristics of the enclosure material for helium). In general practice the sensitivity limits are from 10−10 to 10−6 Pa m3/s (10−9 standard cm3/s to 10−5 standard cm3/s at 0°C) for helium, although these limits may be exceeded by several decades in either direction in some circumstances.
1.2 Two test methods are described:
1.2.1 Test Method A—Test part preparation by bombing.
1.2.2 Test Method B—Test part preparation by prefilling.
1.3 Units—The values stated in either SI or std-cc/sec units are to be regarded separately as standard. The values stated in each system may not be exact equivalents: therefore, each system shall be used independently of the other. Combining values from the two systems may result in non-conformance with the standard.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
- Status
- Published
- Publication Date
- 31-May-2022
- Technical Committee
- E07 - Nondestructive Testing
- Drafting Committee
- E07.08 - Leak Testing Method
Relations
- Effective Date
- 01-Feb-2024
- Effective Date
- 01-Dec-2019
- Effective Date
- 01-Mar-2019
- Effective Date
- 01-Jan-2018
- Effective Date
- 15-Jun-2017
- Effective Date
- 01-Feb-2017
- Effective Date
- 01-Aug-2016
- Effective Date
- 01-Feb-2016
- Effective Date
- 01-Dec-2015
- Effective Date
- 01-Sep-2015
- Effective Date
- 01-Jun-2014
- Effective Date
- 01-Jun-2014
- Effective Date
- 01-Dec-2013
- Effective Date
- 15-Jun-2013
- Effective Date
- 01-Jun-2013
Overview
ASTM E493/E493M-11(2022), Standard Practice for Leaks Using the Mass Spectrometer Leak Detector in the Inside-Out Testing Mode, establishes procedures for the detection and measurement of leaks in hermetically sealed devices using a mass spectrometer leak detector. This standard is widely applicable to components such as semiconductors, relays, and pyrotechnic devices, where ensuring the integrity of the sealed enclosure is essential for operational performance and reliability.
The standard details test methodologies, equipment requirements, and best practices to support accurate leak testing, particularly for devices with internal volumes. Testing is typically required to confirm that air, water vapor, or contaminants do not penetrate the enclosure over the device's expected lifespan, which could otherwise compromise its performance.
Key Topics
Leak Testing Methods
ASTM E493/E493M-11(2022) describes two principal methods for preparing parts for leak testing:- Test Method A: Preparation of the test part by “bombing” with helium.
- Test Method B: Filling the test part with helium prior to sealing.
Sensitivity Range
The standard practice accommodates a broad range of sensitivity levels, generally between 10⁻¹⁰ and 10⁻⁶ Pa m³/s (10⁻⁹ to 10⁻⁵ standard cm³/s at 0°C) for helium. This allows precision detection for both extremely fine and comparatively larger leaks.Helium as a Tracer Gas
Helium is used as the tracer gas due to its small atomic size and inert properties, which make it ideal for leak detection.Test Apparatus and Safety
- Use of a mass spectrometer leak detector (MSLD)
- Requirements for pressure vessels, pumps, and calibration
- Safety measures and adherence to pressure vessel codes
Personnel Qualification
Leak testing must be performed by personnel qualified in accordance with recognized nondestructive testing (NDT) standards such as ANSI/ASNT CP-189, SNT-TC-1A, MIL-STD-410, or NAS-410.Interferences and Limitations
Proper preparation and handling are required to minimize background signals and avoid interferences from surface sorption, dirt, or previous testing residues.
Applications
The application of ASTM E493/E493M-11(2022) is critical in numerous industries where the reliability of sealed components is paramount, including:
- Microelectronics: Preventing in-leakage that could degrade performance of sensitive components such as integrated circuits and MEMS devices.
- Aerospace and Defense: Ensuring the integrity of hermetically sealed relays, sensors, and other mission-critical instruments.
- Automotive: Leak detection in sealed electronic components exposed to extreme environments.
- Medical Devices: Confirming barrier integrity in devices where contamination could pose risks to patients.
- Pyrotechnic Devices: Maintaining safety and functioning by preventing contamination or premature activation.
Using standardized leak testing methods helps organizations meet quality assurance, regulatory, and customer requirements, and contributes to the longevity and dependability of complex products.
Related Standards
ASTM E493/E493M-11(2022) references several supporting standards and recommended practices for effective implementation, such as:
- ASTM E1316 - Terminology for Nondestructive Examinations
- ANSI/ASNT CP-189 - ASNT Standard for Qualification and Certification of Nondestructive Testing Personnel
- SNT-TC-1A - Recommended Practice for Personnel Qualification and Certification in Nondestructive Testing
- MIL-STD-410 - Nondestructive Testing Personnel Qualification and Certification
- NAS-410 - Certification and Qualification of Nondestructive Test Personnel
Organizations adopting this standard should ensure compatibility with these related standards to promote comprehensive leak detection and nondestructive testing procedures.
By following ASTM E493/E493M-11(2022), companies achieve higher confidence in the leak-tightness of sealed devices, reducing the risks associated with in-service failures and enhancing overall product quality.
Get Certified
Connect with accredited certification bodies for this standard
IMP NDT d.o.o.
Non-destructive testing services. Radiography, ultrasonic, magnetic particle, penetrant, visual inspection.
Inštitut za kovinske materiale in tehnologije
Institute of Metals and Technology. Materials testing, metallurgical analysis, NDT.
Q Techna d.o.o.
NDT and quality assurance specialist. 30+ years experience. NDT personnel certification per ISO 9712, nuclear and thermal power plant inspections, QA/
Sponsored listings
Frequently Asked Questions
ASTM E493/E493M-11(2022) is a standard published by ASTM International. Its full title is "Standard Practice for Leaks Using the Mass Spectrometer Leak Detector in the Inside-Out Testing Mode". This standard covers: SIGNIFICANCE AND USE 6.1 Methods A or B are useful in testing hermetically-sealed devices with internal volumes. Maximum acceptable leak rates have been established for microelectronic devices to assure performance characteristics will not be affected by in-leakage of air, water vapor or other contaminants over the projected life expected. Care must be taken to control the bombing pressure, bombing time and dwell time after bombing or the results can vary substantially. SCOPE 1.1 This practice2 covers procedures for testing devices that are sealed prior to testing, such as semiconductors, hermetically enclosed relays, pyrotechnic devices, etc., for leakage through the walls of the enclosure. They may be used with various degrees of sensitivity (depending on the internal volume, the strength of the enclosure, the time available for preparation of test, and on the sorption characteristics of the enclosure material for helium). In general practice the sensitivity limits are from 10−10 to 10−6 Pa m3/s (10−9 standard cm3/s to 10−5 standard cm3/s at 0°C) for helium, although these limits may be exceeded by several decades in either direction in some circumstances. 1.2 Two test methods are described: 1.2.1 Test Method A—Test part preparation by bombing. 1.2.2 Test Method B—Test part preparation by prefilling. 1.3 Units—The values stated in either SI or std-cc/sec units are to be regarded separately as standard. The values stated in each system may not be exact equivalents: therefore, each system shall be used independently of the other. Combining values from the two systems may result in non-conformance with the standard. 1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. 1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
SIGNIFICANCE AND USE 6.1 Methods A or B are useful in testing hermetically-sealed devices with internal volumes. Maximum acceptable leak rates have been established for microelectronic devices to assure performance characteristics will not be affected by in-leakage of air, water vapor or other contaminants over the projected life expected. Care must be taken to control the bombing pressure, bombing time and dwell time after bombing or the results can vary substantially. SCOPE 1.1 This practice2 covers procedures for testing devices that are sealed prior to testing, such as semiconductors, hermetically enclosed relays, pyrotechnic devices, etc., for leakage through the walls of the enclosure. They may be used with various degrees of sensitivity (depending on the internal volume, the strength of the enclosure, the time available for preparation of test, and on the sorption characteristics of the enclosure material for helium). In general practice the sensitivity limits are from 10−10 to 10−6 Pa m3/s (10−9 standard cm3/s to 10−5 standard cm3/s at 0°C) for helium, although these limits may be exceeded by several decades in either direction in some circumstances. 1.2 Two test methods are described: 1.2.1 Test Method A—Test part preparation by bombing. 1.2.2 Test Method B—Test part preparation by prefilling. 1.3 Units—The values stated in either SI or std-cc/sec units are to be regarded separately as standard. The values stated in each system may not be exact equivalents: therefore, each system shall be used independently of the other. Combining values from the two systems may result in non-conformance with the standard. 1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. 1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
ASTM E493/E493M-11(2022) is classified under the following ICS (International Classification for Standards) categories: 19.100 - Non-destructive testing. The ICS classification helps identify the subject area and facilitates finding related standards.
ASTM E493/E493M-11(2022) has the following relationships with other standards: It is inter standard links to ASTM E1316-24, ASTM E1316-19b, ASTM E1316-19, ASTM E1316-18, ASTM E1316-17a, ASTM E1316-17, ASTM E1316-16a, ASTM E1316-16, ASTM E1316-15a, ASTM E1316-15, ASTM E1316-14e1, ASTM E1316-14, ASTM E1316-13d, ASTM E1316-13c, ASTM E1316-13b. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
ASTM E493/E493M-11(2022) is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

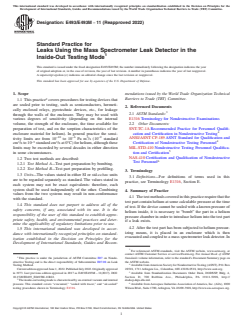

Designation: E493/E493M − 11 (Reapproved 2022)
Standard Practice for
Leaks Using the Mass Spectrometer Leak Detector in the
Inside-Out Testing Mode
This standard is issued under the fixed designation E493/E493M; the number immediately following the designation indicates the year
of original adoption or, in the case of revision, the year of last revision.Anumber in parentheses indicates the year of last reapproval.
A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope mendations issued by the World Trade Organization Technical
2 Barriers to Trade (TBT) Committee.
1.1 This practice covers procedures for testing devices that
are sealed prior to testing, such as semiconductors, hermeti-
2. Referenced Documents
cally enclosed relays, pyrotechnic devices, etc., for leakage
2.1 ASTM Standards:
through the walls of the enclosure. They may be used with
E1316Terminology for Nondestructive Examinations
various degrees of sensitivity (depending on the internal
volume, the strength of the enclosure, the time available for 2.2 Other Documents:
preparation of test, and on the sorption characteristics of the SNT-TC-1ARecommended Practice for Personnel Qualifi-
cation and Certification in Nondestructive Testing
enclosure material for helium). In general practice the sensi-
−10 −6 3 −9
tivity limits are from 10 to 10 Pa m /s (10 standard ANSI/ASNT CP-189ASNT Standard for Qualification and
3 −5 3 4
Certification of Nondestructive Testing Personnel
cm /sto10 standardcm /sat0°C)forhelium,althoughthese
limits may be exceeded by several decades in either direction MIL-STD-410Nondestructive Testing Personnel Qualifica-
tion and Certification
in some circumstances.
NAS-410Certification and Qualification of Nondestructive
1.2 Two test methods are described:
Test Personnel
1.2.1 Test Method A—Test part preparation by bombing.
1.2.2 Test Method B—Test part preparation by prefilling.
3. Terminology
1.3 Units—The values stated in either SI or std-cc/sec units
3.1 Definitions—For definitions of terms used in this
are to be regarded separately as standard. The values stated in
practice, see Terminology E1316, Section E.
each system may not be exact equivalents: therefore, each
system shall be used independently of the other. Combining
4. Summary of Practice
values from the two systems may result in non-conformance
4.1 Thetestmethodscoveredinthispracticerequirethatthe
with the standard.
test part contain helium at some calculable pressure at the time
1.4 This standard does not purport to address all of the
oftest.Ifthedevicecannotbesealedwithaknownpressureof
safety concerns, if any, associated with its use. It is the
helium inside, it is necessary to “bomb” the part in a helium
responsibility of the user of this standard to establish appro-
pressurechamberinordertointroduceheliumintothetestpart
priate safety, health, and environmental practices and deter-
if a leak exists.
mine the applicability of regulatory limitations prior to use.
4.2 After the test part has been subjected to helium pressur-
1.5 This international standard was developed in accor-
izing means, it is placed in an enclosure which is then
dance with internationally recognized principles on standard-
evacuatedandcoupledtoamassspectrometerleakdetector.In
ization established in the Decision on Principles for the
Development of International Standards, Guides and Recom-
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
This practice is under the jurisdiction of ASTM Committee E07 on Nonde- Standards volume information, refer to the standard’s Document Summary page on
structive Testing and is the direct responsibility of Subcommittee E07.08 on Leak the ASTM website.
Testing Method. AvailablefromAmericanSocietyforNondestructiveTesting(ASNT),P.O.Box
CurrenteditionapprovedJune1,2022.PublishedJuly2022.Originallyapproved 28518, 1711 Arlingate Ln., Columbus, OH 43228-0518, http://www.asnt.org.
in 1973. Last previous edition approved in 2017 as E493/E493M–11(2017). DOI: Available from Standardization Documents Order Desk, DODSSP, Bldg. 4,
10.1520/E0493_E0493M-11R22. Section D, 700 Robbins Ave., Philadelphia, PA 19111-5098, http://
Theinside-outtestingmodeischaracterizedbyanexternalvacuumandinternal dodssp.daps.dla.mil.
pressure. This standard covers “evacuated,” “sealed with tracer,” and “air-sealed” Available fromAerospace IndustriesAssociation ofAmerica, Inc. (AIA), 1000
testing procedures shown in Terminology E1316. WilsonBlvd.,Suite1700,Arlington,VA22209-3928,http://www.aia-aerospace.org.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
E493/E493M − 11 (2022)

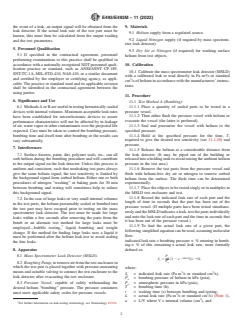

the event of a leak, an output signal will be obtained from the 9. Materials
