SIST EN 61162-450:2011

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.'LJLWDOQLMaritime navigation and radiocommunication equipment and systems - Digital interfaces - Part 450: Multiple talkers and multiple listeners - Light-weight ship systems interconnection47.020.70Navigacijska in krmilna opremaNavigation and control equipment33.060.01Radijske komunikacije na splošnoRadiocommunications in generalICS:Ta slovenski standard je istoveten z:EN 61162-450:2011SIST EN 61162-450:2011en01-oktober-2011SIST EN 61162-450:2011SLOVENSKI
STANDARD
EUROPEAN STANDARD EN 61162-450 NORME EUROPÉENNE
EUROPÄISCHE NORM August 2011
CENELEC European Committee for Electrotechnical Standardization Comité Européen de Normalisation Electrotechnique Europäisches Komitee für Elektrotechnische Normung
Management Centre: Avenue Marnix 17, B - 1000 Brussels
© 2011 CENELEC -
All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 61162-450:2011 E
ICS 47.020.70
English version
Maritime navigation and radiocommunication equipment and systems -
Digital interfaces -
Part 450: Multiple talkers and multiple listeners -
Ethernet interconnection (IEC 61162-450:2011)
Matériels et systèmes de navigation et de radiocommunication maritimes -
Interfaces numériques -
Partie 450: Emetteurs multiples et récepteurs multiples -
Interconnexion Ethernet (CEI 61162-450:2011)
Navigations- und Funkkommunikationsgeräte und -systeme für die Seeschifffahrt -
Digitale Schnittstellen -
Teil 450: Mehrere Datensenden und mehrere Datenempfänger -
Leichte Schiffssystemzusammenschaltung(IEC 61162-450:2011)
This European Standard was approved by CENELEC on 2011-07-15. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the Central Secretariat or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to the Central Secretariat has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and the United Kingdom.

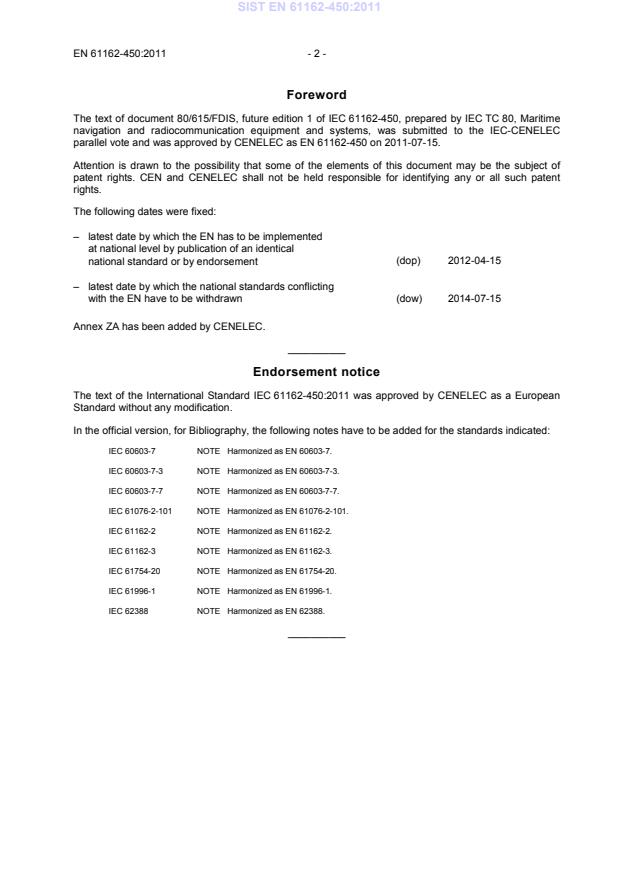

Foreword The text of document 80/615/FDIS, future edition 1 of IEC 61162-450, prepared by IEC TC 80, Maritime navigation and radiocommunication equipment and systems, was submitted to the IEC-CENELEC parallel vote and was approved by CENELEC as EN 61162-450 on 2011-07-15. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN and CENELEC shall not be held responsible for identifying any or all such patent rights. The following dates were fixed: – latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement
(dop)
2012-04-15 – latest date by which the national standards conflicting
with the EN have to be withdrawn
(dow)
2014-07-15 Annex ZA has been added by CENELEC. __________ Endorsement notice The text of the International Standard IEC 61162-450:2011 was approved by CENELEC as a European Standard without any modification. In the official version, for Bibliography, the following notes have to be added for the standards indicated: IEC 60603-7 NOTE
Harmonized as EN 60603-7. IEC 60603-7-3 NOTE
Harmonized as EN 60603-7-3. IEC 60603-7-7 NOTE
Harmonized as EN 60603-7-7. IEC 61076-2-101 NOTE
Harmonized as EN 61076-2-101. IEC 61162-2 NOTE
Harmonized as EN 61162-2. IEC 61162-3 NOTE
Harmonized as EN 61162-3. IEC 61754-20 NOTE
Harmonized as EN 61754-20. IEC 61996-1 NOTE
Harmonized as EN 61996-1. IEC 62388 NOTE
Harmonized as EN 62388. __________
- 3 - EN 61162-450:2011
Annex ZA (normative)
Normative references to international publications with their corresponding European publications
The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.
NOTE
When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD applies.
Publication Year Title EN/HD Year
IEC 60825-2 - Safety of laser products -
Part 2: Safety of optical fibre communication systems (OFCS) EN 60825-2 -
IEC 60945 - Maritime navigation and radiocommunication equipment and systems - General requirements - Methods of testing and required test results EN 60945 -
IEC 61162-1 - Maritime navigation and radiocommunication equipment and systems - Digital interfaces - Part 1: Single talker and multiple listeners EN 61162-1 -
IEEE 802.3 - IEEE Standard for Information technology - Telecommunications and information exchange between systems - Local and metropolitan area networks -
Part 3: Carrier Sense Multiple Access with Collision Detection (CSMA/CD) Access Method and Physical Layer Specifications - -
ISOC RFC 768 - User Datagram Protocol - -
ISOC RFC 791 - Internet Protocol - DARPA Internet Program Protocol Specification - -
ISOC RFC 792 - Internet Control Message Protocol - -
ISOC RFC 826 - Ethernet Address Resolution Protocol - -
ISOC RFC 1918 - Address Allocation for Private Internets - -
ISOC RFC 2474 - Definition of the Differentiated Services Field (DS Field) in the IPv4 and IPv6 Headers - -
ISOC RFC 5000 - Internet Official Protocol Standards - -
ISOC RFC 5227 - IPv4 Address Conflict Detection - -
ISOC RFC 5424 - The Syslog Protocol - -
NMEA 0183 2008 Standard for interfacing marine electronic devices - -
IEC 61162-450 Edition 1.0 2011-06 INTERNATIONAL STANDARD
Maritime navigation and radiocommunication equipment and systems – Digital interfaces –
Part 450: Multiple talkers and multiple listeners – Ethernet interconnection
INTERNATIONAL ELECTROTECHNICAL COMMISSION XB ICS 47.020.70 PRICE CODE ISBN 978-2-88912-492-3
– 2 – 61162-450  IEC:2011(E) CONTENTS FOREWORD . 5 1 Scope . 7 2 Normative references . 7 3 Terms and definitions . 8 4 General network and equipment requirements . 11 4.1 Network topology example . 11 4.2 Basic requirements . 12 4.2.1 Requirements for equipment to be connected to the network . 12 4.2.2 Additional requirements for network infrastructure equipment . 12 4.3 Network function (NF) requirements . 13 4.3.1 General requirements . 13 4.3.2 Maximum data rate requirements . 13 4.3.3 Error logging function . 13 4.4 System function (SF) requirements . 15 4.4.1 General requirements . 15 4.4.2 Assignment of unique system function ID (SFI) . 15 4.4.3 Implementing configurable transmission groups . 15 4.5 Serial to network gateway function (SNGF) requirements . 16 4.5.1 General requirements . 16 4.5.2 Serial line output buffer management . 16 4.5.3 Datagram output requirements . 17 4.6 Other network function (ONF) requirements . 17 5 Low level network requirements. 17 5.1 Electrical and mechanical requirements. 17 5.2 Network protocol requirements . 19 5.3 IP Address assignment for equipment . 19 5.4 Multicast address range . 19 6 Transport layer specification . 19 6.1 General . 19 6.2 UDP messages. 20 6.2.1 UDP multicast protocol . 20 6.2.2 Use of multicast addresses and port numbers. 20 6.2.3 UDP checksum . 21 6.2.4 Datagram size . 21 7 Application layer specification . 22 7.1 Datagram header . 22 7.1.1 Valid header . 22 7.1.2 Error logging. 22 7.2 General IEC 61162-1 sentence transmissions . 22 7.2.1 Application of this protocol . 22 7.2.2 Types of messages for which this protocol can be used . 22 7.2.3 TAG block parameters for sentences transmitted in the datagram . 22 7.2.4 Requirements for processing incoming datagrams . 24 7.2.5 Error logging. 24 7.3 Binary image transfer using UDP multicast . 24 7.3.1 Application of this protocol . 24 SIST EN 61162-450:2011

61162-450  IEC:2011(E) – 3 – 7.3.2 Binary image structure . 25 7.3.3 Header . 25 7.3.4 Binary image descriptor structure . 27 7.3.5 Binary image data fragment . 28 7.3.6 Sender process for binary image transfer . 28 7.3.7 Receiver process for binary image transfer . 29 7.3.8 Other requirements . 30 7.3.9 Error logging. 31 8 Methods of test and required results . 32 8.1 Test set-up and equipment . 32 8.2 Basic requirements . 32 8.2.1 Equipment to be connected to the network . 32 8.2.2 Network infrastructure equipment . 32 8.3 Network function (NF) . 32 8.3.1 Maximum data rate . 32 8.3.2 Error logging function . 33 8.4 System function (SF) . 33 8.4.1 General . 33 8.4.2 Assignment of unique system function ID (SFI) . 33 8.4.3 Implementing configurable transmission groups . 33 8.5 Serial to network gateway function (SNGF) . 33 8.5.1 General . 33 8.5.2 Serial line output buffer management . 33 8.5.3 Datagram output . 34 8.6 Other network function (ONF) . 34 8.7 Low level network . 34 8.7.1 Electrical and mechanical requirements . 34 8.7.2 Network protocol . 34 8.7.3 IP address assignment for equipment . 35 8.7.4 Multicast address range . 35 8.8 Transport layer . 35 8.9 Application layer . 35 8.9.1 Application . 35 8.9.2 Datagram header . 35 8.9.3 Types of messages . 36 8.9.4 TAG block parameters . 36 8.10 Error logging . 36 8.11 Binary image transfer using UDP multicast . 37 8.11.1 Sender process test . 37 8.11.2 Receiver process test . 38 8.11.3 Image descriptor test . 38 8.11.4 Image transfer error logging . 38 Annex A (normative)
Classification of IEC 61162-1 talker identifier
mnemonics and sentences . 39 Annex B (informative)
TAG block example . 45 Annex C (normative)
Reliable transmission of command-response pair messages . 47 Annex D (informative)
Network and system design guidance . 52 Bibliography . 60 SIST EN 61162-450:2011

– 4 – 61162-450  IEC:2011(E)
Figure 1 – Network topology example . 12 Figure 2 – Ethernet frame example for a SBM
from a rate of turn sensor . 20 Figure C.1 – Command response communications . 47 Figure C.2 – State diagram . 49 Figure D.1 – General system design architecture . 52 Figure D.2 – Example of ship-shore communication architecture . 53 Figure D.3 – Security infrastructure . 54 Figure D.4 – Decoupled system . 56 Figure D.5 – Loosely coupled system . 56 Figure D.6 – Strongly coupled system . 57
Table 1 – Syslog message format . 14 Table 2 – Syslog error message codes . 14 Table 3 – Interfaces, connectors and cables . 18 Table 4 – Destination multicast addresses and port numbers . 21 Table 5 – Destination multicast addresses and port numbers for binary data transfer . 21 Table 6 – Destination multicast addresses and port numbers for other services . 21 Table 7 – Description of terms . 25 Table 8 – Binary image structure . 25 Table 9 – Header format . 26 Table 10 – Binary image descriptor format . 27 Table 11 – Examples of MIME content type for DataType codes . 28 Table 12 – Binary image data fragment format . 28 Table A.1 – Classification of IEC 61162-1 talker identifier mnemonics . 39 Table A.2 – Classification of IEC 61162-1 sentences . 41 Table B.1 – Defined parameter-codes . 46 Table D.1 – Overview of possible security functions . 55 Table D.2 – Network failure propagation possibilities . 58 SIST EN 61162-450:2011

61162-450  IEC:2011(E) – 5 – INTERNATIONAL ELECTROTECHNICAL COMMISSION ____________
MARITIME NAVIGATION AND RADIOCOMMUNICATION
EQUIPMENT AND SYSTEMS –
DIGITAL INTERFACES –
Part 450: Multiple talkers and multiple listeners –
Ethernet interconnection
FOREWORD 1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with may participate in this preparatory work. International, governmental and non-governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for Standardization (ISO) in accordance with conditions determined by agreement between the two organizations. 2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international consensus of opinion on the relevant subjects since each technical committee has representation from all interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any misinterpretation by any end user. 4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications transparently to the maximum extent possible in their national and regional publications. Any divergence between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter. 5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any services carried out by independent certification bodies. 6) All users should ensure that they have the latest edition of this publication. 7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and members of its technical committees and IEC National Committees for any personal injury, property damage or other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is indispensable for the correct application of this publication. 9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent rights. IEC shall not be held responsible for identifying any or all such patent rights. International Standard IEC 61162-450 has been prepared by IEC technical committee 80: Maritime navigation and radiocommunication equipment and systems. The text of this standard is based on the following documents: FDIS Report on voting 80/615/FDIS 80/621/RVD
Full information on the voting for the approval of this standard can be found in the report on voting indicated in the above table. This publication has been drafted in accordance with the ISO/IEC Directives, Part 2. SIST EN 61162-450:2011

– 6 – 61162-450  IEC:2011(E) The committee has decided that the contents of this publication will remain unchanged until the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data related to the specific publication. At this date, the publication will be •
transformed into an International standard, • reconfirmed, • withdrawn, • replaced by a revised edition, or • amended. A bilingual version of this publication may be issued at a later date.
61162-450  IEC:2011(E) – 7 – MARITIME NAVIGATION AND RADIOCOMMUNICATION
EQUIPMENT AND SYSTEMS –
DIGITAL INTERFACES –
Part 450: Multiple talkers and multiple listeners –
Ethernet interconnection
1 Scope This part of IEC 61162 specifies interface requirements and methods of test for high speed communication between shipboard navigation and radiocommunication equipment as well as between such systems and other ship systems that need to communicate with navigation and radio-communication equipment. This part of IEC 61162 is based on the application of an appropriate suite of existing international standards to provide a framework for implementing data transfer between devices on a shipboard Ethernet network. This standard provides a higher speed and higher capacity alternative to the IEC 61162-1 and IEC 61162-2 standards while retaining these standards’ basic data format. This standard provides a higher data capacity than IEC 61162-3. This standard specifies an Ethernet based bus type network where any listener may receive messages from any sender with the following properties. • This standard includes provisions for multicast distribution of information formatted according to IEC 61162-1, for example position fixes and other measurements, as well as provisions for transmission of general data blocks (binary image), for example between radar and VDR. • This standard is limited to protocols for equipment (Network nodes) connected to a single Ethernet network consisting only of OSI level one or two devices and cables (Network infrastructure). • This standard provides requirements only for equipment interfaces. By specifying protocols for transmission of IEC 61162-1 sentences and general binary image data these requirements will guarantee interoperability between equipment implementing this standard as well as a certain level of safe behaviour of the equipment itself. • This standard permits equipment using other protocols than those specified in this standard to share a network infrastructure provided that it is supplied with interfaces which satisfy the requirements described for ONF (see 4.6). • This standard does not contain any system requirements other than the ones that can be inferred from the sum of individual equipment requirements. Thus, to ascertain system properties that cannot be derived from equipment requirements alone, additional analysis or standards will be required. In particular, this applies to requirements to maintain system functionality in the face of a single point failure in equipment or networks. Informative Annex D contains guidance on how to address such issues. 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. IEC 60825-2, Safety of laser products – Part 2: Safety of optical fibre communication systems (OFCS) SIST EN 61162-450:2011

– 8 – 61162-450  IEC:2011(E) IEC 60945, Maritime navigation and radiocommunication equipment and systems – General Requirements – Methods of testing and required test results IEC 61162-1, Maritime navigation and radiocommunication equipment and systems – Digital interfaces – Part 1: Single talker and multiple listeners IEEE 802.3, IEEE Standards for Local Area Networks: Carrier Sense Multiple Access with Collision Detection (CSMA/CD) Access Method and Physical Layer Specifications ISOC RFC 768, User Datagram Protocol, Standard STD0006 ISOC RFC 791, Internet Protocol (IP), Standard STD0005 (and updates) ISOC RFC 792, Internet Control Message Protocol (ICMP), Standard STD0005 (and updates) ISOC RFC 826, An ethernet Address Resolution Protocol ISOC RFC 1918, Address Allocation for Private Internets, Best Current Practice BCP0005 ISOC RFC 2474, Definition of the Differentiated Services Field (DS Field) in the IPv4 and IPv6 Headers ISOC RFC 5000, Internet Official Protocol Standards, Standard 0001 ISOC RFC 5227, IPv4 Address Conflict Detection ISOC RFC 5424, The Syslog Protocol NMEA 0183:2008, Standard for interfacing marine electronic devices, Version 4.00 NOTE The standards of the Internet Society (ISOC) are available on the IETF websites http://www.ietf.org. Later updates can be tracked at http://www.rfc-editor.org/rfcsearch.html 3 Terms and definitions For the purposes of this document, the following terms and definitions apply. 3.1
ASCII printable 7 bit character encoded in one byte 3.2
binary image data block without formatting known to this protocol, i.e., non IEC 61162-1 formatted data, that can be transmitted with the protocol defined in 7.3. NOTE The term “binary image” is used to differentiate the general data transfer protocol (which may or may not be in ordinary text format) from the transmission of sentences that is always in 7 bit ASCII format. 3.3
byte group of 8 bits treated as one unit; this corresponds to what is also sometimes called an octet SIST EN 61162-450:2011

61162-450  IEC:2011(E) – 9 – 3.4
command-response pair CRP messages exchanged between parties that synchronize state changes on both sides through the exchange NOTE 1 CRP are defined in Annex A. NOTE 2 Both the command and the reply message may also be used as a sensor broadcast message in some cases. Thus, the implementation of the semantics of the message exchange is somewhat different between different users of the exchange. 3.5
datagram one atomic UDP transmission unit on the Ethernet as defined in ISOC RFC 768 and as constrained elsewhere in this standard 3.6
Ethernet a carrier sense, multiple access collision detect (CSMA/CD) local area network protocol standard as defined in IEEE 802.3 and later revisions and additions to IEEE 802 NOTE The types of Ethernet media that can be used for implementation of this standard are defined in Clause 5. 3.7
function block specified functionality implemented by equipment NOTE Equipment normally implements multiple function blocks. Requirements to equipment are the sum of requirements to the function blocks it implements. Function blocks are defined in Clause 4. Types of function blocks are System Function Block (SF), Other Network Function Block (ONF), Network Function Block (NF) and Serial to Network Gateway Function Block (SNGF). 3.8
internet assigned number authority IANA global coordination of the Domain Name Server (DNS) Root, IP addressing, and other Internet protocol resources, including UDP and TCP port numbers NOTE The currently assigned numbers are listed in http://www.iana.org/assignments/port-numbers. 3.9
internet protocol IP used and defined in ISOC RFC 791 (and updates) 3.10
message collection of one or more sentences that are grouped by mechanisms internal to the sentence, for instance by sequence numbers as in the TXT sentence, i.e. a stand alone sentence is a message 3.11
message type classification of IEC 61162-1 sentence formatters into SMB, MSM and CRP types NOTE 1 SMB, MSM and CRP types are defined in Annex A. NOTE 2 This standard defines different requirements to the transmission of different message types. SIST EN 61162-450:2011

– 10 – 61162-450  IEC:2011(E) 3.12
multi-sentence messages MSM logical group of messages and/or sentences where the full meaning of the group is dependent on the receiver reading the full group NOTE 1 Multi-sentence messages that are grouped together with a TAG construct is also a sentence group. NOTE 2 MSM are defined in Annex A. 3.13
network one physical Ethernet network with one Internet address space, consisting only of the network nodes, switches, cables and supporting equipment such as power supply units 3.14
network function block NF function block responsible for physical connectivity to the network and connectivity to the transport layer as described in 4.3 3.15
network infrastructure the part of the Network that provides a transmission path between network nodes NOTE The network nodes are not part of the network infrastructure. 3.16
network node physical device connected to the network and which have an Internet address (also called an Internet host) NOTE A network node will normally correspond to equipment as the latter term is used in this standard. 3.17
other network function block ONF function block that interfaces to the network, but which is not using the protocol definition in Clauses 5, 6 and 7 of this standard (for example real time streaming of Radar and CCTV image transfer, VDR sound transfer, etc.) NOTE Requirements as defined in 4.6 ensure that an ONF can co-reside with SF network nodes and function blocks that make use of this standard’s protocol. 3.18
sensor broadcast message SBM messages consisting of only one sentence NOTE 1 SBM type messages are sent with a sufficiently high update rate to ensure that the receiver can maintain the correct status even in environments where some messages may be lost. NOTE 2 SBM are defined in Annex A. 3.19
sentence standard information carrying unit as defined in IEC 61162-1 3.20
sentence group logical group of sentences (which may consist of only one) that need to be processed together to give full meaning to the information contained in the sentence(s) SIST EN 61162-450:2011

61162-450  IEC:2011(E) – 11 – NOTE 1 The grouping of sentences into sentence group is done by TAG block mechanisms. The sentences in a sentence group may or may not have the same formatter. A multi sentence message grouped by this mechanism is also a sentence group. NOTE 2 This standard allows the explicit grouping of sentences by using coding in a datagram. This standard does not enforce any relationship between datagram and sentence group. Thus a datagram may contain more than one sentence group or a sentence group may be split over two or more datagrams. 3.21
serial to network gateway function block SNGF function block that enables transfer of sentences between the network and devices that are compliant with the IEC 61162-1 and IEC 61162-2 serial line interface 3.22
system function block SF function block, identified by a unique system function ID (SFI), that is the only function block that can send information in a datagram format as defined in clause 7
3.23
system function ID SFI parameter string as defined in 4.4.2 3.24
transmission group a pair of a multicast address and a port number that are used by an SF to transmit sentences NOTE The transmission groups are defined in Table 4 and Annex A defines default transmission groups for the SF. 3.25
transport annotate and group TAG formatted block of data, defined in NMEA 0183, that adds parameters to IEC 61162-1 sentences NOTE Informative Annex B gives an overview of the TAG blocks used in this standard. 3.26
user datagram protocol UDP connection-less datagram protocol defined by ISOC RFC 768; it makes no provision for transport-layer acknowledgement of packets received 4 General network and equipment requirements 4.1 Network topology example Figure 1 shows a possible IEC 61162-450 network topology consisting of one IP Local Area Network (LAN) and a number of different network nodes, each containing different function blocks. This diagram is informal and does not imply any requirements other than the ones defined in the following subclauses.
– 12 – 61162-450  IEC:2011(E) NetworkSF 5NF 4NF3SNGFONF 1NF 1SF 1ONF 2NF 2SF 2SF 3SF 4IEC61162-1SF 6IEC61162-1 SF is “System Function Block”
NF is “Network Function Block” SNGF is “Serial to Network Gateway Function Block” ONF is “Other Network Function Block” Figure 1 – Network topology example Some examples of network nodes are (see Figure 1): • a sensor, for example a GNSS receiver that is also a network node (SF2 and NF2). • a device that sends or receives IEC 61162-450 compliant data (sentences and/or binary image) as well as other types of information onto the network, for example an ECDIS that can also load chart data from another device (SF1, ONF2 and NF1). • two independent functions, such as a gyrocompass also approved as a rate of turn sensor that are implemented in one network node (SF5, SF6 and NF4). • a system device function block represented by an IEC 61162-1 compliant equipment connected to a serial to network gateway function (SNGF). In this case, the SNGF will format outgoing sentences according to requirements in this standard (SF3, SF4, SNGF and NF3) • a device that does not send or receive IEC 61162-450 compliant data (sentences and/or binary image), but which satisfies minimum requirements for compatible use of the same network (ONF1). 4.2 Basic requirements 4.2.1 Requirements for equipment to be connected to the network (see 8.2.1) The requirements for equipment connected to the network are as follows. • All equipment connected to the network including network infrastructure equipment, shall satisfy the relevant physical and electrical requirements defined in 5.1. • All equipment that implements one or more of SF and/or SNGF shall implement the NF. This equipment shall satisfy the requirements to the function blocks they implement as defined in 4.3 (NF), 4.4 (SF) and 4.5 (SNGF). • All other equipment that is not network infrastructure equipment and that shares the network infrastructure shall comply with requirements to an ONF as defined in 4.6. • Network infrastructure equipment, i.e., switches, shall satisfy requirements in 4.2.2. • All equipment connected to a network shall satisfy the requirements of IEC 60945. Any other equipment is not allowed to be connected to the network. 4.2.2 Additional requirements for network infrastructure equipment (see 8.2.2) The following requirements are included to avoid potential problems with certain network infrastructure equipment: • routers and repeater hubs shall not be used to interconnect components of an IEC 61162-450 network; IEC
1014/11 SIST EN 61162-450:2011

61162-450  IEC:2011(E) – 13 – • switches that are used to interconnect equipment compliant with IEC 61162-450 shall not implement multicast filtering techniques, such as IGMP snooping or CGMP. NOTE 1 IGMP is Internet Group Management Protocol and CGMP is Cisco Group Management Protocol. If switches are capable of implementing multicast filtering techniques, then this functionality should be disabled. NOTE 2 Routers are network infrastructure devices that can forward datagrams between networks. Repeater hubs are network infrastructure devices without internal storage that repeat incoming datagrams onto all outgoing connections. Switches are network infrastructure devices that based on forwarding tables can process, and forward datagrams between nodes on the same network, using intermediate storage in the switch before retransmission. 4.3 Network function (NF) requirements 4.3.1 General requirements All equipment that implements a NF shall satisfy the requirements in Clauses 5 and 6. 4.3.2 Maximum data rate requirements (see 8.3.1) The manufacturer shall specify the maximum input rate under which the equipment can still perform all functions required by its performance standards. Maximum input rate shall be specified as: a) maximum number of datagrams per second received, intended for and processed by the equipment; b) maximum number of datagrams per second received by but not intended for the equipment; c) maximum number of datagrams per second received by, but not intended for, the equipment at 50 % of the maximum load for item a). NOTE “Received by” means datagrams that are received on a transmission group that the equipment listens to. “Intended for” are datagrams that are processed by the equipment as part of its specified function. The maximum data rates shall be the mean rate over a 10 s measurement period. 4.3.3 Error logging function (see 8.3.2) 4.3.3.1 Internal logging Means shall be provided in each NF to record errors that occur in the NF itself as well as SF and SNGF using it. Subclauses 4.5.2, 7.1.2, 7.2.5 and 7.3.9 give minimum requirements as to what shall be logged. As a minimum, the manufacturer shall provide mechanisms by which error logs can be inspected by a human operator. It is allowed that the inspection is done through a simple network mechanism such as a terminal emulator, a datagram as defined in this standard or any other reasonable method. The minimum requirements for the log are to count the number of each occurrence. The counter may reset itself by a manufacturer specified method. 4.3.3.2 External logging A NF may be configured to support external logging, where non-trivial information is sent to a logging server. In this case a “syslog” message, as defined in ISOC RFC 5424, shall be used. SIST EN 61162-450:2011

– 14 – 61162-450  IEC:2011(E) Syslog messages shall be formatted as ASCII text messages and sent as UDP packets on port 514 and the multicast address defined in Table 6. Error messages defined in this standard shall be reported through a simplified message as described in Table 1, where italicised words are place-holders for data explained in the right hand column. Other characters shall be transmitted as shown, including spaces. Table 1 – Syslog message format Element Description The combined priority and facility code (number from 0 to 199 inclusive) enclosed in pointed brackets. For the errors defined in this standard, the value 131 shall be used (facility “local use 0” and priority “error condition”). Version The version code. The code 1 (one) shall be used for messages from this version of the standard. Space One space character. Timestamp Timestamp, containing date and time and optional UTC offset, in a valid format, for example 1985-04-12T23:20:50-03:00. The example shows date, followed by upper case “T”, then local time and finally offset from UTC (3 hours west – negative, east offsets shall be prefixed by a ‘+’. UTC offset can be abbreviated to a single upper case “Z”, without leading ‘-‘ or ‘+’). Alternatively, the timestamp field may be nil (‘-‘, a single dash character). Space One space character Hostname The host name of the network node, represented as the IP address in dotted decimal notation. Alternatively, this field may be nil (‘-‘, a single dash character). Space A space character Appname The application name. This shall be the string “450-“ followed by the configured SFI code if the error originates in the SF or SNGF, “NF” if the error originates from the network function block or “ONF” if it originates in the ONF function block. Space A space character Procid Normally, this field should be nil (‘-‘ a dash character). Other values as defined in the Syslog standard may be used. Space A space character Msgid For errors defined in this standard, this field shall be the error code as defined in Table 2.
Space A space character Structured This field can be nil (‘-‘, a single dash character) or contain information as defined in
ISOC RFC 5424. Space A space character Msg A free format message in ASCII format.
A ”syslog” packet shall not exceed 480 bytes and shall be sent as a single UDP datagram. NOTE This standard does not specify requirements for equipment receiving syslog messages. This type of equipment would fall into the category of ONF. As the above specification is a subset of the full ISOC RFC 5424 specification, implementers of such equipment should refer to ISOC RFC 5424 and make sure that syslog messages from other ONF can be received and processed without problems. To facilitate the use of the syslog protocol, the errors defined in this standard have been assigned a message identity as defined in Table 2. Table 2 – Syslog error message codes Message identity Description Sub-clause 101 SNGF buffer overflow 4.5.2 102 Datagram header error 7.1.2 103 TAG or sentence format error 7.2.5 104 Binary image error 7.3.9
61162-450  IEC:2011(E) – 15 – Additional information can be given in the “Msg” field,
...
