Aerospace series - Aluminium alloy AL-P8090-T89 - Sheet - 0,6 mm <a <6 mm

This standard specifies the requirements relating to:
Aluminium alloy AL-P8090-
T89
Sheet
0,6 mm < or = a < or = 6 mm
for aerospace application.

Luft- und Raumfahrt - Aluminiumlegierung AL-P8090-T89 - Bleche - 0,6 mm <a <6 mm

Diese Norm legt die Anforderungen an
Aluminiumlegierung AL-P8090-
T89
Bleche
0,6 mm < or = a < or = 6 mm
für Anwendungen in der Luft- und Raumfahrt fest.

Série aérospatiale - Alliage d'aluminium AL-P8090-T89 - Tôles - 0,6 mm <a <6 mm

Aerospace series - Aluminium alloy AL-P8090-T89 - Sheet - 0,6 mm <a <6 mm

General Information

Status
Published
Publication Date
31-Oct-2005
ICS
49.025.20 - Aluminium
Technical Committee
SS SPL - Technical Board for the general field
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
01-Nov-2005
Due Date
01-Nov-2005
Completion Date
01-Nov-2005
Ref Project
EN 4203:2005 - Aerospace series - Aluminium alloy AL-P8090-T89 - Sheet - 0,6 mm <a <6 mm

Overview

EN 4203:2005 (CEN) specifies requirements for the aerospace sheet material Aluminium alloy AL‑P8090‑T89 in the thickness range 0.6 mm ≤ a ≤ 6 mm. Part of the EN aerospace metallic materials series, this standard covers designation, chemical limits, production and delivery conditions, mechanical properties, microstructure and inspection requirements for aluminium sheet used in aerospace applications.

Key topics and technical requirements

  • Material and form
    • Aluminium alloy designation: AL‑P8090‑T89
    • Form: rolled sheet, thickness range 0.6–6 mm
  • Chemical composition
    • Limits are specified for Si, Fe, Cu, Mn, Mg, Cr, Zn, Li, Zr, Ti and aluminium (base). Example maximums given in the standard include Si ≤ 0.20%, Fe ≤ 0.30%, Cu ≤ 1.6%, Mg ≤ 1.3%, Li ≤ 2.7%, Zr ≤ 0.16% (see EN 4203:2005 for full table).
  • Delivery conditions and heat treatment
    • Delivery tempers include T39 and T89 with defined solution treatment (525–535 °C / water quench to ≤ 40 °C), controlled stretch +4.0% to +4.5%, and, for T89, an artificial ageing step ≈162–168 °C for 44–46 h.
  • Mechanical properties
    • Minimum mechanical values specified: proof stress (Rp0.2) ≥ 340 MPa, tensile strength (Rm) ≥ 440 MPa, elongation A ≥ 6% (test direction LT, ambient temperature).
  • Microstructure and toughness
    • Microstructural requirements (degree of recrystallization) and fracture toughness references are included; the standard refers to EN 4400‑2 for test methods and includes a fracture toughness guidance (K) ≈ ≥ 40 MPa·m^0.5.
  • Corrosion and inspection
    • Exfoliation corrosion limits, batch uniformity, dimensional and marking inspections are specified, with many test and inspection procedures referenced to EN 4400‑2.

Applications and users

  • Intended for aerospace structural sheet applications where a high strength‑to‑weight aluminium alloy is required.
  • Primary users:
    • Aerospace material engineers and designers specifying sheet metallurgy
    • Manufacturers and suppliers of aerospace aluminium sheet
    • Procurement, quality and certification teams verifying conformity to material standards
    • Test laboratories performing mechanical, microstructural and corrosion testing

Related standards

  • EN 4400‑2 - Aluminium and aluminium alloy wrought products: technical specification (sheet/strip)
  • EN 4258 - General organization of aerospace metallic material standards
  • EN 4500‑2 - Rules for drafting aerospace material standards

Keywords: EN 4203:2005, AL‑P8090‑T89, aluminium alloy, aerospace sheet, 0.6–6 mm, T89, mechanical properties, chemical composition, fracture toughness.

Frequently Asked Questions

SIST EN 4203:2005 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Aerospace series - Aluminium alloy AL-P8090-T89 - Sheet - 0,6 mm <a <6 mm". This standard covers: This standard specifies the requirements relating to: Aluminium alloy AL-P8090- T89 Sheet 0,6 mm < or = a < or = 6 mm for aerospace application.

This standard specifies the requirements relating to: Aluminium alloy AL-P8090- T89 Sheet 0,6 mm < or = a < or = 6 mm for aerospace application.

SIST EN 4203:2005 is classified under the following ICS (International Classification for Standards) categories: 49.025.20 - Aluminium. The ICS classification helps identify the subject area and facilitates finding related standards.

SIST EN 4203:2005 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

Standards Content (Sample)


SLOVENSKI STANDARD
01-november-2005
Aerospace series - Aluminium alloy AL-P8090-T89 - Sheet - 0,6 mm Aerospace series - Aluminium alloy AL-P8090-T89 - Sheet - 0,6 mm Luft- und Raumfahrt - Aluminiumlegierung AL-P8090-T89 - Bleche - 0,6 mm Série aérospatiale - Alliage d'aluminium AL-P8090-T89 - Tôles - 0,6 mm Ta slovenski standard je istoveten z: EN 4203:2005
ICS:
49.025.20 Aluminij Aluminium
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN 4203
NORME EUROPÉENNE
EUROPÄISCHE NORM
June 2005
ICS 49.025.20
English version
Aerospace series - Aluminium alloy AL-P8090-T89 - Sheet - 0,6
mm ≤a ≤6 mm
Série aérospatiale - Alliage d'aluminium AL-P8090-T89 - Luft- und Raumfahrt - Aluminiumlegierung AL-P8090-T89 -
Tôles - 0,6 mm ≤a ≤6 mm Bleche - 0,6 mm ≤a ≤6 mm
This European Standard was approved by CEN on 22 April 2005.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,
Slovenia, Spain, Sweden, Switzerland and United Kingdom.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2005 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 4203:2005: E
worldwide for CEN national Members.

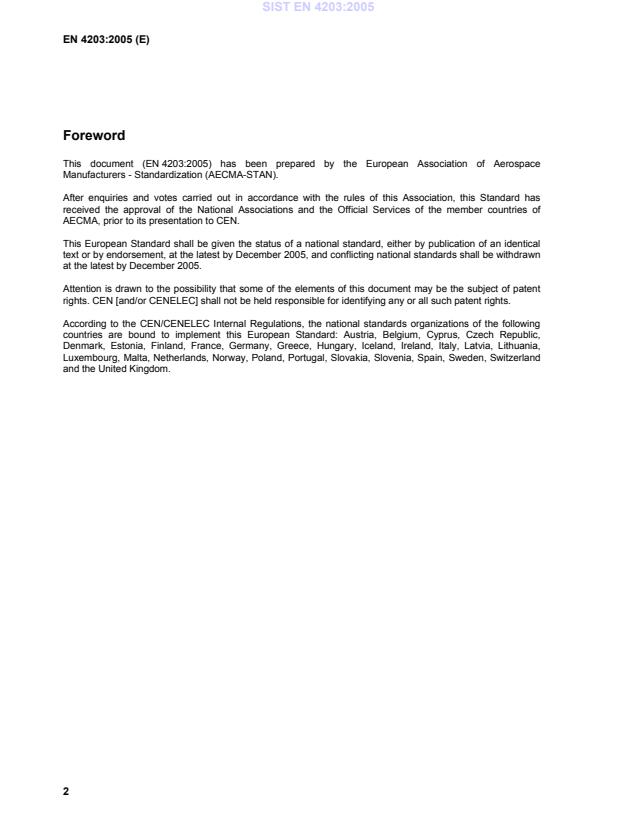

Foreword
This document (EN 4203:2005) has been prepared by the European Association of Aerospace
Manufacturers - Standardization (AECMA-STAN).
After enquiries and votes carried out in accordance with the rules of this Association, this Standard has
received the approval of the National Associations and the Official Services of the member countries of
AECMA, prior to its presentation to CEN.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by December 2005, and conflicting national standards shall be withdrawn
at the latest by December 2005.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Cyprus, Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland
and the United Kingdom.
Introduction
This standard is part of the series of EN metallic material standards
...
