Aerospace series - Aluminium alloy AL-P2024-T81 - Sheet and strip - 0,25 mm <a <6 mm

This standard specifies the requirements relating to:
Aluminium alloy AL-P2024-
T81
Sheet and strip
0,25 mm < or = a < or = 6 mm
for aerospace application.

Luft- und Raumfahrt - Aluminiumlegierung AL-P2024-T81 - Bleche und Bänder - 0,25 mm <a <6 mm

Diese Norm legt die Anforderungen an
Aluminiumlegierung AL P2024-
T81
Bleche und Bänder
0,25 mm £ a £ 6 mm
für Anwendungen in der Luft- und Raumfahrt fest.

Série aérospatiale - Alliage d'aluminium AL-P2024-T81 - Tôles et bandes - 0,25 mm <a <6 mm

Aerospace series - Aluminium alloy AL-P2024-T81 - Sheet and strip - 0,25 mm <a <6 mm

General Information

Status
Published
Publication Date
31-Oct-2005
ICS
49.025.20 - Aluminium
Technical Committee
SS SPL - Technical Board for the general field
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
01-Nov-2005
Due Date
01-Nov-2005
Completion Date
01-Nov-2005
Ref Project
EN 3474:2005 - Aerospace series - Aluminium alloy AL-P2024-T81 - Sheet and strip - 0,25 mm <a <6 mm

Overview

EN 3474:2005 specifies requirements for the aerospace aluminium alloy AL-P2024-T81 in the form of sheet and strip with thicknesses from 0.25 mm to 6 mm. Prepared within the AECMA/CEN aerospace series, this standard defines essential material parameters, delivery conditions and inspection requirements to ensure consistent performance for aircraft structural applications.

Key facets of the standard include material designation, permitted production form (rolled sheet and strip), delivery tempers, heat-treatment regimes and referenced test methods.

Key Topics

  • Alloy and form: AL-P2024-T81 supplied as rolled sheet and strip for aerospace use (0.25 ≤ a ≤ 6 mm).
  • Chemical composition: Limits are specified for common alloying elements (Si, Fe, Cu, Mn, Mg, Cr, Zn, Ti, Al). For example, copper is a principal alloying element (typical range in the standard: ~3.8–4.9%). Silicon and iron have low maximum limits (≈0.50%). Magnesium and manganese ranges are also defined.
  • Delivery conditions and tempers: Delivery conditions include T31 and T81 tempers with defined solution, quench and ageing steps. The T81 condition is the specified use condition for many aerospace parts.
  • Mechanical properties: The standard gives minimum mechanical requirements such as proof stress and tensile strength (e.g., R_p0.2 and R_m values) and minimum elongation criteria appropriate for structural applications.
  • Physical and inspection values: Typical electrical conductivity values and hardness control limits are reported for relevant tempers. Inspection, marking and dimensional tolerances reference EN 4400-2.
  • Referenced test method standards: The standard mandates use of EN 4400-2 for sheet and strip technical specification and EN 4500-2 for presentation rules.

Applications

EN 3474:2005 is oriented to aerospace manufacturing and quality assurance. Practical applications include:

  • Aircraft primary and secondary structural skins
  • Fuselage and wing panels where high-strength Al-Cu alloys are required
  • Aerospace components requiring controlled temper and post-heat-treatment properties
  • Procurement specifications for manufacturers and purchasers to ensure batch uniformity and traceability

Benefits for users include predictable mechanical performance, conformity with industry testing and inspection regimes, and reduced supply-chain risk when purchasing AL-P2024-T81 sheet and strip.

Related Standards

  • EN 4400-2 - Aerospace series: Aluminium and aluminium alloy wrought products - Part 2: Sheet and strip (technical specification references for tests and samples).
  • EN 4258 - Organization of metallic material standards in the aerospace series.
  • EN 4500-2 - Rules for drafting and presentation of material standards (specific rules for aluminium alloys).

For procurement, manufacturing and quality-control teams, EN 3474:2005 provides a concise, harmonized specification to ensure AL-P2024-T81 sheet and strip meet aerospace industry expectations. For full implementation, consult the cited normative references and coordinate qualification programmes between manufacturer and purchaser as indicated in the standard.

Frequently Asked Questions

SIST EN 3474:2005 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Aerospace series - Aluminium alloy AL-P2024-T81 - Sheet and strip - 0,25 mm <a <6 mm". This standard covers: This standard specifies the requirements relating to: Aluminium alloy AL-P2024- T81 Sheet and strip 0,25 mm < or = a < or = 6 mm for aerospace application.

This standard specifies the requirements relating to: Aluminium alloy AL-P2024- T81 Sheet and strip 0,25 mm < or = a < or = 6 mm for aerospace application.

SIST EN 3474:2005 is classified under the following ICS (International Classification for Standards) categories: 49.025.20 - Aluminium. The ICS classification helps identify the subject area and facilitates finding related standards.

SIST EN 3474:2005 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

Standards Content (Sample)


SLOVENSKI STANDARD
01-november-2005
Aerospace series - Aluminium alloy AL-P2024-T81 - Sheet and strip - 0,25 mm <6 mm
Aerospace series - Aluminium alloy AL-P2024-T81 - Sheet and strip - 0,25 mm mm
Luft- und Raumfahrt - Aluminiumlegierung AL-P2024-T81 - Bleche und Bänder - 0,25
mm Série aérospatiale - Alliage d'aluminium AL-P2024-T81 - Tôles et bandes - 0,25 mm <6 mm
Ta slovenski standard je istoveten z: EN 3474:2005
ICS:
49.025.20 Aluminij Aluminium
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN 3474
NORME EUROPÉENNE
EUROPÄISCHE NORM
June 2005
ICS 49.025.20
English version
Aerospace series - Aluminium alloy AL-P2024-T81 - Sheet and
strip - 0,25 mm ≤a ≤6 mm
Série aérospatiale - Alliage d'aluminium AL-P2024-T81 - Luft- und Raumfahrt - Aluminiumlegierung AL-P2024-T81 -
Tôles et bandes - 0,25 mm ≤a ≤6 mm Bleche und Bänder - 0,25 mm ≤a ≤6 mm
This European Standard was approved by CEN on 22 April 2005.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,
Slovenia, Spain, Sweden, Switzerland and United Kingdom.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2005 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 3474:2005: E
worldwide for CEN national Members.

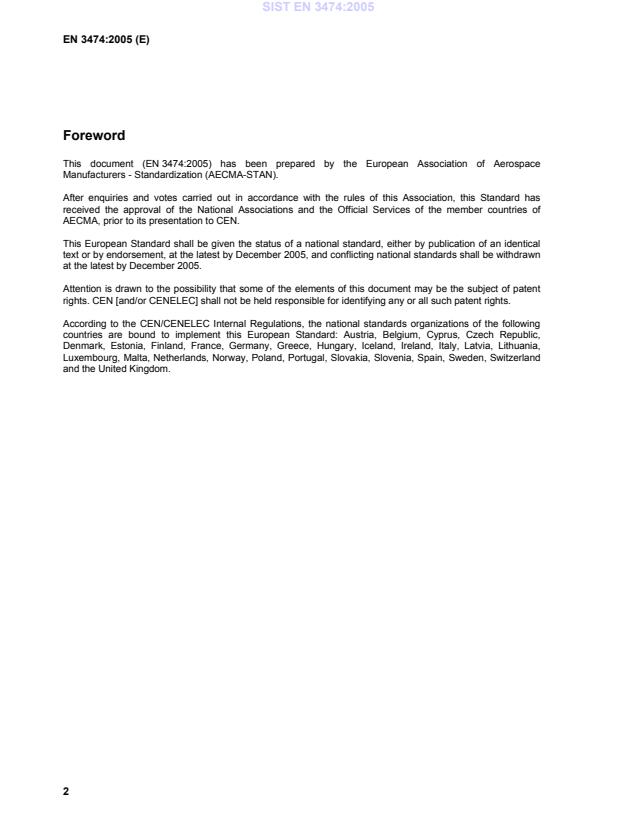

Foreword
This document (EN 3474:2005) has been prepared by the European Association of Aerospace
Manufacturers - Standardization (AECMA-STAN).
After enquiries and votes carried out in accordance with the rules of this Association, this Standard has
received the approval of the National Associations and the Official Services of the member countries of
AECMA, prior to its presentation to CEN.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by December 2005, and conflicting national standards shall be withdrawn
at the latest by December 2005.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Cyprus, Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg
...
