EUROPEAN STANDARD
EN 60603-7
NORME EUROPÉENNE
November 2009
EUROPÄISCHE NORM
ICS 31.220.10 Supersedes EN 60603-7:1997

English version
Connectors for electronic equipment -
Part 7: Detail specification for 8-way, unshielded,
free and fixed connectors
(IEC 60603-7:2008)
Connecteurs pour équipements Steckverbinder für elektronische
électroniques - Einrichtungen -
Partie 7: Spécification particulière Teil 7: Bauartspezifikation
pour les fiches et les embases für ungeschirmte freie und feste
non écrantées à 8 voies Steckverbinder, 8polig
(CEI 60603-7:2008) (IEC 60603-7:2008)

This European Standard was approved by CENELEC on 2009-09-01. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Cyprus, the
Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: Avenue Marnix 17, B - 1000 Brussels

© 2009 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60603-7:2009 E

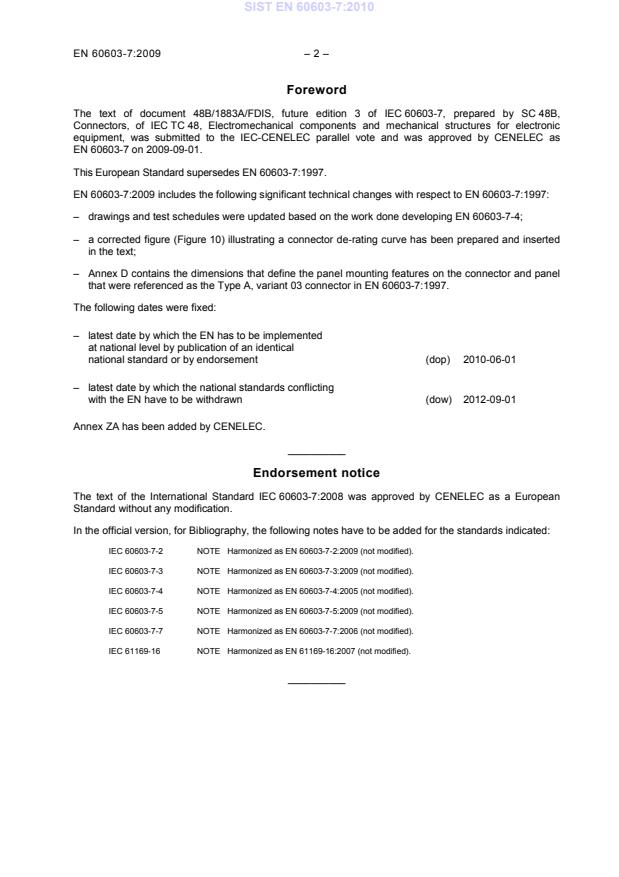

Foreword
The text of document 48B/1883A/FDIS, future edition 3 of IEC 60603-7, prepared by SC 48B,
Connectors, of IEC TC 48, Electromechanical components and mechanical structures for electronic
equipment, was submitted to the IEC-CENELEC parallel vote and was approved by CENELEC as
EN 60603-7 on 2009-09-01.
This European Standard supersedes EN 60603-7:1997.
– drawings and test schedules were updated based on the work done developing EN 60603-7-4;
– a corrected figure (Figure 10) illustrating a connector de-rating curve has been prepared and inserted
in the text;
– Annex D contains the dimensions that define the panel mounting features on the connector and panel
that were referenced as the Type A, variant 03 connector in EN 60603-7:1997.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2010-06-01
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2012-09-01
Annex ZA has been added by CENELEC.
__________
Endorsement notice
The text of the International Standard IEC 60603-7:2008 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:
IEC 60603-7-2 NOTE  Harmonized as EN 60603-7-2:2009 (not modified).
IEC 60603-7-3 NOTE  Harmonized as EN 60603-7-3:2009 (not modified).
IEC 60603-7-4 NOTE  Harmonized as EN 60603-7-4:2005 (not modified).
IEC 60603-7-5 NOTE  Harmonized as EN 60603-7-5:2009 (not modified).
IEC 60603-7-7 NOTE  Harmonized as EN 60603-7-7:2006 (not modified).
IEC 61169-16 NOTE  Harmonized as EN 61169-16:2007 (not modified).
__________
– 3 – EN 60603-7:2009
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year

1)
IEC 60050-581 - International Electrotechnical Vocabulary - -
(IEV) -
Part 581: Electromechanical components for
electronic equipment
1) 2)
IEC 60068-1 - Environmental testing - EN 60068-1 1994
Part 1: General and guidance
1) 2)
IEC 60068-2-14 - Environmental testing - EN 60068-2-14 2009
Part 2-14: Tests - Test N: Change of
temperature
1) 2)
IEC 60068-2-38 - Environmental testing - EN 60068-2-38 2009
Part 2-38: Tests - Test Z/AD: Composite
temperature/humidity cyclic test

1) 2)
IEC 60352-2 - Solderless connections - EN 60352-2 2006
Part 2: Crimped connections - General
requirements, test methods and practical
guidance
1) 2)
IEC 60352-3 - Solderless connections - EN 60352-3 1994
Part 3: Solderless accessible insulation
displacement connections - General
requirements, test methods and practical
guidance
1) 2)
IEC 60352-4 - Solderless connections - EN 60352-4 1994
Part 4: Solderless non-accessible insulation
displacement connections - General
requirements, test methods and practical
guidance
1) 2)
IEC 60352-5 - Solderless connections - EN 60352-5 2008
Part 5: Press-in connections - General
requirements, test methods and practical
guidance
1) 2)
IEC 60352-6 - Solderless connections - EN 60352-6 1997
Part 6: Insulation piercing connections -
General requirements, test methods and
practical guidance
1) 2)
IEC 60352-7 - Solderless connections - EN 60352-7 2002
Part 7: Spring clamp connections - General
requirements, test methods and practical
guidance
1)
Undated reference.
2)
Valid edition at date of issue.

Publication Year Title EN/HD Year

IEC 60512 Series Connectors for electronic equipment - Tests EN 60512 Series
and measurements
1) 2)
IEC 60512-1-100 - Connectors for electronic equipment - Tests EN 60512-1-100 2006
and measurements -
Part 1-100: General - Applicable publications

IEC 60603-7 Series Connectors for electronic equipment - EN 60603-7 Series
Part 7: Detail specifications for 8-way free and
fixed connectors
1) 2)
IEC 60664-1 - Insulation coordination for equipment within EN 60664-1 2007
low-voltage systems -
Part 1: Principles, requirements and tests

IEC 61076-1 2006 Connectors for electronic equipment - EN 61076-1 2006
Product requirements -
Part 1: Generic specification
IEC 61156 Series Multicore and symmetrical pair/quad cables - -
for digital communications
1)
IEC 61156-1 - Multicore and symmetrical pair/quad cables - -
for digital communications -
Part 1: Generic specification
1)
IEC 61156-2 - Multicore and symmetrical pair/quad cables - -
for digital communications -
Part 2: Horizontal floor wiring - Sectional
specification
1)
IEC 61156-3 - Multicore and symmetrical pair/quad cables - -
for digital communications -
Part 3: Work area cable - Sectional
specification
1)
IEC 61156-4 - Multicore and symmetrical pair/quad cables - -
for digital communications -
Part 4: Riser cables - Sectional specification

1)
IEC 61156-5 - Multicore and symmetrical pair/quad cables - -
for digital communications -
Part 5: Symmetrical pair/quad cables with
transmission characteristics up to 1 000 MHz -
Horizontal floor wiring - Sectional specification

1)
IEC 61156-6 - Multicore and symmetrical pair/quad cables - -
for digital communications -
Part 6: Symmetrical pair/quad cables with
transmission characteristics up to 1 000 MHz -
Work area wiring - Sectional specification

1)
IEC 61156-7 - Multicore and symmetrical pair/quad cables - -
for digital communications -
Part 7: Symmetrical pair cables with
transmission characteristics up to
1 200 MHz - Sectional specification for digital
and analog communication cables

1)
ISO/IEC 11801 - Information technology - Generic cabling for - -
customer premises
1) 2)
ISO 1302 - Geometrical Product Specifications (GPS) - EN ISO 1302 2002
Indication of surface texture in technical
product documentation
– 5 – EN 60603-7:2009
Publication Year Title EN/HD Year

3)
ITU-T 2000 Resistibility of telecommunication equipment - -
Recommendation installed in a telecommunications centre to
K.20 overvoltages and overcurrents

4)
ITU-T 2000 Resistibility tests for telecommunication - -
Recommendation equipment exposed to overvoltages and
K.44 overcurrents - Basic Recommendation

3)
ITU-T Recommendation K.20 is superseded by ITU-T Recommendation K.20:2003 but for the purpose of this
standard, the 2000 edition applies.
4)
ITU-T Recommendation K.44 is superseded by ITU-T Recommendation K.44:2003 but for the purpose of this
standard, the 2000 edition applies.

IEC 60603-7
Edition 3.0 2008-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Connectors for electronic equipment –
Part 7: Detail specification for 8-way, unshielded, free and fixed connectors

Connecteurs pour équipements électroniques –
Partie 7: Spécification particulière pour les fiches et les embases non écrantées
à 8 voies
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
X
CODE PRIX
ICS 31.220.10 ISBN 2-8318-9878-1
– 2 – 60603-7 © IEC:2008
CONTENTS
FOREWORD.5
INTRODUCTION.7
1 General .8
1.1 Scope.8
1.2 Normative references .8
2 Terms and definitions .10
3 Common features and typical connector pair .11
3.1 View showing typical fixed and free connectors .11
3.2 Mating information.11
3.2.1 General .11
3.2.2 Contacts – mating conditions.12
3.2.3 Fixed connector.14
3.2.4 Free connector .17
4 Cable terminations and internal connections – Fixed and free connectors .19
4.1 General .19
4.2 Termination types.19
4.2.1 Solder terminations (under consideration) .19
4.2.2 Solderless terminations .19
5 Gauges .20
5.1 Fixed connectors .20
5.2 Free connectors .23
6 Characteristics .25
6.1 General .25
6.2 Pin and pair grouping assignment .25
6.3 Classification into climatic category.25
6.4 Electrical characteristics.26
6.4.1 Creepage and clearance distances.26
6.4.2 Voltage proof.26
6.4.3 Current-temperature derating .26
6.4.4 Initial contact resistance – interface only (separable fixed and free
contact) .27
6.4.5 Input to output d.c. resistance .27
6.4.6 Input-to-output d.c. resistance unbalance .27
6.4.7 Initial insulation resistance .28
6.4.8 Transfer impedance.28
6.5 Transmission characteristics .28
6.6 Mechanical characteristics .28
6.6.1 Mechanical operation .28
6.6.2 Effectiveness of connector coupling devices.28
6.6.3 Insertion and withdrawal forces .28
7 Tests and test schedule.28
7.1 General .28
7.2 Arrangement for contact resistance test .29
7.3 Arrangement for vibration test (test phase CP1) .30
7.4 Test procedures and measuring methods .30
7.5 Preconditioning .31

60603-7 © IEC:2008 – 3 –
7.6 Wiring and mounting of specimens .31
7.6.1 Wiring.31
7.6.2 Mounting .31
7.7 Test schedules .31
7.7.1 Basic (minimum) test schedule .31
7.7.2 Full test schedule .31
Annex A (normative) Gauging continuity procedure.39
Annex B (normative) Locking-device mechanical operation.43
Annex C (normative) Gauge requirements .44
Annex D (normative) Keystone connector information .45
Bibliography.47

Figure 1 – View showing typical fixed and free connectors.11
Figure 2 – Contact interface dimensions with terminated free connector .12
Figure 3 – Fixed connector details .15
Figure 4 – Free connector view.17
Figure 5 – “Go” gauge.20
Figure 6 – “No-go” gauges .22
Figure 7 – “No-go” gauges .23
Figure 8 – “Go” gauge.24
Figure 9 – Fixed connector pin and pair grouping assignment (front view of connector) .25
Figure 10 – Connector de-rating curve .27
Figure 11 – Arrangement for contact resistance test .29
Figure 12 – Arrangement for vibration test .30
Figure A.1 – Gauge.41
Figure A.2 – Gauge insertion .42
Figure D.1 – Keystone connector .45
Figure D.2 – Panel drawing.46

Table 1 – Dimensions for Figure 2 .13
Table 2 – Dimensions for Figure 3 .16
Table 3 – Dimensions for Figure 4 .18
Table 4 – Dimensions for Figures 5 and 6.22
Table 5 – Dimensions for Figure 7 .23
Table 6 – Dimensions for Figure 8 .24
Table 7 – Climatic categories – selected values.25
Table 8 – Creepage and clearance distances.26
Table 9 – Test group P .32
Table 10 – Test group AP .33
Table 11 – Test group BP .35
Table 12 – Test group CP .36
Table 13 – Test group DP .37
Table 14 – Test group FP .38
Table A.1 – Dimensions for Figure A.1.40

– 4 – 60603-7 © IEC:2008
Table D.1 – Dimensions for Figure D.1 .45
Table D.2 – Dimensions.46

60603-7 © IEC:2008 – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
_____________
CONNECTORS FOR ELECTRONIC EQUIPMENT –

Part 7: Detail specification for 8-way, unshielded,
free and fixed connectors
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60603-7 has been prepared by subcommittee 48B: Connectors, of
IEC technical committee 48: Electromechanical components and mechanical structures for
electronic equipment.
This third edition cancels and replaces the second edition published in 1996 and constitutes a
technical revision. This edition includes the following significant technical change with respect
to the previous edition:
– Drawings and test schedules were updated based on the work done developing
IEC 60603-7-4.
– A corrected figure (Figure 10) illustrating a connector de-rating curve has been
prepared and inserted in the text.
– Annex D contains the dimensions that define the panel mounting features on the
connector and panel that were referenced as the Type A, variant 03 connector in the
previous edition.
– 6 – 60603-7 © IEC:2008
The text of this standard is based on the following documents:
FDIS Report on voting
48B/1883A/FDIS 48B/1917/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts of IEC 60603-7 series, under the general title: Connectors for electronic
equipment, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in
the data related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
60603-7 © IEC:2008 – 7 –
INTRODUCTION
IEC 60603-7 is the base specification of the whole series. Subsequent specifications do not
duplicate information given in the base document, but list only additional requirements. For
complete specification regarding a component of a higher number document all lower
numbered documents must be considered as well. The following diagram shows the
interrelation of the documents:

Unshielded Shielded
3 MHz
IEC 60603-7 IEC 60603-7-1
100 MHz
IEC 60603-7-2 IEC 60603-7-3
250 MHz
IEC 60603-7-4 IEC 60603-7-5
500 MHz IEC 60603-7-41 IEC 60603-7-51
600 MHz
Indicates reference for IEC 60603-7-7
dimensions, mechanical and
electrical characteristics, tests
and test schedules.
1 000 MHz
IEC 60603-7-71
Indicates reference for
transmission performance
(backward compatibility).
It should be noted that during the preparation of the third edition of IEC 60603-7, the
subcommittee 48B Cat 6&7 project team members determined the current de-rating curve in
the standard was not correct. Several experts researched the current rating-temperature rise
measurements for 60603-7 style connectors and verified that the de-rating curve in the
published standard has been incorrect for many years. A corrected figure (Figure 10) has
been prepared and inserted in this edition.

– 8 – 60603-7 © IEC:2008
CONNECTORS FOR ELECTRONIC EQUIPMENT –

Part 7: Detail specification for 8-way, unshielded,
free and fixed connectors
1 General
1.1 Scope
This part of IEC 60603-7 covers 8-way unshielded free and fixed connectors, it is intended to
specify the common dimensions, mechanical, electrical and environmental characteristics and
tests for the family of IEC 60603-7-x connectors.
These connectors are intermateable (according to IEC 61076-1 level 2) and interoperable with
other IEC 60603-7 series connectors.
1.2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 60050-581, International Electrotechnical Vocabulary (IEV) – Chapter 581:
Electromechanical components for electronic equipment
IEC 60068-1, Environmental testing – Part 1: General and guidance
IEC 60068-2-14, Basic environmental testing procedures – Part 2-14: Tests − Test N: Change
of temperature
IEC 60068-2-38, Basic environmental testing procedures – Part 2-38: Tests − Test Z/AD:
Composite temperature/ humidity cyclic test
IEC 60352-2, Solderless connections – Part 2: Crimped connections − General requirements,
test methods and practical guidance
IEC 60352-3, Solderless connections – Part 3: Solderless accessible insulation displacement
connections − General requirements, test methods and practical guidance
IEC 60352-4, Solderless connections – Part 4: Solderless non-accessible insulation displace-
ment connections − General requirements, test methods and practical guidance
IEC 60352-5, Solderless connections – Part 5: Press-in connections − General requirements,
test methods and practical guidance
IEC 60352-6, Solderless connections – Part 6: Insulation piercing connections – General
requirements, test methods and practical guidance
IEC 60352-7, Solderless connections – Part 7: Spring clamp connections − General
requirements, test methods and practical guidance
IEC 60512 (all parts), Connectors for electronic equipment – Tests and measurements

60603-7 © IEC:2008 – 9 –
IEC 60512-1-100, Connectors for electronic equipment – Tests and measurements – Part 1-
100: General – Applicable publications
IEC 60603-7 (all parts), Connectors for electronic equipment
IEC 60664-1, Insulation coordination for equipment within low-voltage systems – Part 1:
Principles, requirements and tests
IEC 61076-1:2006, Connectors for electronic equipment – Product Requirements – Part 1:
Generic specification
IEC 61156 (all parts), Multicore and symmetrical pair/quad cables for digital communications
IEC 61156-1, Multicore and symmetrical pair/quad cables for digital communications – Part 1:
Generic specification
IEC 61156-2, Multicore and symmetrical pair/quad cables for digital communications – Part 2:
Horizontal floor wiring – Sectional specification
IEC 61156-3, Multicore and symmetrical pair/quad cables for digital communications – Part 3:
Work area wiring – Sectional specification
IEC 61156-4, Multicore and symmetrical pair/quad cables for digital communications – Part 4:
Riser cables – Sectional specification
IEC 61156-5, Multicore and symmetrical pair/quad cables for digital communications – Part 5:
Symmetrical pair/quad cables with transmission characteristics up to 600 MHz – Horizontal
floor wiring – Sectional specification
IEC 61156-6, Multicore and symmetrical pair/quad cables for digital communications – Part 6:
Symmetrical pair/quad cables with transmission characteristics up to 1 000 MHz – Work area
wiring – Sectional specification
IEC 61156-7, Multicore and symmetrical pair/quad cables for digital communications – Part 7:
Symmetrical pair cables with transmission characteristics up to 1 200 MHz – Sectional
specification for digital and analog communication cables
ISO/IEC 11801, Information technology – Generic cabling for customer premises
ISO 1302, Geometrical Product Specifications (GPS) – Indication of surface texture in
technical product documentation
ITU-T Recommendation K.20:2000 , Resistibility of telecommunication equipment installed in
a telecommunications centre to overvoltages and overcurrents
ITU-T Recommendation K.44:2000 , Resistibility tests for telecommunication equipment
exposed to overvoltages and overcurrents – Basic Recommendation
———————
This document has been replaced by a new edition (2003), but for the purposes of this standard, the 2000
edition is cited.
This document has been replaced by a new edition (2003), but for the purposes of this standard, the 2000
edition is cited.
– 10 – 60603-7 © IEC:2008
2 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 60050-581,
IEC 61076-1, IEC 60512-1, and the following apply.
2.1
intermateability
intermateability (level 2 of IEC 61076-1:2006 (Ed 2.0)) is ensured by application of the “Go”
and “No-Go” gauge requirements in the standards that may be referenced, and adherence to
the dimensional requirements within
2.2
interoperability
interoperability of different IEC 60603-7 connectors is assured by compliance with the
specified interface dimensions
2.3
category
relevant level of transmission performance as given in ISO/IEC 11801
2.4
Keystone connector
a Keystone connector is defined by it’s mounting features. The dimensional requirements for
the connector and it’s corresponding mounting panel are defined in Annex D

60603-7 © IEC:2008 – 11 –
3 Common features and typical connector pair
3.1 View showing typical fixed and free connectors
IEC  086/05
Figure 1 – View showing typical fixed and free connectors
3.2 Mating information
3.2.1 General
Dimensions are given in millimetres. Drawings are shown in third-angle projection. The shape
of connectors may deviate from those given in Figures 1 to 4 as long as the dimensions
specified are not changed.
– 12 – 60603-7 © IEC:2008
3.2.2 Contacts – mating conditions
P1
B2
-D-
F2
K2
N2
0,15 mm D R2
A2
P3
C2
B2
-D-
N2
0,15 mm D
IEC  1011/08
H2 2
J2
G2
M2
D2
E2
IEC  087/05
Key
1 Female contact of fixed connector The mating information shown can only be achieved with a free
connector with a cable attached.
2 Burrs shall not project above the top of the contact in this area, since it may be a contact area.
3 Optional angle.
4 Preferred contact interface detail.
5 Minimum preferred contact configuration.
6 Configuration with round contact profile.
7 Configuration with rectangular contact profile.
Figure 2 – Contact interface dimensions with terminated free connector

60603-7 © IEC:2008 – 13 –
Table 1 – Dimensions for Figure 2
Letter Maximum Minimum
mm
mm
A2 1,45 0,89
B2 0,61 0,51
C2 0,46 0,03
D2 2,79
E2 4,11
F2 6,22
H2 0,38
J2 0,64 0,38
K2 6,15 5,89
M2 0,30
N2 0,28
P1 0,50 0,45
P3 0,50 0,36
R2 4,83
Letter Maximum
G2 10°
Care shall be taken that the fixed connector contacts avoid interference with the plastic of the free connector.

– 14 – 60603-7 © IEC:2008
3.2.3 Fixed connector
-X-
B1
0,05 mm X
AD1 A
0,05 mm
C
(7×) AH1
AH1
AM1
AD1
K1
-B-
AB1
AB1
AM1
A
T1
0,25 mm C
W1
0,25 mm C
S1
-C-
IEC  1012/08
Key
1 Contact zone. Contacts shall be completely within their individual contact zone in the area indicated.
2 0°15’ maximum taper.
3 Section A-A: see Figure 3b).
4 Relief outside of the area defined by dimension AM1 on both sides of the spring contacts in the fixed
connector is permitted.
Figure 3a) – View of contact zone

60603-7 © IEC:2008 – 15 –
AN1
AT1
AS1
1 2
AT1
-B-
AC1
Z1
AK1
AA1
AP1
AJ1
AL1
SE1
X1
A1
Y1
-A-
IEC  1013/08
View of contact zone section A-A
Key
1 Optional contact rest.
2 Preferred free connector stop.
3 Contacts shown at rest. Contacts shall always be contained inside guide slots. Contacts shall move
freely within their guide slots.
4 This surface need not be planar or coincident with the surface below the locking device as long as
insertion, latching and unlatching of free connectors is not inhibited.
5 Maximum forward extension of contacts below surface AC1 to avoid contact with shields of free
connectors. Applies in the mated state.
6 Projections beyond AL1 dimension shall not prevent finger access to the free connector locking device.
7 All internal corners in the connector cavity shall be 0,38 mm radius maximum unless otherwise
specified.
Figure 3b) – Section A-A
Figure 3 – Fixed connector details

– 16 – 60603-7 © IEC:2008
Table 2 – Dimensions for Figure 3
Letter Maximum Minimum Nominal (ref.)
mm mm mm
A1 1,47
B1 0,71
K1 5,84
S1 12,04 11,84 11,94
T1 4,19 3,94
W1 6,38 6,22
X1 6,86 6,68
Y1 2,40
Z1 2,08
AA1 1,24
AB1 0,38
AC1 6,96 6,76 6,86
AD1 0,13
AH1  1,02
a
TP
AK1 8,66 8,38
AL1 1,40
AM1 1,52
AP1 1,27
AS1 0,08
AT1  0,76
SE1 5,80
a
TP indicates true position.
Letter Maximum Suggested minimum
AJ1 15°
AN1 3°30’
60603-7 © IEC:2008 – 17 –
3.2.4 Free connector
-A-
BE2
BF2
2 AH2
(7×) AH2
0,15 mm C
BG2
S2
-C-
B2
BD2
BH2
BC2
BJ2 BN2
AD2
AW2 3
BL2
Z2
AZ2
AC2
-B-
AA2
AX2
BB2
AY2
BB2
BK2
X2
AB2
BA2
T2
BM2
0,15 mm C
Y2
W2
0,15 mm C
A2
-A-
IEC  1014/08
Key
1 Full radius permitted on all slots.
2 These dimensions apply to the locations of the contact slots.
3 Applies with locking device depressed.
Figure 4 – Free connector view

– 18 – 60603-7 © IEC:2008
Table 3 – Dimensions for Figure 4
Letter Maximum Minimum Nominal (ref.)
mm mm mm
a a
a
A2 1,17
a a
a
B2 0,56
S2 11,79 11,58 11,68
T2 3,38 3,12
W2 6,17 6,02
X2 6,02 5,77
Y2 2,34
Z2 2,06
AA2 1,24
AB2 0,64 0,38
AC2 6,71 6,50 6,60
AD2 0,64 0,13
AH2  1,02
AW2 0,51
AX2 1,32
AY2 2,87 2,67
AZ2 0,64
BA2 12,32
BB2 1,14 0,38
BC2 1,02 0,51
BD2 0,51
BE2 1,09
BF2 0,64
BG2 0,64 0,38
BH2  0,13
BL2 8,36
BM2 15,88 14,61
BN2 8,00
a
See Table 1.
Letter Maximum Nominal (ref.)
BJ2 Full radius
BK2 3°30'
60603-7 © IEC:2008 – 19 –
4 Cable terminations and internal connections – Fixed and free connectors
4.1 General
A connector may include multiple terminations between the cable termination and the
separable contact interface. These may include press-in connections of fixed connector
contacts into PCBs for example. All terminations shall meet the relevant termination
requirements.
Free connectors are intended to be terminated to cable to provide connector and cable
assemblies. The connector manufacturer shall provide basic information concerning the type
of conductor (stranded, solid) to which the connector may be applied, and the type of
connection used (solder, insulation displacement, etc.). Specific details concerning wire
gauge size, type and thickness of conductor insulation, size and shape of cordage or cable
sheath, etc. are not intended to be part of this detail specification. Minor variations in a free
connector’s interior details to accommodate differing wire gauge sizes, outer sheaths, etc. do
not require the generation of new free-connector specifications.
4.2 Termination types
4.2.1 Solder terminations
(under consideration)
4.2.2 Solderless terminations
4.2.2.1 Insulation displacement terminations
Insulation displacement terminations shall conform to IEC 60352-3 or IEC 60352-4.
4.2.2.2 Crimp terminations
Crimp terminations shall conform to IEC 60352-2.
4.2.2.3 Insulation piercing terminations
Insulation piercing terminations shall conform to IEC 60352-6.
4.2.2.4 Press-in terminations
The compliant pin shall conform to IEC 60352-5.
4.2.2.5 Spring clamp terminations
Spring clamp terminations shall conform to IEC 60352-7.
4.2.2.6 Other types
In the case where a type of solderless termination is used which is not covered by any IEC
standard and the supplier cannot demonstrate a similar level of performance or there is no
applicable IEC 60352 standard to be used as a reference, the supplier shall show
conformance with the full test schedule in 7.7 for all possible variations of termination, for
example each cable construction type (screen construction types, wire construction (solid,
flexible)) the connector is intended to be used for.

– 20 – 60603-7 © IEC:2008
5 Gauges
5.1 Fixed connectors
Gauges shall be made according to the following requirements:
Material: hardened and tempered steel, all sharp edges removed, hardness 650 HV 20
minimum.
= Surface roughness, according to ISO 1302.
Ra = 0,25 μm maximum.
A 0,01 mm wear tolerance shall be applied.
Clearance shall be provided for connector contacts.

BC1
X3
-C-
S3
BC1
AB3
AC3
AK3
C
W3 0,05 mm
IEC  091/05
Key
1 Four places.
2 Six places.
3 All around.
Figure 5 – “Go” gauge
60603-7 © IEC:2008 – 21 –
BC1
X3
-C-
S5
BC1
AB3
AC5
AK5
W5
0,05 mm C
IEC  092/05
Key
1 Four places.
2 Six places.
3 All around.
Figure 6a) – “No-go” gauge width

– 22 – 60603-7 © IEC:2008
BC1
X3
-C-
S7
BC1
AB3
AC7
AK7
W7 0,05 mm C
IEC  093/05
Key
1 Four places.
2 Six places.
3 All around.
Figure 6b) – “No-go” gauge height
Figure 6 – “No-go” gauges
Table 4 – Dimensions for Figures 5 and 6
Letter Maximum Minimum Nominal (ref)
mm mm mm
S3 11,796 11,786
S5 12,050 12,040
S7 11,68 11,58
X3 10,16
AB3 0,51 0,389 0,450
AC3 6,716 6,706
AC5 6,45 6,35
AC7 6,970 6,96
BC1 0,89 0,64 0,76
W3 6,12 6,109
W5 6,38 6,365
W7 5,97 5,89
AK3 8,357 8,346
AK5 8,13 8,05
AK7 8,672 8,66
60603-7 © IEC:2008 – 23 –
5.2 Free connectors
Material: hardened and tempered steel, all sharp edges removed, hardness 650 HV
20 minimum.
= Surface roughness, according to ISO 1302.
Ra = 0,25 μm maximum.
A 0,01 mm wear tolerance shall be applied.

B
A
AX2
AX2
1 1
AT2
B
AT2
A
AD4
AD4
AD4
AK4 AK4
AC6
AC4
AB4
W6
0,1 mm C
AB4
AB4
0,1 mm
C W4
S6
S4 -C-
-C-
View A-A
View B-B
IEC  1015/08
Key
1 All around.
2 Width gauge.
3 Height gauge.
Figure 7 – “No-go” gauges
Ta
...
