EUROPEAN STANDARD EN 61347-2-12
NORME EUROPÉENNE
EUROPÄISCHE NORM October 2005

ICS 29.140.99
English version
Lamp controlgear
Part 2-12: Particular requirements for d.c. or a.c. supplied
electronic ballasts for discharge lamps
(excluding fluorescent lamps)
(IEC 61347-2-12:2005)
Appareillages de lampes Geräte für Lampen
Partie 2-12: Exigences particulières Teil 2-12: Besondere Anforderungen
pour les ballasts électroniques alimentés an gleich- oder wechselstromversorgte
en courant continu ou alternatif elektronische Vorschaltgeräte
pour lampes à décharge für Entladungslampen
(à l'exclusion des lampes fluorescentes) (ausgenommen Leuchtstofflampen)
(CEI 61347-2-12:2005) (IEC 61347-2-12:2005)

This European Standard was approved by CENELEC on 2005-10-01. CENELEC members are bound to
comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and
notified to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden,
Switzerland and United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2005 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.

Ref. No. EN 61347-2-12:2005 E

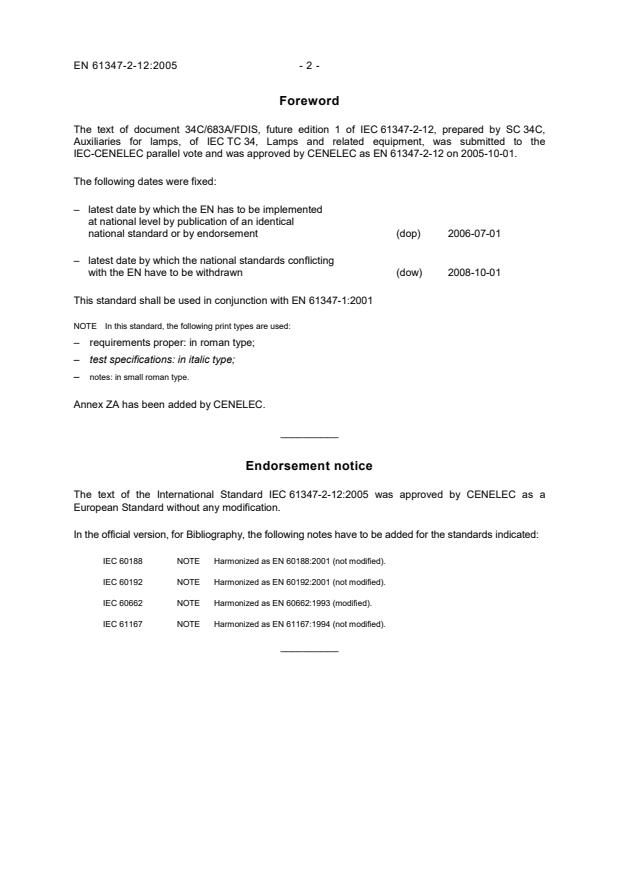

Foreword
The text of document 34C/683A/FDIS, future edition 1 of IEC 61347-2-12, prepared by SC 34C,
Auxiliaries for lamps, of IEC TC 34, Lamps and related equipment, was submitted to the
IEC-CENELEC parallel vote and was approved by CENELEC as EN 61347-2-12 on 2005-10-01.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2006-07-01
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2008-10-01
This standard shall be used in conjunction with EN 61347-1:2001
NOTE In this standard, the following print types are used:
– requirements proper: in roman type;
– test specifications: in italic type;
– notes: in small roman type.
Annex ZA has been added by CENELEC.
__________
Endorsement notice
The text of the International Standard IEC 61347-2-12:2005 was approved by CENELEC as a
European Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:
IEC 60188 NOTE Harmonized as EN 60188:2001 (not modified).
IEC 60192 NOTE Harmonized as EN 60192:2001 (not modified).
IEC 60662 NOTE Harmonized as EN 60662:1993 (modified).
IEC 61167 NOTE Harmonized as EN 61167:1994 (not modified).
__________
- 3 - EN 61347-2-12:2005
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
NOTE Where an international publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
Publication Year Title EN/HD Year
IEC 60052 2002 Voltage measurement by means of EN 60052 2002
standard air gaps
IEC 60417 database Graphical symbols for use on - -
equipment
1) 2)
IEC 61347-1 - Lamp controlgear EN 61347-1 2001
Part 1: General and safety + corr. July 2003
requirements
1)
Undated reference.
2)
Valid edition at date of issue.

NORME CEI
INTERNATIONALE
IEC
61347-2-12
INTERNATIONAL
Première édition
STANDARD
First edition
2005-06
Appareillages de lampes –
Partie 2-12:
Exigences particulières pour les ballasts
électroniques alimentés en courant continu
ou alternatif pour lampes à décharge
(à l'exclusion des lampes fluorescentes)

Lamp controlgear –
Part 2-12:
Particular requirements for d.c. or a.c. supplied
electronic ballasts for discharge lamps
(excluding fluorescent lamps)
 IEC 2005 Droits de reproduction réservés  Copyright - all rights reserved
Aucune partie de cette publication ne peut être reproduite ni No part of this publication may be reproduced or utilized in any
utilisée sous quelque forme que ce soit et par aucun procédé, form or by any means, electronic or mechanical, including
électronique ou mécanique, y compris la photocopie et les photocopying and microfilm, without permission in writing from
microfilms, sans l'accord écrit de l'éditeur. the publisher.
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: +41 22 919 02 11 Telefax: +41 22 919 03 00 E-mail: inmail@iec.ch Web: www.iec.ch
CODE PRIX
S
PRICE CODE
Commission Electrotechnique Internationale
International Electrotechnical Commission
МеждународнаяЭлектротехническаяКомиссия
Pour prix, voir catalogue en vigueur
For price, see current catalogue

61347-2-12  IEC:2005 – 3 –
CONTENTS
FOREWORD.5
INTRODUCTION.9

1 Scope.11
2 Normative references .11
3 Definitions .11
4 General requirements .13
5 General notes on tests .13
6 Classification.13
7 Marking .15
8 Terminals .15
9 Provisions for earthing.15
10 Protection against accidental contact with live parts .17
11 Moisture resistance and insulation.17
12 Electric strength .17
13 Thermal endurance test for windings .17
14 Fault conditions .17
15 Protection of associated components .17
16 Ignition voltage.17
17 Abnormal conditions .19
18 Construction .23
19 Creepage distances and clearances .23
20 Screws, current-carrying parts and connections.23
21 Resistance to heat, fire and tracking.23
22 Resistance to corrosion .23

Annex A (normative) Test to establish whether a conductive part is a live part which
may cause an electric shock .25
Annex B (normative) Particular requirements for thermally protected lamp controlgear .27
Annex C (normative) Particular requirements for electronic lamp controlgear with
means of protection against overheating.29
Annex D (normative) Information for carrying out the heating tests of thermally
protected lamp controlgear .31
Annex E (normative) The use of constants S other than 4 500 in t tests.33
w
Annex F (normative) Draught-proof enclosure.35
Annex G (normative) Explanation of the derivation of the values of pulse voltages .37
Annex H (normative) Tests .39
Annex I (normative) Precautions to be observed when measuring with spherical spark
gaps .41

Bibliography.43

61347-2-12  IEC:2005 – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LAMP CONTROLGEAR –
Part 2-12: Particular requirements for d.c. or a.c. supplied electronic
ballasts for discharge lamps (excluding fluorescent lamps)

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61347-2-12 has been prepared by subcommittee 34C: Auxiliaries
for lamps, of IEC technical committee 34: Lamps and related equipment.
The text of this standard is based on the following documents:
FDIS Report on voting
34C/683/FDIS 34C/687/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

61347-2-12  IEC:2005 – 7 –
This standard shall be used in conjunction with IEC 61347-1. It was established on the basis
of the first (2000) edition of that standard.
This part 2 supplements or modifies the corresponding clauses in IEC 61347-1, so as to
convert that publication into the IEC Standard: Particular requirements for d.c. or a.c. supplied
electronic ballasts for discharge lamps (excluding fluorescent lamps).
NOTE In this standard, the following print types are used:
− requirements: in roman type;
− test specifications: in italic type;
− notes: in small roman type.
IEC 61347-2 consists of the following parts, under the general title Lamp controlgear:
Part 1: General and safety requirements
Part 2-1: Particular requirements for starting devices (other than glow starters)
Part 2-2: Particular requirements for d.c. or a.c. supplied electronic step-down convertors
for filament lamps
Part 2-3: Particular requirements for a.c. supplied electronic ballasts for fluorescent lamps
Part 2-4: Particular requirements for d.c. supplied electronic ballasts for general lighting
Part 2-5: Particular requirements for d.c. supplied electronic ballasts for public transport
lighting
Part 2-6: Particular requirements for d.c. supplied electronic ballasts for aircraft lighting
Part 2-7: Particular requirements for d.c. supplied electronic ballasts for emergency lighting
Part 2-8: Particular requirements
...
