SIST EN 2997-006:2024

SLOVENSKI STANDARD
01-april-2024
Aeronavtika - Konektorji, električni, okrogli, priključeni z navojnim obročkom,
odporni ali neodporni proti ognju, s stalno delovno temperaturo med –65 °C in 175
°C, stalno 200 °C, najvišjo 260 °C - 006. del: Neprepustna pritrditev z matico -
Standard za proizvod
Aerospace series - Connectors, electrical, circular, coupled by threaded ring, fire
resistant or non fire-resistant, operating temperatures -65 °C to 175 °C continuous, 200
°C continuous, 260 °C peak - Part 006: Hermetic jam-nut mounted receptacle - Product
standard
Luft- und Raumfahrt - Elektrische Rundsteckverbinder mit Schraubkupplung,
feuerbeständig oder nicht feuerbeständig, Betriebstemperaturen -65 °C bis 175 °C
konstant, 200 °C konstant, 260 °C Spitze - Teil 006: Hermetischer fester Steckverbinder
mit Mutternbefestigung - Produktnorm
Série aérospatiale - Connecteurs électriques circulaires à accouplement par bague
filetée, résistant au feu ou non, températures d’utilisation -65 °C à 175 °C continu, 200
°C continu, 260 °C en pointe - Partie 006: Embase hermétique à fixation par écrou -
Norme de produit
Ta slovenski standard je istoveten z: EN 2997-006:2024
ICS:
31.220.10 Vtiči in vtičnice, konektorji Plug-and-socket devices.
Connectors
49.060 Letalska in vesoljska Aerospace electric
električna oprema in sistemi equipment and systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 2997-006
EUROPEAN STANDARD
NORME EUROPÉENNE
February 2024
EUROPÄISCHE NORM
ICS 49.060 Supersedes EN 2997-006:2017
English Version
Aerospace series - Connectors, electrical, circular, coupled
by threaded ring, fire resistant or non fire-resistant,
operating temperatures -65 °C to 175 °C continuous, 200
°C continuous, 260 °C peak - Part 006: Hermetic jam-nut
mounted receptacle - Product standard
Série aérospatiale - Connecteurs électriques circulaires Luft- und Raumfahrt - Elektrische Rundsteckverbinder
à accouplement par bague filetée, résistant au feu ou mit Schraubkupplung, feuerbeständig oder nicht
non, températures d'utilisation -65 °C à 175 °C continu, feuerbeständig, Betriebstemperaturen -65 °C bis 175
200 °C continu, 260 °C en pointe - Partie 006: Embase °C konstant, 200 °C konstant, 260 °C Spitze - Teil 006:
hermétique à fixation par écrou - Norme de produit Hermetischer fester Steckverbinder mit
Mutternbefestigung - Produktnorm
This European Standard was approved by CEN on 15 October 2023.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 2997-006:2024 E
worldwide for CEN national Members.

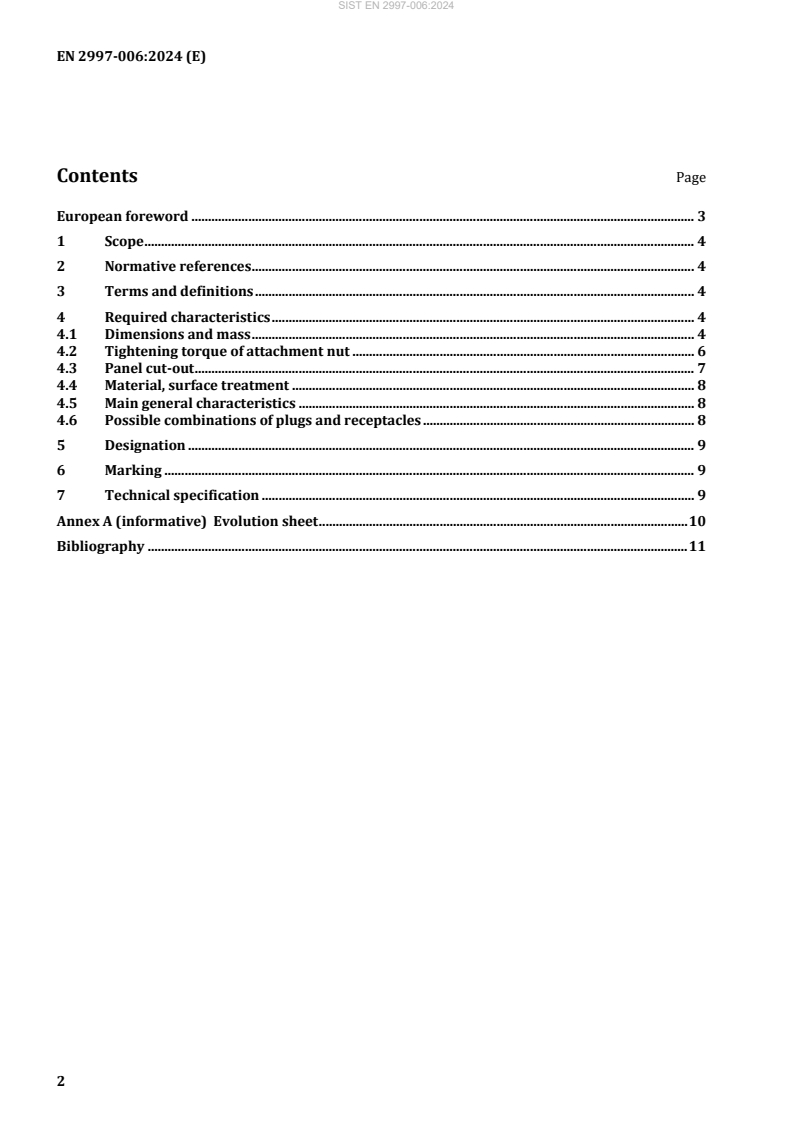

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 4
4 Required characteristics . 4
4.1 Dimensions and mass . 4
4.2 Tightening torque of attachment nut . 6
4.3 Panel cut-out . 7
4.4 Material, surface treatment . 8
4.5 Main general characteristics . 8
4.6 Possible combinations of plugs and receptacles . 8
5 Designation . 9
6 Marking . 9
7 Technical specification . 9
Annex A (informative) Evolution sheet . 10
Bibliography . 11

European foreword
This document (EN 2997-006:2024) has been prepared by the Aerospace and Defence Industries
Association of Europe — Standardization (ASD-STAN).
After enquiries and votes carried out in accordance with the rules of this Association, this document has
received the approval of the National Associations and the Official Services of the member countries of
ASD-STAN, prior to its presentation to CEN.
This European standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by August 2024, and conflicting national standards shall be
withdrawn at the latest by August 2024.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 2997-006:2017.
The main changes between this edition and the previous edition are listed in Table A.1.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this E
...
