SIST EN 60603-7-5:2010

SLOVENSKI STANDARD
01-april-2010
Konektorji za elektronsko opremo - 7-5. del: Podrobna specifikacija za 8-polne,
zaslonjene, proste in pritrjene konektorje za prenos podatkov s frekvencami do
250 MHz
Connectors for electronic equipment -- Part 7-5: Detail specification for 8-way, shielded,
free and fixed connectors, for data transmissions with frequencies up to 250 MHz
Steckverbinder für elektronische Einrichtungen -- Teil 7-5: Bauartspezifikation für
geschirmte freie und feste Steckverbinder, 8polig, für Datenübertragungen bis 250 MHz
Connecteurs pour équipements électroniques -- Partie 7-5: Spécification particulière pour
les fiches et les embases blindées à 8 voies pour la transmission de données à des
fréquences jusqu'à 250 MHz
Ta slovenski standard je istoveten z: EN 60603-7-5:2009
ICS:
31.220.10 9WLþLLQYWLþQLFHNRQHNWRUML Plug-and-socket devices.
Connectors
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 60603-7-5
NORME EUROPÉENNE
November 2009
EUROPÄISCHE NORM
ICS 31.220.10
English version
Connectors for electronic equipment -
Part 7-5: Detail specification for 8-way, shielded,
free and fixed connectors, for data transmissions
with frequencies up to 250 MHz
(IEC 60603-7-5:2007)
Connecteurs pour équipements Steckverbinder für elektronische
électroniques - Einrichtungen -
Partie 7-5: Spécification particulière Teil 7-5: Bauartspezifikation
pour les fiches et les embases für geschirmte freie und feste
blindées à 8 voies Steckverbinder, 8polig,
pour la transmission de données für Datenübertragungen bis 250 MHz
à des fréquences jusqu'à 250 MHz (IEC 60603-7-5:2007)
(CEI 60603-7-5:2007)
This European Standard was approved by CENELEC on 2009-09-01. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Cyprus, the
Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: Avenue Marnix 17, B - 1000 Brussels

© 2009 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60603-7-5:2009 E

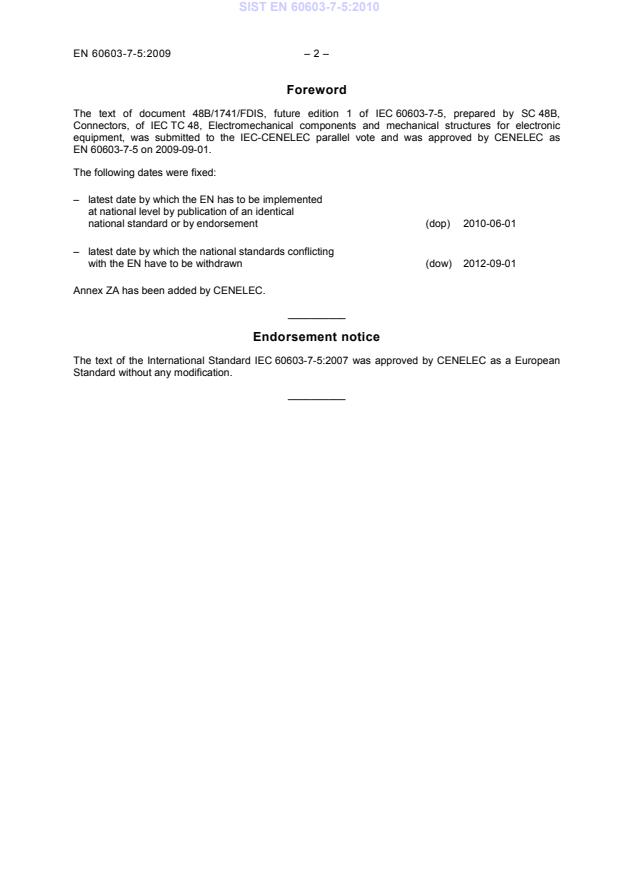

Foreword
The text of document 48B/1741/FDIS, future edition 1 of IEC 60603-7-5, prepared by SC 48B,
Connectors, of IEC TC 48, Electromechanical components and mechanical structures for electronic
equipment, was submitted to the IEC-CENELEC parallel vote and was approved by CENELEC as
EN 60603-7-5 on 2009-09-01.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2010-06-01
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2012-09-01
Annex ZA has been added by CENELEC.
__________
Endorsement notice
The text of the International Standard IEC 60603-7-5:2007 was approved by CENELEC as a European
Standard without any modification.
__________
– 3 – EN 60603-7-5:2009
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year

1)
- - Communication cables - Specifications for EN 50289-1-14 -
test methods -
Part 1-14: Electrical test methods - Coupling
attenuation or screening attenuation of
connecting hardware
1)
IEC 60050-581 - International Electrotechnical Vocabulary - -
(IEV) -
Part 581: Electromechanical components for
electronic equipment
1) 2)
IEC 60068-1 - Environmental testing - EN 60068-1 1994
Part 1: General and guidance
1) 2)
IEC 60068-2-38 - Environmental testing - EN 60068-2-38 2009
Part 2-38: Tests - Test Z/AD: Composite
temperature/humidity cyclic test

1)
IEC 60169-16 - Radio-frequency connectors - - -
Part 16: R.F. coaxial connectors with inner
diameter of outer conductor 7 mm (0,276 in)
with screw coupling - Characteristic
impedance 50 ohms (75 ohms) (type N)

IEC 60352 Series Solderless connections EN 60352 Series

IEC 60512 Series Connectors for electronic equipment - Tests EN 60512 Series
and measurements
1) 2)
IEC 60512-1-100 - Connectors for electronic equipment - Tests EN 60512-1-100 2006
and measurements -
Part 1-100: General - Applicable publications

1) 2)
IEC 60603-1 - Connectors for frequencies below 3 MHz for EN 60603-1 1998
use with printed boards -
Part 1: Generic specification - General
requirements and guide for the preparation of
detail specifications, with assessed quality

IEC 60603-7 Series Connectors for electronic equipment - EN 60603-7 Series
Part 7: Detail specifications for 8-way free and
fixed connectors
1) 2)
IEC 60664-1 - Insulation coordination for equipment within EN 60664-1 2007
low-voltage systems -
Part 1: Principles, requirements and tests

1)
Undated reference.
2)
Valid edition at date of issue.

Publication Year Title EN/HD Year

1) 2)
IEC 61076-1 - Connectors for electronic equipment - EN 61076-1 2006
Product requirements -
Part 1: Generic specification
IEC 61156 Series Multicore and symmetrical pair/quad cables - -
for digital communications
IEC 61196-1 Series Coaxial communication cables - -

ISO/IEC 11801 2002 Information technology - Generic cabling for - -
customer premises
1) 2)
ISO 1302 - Geometrical Product Specifications (GPS) - EN ISO 1302 2002
Indication of surface texture in technical
product documentation
1)
ITU-T - Resistibility of telecommunication equipment - -
Recommendation installed in a telecommunications centre to
K.20 overvoltages and overcurrents

1)
ITU-T - Resistibility tests for telecommunication - -
Recommendation equipment exposed to overvoltages and
K.44 overcurrents - Basic Recommendation

1)
ITU-T - Transmission aspects of unbalance about - -
Recommendation earth
G.117
1)
ITU-T - Measuring arrangements to assess the - -
Recommendation degree of unbalance about earth
O.9
NORME CEI
INTERNATIONALE
IEC
60603-7-5
INTERNATIONAL
Première édition
STANDARD
First edition
2007-03
Connecteurs pour équipements électroniques –
Partie 7-5:
Spécification particulière pour les fiches et les
embases blindées à 8 voies pour la transmission
de données à des fréquences jusqu’à 250 MHz

Connectors for electronic equipment –
Part 7-5:
Detail specification for 8-way, shielded, free and
fixed connectors, for data transmissions with
frequencies up to 250 MHz
© IEC 2007 Droits de reproduction réservés ⎯ Copyright - all rights reserved
Aucune partie de cette publication ne peut être reproduite ni No part of this publication may be reproduced or utilized in any
utilisée sous quelque forme que ce soit et par aucun procédé, form or by any means, electronic or mechanical, including
électronique ou mécanique, y compris la photocopie et les photocopying and microfilm, without permission in writing from
microfilms, sans l'accord écrit de l'éditeur. the publisher.
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: +41 22 919 02 11 Telefax: +41 22 919 03 00 E-mail: inmail@iec.ch Web: www.iec.ch
CODE PRIX
XD
PRICE CODE
Commission Electrotechnique Internationale
International Electrotechnical Commission
МеждународнаяЭлектротехническаяКомиссия
Pour prix, voir catalogue en vigueur
For price, see current catalogue

60603-7-5 © IEC:2007 – 3 –
CONTENTS
FOREWORD.11
INTRODUCTION.15

1 General .17
1.1 Scope.17
1.2 Normative references .17
2 IEC type designation .21
2.1 Terms and definitions .23
3 Common features and isometric view .25
3.1 Isometric view .25
3.2 Mating information.25
4 Cable terminations and internal connections – fixed and free connectors .41
4.1 General .41
4.2 Termination types.41
5 Gauges .43
5.1 Fixed connectors .43
5.2 Free connectors .49
6 Characteristics .53
6.1 General .53
6.2 Pin and pair grouping assignment. .53
6.3 Classification into climatic category.53
6.4 Electrical characteristics.55
6.5 Transmission characteristics .59
6.6 Mechanical.65
7 Tests and test schedule.65
7.1 General .65
7.2 Arrangement for contact resistance test: .67
7.3 Arrangement for vibration test (test phase CP1) .69
7.4 Test procedures and measuring methods .69
7.5 Preconditioning .69
7.6 Wiring and mounting of specimens .71
7.7 Test schedules .71

Annex A (normative) Gauging continuity procedure.89
Annex B (normative) Locking-device mechanical operation.97
Annex C (normative) Test Plug requirements .99
Annex D (normative) General requirements for the measurement set-up.147
Annex E (normative) Insertion loss .157
Annex F (normative) Return loss.161
Annex G (normative) Near end cross talk (NEXT) .165
Annex H (normative) Far end cross talk (FEXT) .169
Annex I (normative) Transfer impedance.173
Annex J (normative) Transverse Conversion Loss (TCL) and Transverse Conversion
Transfer Loss (TCTL).187

60603-7-5 © IEC:2007 – 5 –
Annex K (normative) Termination of balun .193
Annex L (normative) Gauge requirements .197

Figure 1 – Isometric view .25
Figure 2 – Contact interface dimensions with terminated free connector .27
Figure 3 – Fixed connector details .33
Figure 4 – Free connector view.37
Figure 5 – “Go” gauge.43
Figure 6 – "No-go" gauges.45
Figure 7 – “No-go” gauges .49
Figure 8 – “Go” gauge.51
Figure 9 – Fixed connector pin and pair grouping assignment (front view of connector) .53
Figure 10 – Connector de-rating curve .57
Figure 11 – Arrangement for contact resistance test .67
Figure 12 – Arrangement for vibration test .69
Figure A.1 – Gauge.93
Figure A.2 – Gauge insertion .95
Figure C.1 – De-embedding reference plug.101
Figure C.2 – De-embedding reference jack .105
Figure C.3 – De-embedding reference FEXT plug without sockets .115
Figure C.4 – De-embedding reference FEXT plug with sockets .117
Figure C.5 – Reference FEXT plug mated to PWB .117
Figure C.6 – Reference FEXT plug test lead position .119
Figure C.7 – Reference FEXT plug assembly.119
Figure C.8 – Test leads connected to de-embedded reference jack/PWB assembly .123
Figure C.9 – Reference FEXT plug mated to reference jack/PWB assembly.123
Figure C.10 – Exploded assembly of the coaxial termination reference test head.127
Figure C.11– Detailed view of the coaxial termination reference test head interface .127
Figure C.12 – THI3KIT test head interface with baluns attached .129
Figure C.13 – Alternative to item 3.1 in Table C.6 .133
Figure C.14 – Back-to-back through calibration.133
Figure C.15 – Mated test plug/coaxial termination reference test head test
configuration.137
Figure D.1 – 180° hybrid used as a balun .149
Figure D.2 – Calibration of reference loads.151
Figure D.3 – Resistor load .153
Figure D.4 – Screened pyramid.155
Figure D.5 – Definition of reference planes .155
Figure E.1 – Calibration .157

60603-7-5 © IEC:2007 – 7 –
Figure E.2 – Measuring set-up .159
Figure G.1 – NEXT measurement for differential and common mode terminations .165
Figure H.1 – FEXT measurement differential and common mode terminations .169
Figure I.1 – Preparation of test specimen.175
Figure I.2 – Triaxial test set-up .177
Figure I.3 – Impedance matching for R < 50 Ω.179
Figure I.4 – Impedance matching for R >50 Ω.181
Figure J.1 – TCL measurement.187
Figure J.2 – TCTL measurement.189
Figure K.1 – Balanced attenuator for balun centre tap grounded.193
Figure K.2 – Balanced attenuator for balun centre tap open.195

Table 1 – Dimensions for Figure 2 .29
Table 2 – Dimensions for Figure 3 .35
Table 3 – Dimensions for Figure 4 .39
Table 4 – Dimensions for Figures 5 and 6.47
Table 5 – Dimensions for Figure 7 .49
Table 6 – Dimensions for Figure 8 .51
Table 7 – Climatic categories – selected values.53
Table 8 – Creepage and clearance distances.55
Table 9 – Test group P .73
Table 10 – Test group AP .75
Table 11 – Test group BP .79
Table 12 – Test group CP .81
Table 13 – Test group DP .83
Table 14 – Test group EP .85
Table 15 – Test group FP .87
Table 16 – Test group GP.87
Table A.1 – Dimensions for Figure A.1.91
Table C.1 – De-embedded real and imaginary reference jack vectors .109
Table C.2 – Test plug NEXT loss limits .111
Table C.3 –Test plug NEXT loss ranges.113
Table C.4 – Coaxial termination reference head component list .125
Table C.5 – Coaxial termination reference head component list .129
Table C.6 – Coaxial termination reference head, additional parts.131
Table C.7 – Test plug FEXT requirements – de-embedding method .139
Table C.8 – Category 6 differential mode reference jack vectors.141
Table C.9 – Test-plug differential and differential with common-mode consistency.143
Table C.10 – Return loss requirements for return loss reference plug .145
Table D.1 – Test balun performance characteristics.149

60603-7-5 © IEC:2007 – 9 –
Table F.1 – Uncertainty band of return loss measurement at frequencies below
100 MHz .163
Table F.2 – Uncertainty band of return loss measurement at frequencies above
100 MHz .163

60603-7-5 © IEC:2007 – 11 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
CONNECTORS FOR ELECTRONIC EQUIPMENT –

Part 7-5: Detail specification for 8-way, shielded, free and fixed
connectors, for data transmissions with frequencies up to 250 MHz

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60603-7-5 has been prepared by subcommittee 48B: Connectors,
of IEC technical committee 48: Electromechanical components and mechanical structures for
electronic equipment.
The text of this standard is based on the following documents:
FDIS Report on voting
48B/1741/FDIS 48B/1749/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

60603-7-5 © IEC:2007 – 13 –
A list of all parts of the IEC 60603 series, under the general title Connectors for electronic
equipment, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in
the data related to the specific publication. At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
60603-7-5 © IEC:2007 – 15 –
INTRODUCTION
Applications have emerged which require the use of the interface described in IEC 60603-
7:1996 with certain performance specifications at higher frequencies. The parameters for this
performance include insertion loss, near end crosstalk (NEXT), far end crosstalk (FEXT), and
return loss. Based on application requirements, the specifications for these parameters
always apply to a mated connection of a free (plug) and fixed (outlet) connector. Details for
testing of connectors and test plugs are given in Annex C.

60603-7-5 © IEC:2007 – 17 –
CONNECTORS FOR ELECTRONIC EQUIPMENT –

Part 7-5: Detail specification for 8-way, shielded, free and fixed
connectors, for data transmissions with frequencies up to 250 MHz

1 General
1.1 Scope
This part of IEC 60603-7 covers IEC 60603-7-5 connectors, and specifies mechanical and
environmental requirements, and electrical transmission requirements for frequencies up to
250 MHz. These connectors are typically used as category 6 connectors in class E cabling
systems specified in ISO/IEC 11801:2002.
These connectors are intermateable, interoperable, and backward compatible with other
IEC 60603-7 series connectors. While the definition of interoperable is being discussed within
IEC, “interoperable” in this standard means the following: The fixed and the free connector
are capable of interconnecting with any IEC 60603-7 series connector, and that when it is
interconnected, it fully meets all requirements of the lower frequency IEC 60603-7 series
standard.
NOTE Transmission performance categories: in this part of IEC 60603-7, the term “category”, when used in
reference to transmission performance, refers to those categories defined by ISO/IEC 11801:2002.
1.2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 60050(581), International Electrotechnical Vocabulary (IEV) – Chapter 581:
Electromechanical components for electronic equipment
IEC 60068-1, Environmental testing – Part 1: General and guidance
IEC 60068-2-38, Environmental testing – Part 2: Tests. Test Z/AD: Composite temperature/
humidity cyclic test
IEC 60169-16, Radio frequency connectors – Part 16: R. F. coaxial connectors with inner
diameter of outer conductor 7 mm (0,276 in) with screw coupling – Characteristic impedance
50 ohms (75 ohms) (Type N)
IEC 60352 (all parts), Solderless connections
IEC 60512 (all parts), Connectors for electronic equipment – Tests and measurements
IEC 60512-1-100, Connectors for electronic equipment – Tests and measurements – Part 1-
100: General – Applicable publications

60603-7-5 © IEC:2007 – 19 –
IEC 60603-1, Connectors for frequencies below 3 MHz for use with printed boards – Part 1:
Generic specification – General requirements and guide for the preparation of detail
specifications, with assessed quality
IEC 60603-7 (all parts), Connectors for electronic equipment
IEC 60664-1, Insulation coordination for equipment within low-voltage systems – Part 1:
Principles, requirements and tests
IEC 61076-1, Connectors for electronic equipment – Product requirements – Part 1: Generic
specification
IEC 61156 (all parts), Multi-core and symmetrical pair/quad cables for digital communications
IEC 61196-1 (all parts), Coaxial communication cables
ISO/IEC 11801:2002, Information technology – Generic cabling for customer premises
ISO 1302, Geometrical Product Specifications (GPS) – Indication of surface texture in
technical product documentation
ITU-T K.20, Resistibility of telecommunication equipment installed in a telecommunications
centre to overvoltages and overcurrents
ITU-T K.44, Resistibility tests for telecommunication equipment exposed to overvoltages and
overcurrents – Basic Recommendation
ITU-T G.117, Transmission aspects of unbalance about earth
ITU-T O.9, Measuring arrangements to assess the degree of unbalance about earth
EN 50289-1-14, Communication cables – Specification for test methods – Part 1-14: Electrical
test methods – Coupling attenuation or screening attenuation of connecting hardware

60603-7-5 © IEC:2007 – 21 –
2 IEC type designation
Connectors, connector bodies and connectors with pre-inserted contacts according to this
standard shall be designated by the following system:
IEC 60603-7-5 L N L L L N N N
Reference to Number denoting
this standard performance level
(PL)
750 operations
Letters denoting connector
2 500 operations
type 2
Fixed version
A
Free version
C
Number denoting variant
(not used yet)
Number of contacts
Number denoting contact finish
Gold, gold-alloy
Letters denoting type of contact Palladium / nickel
Female
F
Male
M
Letters denoting type of conductor
accommodation or cable
Tinsel wire
A
Letters denoting type of termination

Stranded wire
B
Screw terminal
A
Solid wire
C
Spring – clamp
B
Tinsel or stranded
D
Crimp
C
Stranded or solid wire
E
Accessible insulation
M
Tinsel, stranded or solid wire

displacement (IDC) F
Non-accessable insulation Board mounted
N G
displacement (IDC)
Customer specific requirements
X
Insulation piercing (IPC)
P for cables
Solder
S
Press–in connection
T
“L” stands for letter
“N” stands for number
EXAMPLE IEC 60603-7-5 A8FD-E11-1: Fixed connector having 8 female contacts with IDC termination for stranded
and solid wire, gold plated, meeting performance level 1.

60603-7-5 © IEC:2007 – 23 –
2.1 Terms and definitions
For the purposes of this document, the terms and definitions of IEC 60050(581), IEC 61076-1,
IEC 60512-1, as well as the following, apply.
2.1.1
transmission performance categories
in this part of IEC 60603-7 the term “Category”, when used in reference to transmission
performance, refers to those categories defined in ISO/IEC 11801:2002
2.1.2
interchangeability levels
the connectors described in this part of IEC 60603-7 are intermateable, interoperable and
backward compatible with all IEC 60603-7 series connectors
2.1.3
intermateability
intermateability is ensured by applying the “GO” and “NO-GO” gauge requirements herein and
adherence to dimensional requirements within
2.1.4
backward compatibility
the backward compatibility requirement ensures that a plug or jack which is in compliance
with this part of IEC 60603-7, mated with a jack or plug in compliance with any lower
frequency IEC 60603-7 series connector, shall fully comply with the requirements of the lower
frequency IEC 60603-7 series connector
2.1.5
interoperability
interoperability of different IEC 60603-7-5 connectors is assured by compliance with all
transmission requirements when the fixed connector is mated with a full range of “test” free
connectors, or “test plugs”, as described herein

60603-7-5 © IEC:2007 – 25 –
3 Common features and isometric view
3.1 Isometric view
IEC  250/07
Figure 1 – Isometric view
3.2 Mating information
3.2.1 General
Dimensions are given in millimetres. Drawings are shown in third angle projection. The shape
of connectors may deviate from those shapes given in the following figures as long as the
specified dimensions are not influenced.

60603-7-5 © IEC:2007 – 27 –
3.2.2 Contacts – mating conditions

P1
M2
J2
D
B2
View Y
N2
0,15 mm 2
D
H2
Section C-C
Y
C
G2
F2
K2
R2
C
P3
B
A2
D2
E2
D
C2
B2
A
N2
0,15 mm
D
Section C-C
IEC  251/07
Key
1 Female contact of fixed connector.
2 Burrs shall not project above top of the male contact in this area, since it may be a contact area.
3 Optional angle.
4 Minimum preferred contact configuration.
5 Preferred contact configuration.
6 Optional contact configuration.
Figure 2 – Contact interface dimensions with terminated free connector

60603-7-5 © IEC:2007 – 29 –
Table 1 – Dimensions for Figure 2
Letter Maximum Minimum
mm
mm
A2 1,45 0,89
B2 0,61 0,51
C2 0,46 0,03
D2 2,79
E2 4,11
F2 6,22
H2 0,38
J2 0,64 0,38
K2 6,15 5,89
M2 0,30
N2 0,28
P1 0,50 0,45
P3 0,50 0,36
R2 4,83
Letter Maximum
G2 10°
Care shall be taken that the contacts of the fixed connector avoid interference with the plastic of the free connector.

60603-7-5 © IEC:2007 – 31 –
3.2.3 Fixed connector
7× AH1
0,05 mm C
B1
0,05 mm X
AH1
X
A
AD1
K1 B
AM1
AB1
A
SF1
T1
0,25 mm C
W1
0,25 mm C
S1
C
IEC  252/07
Key
1 Contact zone: female contacts shall be completely within their individual contact zone in the area indicated.
2 0,15 mm maximum taper on both sides.
3 Relief outside the area defined by AM1 permitted on all four corners.
4 Section A – A: see Figure 3b.
Figure 3a – View of contact zone

60603-7-5 © IEC:2007 – 33 –
AN1
AT1
AT1
AC1
B
AK1
SD1
AS1
Z1
SB1
AA1
AJ1
AP1
A1
AL1
Y1
SA1
SE1
X1
A
IEC  253/07
Key
1 Optional contact rest.
2 Preferred free connector stop.
3 Contacts shown at rest.
Contacts shall always be contained inside guide slots and shall move freely within their individual slots.
4 Surface need not be planar or coincident with the surface below the locking device as long as insertion,
latching and unlatching of free connectors is not inhibited.
5 Maximum forward extension of contacts below surface AC1, to avoid contact with shields of free connectors.
Applies in the mated state.
6 Projections beyond AL1 dimension shall not prevent finger access to free connector locking device.
7 Flat surface.
NOTE All internal corners in the connector cavity shall be 0,38 mm radius maximum unless otherwise specified.
Figure 3b – Section A – A, view of contact zone
Figure 3 – Fixed connector details

60603-7-5 © IEC:2007 – 35 –
Table 2 – Dimensions for Figure 3
Letter Maximum Minimum Nominal (ref)
mm mm mm
A1 1,47
B1 0,71
K1 5,84
S1 12,04 11,84 11,94
T1 4,19 3,94
W1 6,38 6,22
X1 6,86 6,68
Y1 2,40
Z1 2,08
AA1 1,24
AB1 0,38
AC1 6,96 6,76 6,86
AD1 0,13
AH1  1,02
1)
TP
AK1 8,66 8,38
AL1 1,40
AM1 1,52
AP1 1,27
AS1 0,08
AT1  0,76
SA1 5,31
SB1 2,16
SD1 4,90
SE1 5,80
2)
SF1
1)
TP indicates true position.
2)
Care shall be taken that all screen contacts of the fixed connector always make contact with the screen contacts
of the free connector in worst case condition to ensure reliable performance.

Letter Maximum Suggested minimum
AJ1 15°
AN1 3°30’
60603-7-5 © IEC:2007 – 37 –
3.2.4 Free connector (contacts not shown)

BA2
S2
C
BC2
SA2
AD2
B2 BJ2
AW2
AX2
AA2
BN2
SB2 AC2
SD2
BL2
AY2
Z2
3 AB2
B
B
BB2
BD2
BK2
A2
T2
0,15 mm C
X2
W2
SG2
0,15 mm C
Y2
BM2
A
A
SE2
BE2
BF2
AH2
7× AH2
BG2 BP2
IEC  254/07
Key
1 Full radius permitted on all slots.
2 These dimensions apply to the locations of the contact slots.
3 Applies with locking device depressed.
4 SG2 refers to foremost extension of the screen at the bottom of the plug.
Figure 4 – Free connector view
C
0,15 mm
60603-7-5 © IEC:2007 – 39 –
Table 3 – Dimensions for Figure 4
Letter Maximum Minimum Nominal (ref)
mm mm mm
a)
A2 (See Table 1) (See Table 1) 1,17
a)
B2 (See Table 1) (See Table 1) 0,56
S2 11,79 11,58 11,68
T2 3,38 3,12
W2 6,17 6,02
X2 6,02 5,77
Y2 2,34
Z2 2,06
AA2 1,24
AB2 0,64 0,38
AC2 6,71 6,50 6,60
AD2 0,64 0,13
AH2  1,02
AW2 0,51
AX2 1,32
AY2 2,87 2,67
BA2 12,32
BB2 1,14 0,38
BC2 1,02 0,51
BD2 0,51
BE2 1,09
BF2 0,64
BG2 0,64 0,38
BH2  0,13
BL2 8,36
BM2 15,88 14,61
BN2 9,24
SA2 4,22
SB2 1,66
SD2 4,95
b)
SE2 6,85
b)
SG2 6,85
a)
See Table 1.
b)
When this dimension is less than 6,85 mm (ffs), and the free connector is mated with a IEC 60603-7-7 fixed
connector, utilising switch option 1, there is a possibility that signal conductors 3,4,5,6 of the fixed connector may
make contact with the screen of this free connector.

Letter Maximum Nominal (ref)
BJ2 Full radius
BK2 3°30'
60603-7-5 © IEC:2007 – 41 –
4 Cable terminations and internal connections – fixed and free connectors
4.1 General
A connector may include multiple terminations between the cable termination and the
separable contact interface. These may include press in connections of jack springs into
PCBs, for example. All terminations shall meet the relevant termination requirements given in
4.2.
If a type of solderless termination is used which is not covered by any IEC specification, the
supplier shall assure its reliability by performing similar tests, and demonstrating similar level
of performance, to those in the IEC 60352 series.
Free connectors are intended to be terminated to cable to provide connector and cable
assemblies. The connector type designation provides basic terminations concerning the type
of conductor (tinsel, stranded, solid) to which the conductor may be applied, and the type of
connection used (solder, insulation displacement, etc.). Specific details concerning wire
gauge size, type and thickness of conductor insulation, size and shape of cordage or cable
jacket, etc., are not intended to be part of this specification. Minor variations in a free
connector’s interior details to accommodate differing wire gauge sizes, outer jackets, etc., do
not require the generation of new free connector specifications.
If the connector is able to be used with multiple cable types, the manufacturer shall assure
that all terminations comply with the relevant IEC standards with each of the cable types.
4.2 Termination types
4.2.1 Solder terminations
Solder terminations are not covered by the IEC 60352 series and are allowed.
4.2.2 Insulation displacement terminations
Insulation displacement terminations shall conform to IEC 60352-3 or IEC 60352-4.
4.2.3 Crimp terminations
Crimp terminations shall conform to IEC 60352-2.
4.2.4 Insulation piercing terminations
Insulation piercing terminations shall conform to IEC 60352-6.
4.2.5 Press in connections (Compliant Pin (under consideration))
Press in connections shall conform to IEC 60352-5.
4.2.6 Spring clamp terminations
Spring Clamp terminations shall conform to IEC 60352-7.

60603-7-5 © IEC:2007 – 43 –
4.2.7 Other types
In the case where a type of solderless termination i
...
