EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 14825:2022/prA1:2023 E
worldwide for CEN national Members.

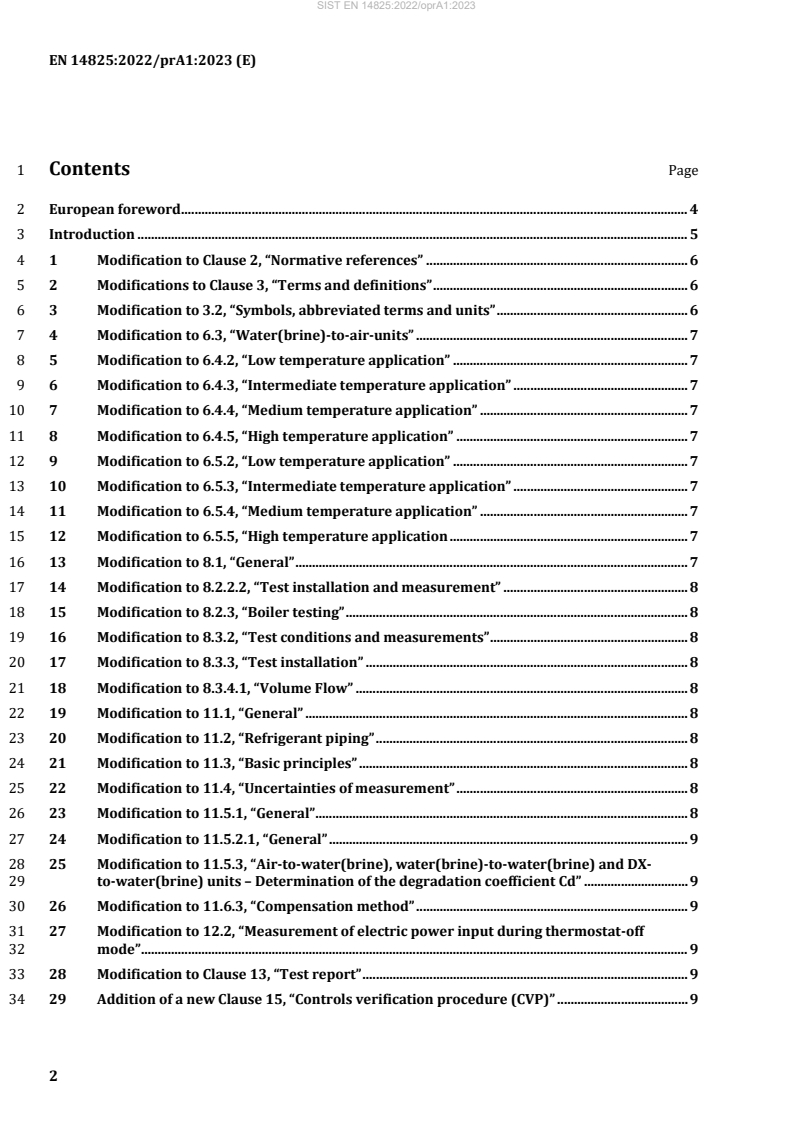

1 Contents Page
2 European foreword . 4
3 Introduction . 5
4 1 Modification to Clause 2, “Normative references” . 6
5 2 Modifications to Clause 3, “Terms and definitions” . 6
6 3 Modification to 3.2, “Symbols, abbreviated terms and units” . 6
7 4 Modification to 6.3, “Water(brine)-to-air-units” . 7
8 5 Modification to 6.4.2, “Low temperature application” . 7
9 6 Modification to 6.4.3, “Intermediate temperature application” . 7
10 7 Modification to 6.4.4, “Medium temperature application” . 7
11 8 Modification to 6.4.5, “High temperature application” . 7
12 9 Modification to 6.5.2, “Low temperature application” . 7
13 10 Modification to 6.5.3, “Intermediate temperature application” . 7
14 11 Modification to 6.5.4, “Medium temperature application” . 7
15 12 Modification to 6.5.5, “High temperature application . 7
16 13 Modification to 8.1, “General” . 7
17 14 Modification to 8.2.2.2, “Test installation and measurement” . 8
18 15 Modification to 8.2.3, “Boiler testing” . 8
19 16 Modification to 8.3.2, “Test conditions and measurements” . 8
20 17 Modification to 8.3.3, “Test installation” . 8
21 18 Modification to 8.3.4.1, “Volume Flow” . 8
22 19 Modification to 11.1, “General” . 8
23 20 Modification to 11.2, “Refrigerant piping” . 8
24 21 Modification to 11.3, “Basic principles” . 8
25 22 Modification to 11.4, “Uncertainties of measurement” . 8
26 23 Modification to 11.5.1, “General” . 8
27 24 Modification to 11.5.2.1, “General” . 9
28 25 Modification to 11.5.3, “Air-to-water(brine), water(brine)-to-water(brine) and DX-
29 to-water(brine) units – Determination of the degradation coefficient Cd” . 9
30 26 Modification to 11.6.3, “Compensation method” . 9
31 27 Modification to 12.2, “Measurement of electric power input during thermostat-off
32 mode” . 9
33 28 Modification to Clause 13, “Test report” . 9
34 29 Addition of a new Clause 15, “Controls verification procedure (CVP)” . 9
35 30 Addition of a new Clause 16, “Indoor unit(s) air flow rate measurement” .9
36 31 Modification to E.2, “Test procedure for an air-to-water unit with fixed water flow
37 rate” . 10
38 32 Modification to E.3, “Test procedure for an air-to-water unit with variable water
39 flow rate” . 10
40 33 Modification to Annex G, “Calculation example for SCOP and SCOP – Application
on net
41 to a fixed capacity air-to-water(brine) heat pump used for low temperature
42 application” . 10
43 34 Modification to Annex H, “Calculation example for SCOP and SCOP ” . 10
on net
44 35 Modification to Annex K, “Compensation methods for air-to-water(brine) and
45 water(brine)-to-water(brine) units” . 10
46 36 Modification to M.2, “Test methods” . 10
47 37 Modification to M.2.2, “Air enthalpy method” . 10
48 38 Modification to M.2.2.1, “3-room air enthalpy method” . 11
49 39 Addition of annexes . 11
50 Annex N (normative) Controls verification procedure (CVP) test to verify the compressor
51 frequency . 12
52 N.1 General . 12
53 N.2 Air-to-air units . 14
54 N.3 Air-to-water(brine), water(brine)-to-water(brine) systems and DX-to-water(brine)
55 systems . 15
56 N.4 Uncertainty of measurement and permissible deviation . 17
57 N.5 Retesting . 18
58 Annex O (normative) Indoor unit airflow rate measurement, setting and verification for
59 air-to-air units with a rated capacity of ≤ 12 kW . 19
60 O.1 General . 19
61 O.2 Test conditions . 19
62 O.3 Airflow measurement . 21
63 O.4 Uncertainty of measurement and permissible deviations . 21
64 European foreword
65 This document EN 14825:2022/prA1:2023 has been prepared by Technical Committee CEN/TC 113
66 “Heat pumps and air conditioning units”, the secretariat of which is held by UNE.
67 This document is currently submitted to the CEN Enquiry.
68 This document will amend EN 14825:2022.
69 EN 14825:2022/prA1:2023 includes the following significant technical changes with respect to
70 EN 14825:2022:
71 — Correction of normative references to EN 14511.
72 — Corrections of errors in the published edition.
73 — A new Annex N with a controls verification procedure (CVP) test to verify the compressor frequency
74 at part load condition D.
75 — A new Annex O for indoor unit airflow rate measurement, setting and verification for air-to-air units
76 with a rated capacity of ≤ 12 kW.
77 This document has been prepared under a standardization request addressed to CEN by the European
78 Commission. The Standing Committee of the EFTA States subsequently approves these requests for its
79 Member States.
80 For the relationship with EU Legislation, see informative Annexes ZA to ZF, which are an integral part of
81 EN 14825:2022.
82 Introduction
83 The incoming changes in the revised Regulation (EU) 206/2012 for testing air-to-air air-conditioners and
84 heat pumps introduce the airflow limitation to make sure thermal comfort is considered, and the controls
85 verification procedure (CVP) to certify the compliance of testing of units covered by EN 14825 by market
86 surveillance.
87 The incoming changes in the revised Regulation (EU) 813/2013 for testing air to water, water (brine)-to-
88 water (brine) and DX/water (brine) introduce the controls verification procedure (CVP) to certify the
89 compliance of testing of units covered by EN 14825 by market surveillance.
90 As such, indoor unit(s) airflow measurements and CVP need to be considered and included in EN 14825.
91 This amendment considers the following:
92 1) Controls verification procedure (CVP) test to verify the compressor frequency,
93 2) Indoor unit airflow rate measurement, setting and verification for air-to-air units with a rated
94 capacity of ≤ 12 kW.
95 1 Modification to Clause 2, “Normative references”
96 Replace the normative reference to EN 14511-1 with the following:
97 EN 14511-1:2022, Air conditioners, liquid chilling packages and heat pumps for space heating and cooling
98 and process chillers, with electrically driven compressors - Part 1: Terms and definitions
99 Replace the normative reference to EN 14511-2 with the following:
100 EN 14511-2:2022, Air conditioners, liquid chilling packages and heat pumps for space heating and cooling
101 and process chillers, with electrically driven compressors - Part 2: Test conditions
102 Replace the normative reference to EN 14511-3 with the following:
103 EN 14511-3:2022, Air conditioners, liquid chilling packages and heat pumps for space heating and cooling
104 and process chillers, with electrically driven compressors - Part 3: Test methods
105 Replace the normative reference to EN 15502-1 with the following:
106 EN 15502-1:2021, Gas-fired heating boilers - Part 1: General requirements and tests
107 2 Modifications to Clause 3, “Terms and definitions”
108 Add the following new term entry:
109 “
110 3.1.21
111 controls verification procedure
112 CVP
113 procedure intended to verify the controls settings for the compressor frequency measured during the
114 part load condition D for space cooling and/or for space heating
115 Note 1 to entry The compressor frequency is expressed in Hz.”
116 Renumber the existing definitions from 3.1.21 onwards.
117 3 Modification to 3.2, “Symbols, abbreviated terms and units”
118 Add the following rows to Table 1:
119 “
CVP Controls verification procedure  I, II
Δp static pressure difference for
e,std
ducted units in standard air
Pa I
conditions as declared by the
manufacturer
ρ density of standard air (20°
std
C(dry bulb), 15 °C (wet bulb), kg/m I
101 325 Pa)
ρ density at the actual
test
atmospheric conditions at the
kg/m I
measuring point of the air flow
rate
air flow rate in standard air
q conditions as declared by the m /h I
v,declared
manufacturer
Tcvp,start CVP starting temperature °C
Inlet water temperature Part
T °C
in,D
load condition D
∆T CVP temperature ramp pace K/h
120 “
121 4 Modification to 6.3, “Water(brine)-to-air-units”
122 Replace “EN 14511-2:2018” with “EN 14511-2:2022”.
123 5 Modification to 6.4.2, “Low temperature application”
124 Replace “EN 14511-2:2018” with “EN 14511-2:2022”.
125 6 Modification to 6.4.3, “Intermediate temperature application”
126 In Table 9, replace “EN 14511-2:2018” with “EN 14511-2:2022”.
127 7 Modification to 6.4.4, “Medium temperature application”
128 In Table 10, replace “EN 14511-2:2018” with “EN 14511-2:2022”.
129 8 Modification to 6.4.5, “High temperature application”
130 In Table 11, replace “EN 14511-2:2018” with “EN 14511-2:2022”.
131 9 Modification to 6.5.2, “Low temperature application”
132 In Table 12, replace “EN 14511-2:2018” with “EN 14511-2:2022”.
133 10 Modification to 6.5.3, “Intermediate temperature application”
134 In Table 13, replace “EN 14511-2:2018” with “EN 14511-2:2022”.
135 11 Modification to 6.5.4, “Medium temperature application”
136 In Table 14, replace “EN 14511-2:2018” with “EN 14511-2:2022”.
137 12 Modification to 6.5.5, “High temperature application
138 In Table 15, replace “EN 14511-2:2018” with “EN 14511-2:2022”.
139 13 Modification to 8.1, “General”
140 Replace “EN 14511-3:2018” with “EN 14511-3:2022”.
141 14 Modification to 8.2.2.2, “Test installation and measurement”
142 Replace “EN 14511-3:2018” with “EN 14511-3:2022”.
143 15 Modification to 8.2.3, “Boiler testing”
144 Replace “EN 15502-1:2012+A1:2015 ” with “EN 15502-1:2021”.
145 16 Modification to 8.3.2, “Test conditions and measurements”
146 Replace “EN 14511-3:2018” with “EN 14511-3:2022”.
147 17 Modification to 8.3.3, “Test installation”
148 Replace “EN 14511-3:2018” with “EN 14511-3:2022”.
149 Replace “EN 15502-1:2012+A1:2015 ” with “EN 15502-1:2021” (two occurrences).
150 18 Modification to 8.3.4.1, “Volume Flow”
151 Replace Formula (27) with the following:
152 “
V
g
153 V= (27)
t
e
154 ”
155 19 Modification to 11.1, “General”
156 Replace “EN 14511-3:2018” with “EN 14511-3:2022”.
157 Replace reference to EN 14511-1:2018 with EN14511-1:2022
158 20 Modification to 11.2, “Refrigerant piping”
159 Replace “EN 14511-3:2018” with “EN 14511-3:2022” (three occurrences).
160 21 Modification to 11.3, “Basic principles”
161 Replace “EN 14511-2:2018” with “EN 14511-2:2022” (two occurrences).
162 Replace “EN 14511-3:2018” with “EN 14511-3:2022”.
163 Replace “4.1.4 of EN 14511-3:2018” with “4.1.3 of EN 14511-3:2022”.
164 Replace “4.1.5 of EN 14511-3:2018” with “4.1.4 of EN 14511-3:2022”.
165 22 Modification to 11.4, “Uncertainties of measurement”
166 In Note 1, replace “EN 14511-3:2018” with “EN 14511-3:2022”.
167 23 Modification to 11.5.1, “General”
168 Replace “EN 14511-3:2018” with “EN 14511-3:2022”.
169 Replace Formula (39) with the following:
170 “
P
designh
171 T T −∆T××pl()T (39)
in,,test out av j
rated
P
rated
172 ”
173 24 Modification to 11.5.2.1, “General”
174 In Formula (40) add to the explanation for EER the following:
continuous
175 “, expressed in kWh/kWh”
176 In Formula (41) add to the explanation for COP the following:
continuous
177 “, expressed in kWh/kWh”
178 25 Modification to 11.5.3, “Air-to-water(brine), water(brine)-to-water(brine) and
179 DX-to-water(brine) units – Determination of the degradation coefficient Cd”
180 Replace “EN 14511-3:2018” with “EN 14511-3:2022”.
181 Replace “4.1.5 of EN 14511-3:2018” with “4.1.4 of EN 14511-3:2022”.
182 26 Modification to 11.6.3, “Compensation method”
183 Replace “EN 14511-3:2018” with “EN 14511-3:2022”.
184 Replace “4.1.4 of EN 14511-3:2018” with “4.1.3 of EN 14511-3:2022”.
185 27 Modification to 12.2, “Measurement of electric power input during
186 thermostat-off mode”
187 Replace “4.1.5 of EN 14511-3:2018” with “4.1.4 of EN 14511-3:2022” (two occurrences).
188 28 Modification to Clause 13, “Test report”
189 Replace reference to EN 14511-3:2018 with EN14511-3:2022.
190 29 Addition of a new Clause 15, “Controls verification procedure (CVP)”
191 Add the following new Clause 15:
192 “15 Controls verification procedure (CVP)
193 A controls verification procedure (CVP) is applicable for part load condition D, for heating and/or cooling.
194 CVP shall apply to units with at least one variable or staged compressor.
195 Controls verification procedure (CVP) is described in Annex N.”
196 30 Addition of a new Clause 16, “Indoor unit(s) air flow rate measurement”
197 Add the following new Clause 16:
=
198 “16 Indoor unit(s) air flow rate measurement
199 Indoor unit(s) airflow rate measurement, setting and verification for air-to-air units with a rated capacity
200 of ≤ 12 kW and fan rotation speed shall be set and measured during part load testing as specified in
201 Annex O.”
202 31 Modification to E.2, “Test procedure for an air-to-water unit with fixed water
203 flow rate”
204 Replace “EN 14511-3:2018” with “EN 14511-3:2022” (two occurrences).
205 Replace in the table, under “Test n° 1”, “T ” with “T ”.
ou,av out,av
206 32 Modification to E.3, “Test procedure for an air-to-water unit with variable
207 water flow rate”
208 Replace “EN 14511-3:2018” with “EN 14511-3:2022” (two occurrences).
209 33 Modification to Annex G, “Calculation example for SCOP and SCOP –
on net
210 Application to a fixed capacity air-to-water(brine) heat pump used for low
211 temperature application”
212 In Table G.2:
213 at bin 30: change value in column “heating load covered by the heat pump” to “7,50”;
214 at bin 41: change value in column “heating load covered by the heat pump” to “2,65”;
215 at bin 46: change value in column “heating load covered by the heat pump” to “0,44”.
216 In Table G.3 interchange part load conditions: F ⬄ E.
217 In Table G.3:
218 at bin 30: change value in column “heating load covered by the heat pump” to “7,50”;
219 at bin 41: change value in column “heating load covered by the heat pump” to “2,65”;
220 at bin 46: change value in column “heating load covered by the heat pump” to “0,44”.
221 34 Modification to Annex H, “Calculation example for SCOP and SCOP ”
on net
222 In Table H.1 replace “EN 14511-2:2018” with “EN 14511-2:2022”.
223 35 Modification to Annex K, “Compensation methods for air-to-water(brine) and
224 water(brine)-to-water(brine) units”
225 Replace “EN 14511-3:2018” with “EN 14511-3:2022” (two occurrences).
226 36 Modifi
...
