The ALERT-C protocol is designed to provide mostly event-oriented road end-user information
messages.
This document specifies the messages which are presented to the user in accordance with a set of
general requirements. It defines the message structure and content and its presentation to the end-user.
The message management component of this document describes the message management functions
of RDS-TMC. The ALERT-C protocol distinguishes between user messages and system messages. User
messages are those potentially made known to the end-user, as defined in Clause 5. System messages
are of use only to the RDS-TMC terminal, for message management purposes.
RDS-TMC information comprises both ‘system information’ and ‘user messages’. System information
relates to the TMC service and details the parameters that the terminal needs to be able to find,
identify and decode the TMC information. System information is transmitted in type 3A groups and in
type 8A groups.
User messages contain the details of the traffic events; these may use one or more type 8A groups. Most
messages may be transmitted using a single type 8A group, however messages with more detail (e.g.
diversion advice) may use up to a total of five, type 8A groups.
The transmission component of this document conveys the messages over-air. The ALERT-C protocol,
used by RDS-TMC, has the fundamental approach of aiming to code most messages entirely within a
single RDS group.
The ALERT-C Event List, which contains all event descriptions, is described in ISO 14819‑2.
Intelligente Transportsysteme - Verkehrs- und Reiseinformationen über Verkehrsmeldungskodierung - Teil 1: Kodierungsprotokoll für den digitalen Radiokanal für Verkehrsmeldungen (RDS-TMC) unter Nutzung von ALERT-C (ISO 14819-1:2021)
Systèmes intelligents de transport - Informations sur le trafic et le tourisme via le codage de messages sur le trafic - Partie 1: Protocole de codage pour le système de radiodiffusion de données (RDS) - Canal de messages d'informations sur le trafic (RDS-TMC) avec ALERT-C (ISO 14819-1:2021)
Le protocole Alert-C est conçu pour fournir des messages d'information du conducteur orientés événements pour la plupart d'entre eux. Il est prévu de définir ultérieurement de nombreuses extensions de protocole et, de fait, quelques messages d'information de guidage routier orientés état ont été inclus.
Le présent document spécifie les messages qui sont présentés à l'utilisateur conformément à un ensemble d'exigences générales. Elle définit la structure et le contenu des messages ainsi que leur présentation à l'utilisateur final.
La composante de gestion de messages du présent document traite des fonctions de gestion des messages du RDS-TMC. Le protocole Alert-C opère une distinction entre les messages utilisateur et les messages système. Les messages utilisateur sont ceux qui sont potentiellement portés à la connaissance de l'utilisateur final, comme défini à l'Article 5. Les messages système ne sont utiles qu'au terminal RDS‑TMC, pour les besoins de la gestion des messages.
L'information RDS-TMC comprend à la fois des messages d'information système et des messages utilisateur. L'information système se rapporte au service TMC et détaille les paramètres dont le terminal a besoin pour trouver, identifier et décoder l'information TMC. L'information système est transmise dans les groupes de type 3A et les groupes de type 8A.
Les messages utilisateur contiennent les détails des événements liés au trafic. Ils peuvent utiliser un ou plusieurs groupes de type 8A. La plupart des messages peuvent être émis en utilisant un groupe 8A unique, cependant des messages comportant plus de détails (par exemple un conseil de déviation) peuvent utiliser jusqu'à cinq groupes de type 8A.
La section du présent document relative à la transmission opère la diffusion des messages par voie hertzienne. Le protocole Alert-C, utilisé en RDS-TMC, fait appel à l'approche fondamentale visant à coder la plupart des messages avec un seul groupe RDS.
La liste d'événements Alert-C qui contient la description de tous les événements est décrite dans l'ISO 14819‑2.
Inteligentni transportni sistemi - Sporočila prometnih in potovalnih informacij prek kodiranih prometnih sporočil - 1. del: Kodirni protokol za radijski podatkovni sistem - Prometni informacijski kanal (RDS-TMC), ki uporablja sistem ALERT-C (ISO 14819-1:2021)
General Information
Relations
Standards Content (Sample)

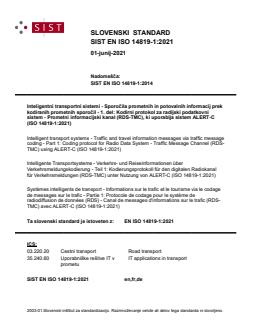

SLOVENSKI STANDARD
