This part of IEC 60350 specifies methods for measuring the performance of electric cooking
ranges, ovens, steam ovens, and grills for household use.
NOTE 1 This document is also applicable to portable appliances with similar functionalities that were previously
covered by the withdrawn IEC 61817.
The ovens covered by this document can be with or without microwave function.
Manufacturers are expected to define the primary cooking function of the appliance – microwave
function or thermal heat. The primary cooking function is measured with an existing method
according to energy consumption. If the primary cooking function is declared in the instruction
manual as a microwave function, IEC 60705 is applied for energy consumption measurement.
If the primary cooking function is declared as a thermal heat, then IEC 60350-1 is applied for
energy consumption measurement.
If the primary function is not declared by the manufacturer, the performance of the microwave
function and thermal heat is measured as far as it is possible.
NOTE 2 For measurement of energy consumption and time for heating a load (see Clause 8), this document is
furthermore not applicable to:
– microwave combination function;
– ovens with reciprocating trays or turntable;
– small cavity ovens (see 3.16);
– ovens without adjustable temperature control;
– heating functions and eco functions other than defined in this document;
– appliances with only solo steam function.
NOTE 3 This document does not apply to
– microwave ovens (IEC 60705).
This document defines the main performance characteristics of these appliances that are of
interest to the user and specifies methods for measuring these characteristics.
This document does not specify a classification or ranking for performance.
NOTE 4 This document does not deal with safety requirements (IEC 60335-2-6 and IEC 60335-2-9).
NOTE 5 Appliances covered by this document can be built-in or for placing on a working surface or the floor.
NOTE 6 There is no measurement method for the energy consumption for grilling and steam functions available
Elektrische Kochgeräte für den Hausgebrauch - Teil 1: Herde, Backöfen, Dampfgarer und Grills - Verfahren zur Messung der Gebrauchseigenschaften (IEC 60350-1:2023)
Appareils de cuisson électrodomestiques - Partie 1: Cuisinières, fours, fours à vapeur et grils - Méthodes de mesure de l'aptitude à la fonction (IEC 60350-1:2023)
IEC 60350-1:2023 est disponible sous forme de IEC 60350-1:2023 RLV qui contient la Norme internationale et sa version Redline, illustrant les modifications du contenu technique depuis l'édition précédente.
L'IEC 60350-1:2023 spécifie les méthodes de mesure de l'aptitude à la fonction des cuisinières, des fours, des fours à vapeur et des grils électriques à usage domestique. Le présent document s'applique également aux appareils mobiles équipés de fonctionnalités similaires, qui étaient auparavant couverts par l'IEC 61817 aujourd'hui supprimée. Les fours couverts par le présent document peuvent disposer ou non d'une fonction micro ondes. Les fabricants sont présumés définir la fonction de cuisson principale de l'appareil: micro-ondes ou chaleur thermique. La fonction de cuisson principale est mesurée au moyen d'une méthode existante en fonction de la consommation d'énergie. Si la fonction de cuisson principale est déclarée dans le manuel d'instruction comme étant la fonction micro-ondes, l'IEC 60705 s'applique pour le mesurage de la consommation d'énergie. Si la fonction de cuisson principale est déclarée comme étant la chaleur thermique, l'IEC 60350-1 s'applique pour le mesurage de la consommation d'énergie. Si la fonction principale n'est pas déclarée par le fabricant, l'aptitude à la fonction micro-ondes et à la fonction chaleur thermique est mesurée autant que possible. Pour le mesurage de la consommation d'énergie et du temps de chauffage d'une charge (voir l'Article 8), le présent document ne s'applique pas non plus aux:
- fonctions micro-ondes combinées;
- fours avec plateau coulissant ou plateau tournant;
- fours à petite cavité (voir le 3.16);
- fours sans commande de température réglable;
- fonctions de chauffage et fonctions éco autres que celles définies dans le présent document;
- appareils avec fonction de vapeur uniquement.
Le présent document ne s'applique pas aux fours à micro-ondes (IEC 60705).
Le présent document définit les caractéristiques de performance principales de ces appareils qui sont pertinentes pour l'utilisateur et spécifie les méthodes de mesure de ces caractéristiques. Le présent document ne spécifie pas un système de classement pour l'aptitude à la fonction de ces appareils. Le présent document ne traite pas des exigences de sécurité (IEC 60335-2-6 et IEC 60335-2-9). Les appareils couverts par le présent document peuvent être posés sur le sol, encastrés ou placés sur un plan de travail. Aucune méthode de mesure de la consommation d'énergie n'est disponible pour les fonctions de vapeur et de grill. Cette troisième édition annule et remplace la deuxième édition parue en 2016 et la Fiche d'interprétation 1:2021. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
a) ajout de nouvelles définitions pour la fonction de chauffage et la fonction éco, avec un amendement concernant les considérations relatives au mode faible puissance à l'Article 3;
b) modification de l'ordre des articles;
c) révision du 5.3;
d) mise à jour du 6.2 afin d'améliorer la fiabilité de la mesure du volume;
e) suppression du 6.7, Horizontalité de l'étagère;
f) révision de l'Article 7 relatif à l'exactitude des fonctions éco avec utilisation
Gospodinjski električni kuhalni aparati - 1. del: Štedilniki, pečice, parne pečice in žari - Metode za merjenje funkcionalnosti (IEC 60350-1:2023)
Ta del standarda IEC 60350 določa metode za merjenje funkcionalnosti električnih vgradnih štedilnikov, pečic, parnih pečic in žarov za uporabo v gospodinjstvu.
OPOMBA 1: Ta dokument se uporablja tudi za prenosne aparate s podobnimi funkcijami, ki so bili zajeti v umaknjenem standardu IEC 61817.
Pečice, ki jih zajema ta dokument, lahko vključujejo mikrovalovno funkcijo ali ne. Proizvajalci naj bi določili primarno funkcijo kuhanja aparata – mikrovalovna ali toplotna funkcija. Primarna funkcija kuhanja se izmeri z obstoječo metodo glede na porabo energije. Če je primarna funkcija kuhanja opredeljena v navodilih za uporabo kot mikrovalovna funkcija, se za merjenje porabe energije uporablja standard IEC 60705. Če je primarna funkcija kuhanja opredeljena kot toplotna funkcija, se za merjenje porabe energije uporablja standard IEC 60350-1.
Če proizvajalec ne navede primarne funkcije, se funkcionalnost mikrovalovne in toplotne funkcije izmeri v največji možni meri.
OPOMBA 2: V zvezi z merjenjem porabe energije in časa segrevanja (glej točko 8) se ta dokument ne uporablja več za:
– kombinirano mikrovalovno funkcijo;
– pečice s povratnimi pladnji ali vrtljivim krožnikom;
– pečice z majhno odprtino (glej točko 3.16);
– pečice brez prilagodljivega nadzora temperature;
– grelne funkcije in funkcije ekološke učinkovitosti, razen tiste, ki so opredeljene v tem dokumentu;
– aparate samo z enojno funkcijo pare.
OPOMBA 3: Ta dokument se ne uporablja za:
– mikrovalovne pečice (IEC 60705).
Ta dokument določa glavne značilnosti delovanja teh aparatov, ki zanimajo uporabnika, ter metode za merjenje teh značilnosti.
Ta dokument ne določa zahtev za razvrščanje na podlagi delovanja.
OPOMBA 4: Ta dokument ne obravnava varnostnih zahtev (IEC 60335-2-6 in IEC 60335-2-9). OPOMBA 5: Aparati, ki jih zajema ta standard, so lahko vgrajeni ali so namenjeni namestitvi na delovno površino ali tla.
OPOMBA 6: Merilna metoda za porabo energije pri funkciji pečenja na žaru in parni funkciji ni na voljo.
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
SIST EN IEC 60350-1:2023
01-julij-2023
Gospodinjski električni kuhalni aparati - 1. del: Štedilniki, pečice, parne pečice in
žari - Metode za merjenje funkcionalnosti (IEC 60350-1:2023)
Household electric cooking appliances - Part 1: Ranges, ovens, steam ovens and grills -
Methods for measuring performance (IEC 60350-1:2023)
Elektrische Kochgeräte für den Hausgebrauch - Teil 1: Herde, Backöfen, Dampfgarer
und Grills - Verfahren zur Messung der Gebrauchseigenschaften (IEC 60350-1:2023)
Appareils de cuisson électrodomestiques - Partie 1: Cuisinières, fours, fours à vapeur et
grils - Méthodes de mesure de l'aptitude à la fonction (IEC 60350-1:2023)
Ta slovenski standard je istoveten z: EN IEC 60350-1:2023
ICS:
97.040.20 Štedilniki, delovni pulti, Cooking ranges, working
pečice in podobni aparati tables, ovens and similar
appliances
SIST EN IEC 60350-1:2023 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST EN IEC 60350-1:2023
---------------------- Page: 2 ----------------------
SIST EN IEC 60350-1:2023
EUROPEAN STANDARD EN IEC 60350-1
NORME EUROPÉENNE
EUROPÄISCHE NORM April 2023
ICS 97.040.20 Supersedes EN 60350-1:2016; EN 60350-1:2016/A1:2021
English Version
Household electric cooking appliances - Part 1: Ranges, ovens,
steam ovens and grills - Methods for measuring performance
(IEC 60350-1:2023)
Appareils de cuisson électrodomestiques - Partie 1: Elektrische Kochgeräte für den Hausgebrauch - Teil 1:
Cuisinières, fours, fours à vapeur et grils - Méthodes de Herde, Backöfen, Dampfgarer und Grills - Verfahren zur
mesure de l'aptitude à la fonction Messung der Gebrauchseigenschaften
(IEC 60350-1:2023) (IEC 60350-1:2023)
This European Standard was approved by CENELEC on 2023-04-24. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 60350-1:2023 E
---------------------- Page: 3 ----------------------
SIST EN IEC 60350-1:2023
EN IEC 60350-1:2023 (E)

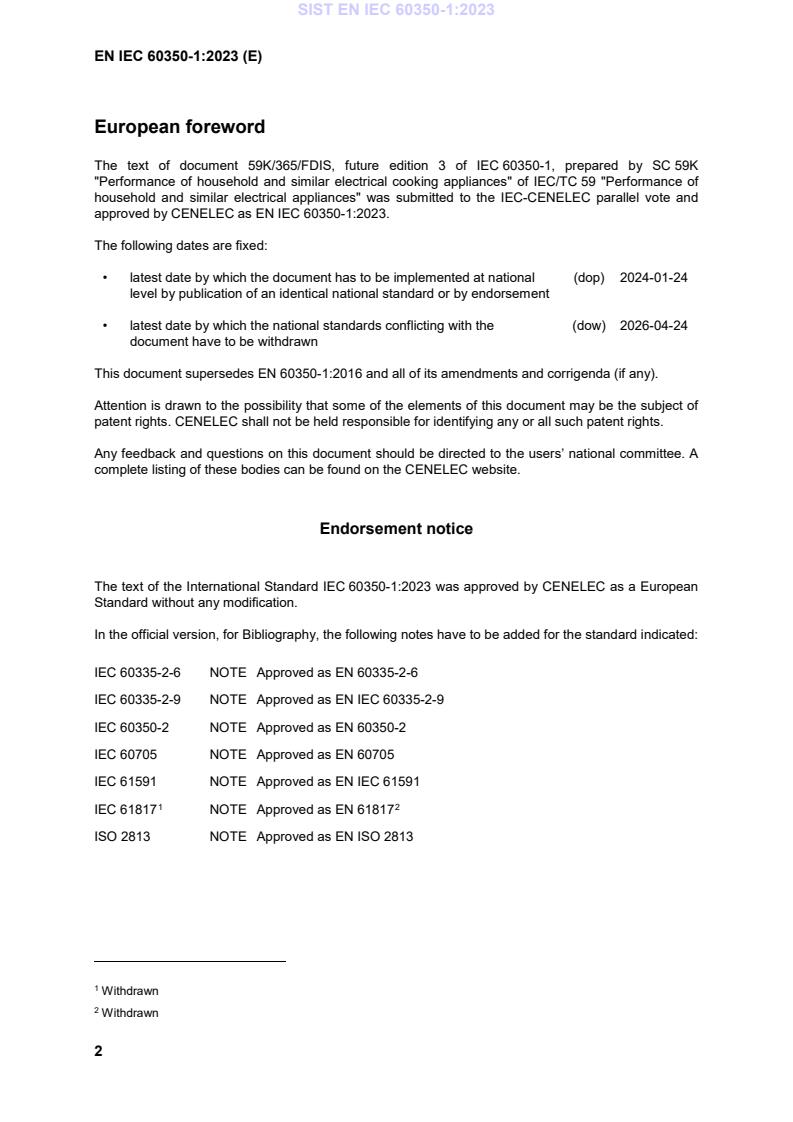

European foreword
