EUROPEAN STANDARD EN 60335-2-45
NORME EUROPÉENNE
EUROPÄISCHE NORM December 2002

ICS 13.120; 25.140.20 Supersedes EN 60335-2-45:1996

English version
Household and similar electrical appliances -
Safety
Part 2-45: Particular requirements for portable heating tools
and similar appliances
(IEC 60335-2-45:2002)
Appareils électrodomestiques et Sicherheit elektrischer Geräte für den
analogues - Sécurité Hausgebrauch und ähnliche Zwecke
Partie 2-45: Règles particulières Teil 2-45: Besondere Anforderungen
pour les outils chauffants mobiles für ortsveränderliche
et appareils analogues Elektrowärmewerkzeuge
(CEI 60335-2-45:2002) und ähnliche Geräte
(IEC 60335-2-45:2002)
This European Standard was approved by CENELEC on 2002-12-01. CENELEC members are bound to
comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and
notified to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Czech Republic,
Denmark, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Luxembourg, Malta,
Netherlands, Norway, Portugal, Slovakia, Spain, Sweden, Switzerland and United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2002 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.

Ref. No. EN 60335-2-45:2002 E

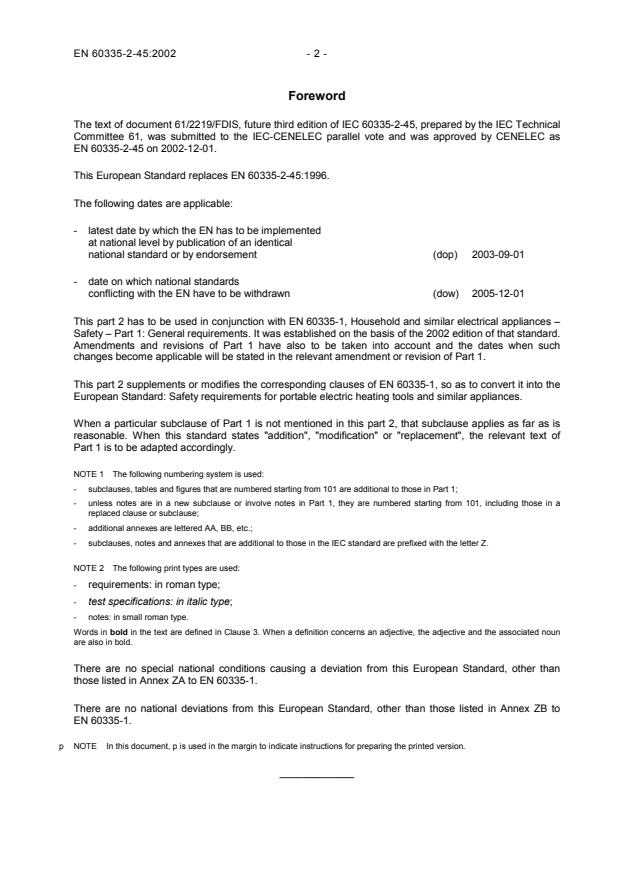

Foreword
The text of document 61/2219/FDIS, future third edition of IEC 60335-2-45, prepared by the IEC Technical
Committee 61, was submitted to the IEC-CENELEC parallel vote and was approved by CENELEC as
EN 60335-2-45 on 2002-12-01.
This European Standard replaces EN 60335-2-45:1996.
The following dates are applicable:
- latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2003-09-01
- date on which national standards
conflicting with the EN have to be withdrawn (dow) 2005-12-01
This part 2 has to be used in conjunction with EN 60335-1, Household and similar electrical appliances –
Safety – Part 1: General requirements. It was established on the basis of the 2002 edition of that standard.
Amendments and revisions of Part 1 have also to be taken into account and the dates when such
changes become applicable will be stated in the relevant amendment or revision of Part 1.
This part 2 supplements or modifies the corresponding clauses of EN 60335-1, so as to convert it into the
European Standard: Safety requirements for portable electric heating tools and similar appliances.
When a particular subclause of Part 1 is not mentioned in this part 2, that subclause applies as far as is
reasonable. When this standard states "addition", "modification" or "replacement", the relevant text of
Part 1 is to be adapted accordingly.
NOTE 1 The following numbering system is used:
- subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;
- unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101, including those in a
replaced clause or subclause;
- additional annexes are lettered AA, BB, etc.;
- subclauses, notes and annexes that are additional to those in the IEC standard are prefixed with the letter Z.
NOTE 2 The following print types are used:
- requirements: in roman type;
- test specifications: in italic type;
- notes: in small roman type.
Words in bold in the text are defined in Clause 3. When a definition concerns an adjective, the adjective and the associated noun
are also in bold.
There are no special national conditions causing a deviation from this European Standard, other than
those listed in Annex ZA to EN 60335-1.
There are no national deviations from this European Standard, other than those listed in Annex ZB to
EN 60335-1.
p NOTE  In this document, p is used in the margin to indicate instructions for preparing the printed version.
_____________
- 3 - EN 60335-2-45:2002
Introduction
p Add:
An investigation by CENELEC TC 61 has shown that all risks from products within the scope of this
standard are fully covered by the Low Voltage Directive, 73/23/EEC. For products having mechanical
moving parts, a risk assessment in accordance with the Machinery Directive, 98/37/EC, has shown that
the risks are mainly of electrical origin and consequently this directive is not applicable. However, the
relevant essential safety requirements of the Machinery Directive are covered by this standard together
with the principal objectives of the Low Voltage Directive.
____________
Endorsement notice
The text of the International Standard IEC 60335-2-45:2002 was approved by CENELEC as a European
Standard without any modification.
____________
NORME CEI
INTERNATIONALE
IEC
60335-2-45
INTERNATIONAL
Troisième édition
STANDARD
Third edition
2002-10
Appareils électrodomestiques et analogues –
Sécurité –
Partie 2-45:
Règles particulières pour les outils chauffants
mobiles et appareils analogues

Household and similar electrical appliances –
Safety –
Part 2-45:
Particular requirements for portable heating tools
and similar appliances
 IEC 2005 Droits de reproduction réservés  Copyright - all rights reserved
Aucune partie de cette publication ne peut être reproduite ni No part of this publication may be reproduced or utilized in any
utilisée sous quelque forme que ce soit et par aucun procédé, form or by any means, electronic or mechanical, including
électronique ou mécanique, y compris la photocopie et les photocopying and microfilm, without permission in writing from
microfilms, sans l'accord écrit de l'éditeur. the publisher.
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: +41 22 919 02 11 Telefax: +41 22 919 03 00 E-mail: inmail@iec.ch Web: www.iec.ch
CODE PRIX
R
PRICE CODE
Commission Electrotechnique Internationale
International Electrotechnical Commission
МеждународнаяЭлектротехническаяКомиссия
Pour prix, voir catalogue en vigueur
For price, see current catalogue

60335-2-45  IEC:2005 – 3 –
CONTENTS
FOREWORD.5
INTRODUCTION.9

1 Scope.11
2 Normative references.13
3 Definitions.13
4 General requirement.17
5 General conditions for the tests .17
6 Classification.17
7 Marking and instructions.19
8 Protection against access to live parts.21
9 Starting of motor-operated appliances .21
10 Power input and current .21
11 Heating.21
12 Void .23
13 Leakage current and electric strength at operating temperature.23
14 Transient overvoltages .23
15 Moisture resistance.23
16 Leakage current and electric strength.23
17 Overload protection of transformers and associated circuits .23
18 Endurance.25
19 Abnormal operation.25
20 Stability and mechanical hazards .27
21 Mechanical strength .27
22 Construction.29
23 Internal wiring.31
24 Components.31
25 Supply connection and external flexible cords .31
26 Terminals for external conductors.33
27 Provision for earthing .33
28 Screws and connections .33
29 Clearances, creepage distances and solid insulation .35
30 Resistance to heat and fire.35
31 Resistance to rusting.35
32 Radiation, toxicity and similar hazards.35

Annexes .37

Bibliography.37

60335-2-45  IEC:2005 – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
___________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-45: Particular requirements for portable heating tools
and similar appliances
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
This part of International Standard IEC 60335 has been prepared by IEC technical committee
61: Safety of household and similar electrical appliances.
This third edition cancels and replaces the second edition published in 1996. It constitutes a
technical revision.
This bilingual version (2005-06) replaces the English version.
The text of this part of IEC 60335 is based on the following documents:
FDIS Report on voting
61/2219/FDIS 61/2294/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.

60335-2-45  IEC:2005 – 7 –
The French version of this standard has not been voted upon.
This part 2 is to be used in conjunction with the latest edition of IEC 60335-1 and its
amendments. It was established on the basis of the fourth edition (2001) of that standard.
NOTE 1 When “Part 1” is mentioned in this standard, it refers to IEC 60335-1.
This part 2 supplements or modifies the corresponding clauses in IEC 60335-1, so as to
convert that publication into the IEC standard: Safety requirements for portable electric
heating tools and similar appliances
When a particular subclause of Part 1 is not mentioned in this part 2, that subclause applies
as far as is reasonable. When this standard states "addition", "modification", or "replacement",
the relevant text in Part 1 is to be adapted accordingly.
NOTE 2 The following numbering system is used:
– subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;
– unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101, including
those in a replaced clause or subclause;
– additional annexes are lettered AA, BB, etc.
NOTE 3 The following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in small roman type.
Words in bold in the text are defined in Clause 3. When a definition concerns an adjective, the adjective and the
associated noun are also in bold.
The following differences exist in the countries indicated below.
– 3.1.9: The conditions of normal operation are different for soldering guns and plastic-cutting tools (USA).
– 6.1: Class 0 appliances are allowed if their rated voltage does not exceed 150 V and class 0I appliances are
allowed (Japan).
– 6.1: Class 0 soldering irons are allowed if their rated power input does not exceed 18 W (Poland).
– 6.1: Class I dehorning tools are allowed. Class 0 appliances are allowed if their rated voltage does not
exceed 150 V and they are for indoor use only (USA).
– 11.7: The test for firelighters is different (USA).
– 11.8: The modification does not apply (USA).
– 21.101: The drop test is different (USA).
– 24.1.3: Switches are tested for 6 000 cycles of operation (Canada and USA).
– 25.7: Lighter cords are allowed (USA).
– 25.7: The modification does not apply (Japan).
– 25.8: Shorter supply cords are allowed for class II dehorning tools (USA).

The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in
the data related to the specific publication. At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
60335-2-45  IEC:2005 – 9 –
INTRODUCTION
It has been assumed in the drafting of this International Standard that the execution of its
provisions is entrusted to appropriately qualified and experienced persons.
This standard recognizes the internationally accepted level of protection against hazards such
as electrical, mechanical, thermal, fire and radiation of appliances when operated as in
normal use taking into account the manufacturer's instructions. It also covers abnormal
situations that can be expected in practice.
This standard takes into account the requirements of IEC 60364 as far as possible so that
there is compatibility with the wiring rules when the appliance is connected to the supply
mains. However, national wiring rules may differ.
If an appliance within the scope of this standard also incorporates functions that are covered
by another part 2 of IEC 60335, the relevant part 2 is applied to each function separately, as
far as is reasonable. If applicable, the influence of one function on the other is taken into
account.
This standard is a product family standard dealing with the safety of appliances and takes
precedence over horizontal and generic standards covering the same subject.
An appliance that complies with the text of this standard will not necessarily be considered to
comply with the safety principles of the standard if, when examined and tested, it is found to
have other features that impair the level of safety covered by these requirements.
An appliance employing materials or having forms of construction differing from those detailed
in the requirements of this standard may be examined and tested according to the intent of
the requirements and, if found to be substantially equivalent, may be considered to comply
with the standard.
60335-2-45  IEC:2005 – 11 –
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-45: Particular requirements for portable heating tools
and similar appliances
1 Scope
This clause of Part 1 is replaced by the following.
This International Standard deals with the safety of portable electric heating tools and
similar appliances, their rated voltage being not more than 250 V.
Appliances not intended for normal household use, but which nevertheless may be a source
of danger to the public, such as appliances intended to be used by laymen in s
...
