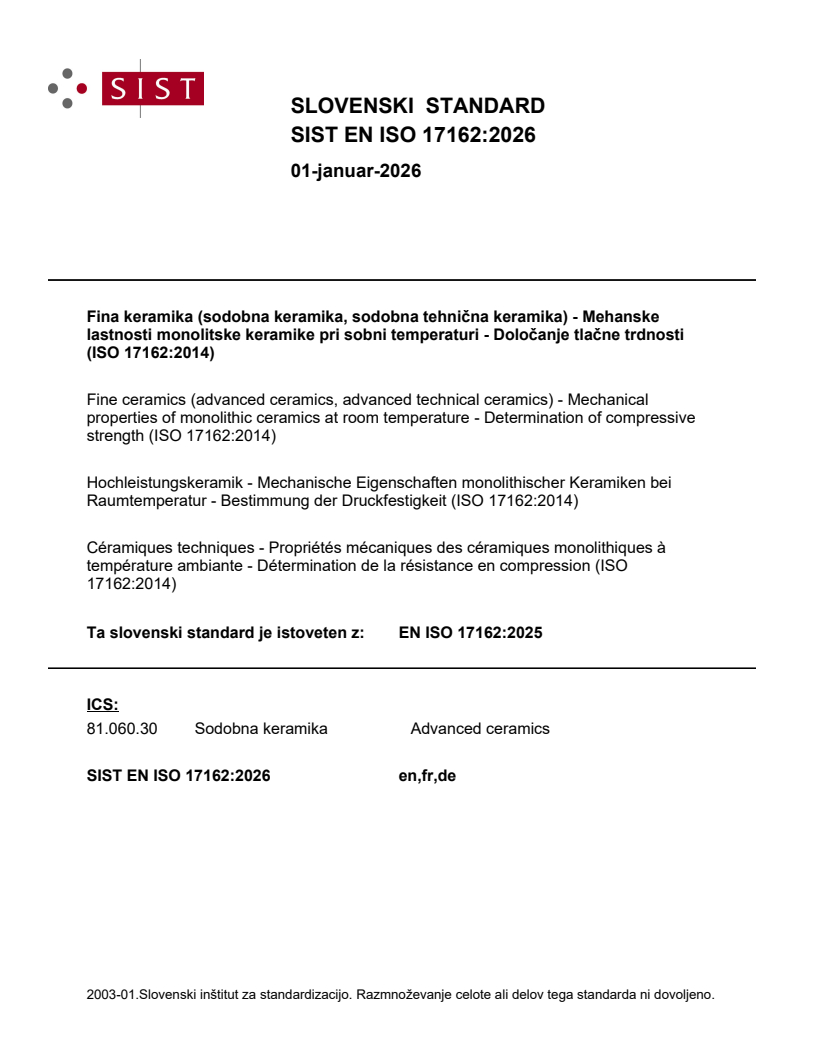

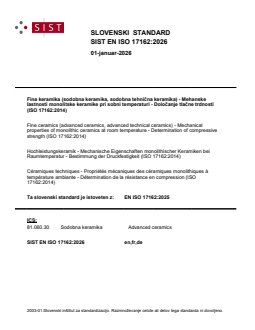

SIST EN ISO 17162:2026

SLOVENSKI STANDARD
01-januar-2026
Fina keramika (sodobna keramika, sodobna tehnična keramika) - Mehanske
lastnosti monolitske keramike pri sobni temperaturi - Določanje tlačne trdnosti
(ISO 17162:2014)
Fine ceramics (advanced ceramics, advanced technical ceramics) - Mechanical
properties of monolithic ceramics at room temperature - Determination of compressive
strength (ISO 17162:2014)
Hochleistungskeramik - Mechanische Eigenschaften monolithischer Keramiken bei
Raumtemperatur - Bestimmung der Druckfestigkeit (ISO 17162:2014)
Céramiques techniques - Propriétés mécaniques des céramiques monolithiques à
température ambiante - Détermination de la résistance en compression (ISO
17162:2014)
Ta slovenski standard je istoveten z: EN ISO 17162:2025
ICS:
81.060.30 Sodobna keramika Advanced ceramics
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

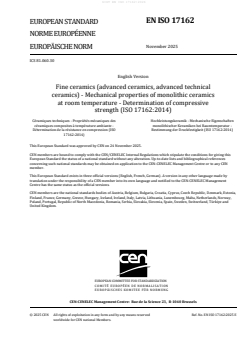

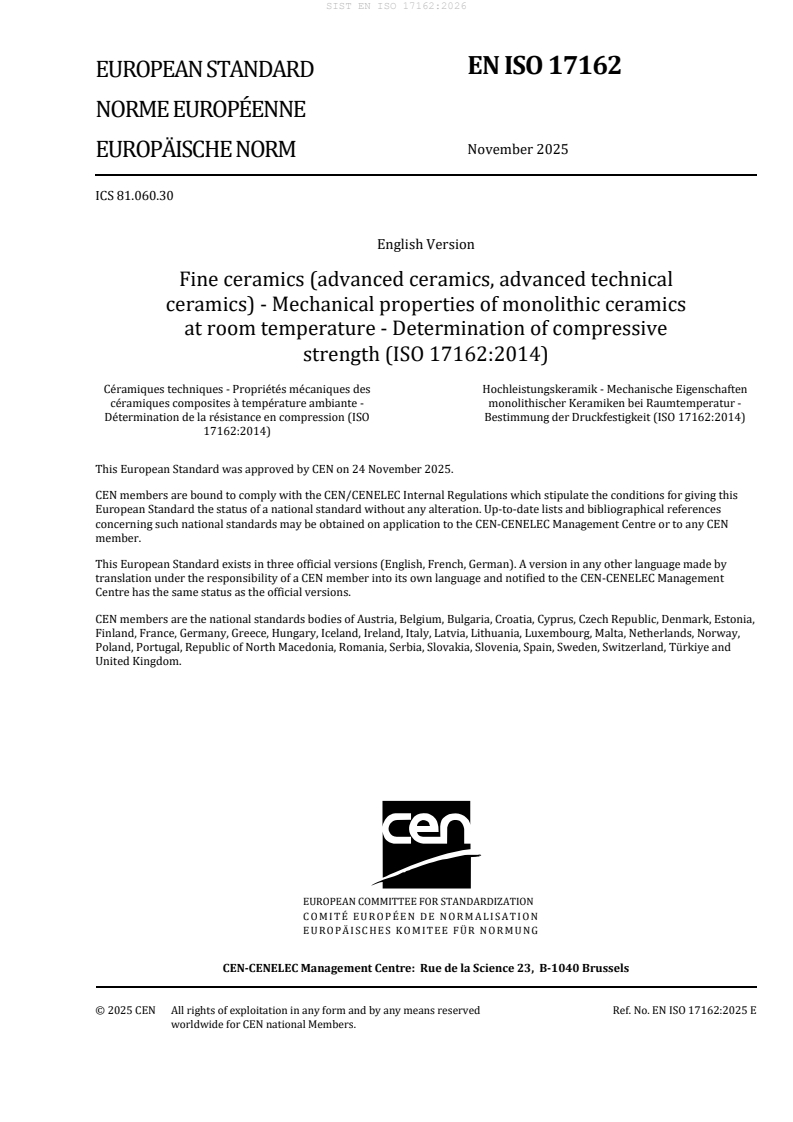

EN ISO 17162
EUROPEAN STANDARD
NORME EUROPÉENNE
November 2025
EUROPÄISCHE NORM
ICS 81.060.30
English Version
Fine ceramics (advanced ceramics, advanced technical
ceramics) - Mechanical properties of monolithic ceramics
at room temperature - Determination of compressive
strength (ISO 17162:2014)
Céramiques techniques - Propriétés mécaniques des Hochleistungskeramik - Mechanische Eigenschaften
céramiques composites à température ambiante - monolithischer Keramiken bei Raumtemperatur -
Détermination de la résistance en compression (ISO Bestimmung der Druckfestigkeit (ISO 17162:2014)
17162:2014)
This European Standard was approved by CEN on 24 November 2025.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 17162:2025 E
worldwide for CEN national Members.

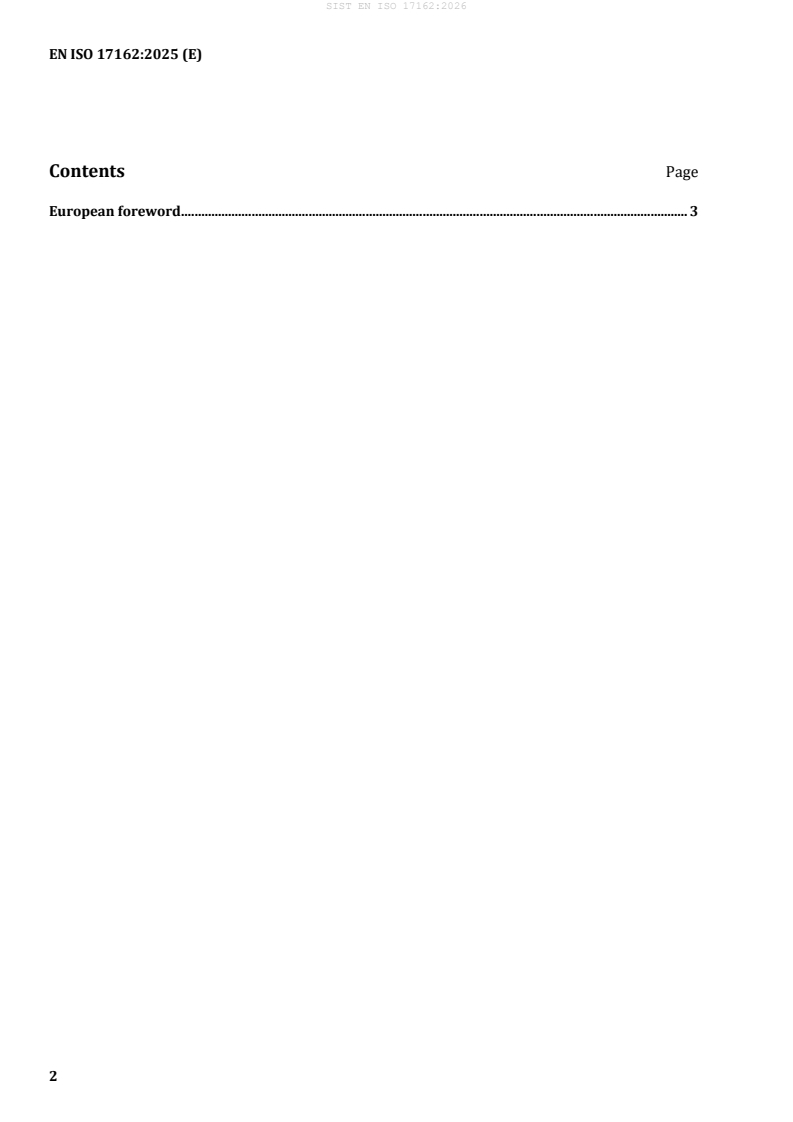

Contents Page
European foreword . 3

European foreword
The text of ISO 17162:2014 has been prepared by Technical Committee ISO/TC 206 "Fine ceramics” of
the International Organization for Standardization (ISO) and has been taken over as EN ISO 17162:2025
by Technical Committee CEN/TC 184 “Advanced technical ceramics” the secretariat of which is held by
DIN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by May 2026, and conflicting national standards shall be
withdrawn at the latest by May 2026.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the
United Kingdom.
Endorsement notice
The text of ISO 17162:2014 has been approved by CEN as EN ISO 17162:2025 without any modification.

INTERNATIONAL ISO
STANDARD 17162
First edition
2014-03-15
Fine ceramics (advanced ceramics,
advanced technical ceramics) —
Mechanical properties of monolithic
ceramics at room temperature
— Determination of compressive
strength
Céramiques techniques — Propriétés mécaniques des céramiques
monolithiques à température ambiante — Détermination de la
résistance en compression
Reference number
ISO 17162:2014(E)
©
ISO 2014
ISO 17162:2014(E)
© ISO 2014
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2014 – All rights reserved

ISO 17162:2014(E)
Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Significance and use . 1
5 Apparatus . 2
5.1 Test machine . 2
5.2 Test jig . 2
5.3 Length measuring equipment . 5
6 Test pieces . 5
6.1 Dimensions and tolerances . 5
6.2 Surface finish . 5
6.3 Number of test pieces . 7
7 Procedure. 7
8 Calculations. 8
9 Test report . 8
ISO 17162:2014(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical Barriers
to Trade (TBT) see the following URL: Foreword - Supplementary information
The committee responsible for this document is ISO/TC 206, Fine ceramics.
iv © ISO 2014 – All rights reserved

INTERNATIONAL STANDARD ISO 17162:2014(E)
Fine ceramics (advanced ceramics, advanced technical
ceramics) — Mechanical properties of monolithic ceramics
at room temperature — Determination of compressive
strength
1 Scope
This International Standard specifies a method for the determination of nominal compressive strength
of advanced monolithic technical ceramic materials at room temperature.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
ISO 3611, Geometrical product specifications (GPS) — Dimensional measuring equipment: Micrometers for
external measurements — Design and metrological characteristics
ISO 7500-1, Metallic materials — Verification of static uniaxial testing machines — Part 1: Tension/compression
testing machines — Verification and calibration of the force-measuring system
ISO/IEC 17025, General requirements for the competence of testing and calibration laboratories
EN 623-4, Advanced technical ceramics — Monolithic ceramics — General and textural properties — Part 4:
Surface roughness
EN 843-5, Advanced technical ceramics — Mechanical properties of monolithic ceramics at room
temperature — Part 5: Statistical analysis
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
nominal compressive strength
σ
c,m
maximum nominal stress supported by the material at the instant of failure when loaded in linear elastic
compression
4 Significance and use
Advanced technical ceramics are used for applications in which their corrosion resistance, their high
temperature stability, their potential for light-weight constructions, and their high nominal compressive
strength can be utilized in an ideal manner. For application of ceramic components, it shall be considered
that they are loaded mainly with compressive stresses since this type of loading is considerably less
critical than probably appearing tensile stresses.
This International Standard describes the background for a directed material development, quality
control, and for component-optimised applications. It ensures the determination of comparable nominal
compressive strength data.
ISO 17162:2014(E)
The result obtained from a compression strength test is determined by a large number of factors
associated with the microstructure of the material, the surface finishing procedure applied for the
preparation of the test pieces, the size and shape of the test piece, the rate of load application, and the
relative humidity of the ambient atmosphere. Furthermore, the result obtained
...
