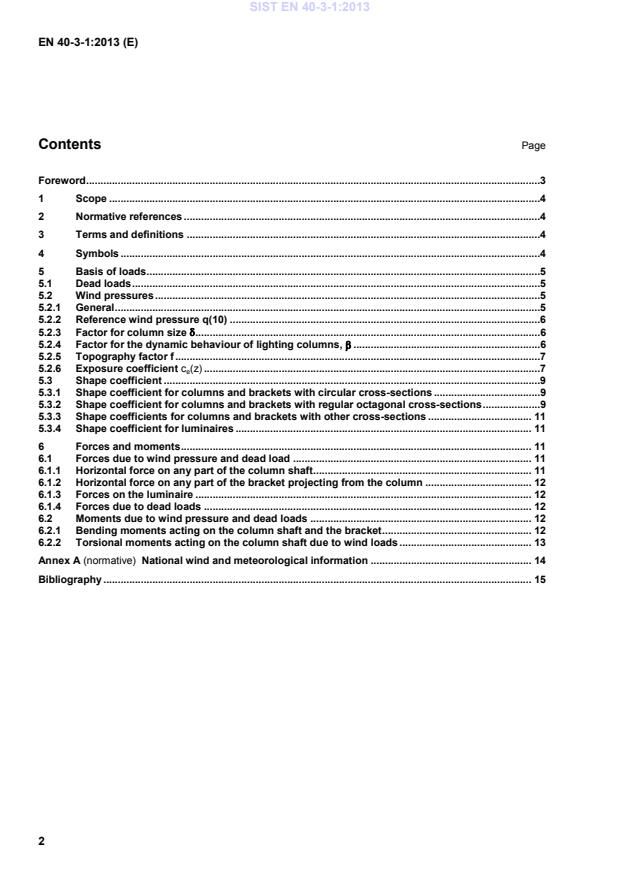

EN 40-3-1:2013 (E) 2 Contents Page Foreword .3 1 Scope .4 2 Normative references .4 3 Terms and definitions .4 4 Symbols .4 5 Basis of loads .5 5.1 Dead loads .5 5.2 Wind pressures .5 5.2.1 General .5 5.2.2 Reference wind pressure q(10) .6 5.2.3 Factor for column size δ .6 5.2.4 Factor for the dynamic behaviour of lighting columns, β .6 5.2.5 Topography factor f .7 5.2.6 Exposure coefficient ce(z) .7 5.3 Shape coefficient .9 5.3.1 Shape coefficient for columns and brackets with circular cross-sections .9 5.3.2 Shape coefficient for columns and brackets with regular octagonal cross-sections .9 5.3.3 Shape coefficients for columns and brackets with other cross-sections . 11 5.3.4 Shape coefficient for luminaires . 11 6 Forces and moments . 11 6.1 Forces due to wind pressure and dead load . 11 6.1.1 Horizontal force on any part of the column shaft . 11 6.1.2 Horizontal force on any part of the bracket projecting from the column . 12 6.1.3 Forces on the luminaire . 12 6.1.4 Forces due to dead loads . 12 6.2 Moments due to wind pressure and dead loads . 12 6.2.1 Bending moments acting on the column shaft and the bracket . 12 6.2.2 Torsional moments acting on the column shaft due to wind loads . 13 Annex A (normative)
National wind and meteorological information . 14 Bibliography . 15
SIST EN 40-3-1:2013



EN 40-3-1:2013 (E) 3 Foreword This document (EN 40-3-1:2013) has been prepared by Technical Committee CEN/TC 50 “Lighting columns”, the secretariat of which is held by AFNOR. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by August 2013, and conflicting national standards shall be withdrawn at the latest by August 2013. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights. This document supersedes EN 40-3-1:2000. This document has been prepared under a mandate given to CEN by the European Commission and the European Free Trade Association. There are seven parts to the series of standards EN 40 - Lighting columns, as follows  Part 1: Definitions and terms;  Part 2 : General requirements and dimensions;  Part 3: Design and verification:  Part 3-1: Specification for characteristic loads;  Part 3-2: Verification by testing;  Part 3-3: Verification by calculation;  Part 4: Requirements for reinforced and prestressed concrete lighting columns,  Part 5: Requirements for steel lighting columns;  Part 6: Requirements for aluminium lighting columns;  Part 7: Requirements for fibre reinforced polymer composite lighting columns. According to the CEN/CENELEC Internal Regulations, the national standards organisations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. SIST EN 40-3-1:2013



EN 40-3-1:2013 (E) 4 1
Scope This European Standard specifies design loads for lighting columns. It applies to lighting columns of nominal height (including any bracket) not exceeding 20 m. Special structural designs to permit the attachment of signs, overhead wires, etc. are not covered by this European Standard. The requirements for lighting columns made from materials other than concrete, steel, aluminium or fibre reinforced polymer composite (for example wood, plastic and cast iron) are not specifically covered in this standard. Fibre reinforced polymer composite lighting columns are covered in this document, in conjunction with Annex B of EN 40-7:2002. This European Standard includes performance requirements for horizontal loads due to wind. Passive safety and the behaviour of a lighting column under the impact of a vehicle are not addressed. Such lighting columns will have additional requirements (see EN 12767). 2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 40-1:1991, Lighting columns — Part 1: Definitions and terms EN 1990, Eurocode — Basis of structural design EN 1991-1-4:2005, Eurocode 1: Actions on structures — Part 1-4: General actions — Wind actions 3 Terms and definitions For the purposes of this document, the terms and definitions given in EN 40-1:1991 apply. 4 Symbols The following symbols are used in this European Standard. The definitions are abbreviated, the full definitions being given in the text.
Ab Projected area of section bracket being considered Ac Projected area of section of column shaft being considered Al Projected area of the luminaire c Shape coefficient CALT Altitude Factor ce(z)
Exposure coefficient Cs Probability factor
cr(z) Roughness Factor
D Diameter or distance across flats f Topography factor Fb Partial horizontal force on section of bracket being considered SIST EN 40-3-1:2013



EN 40-3-1:2013 (E) 5 Fc Partial horizontal force on section of column shaft being considered Fl Partial horizontal or vertical wind force on luminaire h Nominal height kr Terrain factor depending on the roughness length
p Design annual probability of exceedence q(10) Reference wind pressure q(z) Characteristic wind pressure r Radius of corner Re Reynolds number T Period of vibration V Wind speed v Kinematic viscosity of air Vref 10 minute mean wind velocity at 10 m above ground level for terrain category II Vref,o basic value of the reference wind velocity at 10 m above sea level z Height above ground
zmin Is the minimum length defined in Table 3 Zo Is the roughness length β Factor for the dynamic behaviour δ Factor for column size
ρ Air density 5 Basis of loads 5.1 Dead loads In addition to the selfweight of the lighting column, the weights of the brackets and the luminaires shall also be taken into consideration. 5.2
Wind pressures 5.2.1
General The characteristic wind pressure q(z), in N/m2, for any particular height above the ground, z, shall be obtained from the following formula: q(z) = δ× β× f×ce(z)×q(10) (1) where q(10) given in 5.2.2, is the reference wind pressure. δ given in 5.2.3, is a factor related to the column size. β given in 5.2.4, is a factor dependent on the dynamic behaviour of the column. f given in 5.2.5, is a factor related to topography. ce(z) given in 5.2.6, is a factor dependent on the terrain of the site and the height above the ground, z. NOTE 1 q(10), f and ce(z), are based on the principles given in EN 1991-1-4. SIST EN 40-3-1:2013



EN 40-3-1:2013 (E) 6 NOTE 2 The procedure above, using β and δ factors, is intended as a simplified procedure that will off
...
