SIST EN 6059-401:2022
(Main)Aerospace series - Electrical cables, installation - Protection sleeves - Test methods - Part 401: Expansion range
Aerospace series - Electrical cables, installation - Protection sleeves - Test methods - Part 401: Expansion range
This document specifies a method to determine the expansion range of protection sleeve for electrical cable and cable bundles, it is used together with EN 6059-100.
Luft- und Raumfahrt - Elektrische Leitungen, Installation - Schutzschläuche - Prüfverfahren - Teil 401: Ausdehnungsbereich
Dieses Dokument legt ein Verfahren zur Bestimmung des Ausdehnungsbereichs von Schutzschläuchen für elektrische Leitungen und Leitungsbündel fest, es wird zusammen mit EN 6059 100 verwendet.
Série aérospatiale - Câbles électriques, installation - Gaines de protection - Méthodes d'essais - Partie 401 : Gamme d'expansion
Aeronavtika - Električni kabli, namestitev - Zaščitne obojke - Preskusne metode - 401. del: Območje razširitve
Ta dokument določa metodo za določanje območja razširitve zaščitnih obojk za električne kable in kabelske snope. Uporablja se skupaj s standardom EN 6059-100.
General Information
- Status
- Published
- Publication Date
- 12-May-2022
- Technical Committee
- I13 - Imaginarni 13
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 11-May-2022
- Due Date
- 16-Jul-2022
- Completion Date
- 13-May-2022
Overview
EN 6059-401:2022 is a CEN-approved aerospace test method that defines how to determine the expansion range of protection sleeves used on electrical cables and cable bundles. Intended to be used together with EN 6059-100, this part provides a simple, repeatable mandrel-based test to verify that finished sleeves meet the dimensional performance required for reliable installation in aerospace electrical systems.
Key practical attributes of the standard:
- Focused scope: determines expansion limits (maximum and minimum diameters) for protection sleeves.
- Simple specimen and apparatus requirements: minimal preparation and standard mandrel sizes.
- Designed for use in qualification and incoming inspection to confirm fit and installation performance.
Key Topics
- Specimen preparation: A specimen with a minimum length of 300 mm is taken from a finished sleeve for testing.
- Apparatus: Mandrels with a minimum length of 350 mm are used. Mandrel diameters shall be equivalent to the maximum and minimum diameters specified for the sleeve in the product standard.
- Test method:
- Maximum diameter test: slide the specimen over the mandrel sized to the product standard's maximum diameter to confirm the sleeve can be fitted over the larger mandrel.
- Minimum diameter test: slide the specimen over the mandrel sized to the product standard's minimum diameter and stretch the sleeve by hand so that the sleeve is fixed on the mandrel.
- Requirements:
- Maximum diameter: the specimen can be slid over the mandrel.
- Minimum diameter: the specimen remains fixed on the mandrel when stretched by hand.
These steps provide a clear, reproducible way to confirm the usable expansion range without complex equipment.
Applications
EN 6059-401:2022 is directly applicable to aerospace manufacturers, suppliers and quality teams who need to:
- Validate protection sleeve design and manufacturing against declared expansion ranges.
- Perform incoming inspection of sleeves before cable harness assembly.
- Support installation qualification by ensuring sleeves will fit intended cable diameters and bundles.
Practical benefits include improved installation reliability, reduced rework in harness assembly, and demonstrable compliance with aerospace installation practices.
Related Standards
- EN 6059-100 - General test methods for protection sleeves; EN 6059-401 is intended to be used together with this general part.
- The standard forms part of the broader Aerospace series - Electrical cables, installation - Protection sleeves - Test methods, and aligns with CEN/CENELEC and ASD-STAN processes for European aerospace standardization.
Notes: EN 6059-401:2022 contains no normative references and no terms and definitions within the document. For additional terminology and related standards consult ISO/IEC term resources and the referenced EN 6059 series documents.
Frequently Asked Questions
SIST EN 6059-401:2022 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Aerospace series - Electrical cables, installation - Protection sleeves - Test methods - Part 401: Expansion range". This standard covers: This document specifies a method to determine the expansion range of protection sleeve for electrical cable and cable bundles, it is used together with EN 6059-100.
This document specifies a method to determine the expansion range of protection sleeve for electrical cable and cable bundles, it is used together with EN 6059-100.
SIST EN 6059-401:2022 is classified under the following ICS (International Classification for Standards) categories: 29.060.20 - Cables; 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
You can purchase SIST EN 6059-401:2022 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of SIST standards.
Standards Content (Sample)
SLOVENSKI STANDARD
01-julij-2022
Aeronavtika - Električni kabli, namestitev - Zaščitne obojke - Preskusne metode -
401. del: Območje razširitve
Aerospace series - Electrical cables, installation - Protection sleeves - Test methods -
Part 401: Expansion range
Luft- und Raumfahrt - Elektrische Leitungen, Installation - Schutzschläuche -
Prüfverfahren - Teil 401: Ausdehnungsbereich
Série aérospatiale - Câbles électriques, installation - Gaines de protection - Méthodes
d'essais - Partie 401 : Gamme d'expansion
Ta slovenski standard je istoveten z: EN 6059-401:2022
ICS:
29.060.20 Kabli Cables
49.060 Letalska in vesoljska Aerospace electric
električna oprema in sistemi equipment and systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EN 6059-401
EUROPEAN STANDARD
NORME EUROPÉENNE
May 2022
EUROPÄISCHE NORM
ICS 49.060
English Version
Aerospace series - Electrical cables, installation -
Protection sleeves - Test methods - Part 401: Expansion
range
Série aérospatiale - Câbles électriques, installation - Luft- und Raumfahrt - Elektrische Leitungen,
Gaines de protection - Méthodes d'essais - Partie 401 : Installation - Schutzschläuche - Prüfverfahren - Teil
Gamme d'expansion 401: Ausdehnungsbereich
This European Standard was approved by CEN on 10 January 2022.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 6059-401:2022 E
worldwide for CEN national Members.

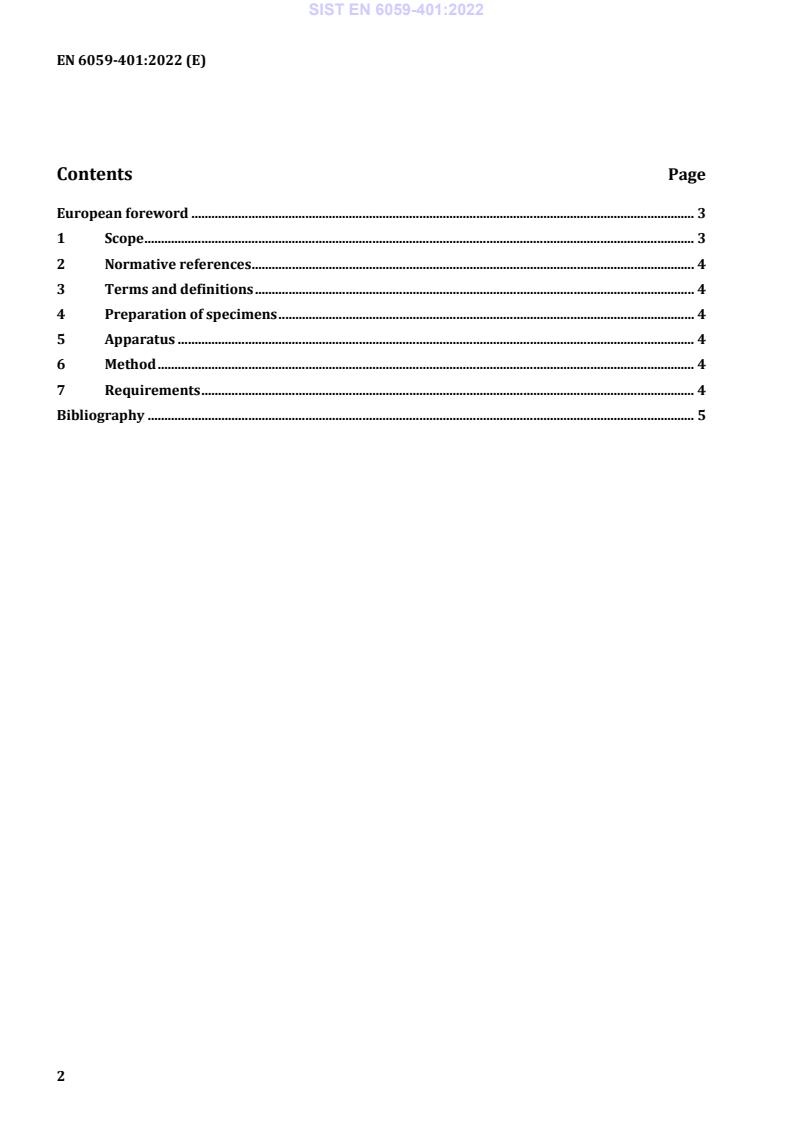

Contents Page
European foreword . 3
1 Scope . 3
2 Normative references . 4
3 Terms and definitions . 4
4 Preparation of specimens . 4
5 Apparatus .
...
