SIST EN 60300-3-1:2007

SLOVENSKI STANDARD
01-januar-2007
Upravljanje zagotovljivosti - 3-1. del: Vodilo za uporabo - Tehnike analiziranja
zagotovljivosti - Vodilo za metodologijo (IEC 60300-3-1:2003)
Dependability management -- Part 3-1: Application guide - Analysis techniques for
dependability - Guide on methodology
Zuverlässigkeitsmanagement -- Teil 3-1: Anwendungsleitfaden - Verfahren zur Analyse
der Zuverlässigkeit - Leitfaden zur Methodik
Gestion de la sûreté de fonctionnement -- Partie 3-1: Guide d'application - Techniques
d'analyse de la sûreté de fonctionnement - Guide méthodologique
Ta slovenski standard je istoveten z: EN 60300-3-1:2004
ICS:
03.120.01 Kakovost na splošno Quality in general
21.020 =QDþLOQRVWLLQQDþUWRYDQMH Characteristics and design of
VWURMHYDSDUDWRYRSUHPH machines, apparatus,
equipment
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN 60300-3-1
NORME EUROPÉENNE
EUROPÄISCHE NORM September 2004

ICS 03.120.30;21.020
English version
Dependability management
Part 3-1: Application guide –
Analysis techniques for dependability –
Guide on methodology
(IEC 60300-3-1:2003)
Gestion de la sûreté de fonctionnement Zuverlässigkeitsmanagement
Partie 3-1: Guide d'application - Teil 3-1: Anwendungsleitfaden –
Techniques d'analyse de la sûreté Verfahren zur Analyse der Zuverlässigkeit -
de fonctionnement – Leitfaden zur Methodik
Guide méthodologique (IEC 60300-3-1:2003)
(CEI 60300-3-1:2003)
This European Standard was approved by CENELEC on 2004-09-01. CENELEC members are bound to
comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and
notified to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden,
Switzerland and United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2004 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.

Ref. No. EN 60300-3-1:2004 E

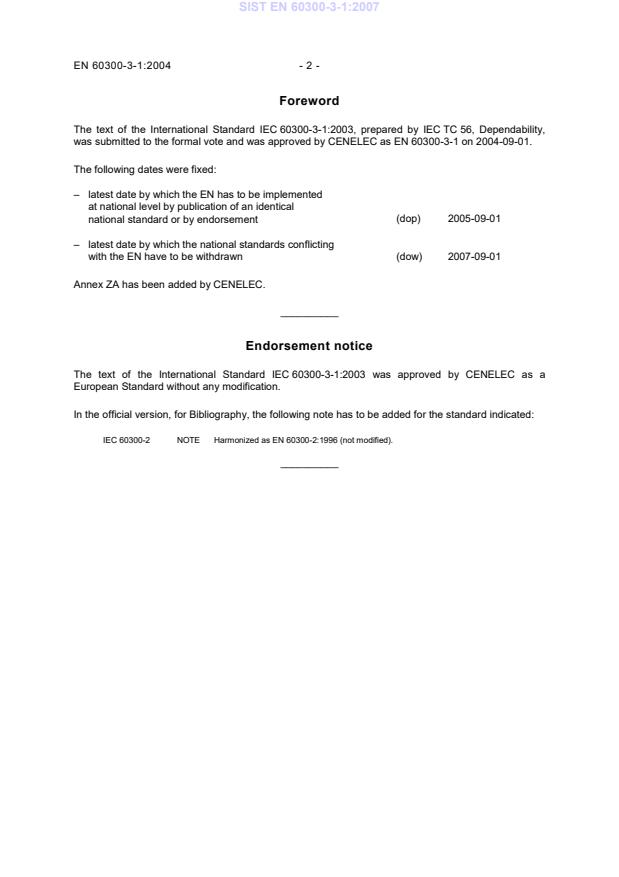

Foreword
The text of the International Standard IEC 60300-3-1:2003, prepared by IEC TC 56, Dependability,
was submitted to the formal vote and was approved by CENELEC as EN 60300-3-1 on 2004-09-01.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2005-09-01
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2007-09-01
Annex ZA has been added by CENELEC.
__________
Endorsement notice
The text of the International Standard IEC 60300-3-1:2003 was approved by CENELEC as a
European Standard without any modification.
In the official version, for Bibliography, the following note has to be added for the standard indicated:
IEC 60300-2 NOTE Harmonized as EN 60300-2:1996 (not modified).
__________
- 3 - «Field32»
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
NOTE Where an international publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
Publication Year Title EN/HD Year
IEC 60050-191 1990 International Electrotechnical Vocabulary - -
(IEV)
Chapter 191: Dependability and quality of
service
IEC 60300-3-2 1993 Dependability management - -
Part 3: Application guide –
Section 2: Collection of dependability
data from the field
IEC 60300-3-4 1996 Part 3: Application guide – - -
Section 4: Guide to the specification of
dependability requirements
IEC 60300-3-5 2001 Part 3-5: Application guide - Reliability - -
test conditions and statistical test
principles
IEC 60300-3-10 2001 Part 3-10: Application guide - - -
Maintainability
IEC 60706-1 1982 Guide on maintainability of equipment - -
Part 1 - Sections 1, 2 and 3: Introduction,
requirements and maintainability
programme
IEC 60706-2 1990 Part 2 - Section 5: Maintainability studies - -
during the design phase
IEC 60812 1985 Analysis techniques for system reliability - HD 485 S1 1987
Procedure for failure mode and effects
analysis (FMEA)
IEC 61078 1991 Analysis techniques for dependability - EN 61078 1993
Reliability block diagram method

IEC 61165 1995 Application of Markov techniques - -

IEC 61709 1996 Electronic components - Reliability - EN 61709 1998
Reference conditions for failure rates and
stress models for conversion
Publication Year Title EN/HD Year
IEC 61882 2001 Hazard and operability studies (HAZOP - -
studies) - Application guide
ISO 9000 2000 Quality management systems - EN ISO 9000 2000
Fundamentals and vocabulary
INTERNATIONAL IEC
STANDARD
60300-3-1
Second edition
2003-01
Dependability management –
Part 3-1:
Application guide –
Analysis techniques for dependability –
Guide on methodology
Gestion de la sûreté de fonctionnement –
Partie 3-1:
Guide d'application –
Techniques d'analyse de la sûreté de fonctionnement –
Guide méthodologique
 IEC 2003  Copyright - all rights reserved
No part of this publication may be reproduced or utilized in any form or by any means, electronic or
mechanical, including photocopying and microfilm, without permission in writing from the publisher.
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: +41 22 919 02 11 Telefax: +41 22 919 03 00 E-mail: inmail@iec.ch  Web: www.iec.ch
PRICE CODE
Commission Electrotechnique Internationale
XA
International Electrotechnical Commission
Международная Электротехническая Комиссия
For price, see current catalogue

– 2 – 60300-3-1  IEC:2003(E)
CONTENTS
FOREWORD . 3
INTRODUCTION .4
1 Scope . 5
2 Normative references. 5
3 Definitions . 6
4 Basic dependability analysis procedure. 7
4.1 General procedure. 7
4.2 Dependability analysis methods. 8
4.3 Dependability allocations .10
4.4 Dependability analysis .11
4.5 Maintenance and repair analysis and considerations .13
5 Selecting the appropriate analysis method.13
Annex A (informative) Brief description of analysis techniques .16
Bibliography.58
Figure 1 – General dependability analysis procedure . 7
Figure A.1 – Temperature dependence of the failure rate.19
Figure A.2 – Fault tree for an audio amplifier.21
Figure A.3 – Sub-tree from FTA in Figure A.2.22
Figure A.4 – Event tree .24
Figure A.5 – Elementary models.26
Figure A.6 – Example of unit .28
Figure A.7 – State-transition diagram .29
Figure A.8 – Block diagram of a multiprocessor system.32
Figure A.9 – Petri net of a multiprocessor system.33
Figure A.10 – The HAZOP study procedure.37
Figure A.11 – Human errors shown as an event tree .41
Figure A.12 – Example – Application of stress–strength criteria .43
Figure A.13 – Truth table for simple systems.44
Figure A.14 – Example.44
Figure A.15 – Cause and effect diagram .56
Table 1 – Use of methods for general dependability analysis tasks . 9
Table 2 – Characteristics of selected dependability analysis methods .15
Table A.1 – Symbols used in the representation of the fault treee .22
Table A.2 – States of the unit .28
Table A.3 – Effects of failures in functional and diagnostic parts .29
Table A.4 – Transition rates .30
Table A.5 – Example of FMEA.35
Table A.6 – Basic guide words and their generic meanings .36
Table A.7 – Additional guide words relating to clock time and order or sequence .36
Table A.8 – Credible human errors.40
Table A.9 – Truth table example.45

60300-3-1  IEC:2003(E) – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
DEPENDABILITY MANAGEMENT –
Part 3-1: Application guide –
Analysis techniques for dependability – Guide on methodology
FOREWORD
1) The IEC (International Electrotechnical Commission) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of the IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, the IEC publishes International Standards. Their preparation is
entrusted to technical committees; any IEC National Committee interested in the subject dealt with may
participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. The IEC collaborates closely with the International
Organization for Standardization (ISO) in accordance with conditions determined by agreement between the
two organizations.
2) The formal decisions or agreements of the IEC on technical matters express, as nearly as possible, an
international consensus of opinion on the relevant subjects since each technical committee has representation
from all interested National Committees.
3) The documents produced have the form of recommendations for international use and are published in the form
of standards, technical specifications, technical reports or guides and they are accepted by the National
Committees in that sense.
4) In order to promote international unification, IEC National Committees undertake to apply IEC International
Standards transparently to the maximum extent possible in their national and regional standards. Any
divergence between the IEC Standard and the corresponding national or regional standard shall be clearly
indicated in the latter.
5) The IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with one of its standards.
6) Attention is drawn to the possibility that some of the elements of this International Standard may be the subject
of patent rights. The IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60300-3-1 has been prepared by IEC technical committee 56:
Dependability.
This second edition cancels and replaces the first edition, published in 1991, and constitutes
a full technical revision. In particular, the guidance on the selection of analysis techniques
and the number of analysis techniques covered has been extended.
The text of this standard is based on the following documents:
FDIS Report on voting
56/825/FDIS 56/840/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
The committee has decided that the contents of this publication will remain unchanged until 2007.
At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
– 4 – 60300-3-1  IEC:2003(E)
INTRODUCTION
The analysis techniques described in this part of IEC 60300 are used for the prediction,
review and improvement of reliability, availability and maintainability of an item.
These analyses are conducted during the concept and definition phase, the design and
development phase and the operation and maintenance phase, at various system levels and
degrees of detail, in order to evaluate, determine and improve the dependability measures of
an item. They can also be used to compare the results of the analysis with specified
requirements.
In addition, they are used in logistics and maintenance planning to estimate frequency of
maintenance and part replacement. These estimates often determine major life cycle cost
elements and should be carefully applied in life cycle cost and comparative studies.
In order to deliver meaningful results, the analysis should consider all possible contributions
to the dependability of a system: hardware, software, as well as human factors and
organizational aspects.
60300-3-1  IEC:2003(E) – 5 –
DEPENDABILITY MANAGEMENT –
Part 3-1: Application guide –
Analysis techniques for dependability – Guide on methodology
1 Scope
This part of IEC 60300 gives a general overview of commonly used dependability analysis
techniques. It describes the usual methodologies, their advantages and disadvantages, data
input and other conditions for using various techniques.
This standard is an introduction to selected methodologies and is intended to provide the
necessary information for choosing the most appropriate analysis methods.
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 60050(191):1990, International Electrotechnical Vocabulary (IEV) – Chapter 191:
Dependability and quality of service
IEC 60300-3-2:1993, Dependability management – Part 3: Application guide – Section 2:
Collection of dependability data from the field
IEC 60300-3-4:1996, Dependability management – Part 3: Application guide – Section 4:
Guide to the specification of dependability requirements
IEC 60300-3-5:2001, Dependability management – Part 3-5: Application guide – Reliability
test conditions and statistical test principles
IEC 60300-3-10:2001, Dependability management – Part 3-10: Application guide –
Maintainability
IEC 60706-1:1982, Guide on maintainability of equipment – Part 1: Sections One, Two and
Three – Introduction, requirements and maintainability programme
IEC 60706-2:1990, Guide on maintainability of equipment – Part 2: Section Five –
Maintainability studies during the design phase
IEC 60812:1985, Analysis techniques for system reliability – Procedure for failure mode and
effects analysis (FMEA)
IEC 61078:1991, Analysis techniques for dependability – Reliability block diagram method
IEC 61165:1995, Application of Markov techniques
IEC 61709:1996, Electronic components – Reliability – Reference conditions for failure rates
and stress models for conversion
IEC 61882:2001, Hazard and operability studies (HAZOP studies) – Application guide
ISO 9000:2000, Quality management systems – Fundamentals and vocabulary

– 6 – 60300-3-1  IEC:2003(E)
3 Definitions
For the purposes of this part of IEC 60300, the definitions given in IEC 60050(191), some of
which are reproduced below, together with the following definitions, apply.
3.1
item, entity
any part, component, device, sub-system, functional unit, equipment or system that can be
individually considered
NOTE An item may consist of hardware, software or both, and may also in particular cases, include people.
[IEV 191-01-01]
3.2
system
set of interrelated or interacting elements
[ISO 9000, 2000]
NOTE 1  In the context of dependability, a system will have
a) a defined purpose expressed in terms of required functions, and
b) stated conditions of operation/use.
NOTE 2 The concept of a system is hierarchical.
3.3
component
item on the lowest level considered in the analysis
3.4
allocation
procedure applied during the design of an item intended to apportion the requirements for
performance measures for an item to its sub-items according to given criteria
3.5
failure
termination of the ability of an item to perform a required function
NOTE 1 After failure the item has a fault.
NOTE 2 ‘Failure’ is an event, as distinguished from ‘fault’, which is a state.
[IEV 191-04-01]
3.6
fault
state of an item characterized by inability to perform a required function, excluding the
inability during preventive maintenance or other planned actions, or due to lack of external
resources
NOTE A fault is often the result of a failure of the item itself, but may exist without prior failure.
[IEV 191-05-01]
60300-3-1  IEC:2003(E) – 7 –
4 Basic dependability analysis procedure
4.1 General procedure
Start Stop
System
Go back to the
Yes
definition
appropriate task
No
Dependability
Requirements/
requirements/
No
goals met?
goals definition
No
Allocation of
dependability Review and
requirements recommendation
(if necessary)
Dependability
analysis
(qualitative/
quantitative)
IEC  3217/02
Figure 1 – General dependability analysis procedure
A general dependability analysis procedure consists of the following tasks (as applicable):
a) System definition
Define the system to be analysed, its modes of operation, the functional relationships to
its environment including interfaces or processes. Generally the system definition is an
input from the system engineering process.
b) Dependability requirements/goals definition
List all system reliability and availability requirements or goals, characteristics and
features, together with environmental and operating conditions, as well as maintenance
requirements. Define system failure, failure criteria and conditions based on system
functional specification, expected duration of operation and operating environment
(mission profile and mission time). IEC 60300-3-4 should be used as guidance.
c) Allocation of dependability requirements
Allocate system dependability requirements or goals to the various sub-systems in the
early design phase when necessary.
d) Dependability analysis
Analyse the system usually on the basis of the dependability techniques and relevant
performance data.
– 8 – 60300-3-1  IEC:2003(E)
1) Qualitative analysis
– Analyse the functional system structure.
– Determine system and component fault modes, failure mechanisms, causes, effects
and consequences of failures.
– Determine degradation mechanism that may cause failures.
– Analyse failure/fault paths.
– Analyse maintainability with respect to time, problem isolation method, and repair
method.
– Determine the adequacy of the diagnostics provided to detect faults.
– Analyse possibility for fault avoidance.
– Determine possible maintenance and repair strategies, etc.
2) Quantitative analysis
– Develop reliability and/or availability models.
– Define numerical reference data to be used.
– Perform numerical dependability evaluations.
– Perform component criticality and sensitivity analyses as required.
e) Review and recommendations
Analyse whether the dependability requirements/goals are met and if alternative designs
may cost effectively enhance dependability. Activities may include the following tasks (as
appropriate):
– Evaluate improvement of system dependability as a result of design and manufacture
improvement (e.g. redundancy, stress reduction, improvement of maintenance
strategies, test systems, technological processes and quality control system).
NOTE 1 The inherent dependability performance measures can be improved only by design. When poor
measured values are observed due to bad manufacturing processing, from the operating point of view,
observed dependability performance measures can be enhanced by improving the manufacturing process.
– Review system design, determine weaknesses and critical fault modes and
components.
– Consider system interface problems, fail-safe features and mechanisms, etc.
– Develop alternative ways for improving dependability, e.g. redundancy, performance
monitoring, fault detection, system reconfiguration techniques, maintenance pro-
cedures, component replaceability, repair procedures.
– Perform trade-off studies evaluating the cost and complexity of alternative designs.
– Evaluate the effect of manufacturing process capability.
– Evaluate the results and compare with requirements.
NOTE 2 The general procedure summarizes, from an engineering point of view, the specific dependability
programme elements from IEC 60300-2, which are applicable for dependability analysis: dependability
specifications, analysis of use environment, reliability engineering, maintainability engineering, human
factors, reliability modelling and simulation, design analysis and product evaluation, cause-effect impact
and risk analysis, prediction and trade-off analysis.
4.2 Dependability analysis methods
The methods presented in this standard fall into two main categories:
– methods which are primarily used for dependability analysis;
– general engineering methods which support dependability analysis or add value to design
for dependability.
The usability of the dependability analysis methods within the general dependability analysis
tasks of the general analysis procedure is given in Table 1. Table 2 gives more detailed
characteristics. The methods are explained briefly in Annex A.

60300-3-1  IEC:2003(E) – 9 –
Table 1 – Use of methods for general dependability analysis tasks
Allocation of Review and
Analysis Qualitative
dependability Quantitative analysis recommen- Annex
method analysis
requirements/goals dations
Failure rate Applicable for serial Possible for Calculation of failure Supporting A.1.1
prediction systems without maintenance rates and MTTF for
redundancy strategy analysis electronic components
and equipment
Fault tree Applicable, if system Fault combinations Calculation of system Applicable A.1.2
analysis behaviour is not reliability, availability
heavily time- or and relative
sequence-dependent contributions of
subsystems to system
unavailability
Event tree Possible Failure sequences Calculation of system Applicable A.1.3
analysis failure rates
Reliability block Applicable, for systems Success paths Calculation of system Applicable A.1.4
diagram where independent reliability, availability
analysis blocks can be assumed
Markov analysis Applicable Failure sequences Calculation of system Applicable A.1.5
reliability, availability
Petri net Applicable Failure sequences To provide the system Applicable A.1.6
analysis description for Markov
analysis
Failure modes Applicable for systems Effects of failures Calculation of system Applicable A.1.7
and effects (and where independent failure rates (and
criticality) single failure is criticality)
analysis; predominant
FME(C)A
HAZOP studies Supporting Causes and Not applicable Supporting A.1.8
consequences of
deviations
Human Supporting Impact of human Calculation of error Supporting A.1.9
reliability performance on probabilities for human
analysis system operation tasks
Stress-strength Not applicable Usable as a means Calculation of Supporting A.1.10
analysis of fault avoidance reliability for (electro)
mechanical
components
Truth table Not applicable Possible Calculation of system Supporting A.1.11
(structure reliability, availability
function
analysis)
Statistical Possible Impact of faults Quantitative estimation Supporting A.1.12
reliability of reliability with
methods uncertainties
NOTE The particular wording in the table is used as follows:
‘Applicable’ means that the method is generally applicable and recommended for the task (possibly with the
mentioned restrictions).
‘Possible’ means that the method may be used for this task but has certain drawbacks compared to other
methods.
‘Supporting’ means that the method is generally applicable for a certain part of the task but not as a stand-
alone method for the complete task.
‘Not applicable’ means that the method cannot be used for this task.

– 10 – 60300-3-1  IEC:2003(E)
Among the supporting or general engineering methods are (the list being not necessarily
exhaustive):
– maintainability studies (covered by IEC 60300-3-10 in general and IEC 60706-2 in
particular);
– sneak circuit analysis (A.2.1);
– worst case analysis (A.2.2);
– variation simulation modelling (A.2.3);
– software reliability engineering (A.2.4);
– finite element analysis (A.2.5);
– parts derating and selection (A.2.6);
– Pareto analysis (A.2.7);
– cause and effect diagrams (A.2.8);
– failure reporting and corrective action system (A.2.9)
It should also be noted that the methods are named and understood in the sense of the
relevant IEC standards (where they exist). The following methods have not been included as
separate methods because they are derived from or closely related to primary methods:
– cause/consequence analysis is a combination of ETA and FTA;
– dynamic FTA is an extension of FTA, where certain events are expressed by Markov sub-
models;
– functional failure analysis is a particular type of functional FMEA;
– binary decision diagrams are mainly used as an efficient representation of fault trees.
4.3 Dependability allocations
Defining the dependability requirements for sub-systems is an essential part of the system
design work. The objective of this task is to find the most effective system architecture to
achieve the dependability requirements (and thus contribute to the feasibility study). As
dependability is the collective term for reliability, availability and maintainability, an allocation
for each of these characteristics is necessary. However as allocation techniques for all three
characteristics are similar, the collective term dependability is used in this instance.
The first step is to allocate the dependability requirements of the overall system to sub-
systems, depending on the complexity of these sub-systems based on experience with
comparable sub-systems. If the requirements are not met by the initial design, allocation
and/or design shall be repeated. Allocation is also often made on the basis of considerations
such as complexity, criticality, operational profile and environmental condition.
Since dependability allocation is normally required at an early stage when little or no
information is available, the allocation should be updated periodically.
Allocation, sometimes called apportionment, of system dependability to the sub-system and
assembly levels is necessary early in the product definition phase in order to
– check the feasibility of dependability requirements for the system,
– establish realistic dependability design requirements at lower levels,
– establish clear and verifiable dependability requirements for sub-suppliers.

60300-3-1  IEC:2003(E) – 11 –
When accomplishing dependability allocation, the following steps are needed:
– Analyse the system and identify areas where design is known and information concerning
values of dependability characteristics is available or can be readily assessed.
– Assign the appropriate weights and determine their contribution to the top-level system
dependability requirement. The difference constitutes the portion of the dependability
requirement that can be allocated to the other areas.
Dependability allocation has the following benefits:
– It provides a way for the product development to progress and to understand the
dependability goals relationships between system and their items (e.g. sub-systems,
equipment, components).
– It considers dependability equally with other design parameters such as cost and
performance characteristics.
– It provides specific dependability goals for the suppliers to meet for their deliveries, which,
in turn, leads to improved design and procurement procedures.
– It may lead to optimum system dependability because it considers such factors as
complexity, criticality and effect of operational environment.
On the other hand, some limitations should be noted:
– Assumption is often made that the items of a system are independent, i.e. failure of one
item does not affect others. Since this assumption is often not valid, this limitation reduces
the benefits of the method.
– Allocation of redundant systems is more complex. In these cases, it is appropriate to use
an iterative method to check whether dependability goals for the system can be reached,
for example the fault tree method.
4.4 Dependability analysis
4.4.1 Categories of methods
Dependability analysis methods, which are explained briefly in Annex A, can be classified by
the following categories with regard to their main purpose:
a) methods for fault avoidance, e.g.
1) parts derating and selection,
2) stress-strength analysis;
b) methods for architectural analysis and dependability assessment (allocation), e.g.
1) bottom-up method (mainly dealing with effects of single faults),
– event tree analysis (ETA),
– failure mode and effects analysis (FMEA),
– hazard and operability study (HAZOP);
2) top-down methods (able to account for effects arising from combination of faults)
– fault tree analysis (FTA),
– Markov analysis,
– Petri net analysis,
– truth table (structure function analysis),
– reliability block diagrams (RBD);

– 12 – 60300-3-1  IEC:2003(E)
c) methods for estimation of measures for basic events, e.g.
– failure rate prediction,
– human reliability analysis (HRA),
– statistical reliability methods,
– software reliability engineering (SRE).
Another distinction is whether these methods work with sequences of events or time-
dependent properties. If this is taken into account, the following comprehensive categorization
results:
Sequence
Event-tree analysis Markov, Petri, truth table
dependent
Sequence
FMEA, HAZOP FTA, RBD
independent
Bottom-up (single fault) Top-down (multiple faults)
These analysis methods allow for the evaluation of qualitative characteristics as well as
estimation of quantitative ones in order to predict long-term operating behaviour. It should be
noticed that the validity of any result is clearly dependent on the accuracy and correctness of
the input data for the basic events.
However, no single dependability analysis method is sufficiently comprehensive and flexible
to deal with all the possible model complexities required to evaluate the features of practical
systems (hardware and software, complex functional structures, various technologies,
repairable and maintainable structures, etc.). It may be necessary to consider several
complementary analysis methods to ensure proper treatment of complex or multi-functional
systems.
In practice, a composite approach, with top-down and bottom-up analysis complementing one
another, has proven to be very effective, in particular with respect to ensuring the
completeness of the analysis.
4.4.2 Bottom-up methods
The starting point of any bottom-up method is to identify failure modes at the component
level. For each failure mode, the corresponding effect on performance is deduced for the
appropriate system level. This “bottom-up” method is rigorous in identifying all single-failure
modes, because it can rely on parts lists or other checklists. In the initial stages of
development, the analysis may be qualitative in nature and deal with functional failures. Later,
as the component design details become available a quantitative analysis can be undertaken.
4.4.3 Top-down methods
At first, the undesirable single event or system success at the highest level of interest (the top
event) should be defined. The contributory causes of that event at all levels are then identified
and analysed.
The starting point of the top-down approach is to proceed from the highest level of interest,
that is, the system or sub-system level, to successively lower levels in order to identify
undesirable system operations.
The analysis is performed at the next lowest system level to identify any failure and its
associated failure mode, which could result in the failure effect as originally identified. For
each of these second level failures, the analysis is repeated by tracing back along the
functional paths and relationships to the next lowest level. This process is continued as far as
the lowest level desired.
60300-3-1  IEC:2003(E) – 13 –
The top-down approach is used for evaluating multiple failures including sequentially related
failures, the existence of faults due to a common cause, or wherever system complexity
makes it more convenient to begin by listing system failures.
4.5 Maintenance and repair analysis and considerations
The performance of a repairable system is greatly influenced by the system maintainability as
well as the repair or maintenance strategies employed. The availability performance measure
is the appropriate measure for evaluating the influence of maintenance and repair on system
dependability when long-term provision of function is the critical requirement. Reliability is the
appropriate performance measure when continuous provision of function is the critical
requirement.
Repair of a system during operation without interruption of its function is normally possible
only for a redundant system structure with accessible redundant components. If so, then
repair or replacement increases system reliability performance and availability performance.
It is usually necessary to perform a separate analysis to evaluate repair and maintenance
aspects of a system (see IEC 60706-1, IEC 60706-2 and IEC 60300-3-10).
5 Selecting the appropriate analysis method
Selecting methods to implement into a dependability programme is a highly individualized
process, so much so that a general suggestion for a selection of one or more of the specific
methods cannot be made. The selection of appropriate methods should be carried out by a
joint effort of experts from the dependability and system engineering field. Selection should be
made early in the programme development and should be reviewed for applicability.
Selecting methods can be made easier, however, by using the following criteria:
a) System complexity: complex systems, e.g. involving redundancy or diversity features,
usually demand a deeper level of analysis than simpler systems.
b) System novelty: a completely new system design may require a more thorough level of
analysis than a well-proven design.
c) Qualitative versus quantitative analysis: is a quantitative analysis necessary?
d) Single versus multiple faults: are effects arising from combination of faults relevant or can
they be neglected?
e) Time or sequence-dependent behaviour: does the sequence of events play a role in the
analysis (e.g. the system fails only if event A is preceded by B, not vice versa) or does
the system exhibit time-dependent behaviour (e.g. degraded modes of operation after
failure, phased missions)?
f) Can be used for dependent events: are the failure or repair characteristics of an individual
item dependent on the state of the system?
g) Bottom-up versus top-down analysis: usually bottom-up methods can be applied in a more
straightforward manner, while top-down methods need more thought and creativity and
may therefore be more error-prone.
h) Allocation of reliability requirements: should the method be capable of quantitative
allocation of reliability requirements?
i) Mastery required: what level of education or experience is required in order to meaning-
fully and correctly apply the method?
j) Acceptance and commonality: is the method commonly accepted, e.g. by a regulatory
authority or a customer?
k) Need for tools support: does the method need (computer) tool support or can it also be
performed manually?
– 14 – 60300-3-1  IEC:2003(E)
l) Plausibility checks: is it easy to inspect the plausibility of the results manually? If not, are
the tools available validated?
m) Availability of tools: are tools available either in-house or commercially? Do these tools
have a common interface with other analysis tools so that results may be re-used
or exported?
n) Standardization: is there a standard which describes the feature of the method and the
presentation of results (e.g. symbols)?
Table 2 gives an overview of various dependability analysis methods and their characteristics
and features. More than one method may be required to provide a complete analysis of a
system.
60300-3-1  IEC:2003(E) – 15 –
Table 2 – Characteristics of selected dependability analysis methods
Method
Failure rate No Yes Yes No No No BU Yes Low High Avg Yes High 61709
prediction
Fault tree Yes Yes Yes Yes No No TD Yes Avg High Avg Yes High 61025
analysis (FTA)
Event tree NR NR Yes NR Yes Yes BU NR High Avg Avg Yes Avg
analysis (ETA)
Reliability block NR NR Yes Yes No No TD Yes Low Avg Avg Yes Avg 61078
diagram
analysis (RBD)
Markov Yes Yes Yes Yes Yes Yes TD Yes High Avg High No Avg 61165
analysis
Petri net Yes Yes Yes Yes Yes Yes TD Yes High Low High No Low
analysis
Failure mode NR NR Yes No No No BU NR Low High Low Yes High 60812
and effects
analysis
(FMEA)
HAZOP studies Yes Yes No No No No BU No Low Avg Low Yes Avg 61882
Human Yes Yes Yes Yes Yes Yes BU No High High Avg Yes Avg
reliability
analysis
Stress-strength NA NA Yes NA NA No NA No High Avg High Yes Avg
analysis
Truth table No Yes Yes Yes No No NA Yes High Avg High No Low
Statistical Yes Yes Yes Yes Yes Yes NA NR High Avg High Avg Low 60300-3-5
reliability
methods
NR May be used for simple systems, Not recommended as a stand-alone method, to be used jointly with
other methods.
TD Top-down.
BU Bottom-up.
Avg Average.
NA The criterion is not applicable with respect to this method.
Suitable for complex
systems
Suitable for novel
system designs
Quantitative analysis
Suitable for
combination of faults
Suitable to handle
sequence-dependence
Can be used for
dependent events
Bottom-up or top-down
Suitable for depend-
ability allocation
Mastery required
(from low to high)
Acceptance and
commonality
Need for tool support
Plausibility checks
Availability of tools
IEC standard
– 16 – 60300-3-1  IEC:2003(E)
Annex A
(informative)
Brief description of analysis techniques
A.1 Primary dependability analysis techniques
A.1.1 Failure rate prediction
A.1.1.1 Description and purpose
Failure rate prediction is a method that is applicable mostly during the conceptual and early
design phases, to estimate equipment and system failure rate. It can also be used in the
manufacturing phase for product improvement.
Three basic techniques can be adopted:
– failure rate prediction at reference conditions, also called parts count analysis;
– failure rate prediction at operating conditions, also called parts stress analysis;
– failure rate prediction using similarity analysis.
The choice of which technique to use depends on the available level of knowledge of the
system at the moment the reliability prediction is performed and also on the acceptable
degree of approximation.
A.1.1.2 Failure rate prediction at reference conditions and failure rate prediction at
operating conditions
In the first two cases, the analyst needs to know the number and type of components that
constitute the system. The analyst also needs to know the operating conditions for which the
failure rate prediction is being performed. If the operating conditions are the same as the
reference conditions for the components, then no account of the operating conditions needs
to be made. However, when the failure rate prediction is for operating conditions that differ
from the reference conditions, then the specific application conditions of the component are
taken into account (electric, thermal, environmental) using models developed for the purpose.
For accurate predictions, a reliable failure rate database is needed. IEC 61709 gives
recommendations on how failure rates can be stated at so-called “reference conditions” in
such a database, but it does not contain failure rate data. Several failure rate data handbooks
have been developed and some of them are com
...
