ISO 12643-2:2010

INTERNATIONAL ISO
STANDARD 12643-2
Second edition
2010-12-15
Graphic technology — Safety
requirements for graphic technology
equipment and systems —
Part 2:
Prepress and press equipment
and systems
Technologie graphique — Exigences de sécurité pour les systèmes
et l'équipement de technologie graphique —
Partie 2: Systèmes et équipement pour la préimpression et la presse

Reference number
©
ISO 2010
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2010
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2010 – All rights reserved

Contents Page
Foreword .v
Introduction.vi
1 Scope.1
2 Normative references.1
3 Terms and definitions .2
4 Conformity with this part of ISO 12643 .4
5 Equipment subject to requirements.5
5.1 General .5
5.2 Prepress equipment.5
5.3 Printing presses and coating/varnishing machines .5
5.4 Other equipment covered by this part of ISO 12643.6
6 Guarding of significant hazards .7
6.1 General .7
6.2 Guard openings.7
6.3 Guarding in-running nips .7
6.4 Interlocks.8
6.5 Hold-to-run controls.9
6.6 Automatic format-setting operations .9
6.7 Additional safeguarding methods for machine devices and components .10
7 Changing of printing plates.23
7.1 General .23
7.2 Automatic printing plate changes .23
7.3 Semi-automatic printing plate changes .23
8 Requirements for protection against other hazards.24
8.1 General .24
8.2 Protection against fire and explosion in continuous-flow devices.24
8.3 Explosion protection exceptions.26
8.4 Spillage from washing devices .26
8.5 Working platforms, access stairs, passageways and raised workplaces.27
8.6 Electrostatic toner dust .27
8.7 Washing equipment for printing plates, rollers and doctor blades .27
8.8 Alcohol dosing devices .28
8.9 Refrigerating devices in ink and dampening units .28
8.10 Powder-spraying devices .28
8.11 Hazardous emissions of sheet-fed presses .28
9 Additional requirements for functions, operations, colours and mechanical specifications
of manual control devices .28
9.1 General .28
9.2 Emergency stop and ink, dampening, metering, coating or fountain rollers .29
9.3 Emergency stop on auxiliary draw nips.29
9.4 Alternative controls for stop/safe function on sheet-fed presses .29
9.5 Ready control.30
9.6 Speed limit control .30
9.7 Plate position control.30
9.8 Colours for manual control devices.30
10 Control systems for screen printing presses.30

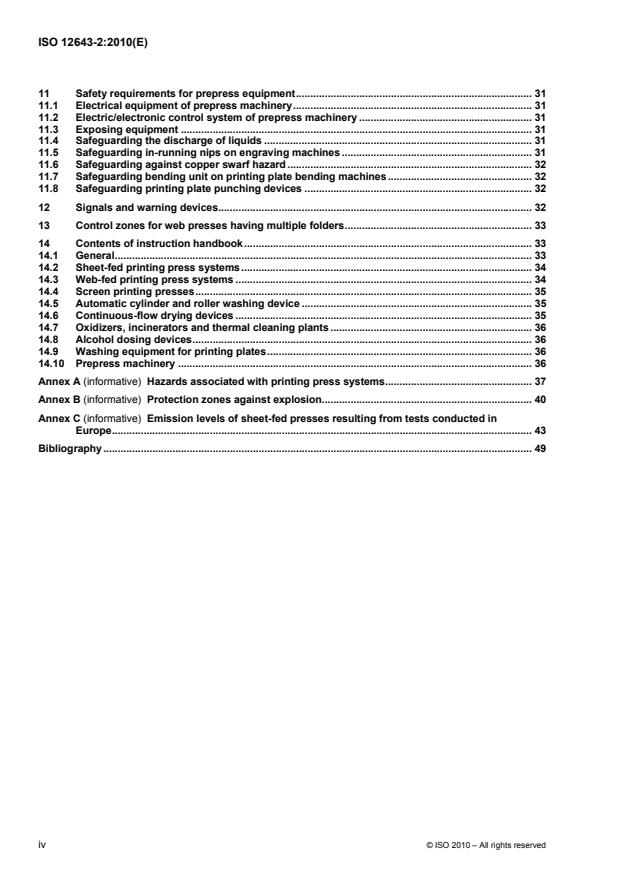

11 Safety requirements for prepress equipment. 31
11.1 Electrical equipment of prepress machinery. 31
11.2 Electric/electronic control system of prepress machinery . 31
11.3 Exposing equipment . 31
11.4 Safeguarding the discharge of liquids . 31
11.5 Safeguarding in-running nips on engraving machines . 31
11.6 Safeguarding against copper swarf hazard . 32
11.7 Safeguarding bending unit on printing plate bending machines . 32
11.8 Safeguarding printing plate punching devices . 32
12 Signals and warning devices. 32
13 Control zones for web presses having multiple folders. 33
14 Contents of instruction handbook. 33
14.1 General. 33
14.2 Sheet-fed printing press systems. 34
14.3 Web-fed printing press systems . 34
14.4 Screen printing presses. 35
14.5 Automatic cylinder and roller washing device . 35
14.6 Continuous-flow drying devices . 35
14.7 Oxidizers, incinerators and thermal cleaning plants . 36
14.8 Alcohol dosing devices. 36
14.9 Washing equipment for printing plates. 36
14.10 Prepress machinery . 36
Annex A (informative) Hazards associated with printing press systems. 37
Annex B (informative) Protection zones against explosion. 40
Annex C (informative) Emission levels of sheet-fed presses resulting from tests conducted in
Europe. 43
Bibliography. 49

iv © ISO 2010 – All rights reserved

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 12643-2 was prepared by Technical Committee ISO/TC 130, Graphic technology.
This second edition of ISO 12643-2 constitutes a technical revision of the first edition (ISO 12643-2:2007).
Significant changes incorporated into this second edition include, but are not limited to, the following:
⎯ inclusion of prepress equipment;
⎯ requirements for performance levels (PL) or safety integrity levels (SIL) as defined in the current version
of ISO 13849-1 and IEC 62061, respectively;
⎯ addition of requirements for printing plate changes;
⎯ addition of requirements for emergency stop on auxiliary draw nips.
It is the intent of ISO/TC 130 that both the first and second editions of ISO 12643-2 be applicable until
2011-12-31. ISO 12643-2:2007 is thus provisionally retained until this date.
As from 2012-01-01, ISO 12643-2:2010 will cancel and replace ISO 12643-2:2007. Accordingly, as from
2012-01-01, only ISO 12643-2:2010 will be applicable to new equipment manufactured.
ISO 12643 consists of the following parts, under the general title Graphic technology — Safety requirements
for graphic technology equipment and systems:
⎯ Part 1: General requirements
⎯ Part 2: Prepress and press equipment and systems
⎯ Part 3: Binding and finishing equipment and systems
⎯ Part 4: Converting equipment and systems
⎯ Part 5: Stand-alone platen presses

Introduction
During the development of this part of ISO 12643, existing relevant standards of other countries were taken
into consideration. An effort has been made to harmonize the requirements of all countries, recognizing that
national standards or laws may dictate national requirements. In cases where it was known that there is a
national requirement that differs from this part of ISO 12643, that has been noted.
This part of ISO 12643 was developed to harmonize the requirements of the following US and European
safety standards:
⎯ ANSI B65.1, Graphic technology — Safety standard — Printing press systems
⎯ EN 1010-1, Safety of machinery — Safety requirements for the design and construction of printing and
paper converting machines — Part 1: Common requirements
⎯ EN 1010-2, Safety of machinery — Safety requirements for the design and construction of printing and
paper converting machines — Part 2: Printing and varnishing machines including pre-press machinery

vi © ISO 2010 – All rights reserved

INTERNATIONAL STANDARD ISO 12643-2:2010(E)

Graphic technology — Safety requirements for graphic
technology equipment and systems —
Part 2:
Prepress and press equipment and systems
1 Scope
This part of ISO 12643 provides safety requirements specific to prepress and press equipment and systems. It
is intended to be used in conjunction with the general requirements given in ISO 12643-1.
This part of ISO 12643 provides additional safety requirements for the design and construction of new
prepress and press equipment, and the auxiliary equipment integrated into the press control system.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 12643-1, Graphic technology — Safety requirements for graphic technology equipment and systems —
Part 1: General requirements
ISO 13732-1, Ergonomics of the thermal environment — Methods for the assessment of human responses to
contact with surfaces — Part 1: Hot surfaces
ISO 13849-1, Safety of machinery — Safety-related parts of control systems — Part 1: General principles for
design
ISO 13855, Safety of machinery — Positioning of safeguards with respect to the approach speeds of parts of
the human body
ISO 13857, Safety of machinery — Safety distances to prevent hazard zones being reached by upper and
lower limbs
IEC 62061, Safety of machinery — Functional safety of safety-related electrical, electronic and programmable
electronic control systems
EN 378-1, Refrigerating systems and heat pumps — Safety and environmental requirements — Part 1: Basic
requirements, definitions, classification and selection criteria
EN 1539, Dryers and ovens in which flammable substances are released — Safety requirements
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 12643-1, ISO 13849-1 and the
following apply.
3.1
access height
〈sheet-fed press delivery zone〉 dimension of the maximum opening into the area below the sheet gripper,
measured between the access level (floor, fixed platform or footboard) and the lower edge of fixed machine
parts (e.g. fixed guard, fixed cover, fixed parts such as a sheet stop)
NOTE See Figure 1.
3.2
alcohol dosing equipment
device(s) used to regulate the amount of alcohol in the dampening water of offset printing presses
3.3
automatic plate-clamping device
mechanism used to secure a printing plate during the automatic or semi-automatic changing of the plates
3.4
bypass
temporary, time-limited suppression of one or more safety functions through the use of safety-relevant parts of
a control system
3.5
coating unit
coater
machine that applies a predetermined thickness of a liquid substance (e.g. glue, varnish, ink, etc.) on
substrates made of paper or a similar material
3.6
continuous-flow drying and curing device
mechanism built into printing presses to dry and cure inks and coatings that have been applied to substrates
EXAMPLE Hot air, IR or UV radiation.
3.7
crawl speed
continuous movement at a steady slow speed, and initiated by a momentary contact control
3.8
cylinder screen printing press
sheet-fed machine in which the substrate (sheet) to be printed is pressed against the screen by an impression
cylinder
3.9
digital printing machine
machine used in commercial/industrial applications where the printing image is produced in the machine from
data stored in digital form and transferred to the substrate without the use of a printing plate
NOTE This includes digital printing presses and wide-format ink jet printing devices.
3.10
draw roller
power-driven roller that pulls a substrate
2 © ISO 2010 – All rights reserved

3.11
enabling device
mechanism that needs to be in a specified state or condition in order for a second actuator or device to start a
machine under hold-to-run control, and which will stop machine movement as soon as one of the hold-to-run
controls is released or the status of the mechanism changes
3.12
forms printing press
leporello printing press
machine for the production of continuous forms where paper webs printed with one or more colours are
accordion-folded or wound onto a reel
NOTE In addition to the printing section, the machine consists of devices for punching, remaliners (sprocket
punching), cross-perforation, longitudinal perforation and leporello (zig-zag) folding.
3.13
gravure press
machine consisting of a printing cylinder; an inking system, in which ink is applied to the printing cylinder by an
ink roll or spray and the excess is removed by a doctor blade (device for scraping excess ink off a
gravure cylinder); and an impression cylinder covered with a rubber composition, which presses the substrate
into contact with the ink in the cells of the printing cylinder
3.14
pile turner
device attached to sheet-fed printing presses and used to turn piles of printed paper for further processing,
such as back-printing on a second run
3.15
powder-spraying device
equipment used to spray powder onto the printed material on the delivery side of sheet-fed printing presses
3.16
prepress equipment
machines used in the first stage of the graphic technology workflow, prior to printing, that include all the
operations necessary for the preparation of images and image carriers
NOTE Adapted from ISO 12637-1.
3.17
press system
printing press and a series of machines that supply substrate into and through the printing press and guide or
direct the substrate to a cutting, folding or delivery device that delivers the product to the last working station
integrated with the printing press control system
3.18
printing plate
base material that stores the image to be printed (pictures and/or text) and transfers ink onto a substrate, thus
printing the image
3.19
printing table
supportive surface to hold the substrate to be printed during the printing process (as on certain types of
screen printing presses)
3.20
proofing press
machine with manual feeding and delivery used for printing a small number of copies, and generally used for
assessing print quality before the printing plate is mounted in the production machine
3.21
reel rewinding device
part of a machine used for rewinding the processed web-type material
3.22
reel turner
device used to turn reels (webs) of substrate for easier handling, e.g. for correct positioning of the reel when
feeding webs to printing presses
3.23
reel unwinding device
part of a machine used for unrolling web-type material for processing
3.24
screen frame
device for taking up the printing screen
3.25
screen printing press
machine using printing plates with woven material (sieve-like screens) that partially allow ink to penetrate
through the material
3.26
sheet-fed press
machine for printing sheet-size substrates, including proofing presses, in which sheets may be fed by feeders
(automatic or manual), or from sheeters attached to unwinding units
3.27
speed limit
control that, when activated, prevents acceleration of machine motion
3.28
washing device for roller/cylinder
equipment integrated into the printing press for washing cylinders and rollers such as ink rollers, blanket
cylinders, printing cylinders, plate cylinders, etc.
3.29
washing equipment for printing plates
machines for washing printing plates outside the printing press
EXAMPLE Screen washing equipment.
3.30
web-fed press
press in which a substrate passes through the printing couple(s) in a continuous form, as fed from a roll
3.31
web-type material
web of paper, board, foil or similar material that is to be handled or processed
4 Conformity with this part of ISO 12643
In order to claim conformity with this part of ISO 12643, all equipment manufactured as of 2012-01-01 shall be
in accordance with this second edition of ISO 12643-2 rather than ISO 12643-2:2007.
4 © ISO 2010 – All rights reserved

5 Equipment subject to requirements
5.1 General
This part of ISO 12643 is applicable to the equipment listed in 5.2 to 5.4. This equipment may be used in a
stand-alone configuration, or in combination with other machines affected by an integrated control system.
This may include combinations of the machines noted below.
NOTE This part of ISO 12643 is intended to include the wide range of equipment used in the printing process. The
equipment listed in 5.2 to 5.4 provides examples of the more typical equipment covered by this part of ISO 12643, but is
not all-inclusive.
5.2 Prepress equipment
The following prepress equipment is covered by this part of ISO 12643:
a) exposure equipment for the production of films and printing formes;
b) equipment for developing films and printing formes;
c) washing machines for printing formes;
d) machines for bending printing formes;
e) punching machines for film and printing plates;
f) cutting machines for film and printing formes;
g) machines for the production of gravure printing formes;
h) scanners;
i) proofing presses.
5.3 Printing presses and coating/varnishing machines
The following are machines used for printing by various processes and are covered by this part of ISO 12643:
a) relief (letterpress, flexographic);
b) offset (lithographic);
c) sheet-fed printing presses, including coating/varnishing machines;
d) web-fed rotary presses, including coating/varnishing machines and similar machinery;
e) gravure (rotogravure, intaglio);
f) screen printing;
g) digital printing machines (electrostatic, ink jet, thermal, airbrush, etc.), including sheet-fed digital printing
machines, web-fed digital printing machines, wide-format ink jet machines and similar machinery;
h) combination presses (e.g. offset/flexo/screen).
5.4 Other equipment covered by this part of ISO 12643
In addition to the equipment listed above, the following equipment is also covered by this part of ISO 12643:
a) washing equipment for cylinders and rollers;
b) washing equipment for printing plates, rollers and scrapers;
c) varnishing equipment;
d) powder-spraying devices;
e) alcohol dosing devices;
f) imprinting/addressing/numbering equipment;
g) automatic plate-clamping devices, automatic pile-handling equipment;
h) washing equipment;
i) inserting machines;
j) pile turners, reel turners, elevators;
k) dryers/pollution control, including continuous-flow drying devices, ultraviolet curing, infrared drying,
electron beam, hot air, etc.;
l) radiation equipment;
m) in-line processing and finishing equipment;
n) stackers;
o) palletizers;
p) bundlers;
q) coaters;
r) chilling systems;
s) electrostatic equipment;
t) humidifiers;
u) accumulating or piling-off devices;
v) conveyors;
w) unwinding, rewinding, reel transport devices;
x) measuring and control devices;
y) auxiliary devices on inking and dampening units.
6 © ISO 2010 – All rights reserved

6 Guarding of significant hazards
6.1 General
Guarding, consistent with operation of the machine, shall be provided in those areas where it is recognized
that operators are exposed to significant hazards. The guarding requirements of ISO 12643-1 and this part of
ISO 12643 apply.
6.2 Guard openings
Guard openings shall comply with ISO 12643-1.
In addition, on sheet-fed flexographic printing presses, the feed opening between the side lays and the sides
of the machine shall be guarded by means of adjustable or self-adjusting guards.
EXCEPTION — On sheet-fed printing presses that are also used for printing on board, sheet metal or
other inflexible materials, it is possible that, for production reasons, guarding in accordance with
ISO 13857 (as required by ISO 12643-1) cannot be applied in the feeding area. In this case, the height of
the material-feeding aperture shall be as small as possible but shall not exceed 20 mm. The existence
of residual risk shall be identified in the instruction handbook.
6.3 Guarding in-running nips
6.3.1 Guarding in-running nips on sheet-fed presses
If technically feasible, trip nip bars in accordance with ISO 12643-1, shall be used where frequent access is
required to the area during machine motion, and cylinders are directly accessible after the interlocking guard
has been opened.
If it is not possible to use trip nip bars as described above, hold-to-run control speed limitations defined in
ISO 12643-1 apply.
NOTE Use of trip nip bars is not possible, for example, on small-size offset presses where trip nip bars would impede
access to the cylinder for activities such as plate changing.
Where cylinders have gaps that exceed those defined for smooth cylinders (see ISO 12643-1), trip nip bars in
accordance with ISO 12643-1 should be used. Nip guards shall not be used with these cylinders. For such trip
guards, the requirements of PL d of ISO 13849-1 or SIL 2 of IEC 62061 shall be satisfied and the interlocking
r
system shall be designed such that the requirements for stopping paths defined in ISO 12643-1 are satisfied.
Trip nip bars and cylinder gaps shall be designed such that cylinder nips cannot be accessed behind trip nip
bars, causing a hazard.
To comply with the requirements of ISO 12643-1, the interlocking systems will normally have to be designed
such that, after opening the interlocking guard, a predetermined number of revolutions, depending on the
functional characteristics of the trip guard, is not exceeded.
6.3.2 Guarding in-running nips on web-fed presses
In-running nips that are not in the operator's view from the position where the hold-to-run control or enabling
device is operated shall be safeguarded by additional measures.
NOTE For example, such measures include:
⎯ guarding;
⎯ an electrically interlocked, movable nip bar on the outgoing side between the two blanket cylinders of a web offset
printing press, that ensures that the bar is in position prior to reverse movement.
On machines with varying web paths where such measures for safeguarding the in-running nip existing
between blanket cylinders during the reverse movement are not feasible, the following procedure using a
hold-to-run with limited inch control is permitted, providing all of the following conditions are met:
⎯ the speed shall not exceed 3 m/min;
⎯ the movement shall not exceed 1,2 cylinder revolutions;
⎯ a stop control element with mechanical latch (such as a stop/safe pushbutton) or an emergency stopping
device shall be in the immediate vicinity of the in-running nip;
⎯ a distinctive audible warning signal, different from the audible warning signal used for forward inch, shall
be used;
⎯ a red flashing light shall be provided that can be seen during the warning and permissive periods, and a
red warning light (steady burn, not flashing) shall be provided during operating time of the hold-to-run
control in the immediate vicinity of any unguarded in-running nip that cannot be observed.
6.3.3 Guarding in-running cylinder nips on newspaper presses
In deviation from ISO 12643-1, nip guards may be used for web-fed newspaper printing presses on cylinder
gaps of up to 19 mm circumferential slots. For new machines, however, efforts should be made to limit
cylinder gaps to 12 mm circumferentials slots.
NOTE Some press cylinder lock-up devices, such as on newspaper presses, require gaps up to 19 mm, measured
without the blanket. With the blanket in place, the gap is reduced significantly.
6.3.4 Guarding in-running nips on cylinder screen printing presses
On cylinder screen printing presses, the in-running nip on the printing cylinder shall be safeguarded.
NOTE This can be achieved, for example, by interlocking guards, or guarding by the screen printing plate.
Where the printing plate is used as a means of guarding, additional protective measures are required for lifting
and removal of the printing plate.
Such additional measures can include electrical interlocking, which allows cylinder rotations only under
hold-to-run control in accordance with ISO 12643-1 as long as the printing plate is lifted.
6.4 Interlocks
6.4.1 General
Interlocks shall function in accordance with ISO 12643-1.
6.4.2 Continuous motion at crawl speed with an interlocking guard open
As an exception to ISO 12643-1, if the only hazard being protected by the interlocking guard is an in-running
nip, continuous machine motion at crawl speed with a guard open shall be permitted only if all in-running nips
remain guarded by either a nip guard or a trip nip guard conforming to the requirements of ISO 12643-1.
Maximum crawl speed is determined by the ability of the slowest acting trip nip guard to safeguard the hazard.
6.4.3 Closing an interlocking guard
As an exception to ISO 12643-1, closing the interlocking guard on dampening, coating or inking devices may
initiate the rotation of dampening or coating ductor rollers or metering rollers if it is ensured that, at this time,
no hazard points can be accessed.
NOTE Restarting any independently driven dampening, coating, metering, or ink fountain rollers might be required in
order to prevent malfunctions due to dried-up coating or dampening agents.
8 © ISO 2010 – All rights reserved

6.5 Hold-to-run controls
6.5.1 General
In addition to the requirements of ISO 12643-1, the specific requirements set forth in 6.5.2 and 6.5.3 apply.
6.5.2 Specific requirements for sheet-fed presses
When interlocking guards are opened and any exposed hazard point is not safeguarded, sheet-fed printing
press systems shall only be allowed to be started under hold-to-run in accordance with ISO 12643-1.
When interlocking guards are opened and all hazards are protected, crawl speed is permitted under the
provisions of 6.4.2.
When interlocking guards are opened and direct access to unprotected in-running nips on plate cylinders,
blanket cylinders, and impression cylinders, or unprotected hazard points on the sheet transport system is
possible, the machine may be started under hold-to-run control in accordance with ISO 12643-1, with a
maximum speed of 1 m/min or a displacement limited to a maximum of 25 mm.
NOTE 1 Sheet-fed presses usually have non-smooth cylinders with large gaps that are more hazardous than smooth
cylinders on web presses.
NOTE 2 Examples of “sheet transport systems” include gripping systems and transport drums.
NOTE 3 For example, direct access is possible where such in-running nips can be reached in the event of a person
inadvertently entering a hazardous area, or where nips are located in the immediate vicinity of places where setting-up or
cleaning operations need to be performed.
6.5.3 Specific requirements for forms presses
In deviation from the requirements for hold-to-run controls specified in ISO 12643-1, on forms printing presses,
starting the machine by two-hand control with guards open shall be possible with a speed higher than
10 m/min when this is required for production reasons and all of the following requirements are met:
⎯ other interlocking guards that cannot be seen from the operating position shall be closed;
⎯ a selector switch shall be used for this kind of operation;
⎯ the hold-to-run speed shall be as low as possible under production conditions;
⎯ a warning shall be provided in the instruction handbook (including a statement of the operator's
responsibility and a description of safe working practices).
6.6 Automatic format-setting operations
Where a hazard exists, automatic format-setting operations may be performed at speeds up to, and including,
0,5 m/min without additional safety measures. However, if there is a crushing hazard for the head or trunk of
the body, format setting shall be permitted only with a hold-to-run control. The location of the hold-to-run
control shall allow the operator to clearly see the hazard points.
NOTE Automatic format-setting devices include sheet side lays, suction heads, turner bars, compensators, slitters,
etc.
If additional safety measures are needed in the area of the format setting device, personnel shall be protected
from motion of the device(s) by one or more of the following methods:
a) provision of trip devices;
b) separate stop device that is not included in the emergency stop circuit of the printing press;
c) zone control using the emergency stop circuit.
6.7 Additional safeguarding methods for machine devices and components
6.7.1 General
General requirements for guarding are specified in ISO 12643-1.
6.7.2 Feeding units, delivery units (pile lifting and lowering devices)
6.7.2.1 Guarding sheet gripper from unintentional hand access
In the area of the sheet delivery, any unintentional access to movable parts of the sheet gripper system from
above and from the side shall be prevented by fixed or interlocked protective devices. At the sides and in the
area of the sample sheet removal, these protective devices shall reach down at least to the bottom edge of
the sheet gripper system.
Any residual risk caused by reaching underneath protective devices (e.g. in order to remove sample sheets or
to place wedges in the pile) shall be indicated in the instruction handbook (see ISO 12643-1).
6.7.2.2 Guarding rotating sheet gripper systems from full body access
In the area of rotating sheet gripper systems on sheet deliveries, measures for safeguarding the full body
access of persons shall be in place on all access sides if either
⎯ the access height, h, is 800 mm or more (see Figure 1), or
⎯ full body access is necessary more than once a week.
NOTE Full body access more than once a week is generally only necessary when make-ready and cleaning work
can be carried out only by accessing the area with the whole body.
6.7.2.3 Safeguarding full body access by electro-sensitive protective devices (ESPDs)
6.7.2.3.1 Arrangement of light beams of ESPDs for machines having a single access level
The light beams of the ESPD on machines having a single access level shall be arranged as specified in
Table 1 and shown in Figure 1. For the arrangement of light beams of the ESPD on multi-level machines, see
6.7.2.3.3. The requirements of ISO 13855 relating to the horizontal distance between the light beams and the
rotating gripper systems need not be met.
NOTE The primary protective action lies in the prevention of unexpected start-up of the press. In addition, the basic
shape of the printing press, the delivery pile carrier and the pile itself prevent or impede unhindered access to the hazard
zone, making consideration of access time to the hazard unnecessary.
For information to be provided in instruction handbooks on the residual hazards of ESPDs, see 6.7.2.3.4 and
ISO 12643-1.
10 © ISO 2010 – All rights reserved

Table 1 — Arrangement of the ESPD in relation to the access height
Dimensions in millimetres
Access height Arrangement of the ESPD in relation to the access level(s)
a b c
h
Light beam 1 Light beam 2 Light beam 3

d
h u 1 200 300 not required 400 below h (h − 400)
in the centre between light
d
1 200 < h u 1 500 300 400 below h (h − 400)
beams 1 and 3
h > 1 500 300 700 1 100
a
Arrangement measured from the access level or from a fixed or swinging platform; due to the structural tolerances at the location of
installation, the permissible tolerance for the arrangement is ±35 mm.
b
Light beam between light beams 1 and 3, if the distance between light beam 1 and light beam 3 is greater than 500 mm.
c
A maximum of 1 100 mm in height.
d
See Figure 1.
Dimensions in millimetres
Key
1 light beam 1 5 sample sheet removal
2 light beam 2 6 sheet
3 light beam 3 7 sheet gripper system
4 reset button 8 access level
h access height
Figure 1 — Access height u1 500 mm in the delivery zone
6.7.2.3.2 Bypassing light beams
6.7.2.3.2.1 General
For the functions of sample sheet removal, insertion of wedges into the pile, correction of pile formation, exit of
the pile, and complete pile removal (including insertion of empty pallets and moving in equipment, such as a
hand forklift truck), a time-limited bypass of individual or several light beams is permissible only if the
respective requirements for the individual functions are met under the conditions defined in 6.7.2.3.2.2 to
6.7.2.3.2.7.
The duration of the individual bypass sequences shall not exceed 20 s. After that time, the bypassed light
beams shall be reactivated automatically.
The bypass function may be activated by either a manual control or an automated sequence.
6.7.2.3.2.2 Bypass function for removing sample sheets
Bypassing only the top light beam (see Figure 1), in the area where sample sheets are removed by the
sample sheet removal equipment, shall be permitted only if all of the following conditions are met:
⎯ the machine is in paper run mode (sheets are being delivered);
⎯ the light beams are active on all other access sides of the delivery.
As an exception to the requirements of ISO 12643-1, the detection of the paper run mode, the sample sheet
removal equipment and its individual signal processing shall meet the requirements of at least PL b of
r
ISO 13849-1 or SIL 1 of IEC 62061.
6.7.2.3.2.3 Bypass function for inserting wedges and correcting the pile formation
Bypassing the top light beam on any single side (see Figure 1) shall be possible only if all the following
conditions are met:
a) the bypass control is a pushbutton positioned on the side being accessed;
b) three light beams are installed for safeguarding the access side;
c) all light beams are active on all other access sides.
Bypassing the top beam on the drive side and operator side at the same time is permitted. However, if
bypassing the top beam from the front side, bypassing the top beam from any other side at the same time
shall not be permitted. See Table 2.
When a bypass function is active and the main drive is at standstill, start-up shall be prevented.
Table 2 — Requirements relating to bypassing top beam
Bypass condition Permitted/not permitted
Top beam on drive side only Permitted
Top beam on operator side only Permitted
Top beam on front side only Permitted
Top beam on both drive side and operator side Permitted
Top beam on both drive side and front side Not permitted
Top beam on both operator side and front side Not permitted
Top beam on operator, drive and front sides Not permitted
12 © ISO 2010 – All rights reserved

6.7.2.3.2.4 Bypass function for inserting empty pallets and moving in equipment
Bypassing the bottom light beam (see Figure 1) on the side being accessed shall be possible only if all the
following conditions are met:
a) the bypass control is a pushbutton positioned on the side being accessed;
b) three light beams are installed to safeguard the access side;
c) the auxiliary pile support (e.g. rake, wooden pile board, roller blind) or an equivalent device prevents
access to the hazard zone;
d) all top and middle light beams on all access sides and all bottom light beams on all other access sides
are active;
e) the pile support plate is raised no more than 120 mm.
Detection to determine correct positioning of the auxiliary pile support (preventing access to the hazard zone)
may be done by means of a
...
