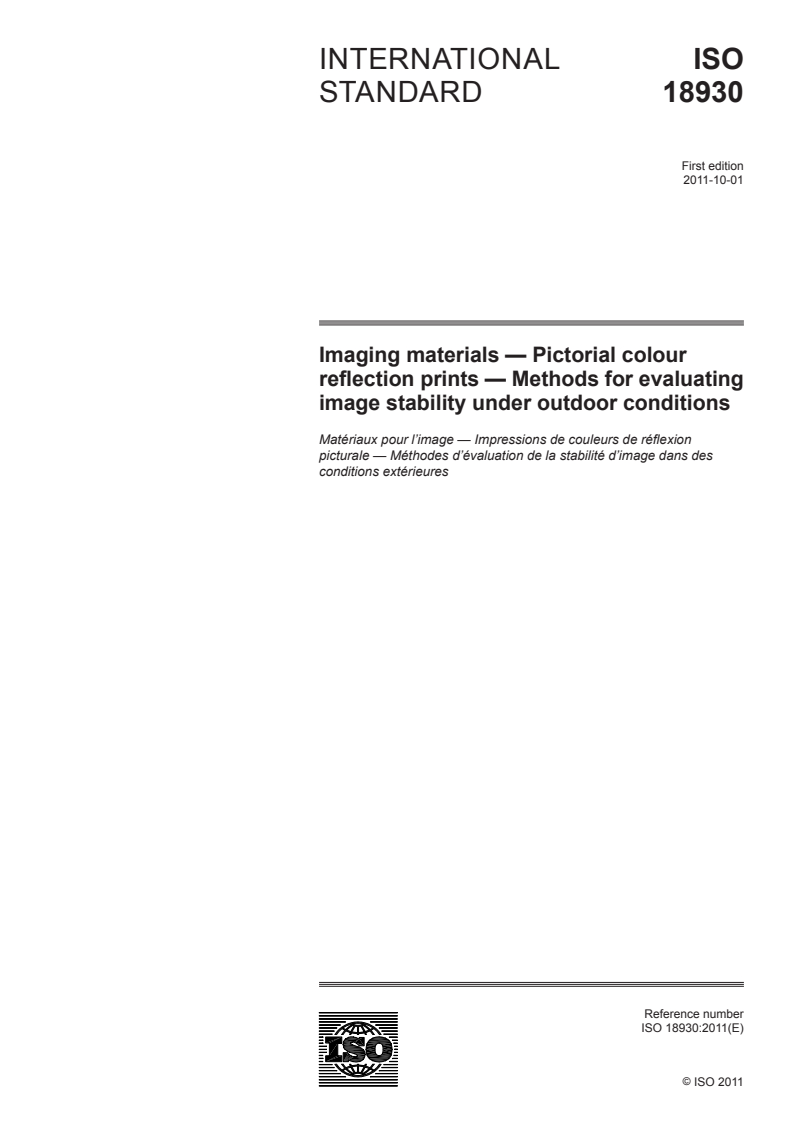

ISO 18930:2011

INTERNATIONAL ISO
STANDARD 18930
First edition
2011-10-01
Imaging materials — Pictorial colour
reflection prints — Methods for evaluating
image stability under outdoor conditions
Matériaux pour l’image — Impressions de couleurs de réflexion
picturale — Méthodes d’évaluation de la stabilité d’image dans des
conditions extérieures
Reference number
ISO 18930:2011(E)
©
ISO 2011

---------------------- Page: 1 ----------------------
ISO 18930:2011(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2011
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or ISO’s
member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2011 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 18930:2011(E)

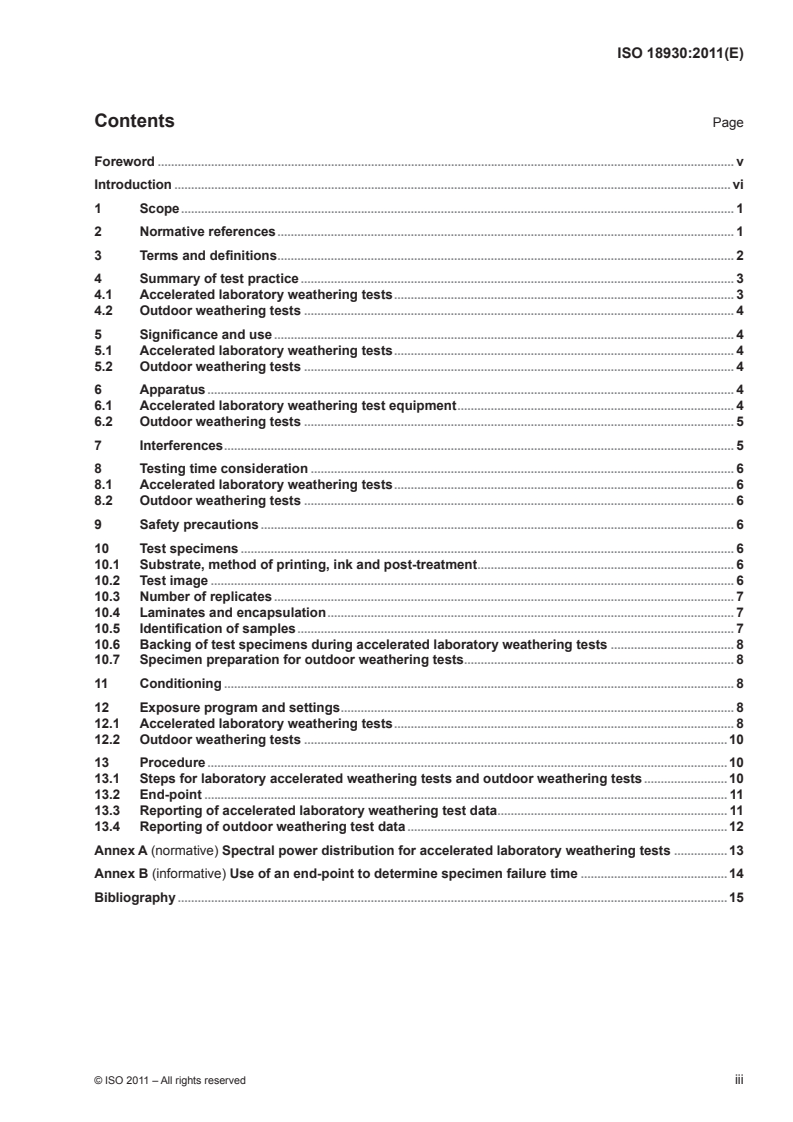

Contents Page
Foreword . v
Introduction .vi
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 2
4 Summary of test practice . 3
4.1 Accelerated laboratory weathering tests . 3
4.2 Outdoor weathering tests . 4
5 Significance and use . 4
5.1 Accelerated laboratory weathering tests . 4
5.2 Outdoor weathering tests . 4
6 Apparatus . 4
6.1 Accelerated laboratory weathering test equipment . 4
6.2 Outdoor weathering tests . 5
7 Interferences . 5
8 Testing time consideration . 6
8.1 Accelerated laboratory weathering tests . 6
8.2 Outdoor weathering tests . 6
9 Safety precautions . 6
10 Test specimens . 6
10.1 Substrate, method of printing, ink and post-treatment . 6
10.2 Test image . 6
10.3 Number of replicates . 7
10.4 Laminates and encapsulation . 7
10.5 Identification of samples . 7
10.6 Backing of test specimens during accelerated laboratory weathering tests . 8
10.7 Specimen preparation for outdoor weathering tests . 8
11 Conditioning . 8
12 Exposure program and settings . 8
12.1 Accelerated laboratory weathering tests . 8
12.2 Outdoor weathering tests .10
13 Procedure .10
13.1 Steps for laboratory accelerated weathering tests and outdoor weathering tests .10
13.2 End-point . 11
13.3 Reporting of accelerated laboratory weathering test data . 11
13.4 Reporting of outdoor weathering test data .12
Annex A (normative) Spectral power distribution for accelerated laboratory weathering tests .13
Annex B (informative) Use of an end-point to determine specimen failure time .14
Bibliography .15
© ISO 2011 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 18930:2011(E)

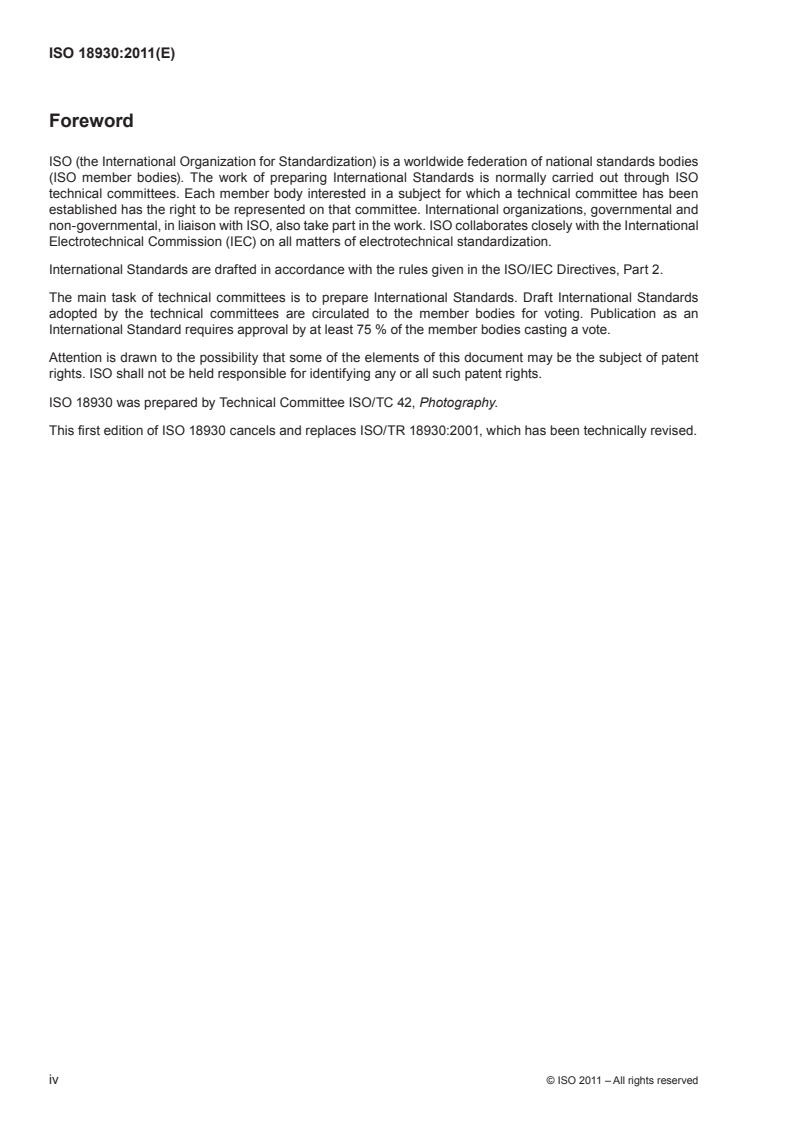

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the International
Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 18930 was prepared by Technical Committee ISO/TC 42, Photography.
This first edition of ISO 18930 cancels and replaces ISO/TR 18930:2001, which has been technically revised.
iv © ISO 2011 – All rights reserved

---------------------- Page: 4 ----------------------
ISO 18930:2011(E)
Introduction
Printed digital images are used in many applications in which they are exposed to outdoor weathering. This
International Standard provides standardized test procedures to evaluate image stability both in real-time
outdoor weathering tests and in accelerated laboratory simulations of the weathering process.
Accelerated laboratory weathering tests have been developed as a result of the desire to obtain test results
faster than would be obtained by actual outdoor exposure. However, accelerated weathering tests only have
value if they can be correlated with actual outdoor performance. In outdoor testing, critical factors that cause
image degradation include light, water, heat, ozone, and local and diurnal variations in climate. In accelerated
testing, it is important that the most critical factors of light, water and heat are included. The use of xenon
arc lamps with “daylight” filters has become an industry standard procedure for the most accurate simulation
of the spectral power distribution of sunlight. The coupling of the xenon arc lamps and “daylight” filters with
a water spray and elevated temperatures forms the basis for testing with accelerated laboratory weathering
instruments. The accelerated weathering test procedure described in this test method is intended to provide a
means for predicting the behaviour under actual outdoor exposure.
© ISO 2011 – All rights reserved v

---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO 18930:2011(E)
Imaging materials — Pictorial colour reflection prints —
Methods for evaluating image stability under outdoor conditions
1 Scope
This International Standard describes test equipment and test procedures for determining the colour stability of
photographic colour images when subjected to outdoor conditions. It does not specify limits of acceptability or
failure criteria. Instead, it provides means for measuring image changes that take place during the aging of pictorial
photographic images and indicates the critical image-change parameters that should be reported. Users of this
International Standard should determine which test end-points best simulate the intended display application.
This International Standard is applicable to pictorial images made with digital printing media, for example:
— prints on coated papers, coated and uncoated clear and opaque films, vinyl, polyester, synthetic papers
and other plastic substrates, laminated and not laminated;
— dye-based and pigment-based inkjet prints with aqueous, solvent, phase-change, or UV curing inks;
— thermal dye and mass transfer;
— dye sublimation prints;
— digitally-printed dye-diffusion-transfer prints;
— liquid- and dry-toner xerographic prints;
— liquid toner electrostatic prints;
— digitally printed images made with traditional chromogenic and silver dye-bleach photographic materials;
— colour direct thermal prints.
In these digital printing processes, the ink laydown is controlled by means of digital pixel information, and all
of the settings and controls of the printing system can be documented and repeated. In contrast, for many
analogue printing systems, the control over the ink film thickness can be subject to manual adjustment. Window
graphics on the outside of windows are covered by this International Standard. Window graphics on the inside
of windows, for which sunlight is filtered by a layer of glass, will be covered by ISO 18937.
This International Standard does not include test procedures for physical stability of images, supports or
binder materials. However, it is recognized that in some instances physical degradation such as support
embrittlement, image layer cracking, or delamination of an image layer from its support, rather than image
stability, will determine the useful life of a print material.
NOTE Image print stability results determined for one printer model, ink set, printing mode, print resolution and
media combination are not applicable to image prints produced through another printer model, ink set, printing mode, print
resolution and media combination, even if the ink jet cartridges and/or media used in testing are the same.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced document
(including any amendments) applies.
ISO 5-3, Photography and graphic technology — Density measurements — Part 3: Spectral conditions
ISO 13655, Graphic technology — Spectral measurement and colorimetric computation for graphic arts images
© ISO 2011 – All rights reserved 1

---------------------- Page: 6 ----------------------
ISO 18930:2011(E)
ISO 11664-4, Colorimetry — Part 4: CIE 1976 L*a*b* Colour Space
CIE 85:1989, Solar Spectral Irradiance
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
digital printing media
recording elements used by digital printers to receive inks or pre-formed colorants
EXAMPLE The substrate might be paper, plastic, canvas, fabric, or other ink-receptive material; the substrate might,
or might not, be coated with an ink-receptive layer. The category of digital printers includes inkjet, electrophotographic and
thermal transfer.
3.2
encapsulation
sealing of all edges of a specimen that has been laminated on both front and back surfaces
NOTE This is usually done by laminating with sheets that are larger in dimension than the specimen and then sealing
at the overlaps.
3.3
laminate
layer of material that goes over the top or bottom of a specimen
NOTE This is usually to provide water-resistance, physical, and/or ultraviolet (UV) light protection of the specimen
during a weathering test. A layer of protective film is applied with a pressure-sensitive or heat-activated adhesive.
3.4
accelerated laboratory weathering
simulated weathering where instruments (weathering devices) are used to obtain very controlled conditions
that simulate, to some degree, and generally accelerate, the outdoor weathering results

NOTE The use of such instruments is described in ISO 4892-1 and ASTM G151.
3.5
outdoor weathering
actual placement of specimens outdoors in specific locations
NOTE This is differentiated from simulated weathering where instruments (weathering devices) are used to obtain
very controlled conditions that simulate, to some degree, and generally accelerate, the outdoor weathering results. Use of

such instruments is described in ISO 4892-1 and ASTM G151.
3.6
accelerated outdoor weathering
use of mirrors or lenses to focus sunlight onto specimens for increased intensity
NOTE The use of such devices is described in ISO 877-3.
3.7
reciprocity failure
non-equivalence in weathering results between a long exposure/low-intensity experiment and its short
exposure/high-intensity counterpart with an equivalent intensity-time product
3.8
total solar UV irradiance
irradiance in the wavelength range from 300 nm to 400 nm integrated over the duration of a test
2
NOTE This quantity is usually fairly consistent from year to year in a given location, and is usually given in units of MJ/m .
2 © ISO 2011 – All rights reserved

---------------------- Page: 7 ----------------------
ISO 18930:2011(E)
3.9
daylight filter
optical filter, or combination of filters, that modifies the spectral power distribution of a light source to better
represent some defined daylight spectrum
NOTE 1 These filters are not related to the blue filters used in the photographic industry for the change of correlated
colour temperature of light sources.
NOTE 2 Adapted from ISO 18913.
3.10
operational control point
set point for equilibrium conditions measured at sensor location(s) in an exposure device
[ASTM G113]
3.11
operational fluctuations
positive and negative deviations from the setting of the sensor at the operational control set point during
equilibrium conditions in a laboratory accelerated weathering device
NOTE The operational fluctuations are the result of unavoidable machine variables and do not include measurement
uncertainty. The operational fluctuations apply only at the location of the control sensor and do not imply uniformity of
conditions throughout the test chamber.
[ASTM G113]
3.12
operational uniformity
range around the operational control point for measured parameters within the intended exposure area, within
the limits of intended operational range
[ASTM G113]
3.13
uncertainty (of measurement)
parameter, associated with the result of a measurement, that characterizes the dispersion of the values that
could be reasonably attributed to the measurand
NOTE 1 The parameter might be, e.g., a standard deviation (or a given multiple of it), or the half-width of an interval
having a stated confidence level.
NOTE 2 Uncertainty of measurement comprises, in general, many components. Some of these components can be
evaluated from statistical distribution of the results of series of measurements and can be characterized by experimental
standard deviations. The other components, which also can be characterized by standard deviations, are evaluated from
assumed probability distributions based upon experience or other information.
NOTE 3 It is understood that the result of the measurement is the best estimate of the value of the measurand and
that all components of uncertainty, including those arising from systematic effects, such as components associated with
corrections and reference standards, contribute to the dispersion.
[ASTM G113]
4 Summary of test practice
4.1 Accelerated laboratory weathering tests
Accelerated laboratory tests performed in weathering chambers should simulate the outdoor environment for
which the display is intended. The test specimens should be subjected to light, water, and elevated temperature.
The duration of the test can vary widely, depending on the stability of the imaging materials.
© ISO 2011 – All rights reserved 3

---------------------- Page: 8 ----------------------
ISO 18930:2011(E)
During the course of the test, the colour changes in the printed samples are periodically evaluated instrumentally.
Results are compared to the initial values for the same specimen prior to testing, and also to a control sample
maintained at ambient conditions with light excluded. A further internal control sample with known weathering
behaviour is also recommended for laboratory experiments. The change of the test specimens and the reference
*
samples is reported as optical density and/or L* a* b* (or colour difference, ΔE ) before and after the test.
ab
For an accurate assessment of outdoor performance, an ozone test such as that described in ISO 18941 should
also be considered, as many colorants are sensitive to atmospheric pollutants. An ozone test is recommended
for media that is unlaminated. However, ozone testing is not a part of this International Standard.
4.2 Outdoor weathering tests
Outdoor exposure conditions can vary by orders of magnitude in irradiance depending on the geographical
latitude, altitude, specimen orientation, season and weather conditions. Outdoor weathering services are
available for some typical climatic conditions, e.g. South Florida’s subtropical hot and humid climate and
Arizona’s hot and dry desert climate. A list of common outdoor test sites is given in ASTM G7. Due to the
annual variations in climate, it is recommended that internal control samples with known behaviour be included
in outdoor weathering experiments.
5 Significance and use
5.1 Accelerated laboratory weathering tests
Controlled laboratory tests are often used to provide standardized data and to benchmark materials. Predicting
outdoor image display life from controlled laboratory tests without correlation data for the material in question
between the laboratory test and natural outdoor exposure is not recommended.
Since the ability of images on digital printing media to withstand colour changes is a function of temperature,
humidity, air pollutants, light and diurnal changes of environmental parameters, it is important that print stability
be assessed under the conditions appropriate to the end use application.
The laboratory procedure described in this test practice is intended to provide a means for predicting the
behaviour under actual outdoor exposure. Test results are useful for specification acceptance between
[20][21]
producer and user, for quality control, and for research and product development .
5.2 Outdoor weathering tests
Real-time outdoor exposure is the most reliable method of assessing outdoor image stability, but the actual
exposure of a sample depends on the season and the weather. However, it is not as fast as accelerated
laboratory tests. The outdoor test procedure described in this International Standard is intended to provide
image stability data for an ink/media combination in a selected outdoor location. Note that the image stability
[22]
indicated in this test will vary with the weather from year to year .
6 Apparatus
6.1 Accelerated laboratory weathering test equipment
The exposure equipment shall consist of a light source with simulated direct outdoor daylight with a
spectral power distribution as defined in CIE 85:1989, Table 4, and the operating limits defined in Annex A.
A recommended match for direct outdoor daylight that is equivalent to CIE 85:1989, Table 4, is a cooled, filtered
xenon high-pressure arc lamp. A “daylight filter” that gives the best match to the spectral power distribution
of CIE 85:1989, Table 4, should be used. Matching the solar spectral power distribution, especially in the UV
region, is extremely important. Irradiance, reference black panel temperature (BPT or BST), chamber (ambient)
air temperature, and relative humidity need to be regulated to allow test conditions in the range specified in
Clause 12. The apparatus should allow cycling between dark and light phases as well as water spray cycles
and dry phases. Annex A shows appropriate operating limits for the spectral power distribution of xenon arc
accelerated weathering instruments.
4 © ISO 2011 – All rights reserved

---------------------- Page: 9 ----------------------
ISO 18930:2011(E)
6.2 Outdoor weathering tests
Real-time outdoor weathering may be conducted at test sites that have the ability to mount samples onto
racks with fixed or variable angles of inclination. Most testing is performed with the samples facing south
(for the northern hemisphere) at a 45° angle of inclination. Advantages of testing at 45° rather than 90° are
[22]
that seasonal variations in radiant exposure are minimized , space requirements are minimized because
neighbouring sample racks are less likely to shade each other, and the average annual radiant exposure can
be as much as twice as large (e.g. approximately 1,6 to 1,7 times as large for South Florida or Arizona). In some
cases where a product is utilized on a vertical surface, such as vehicle graphics, testing is conducted at an
angle of inclination of 90° facing either north or south.
Seasonal differences, such as temperature and relative humidity, will occur when tests are run at different times
of year. It is critical that the outdoor tests be run for multiples of a calendar year so that separate tests have a
basis for comparison. The testing service should provide information on the total solar UV irradiance at 45° for
the samples tested, as well as tabulation on a day-to-day basis of the temperature and relative humidity highs,
[7]
lows, and means . Often, this is published as a newsletter that is routinely sent to customers of the testing
service. It is also recommended that the testing service provide ozone level data as well, if possible. Several
manufacturers of accelerated weathering equipment offer testing services and outdoor exposure facilities.
7 Interferences
It is recognized that the fade of images on digital printing media will vary significantly because of factors such
as initial colour density, the area printed (solid versus half-tone), the substrate, the colorant type (dye versus
pigment inks), the number of passes (in multipass printing modes), ink load, print resolution, and the receiver
coating type and thickness. Consequently, test results shall be determined individually for each print.
The rate of colorant degradation with light is often strongly dependent on humidity and air pollutants. Separating
the environmental factors will not be possible in a real environment. This has to be taken into consideration
when extrapolating to other display conditions. Guidance on the interference of environmental factors other
than light, their importance in image degradation, and references to methods for measurement can be found
in Reference [23].
Some outdoor environments are characterized by strong temperature and humidity fluctuations between day
and night or sunny and overcast conditions. In cold weather, the presence of the sunlight creates strong
temperature differences, especially in dark colours, that can lead to cracking and mechanical distortions.
When samples are set out in the weather, another component for consideration is environmental materials:
both polluting gases and materials left by fauna and flora. Information about the levels of common pollutants
is available, e.g. on the web sites of local environmental offices, meteorological or climatological web sites,
or from the testing services. Unless measurement of resistance to these environmental effects is desired,
many of these materials can be removed from samples by request, thus assuring a more controlled test.
Effects of polluting gases can be examined or eliminated based on the weathering site location. Other possible
sources of degradation to consider are acid rain, salt corrosion from the sea, haze due to pollution or fires, and
bird droppings. For removal of unwanted environmental materials, a gentle water rinse is recommended, but
without scrubbing that can mar or abrade the surface. The use of mild soap solutions is permitted for laminated
samples and for other materials that will not be damaged by this exposure.
Accelerated image stability tests for predicting the behaviour of colour images under normal outdoor conditions
can be complicated by “reciprocity failure”. When applied to digital printing media, reciprocity failure refers to
the failure of many types of colour images to degrade equally when irradiated to the same total light exposure
(intensity × time) by both high-intensity light for a short period and low-intensity light for a long period. The
magnitude of any reciprocity failure can also be influenced by the test temperature, the moisture content of the
test specimen, and light/dark cycling rates. Also note that apparent reciprocity failures have been observed in
[24]
some materials due to the presence of ozone or other pollutants in accelerated weathering test chambers .
© ISO 2011 – All rights reserved 5

---------------------- Page: 10 ----------------------
ISO 18930:2011(E)
8 Testing time consideration
8.1 Accelerated laboratory weathering tests
Testing is to be conducted until the printed image reaches an end-point that represents the condition at which
the image changes may be considered unacceptable. Thus, the end-point of the tests depends on the envisaged
application. However, there is no general consensus about the choice of end-points (see References [25]
and [26]), so the full set of end-point criteria needs to be reported with the test report. It is to be understood
that different end-points might be appropriate for different applications such as banners, billboards, vehicle
graphics, industrial graphics, and signs. Annex B shows an example of the use of a possible end-point to
determine specimen failure time.
8.2 Outdoor weathering tests
Care should be taken to observe the time of year in which the samples were initially submitted for weathering.
Some materials originally weathered in the summer can give different results than those originally weathered
in the winter for the same length of time. Weathering should extend at least over a whole year, particularly in
areas with strong seasonal variations of light and climate, and tests should conclude at whole number multiples
of a calendar year.
Most weathering testing is real-time weathering in which the samples are placed at a fixed angle to the ground and
samples remain that way for fixed periods of time, or until a certain integrated light intensity has struck the samples.
There are other ways of treating samples in a more accelerated fashion, e.g. through the use of movable racks
that track the path of the sun so the samples always remain normal to the sun, or use of concentrator mirrors or
lenses that impart the optimal angle at increased intensity of radiation (ISO 877-3 provides a description of this
practice). These tests provide results more q
...
