ISO 20087:2016

DRAFT INTERNATIONAL STANDARD
ISO/DIS 20087
ISO/TC 42 Secretariat: ANSI
Voting begins on: Voting terminates on:
2015-09-07 2015-12-07
Photography — Digital still cameras — Battery life
measurement
Photographie — Caméras numériques — Mesurage de la durée de vie de la batterie
ICS: 37.040.99
THIS DOCUMENT IS A DRAFT CIRCULATED
FOR COMMENT AND APPROVAL. IT IS
THEREFORE SUBJECT TO CHANGE AND MAY
NOT BE REFERRED TO AS AN INTERNATIONAL
STANDARD UNTIL PUBLISHED AS SUCH.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL,
TECHNOLOGICAL, COMMERCIAL AND
USER PURPOSES, DRAFT INTERNATIONAL
STANDARDS MAY ON OCCASION HAVE TO
BE CONSIDERED IN THE LIGHT OF THEIR
POTENTIAL TO BECOME STANDARDS TO
WHICH REFERENCE MAY BE MADE IN
Reference number
NATIONAL REGULATIONS.
ISO/DIS 20087:2015(E)
RECIPIENTS OF THIS DRAFT ARE INVITED
TO SUBMIT, WITH THEIR COMMENTS,
NOTIFICATION OF ANY RELEVANT PATENT
RIGHTS OF WHICH THEY ARE AWARE AND TO
©
PROVIDE SUPPORTING DOCUMENTATION. ISO 2015

---------------------- Page: 1 ----------------------
ISO/DIS 20087:2015(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO 2015, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2015 – All rights reserved

---------------------- Page: 2 ----------------------
ISO/DIS 20087
Contents Page
Foreword . iv
Introduction . v
1 Scope . 1
2 Terms and definitions . 1
3 Measurement method . 1
3.1 General . 1
3.2 Battery . 2
3.3 Recording media . 2
3.4 Camera settings . 2
3.4.1 Image quality mode . 2
3.4.2 Number of recorded pixels . 2
3.5 Measurement conditions . 2
3.5.1 Subject distance . 2
3.5.2 Subject to be shot and brightness . 2
3.5.3 Operating environment . 2
3.6 Required actions . 2
3.6.1 Flash usage . 2
3.6.2 Motor driven optical zoom operation . 2
3.6.3 Picture monitor mode . 2
3.6.4 Handling when the recording medium is full . 3
3.6.5 Handling of playback mode. 3
3.6.6 Shooting intervals . 3
3.6.7 Power off . 3
3.7 End-of-test criteria . 3
3.8 Measurement flowchart . 3
4 Reporting the results of battery life . 5
4.1 General rule . 5
4.2 Battery . 5
4.3 Recording media . 5
4.4 Function-setting and shooting mode . 5
Annex A (informative) Example Description . 6
A.1 Example 1 . 6
A.2 Example 2 . 6
A.3 Example 3 . 6
A.4 Example 4 . 6
A.5 Example 5 . 6
Annex B (normative) Additional information . 7
B.1 General . 7
B.2 Definition of digital camera battery life . 7
B.3 Measurement results . 7
B.4 Full charge status of secondary batteries . 7
B.5 Variations in measurement data due to battery differences . 7
B.6 End-of-test criteria and picture monitor mode . 8
B.7 Handling of power off time . 8
Bibliography . 9

© ISO 2015 — All rights reserved iii

---------------------- Page: 3 ----------------------
ISO/DIS 20087

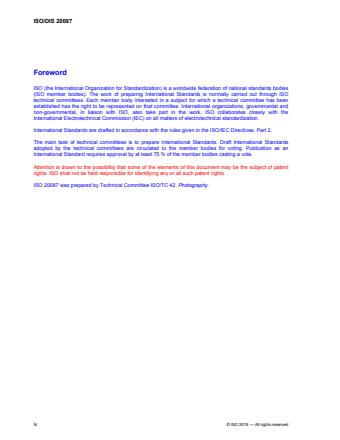

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 20087 was prepared by Technical Committee ISO/TC 42, Photography.

iv © ISO 2015 — All rights reserved

---------------------- Page: 4 ----------------------
ISO/DIS 20087
Introduction
For digital cameras, long battery life is one of the important features. The Camera & Imaging Products
Association (CIPA) defined a CIPA standard “Procedure for Measuring Digital Still Camera Battery
Consumption” for specifying a standard measurement procedure. The procedure gives useful information on
battery life to end-users for making a selection from a variety of digital cameras.
This international standard is based on the CIPA standard mentioned above and it is referenced in
Bibliography. The standardized measurement procedure primarily includes high power-consuming functions
such as image display on picture monitor, use of flash, and zoom and retractable lens movement.

© ISO 2015 — All rights reserved v

---------------------- Page: 5 ----------------------
DRAFT INTERNATIONAL STANDARD ISO/DIS 20087

Photography — Digital cameras — Battery life measurement
1 Scope
This Standard applies to consumer-use digital still cameras (hereinafter referred to as “DSC”).
2 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
2.1
number of shots
number of pictures shot by a digital camera under the conditions stipulated in the measurement procedure in
this standard.
3 Measurement method
3.1 General
a) All the still-photography functions shall be utilized to their full extent when the measurement is conducted.
The functions which have nothing to do with taking still photography (e.g. audio- and movie-recording
functions) need not be activated during the measurement.
b) The camera’s function-setting parameters, except those defined in this international standard, shall be
identical to factory shipping settings. If the measurement is conducted with the parameters different from
the factory shipping settings, such settings parameters shall be reported along with the measurement
results. If certain setting parameter are not defined by the factory shipping settings (see Annex B), the
measurement shall be conducted using the settings which are most likely employed by the users of the
applicable cameras, and information which can identify such setting parameters shall be reported along
with the measurement data.
c) Some of the functions whose test conditions are defined in this standard may be ignored if a camera to be
measured is not equipped with those functions.
Summarized priorities for the above a), b) and c) are as follows:
1) The measurement conditions of the standard procedure which are listed in 3.2-3.8.
2) Function-setting parameters which are not listed in 3.2-3.8 shall be identical to the factory shipping
settings.
3) If any parameters which cannot be defined by the factory shipping settings, such parameters shall be
set to ones which are assumed to be employed most likely by the users of the applicable cameras.
d) If the power level is not fully determined by the factory shipping setting, the measurement shall be made
to have the highest power demand.
© ISO 2015 — All rights reserved 1

---------------------- Page: 6 ----------------------
ISO/DIS 20087
3.2 Battery
a) Battery type is not specified for the measurement, but information that can identify the battery shall be
reported along with the measurement results.
b) When using a primary battery, a new battery shall be used. When using a secondary battery
(rechargeable battery), the battery shall be fully charged (see Annex B).
3.3 Recording media
Not specified, but information that can identify the recording media shall be reported along with the
measurement results.
3.4 Camera settings
3.4.1 Image quality mode
The factory shipping mode shall be used.
3.4.2 Number of recorded pixels
The factory shipping mode shall be used.
3.5 Measurement conditions
3.5.1 Subject distance
Not specified.
3.5.2 Subject to be shot and brightness
Subject to be shot is not specified. The subject brightness shall be within the range of the camera's AE system,
if automatic exposure (AE) is used.
3.5.3 Operating environment
Measurements shall be made at (23 ± 2) ºC and relative humidity (50 ± 20)%.
3.6 Required actions
3.6.1 Flash usage
Full flash shall be used for one of every two shots. For the other shot, the flash shall not be used. (Any given
shooting condition for the full illumination flash may be used.)
3.6.2 Motor driven optical zoom operation
The motor driven optical zoom lens shall be moved either from the TELE end to the
...
