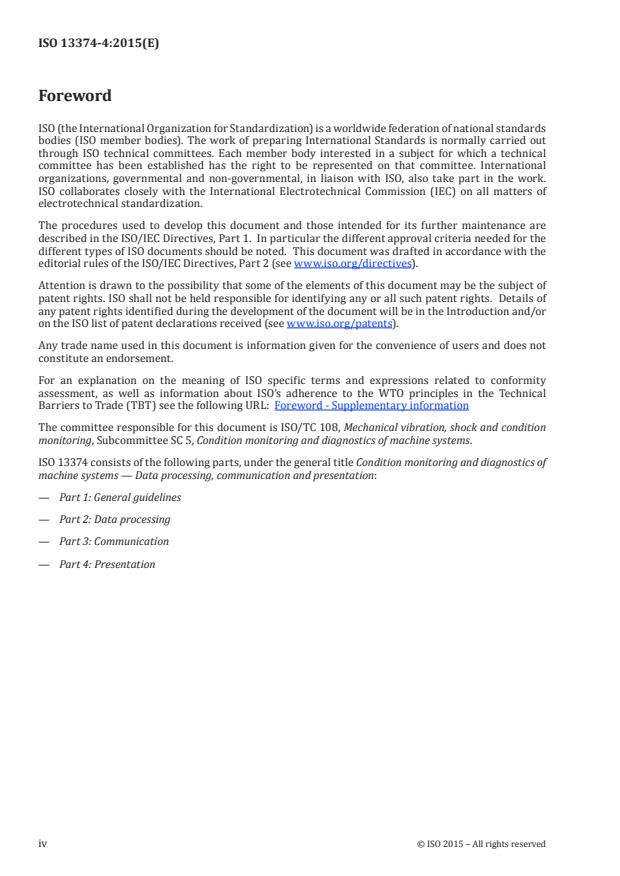

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical
Barriers to Trade (TBT) see the following URL: Foreword - Supplementary information
The committee responsible for this document is ISO/TC 108, Mechanical vibration, shock and condition
monitoring, Subcommittee SC 5, Condition monitoring and diagnostics of machine systems.
ISO 13374 consists of the following parts, under the general title Condition monitoring and diagnostics of
machine systems — Data processing, communication and presentation:
— Part 1: General guidelines
— Part 2: Data processing
— Part 3: Communication
— Part 4: Presentation
iv © ISO 2015 – All rights reserved

Introduction
The various computer software systems written for condition monitoring and diagnostics (CM&D) of
machines that are currently in use cannot easily exchange data or operate in a plug-and-play fashion
without an extensive communication infrastructure. The lack of an all-purpose communication system
makes it difficult to integrate various CM&D sub-systems and provide a unified view of the condition of
machinery to users. The intent of ISO 13374 is to provide the basic requirements for open CM&D software
architecture in order to allow CM&D information to be processed, communicated, and displayed by
various software packages independent of platform-specific or hardware-specific protocols.
ISO 13374-1 gives a general overview of data processing, communication, and presentation. ISO 13374-2
provides greater details into data processing methodology and requirements that should be present in
today’s software-enhanced systems. ISO 13374-3 provides the requirements of the data communication
architecture for open CM&D systems. This part of ISO 13374 provides the requirements for the
presentation of CM&D information for diagnostic analysis and decision support.
INTERNATIONAL STANDARD ISO 13374-4:2015(E)
Condition monitoring and diagnostics of machine
systems — Data processing, communication and
presentation —
Part 4:
Presentation
1 Scope
This part of ISO 13374 details the requirements for presentation of information for technical analysis
and decision support in an open architecture for condition monitoring and diagnostics. Software
design professionals need to present diagnostic/prognostic data, health information, advisories,
and recommendations on computer displays and in written report formats to end-users. This part of
ISO 13374 provides standards for the display of this information in CM&D systems.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
ISO 13372, Condition mon
...
