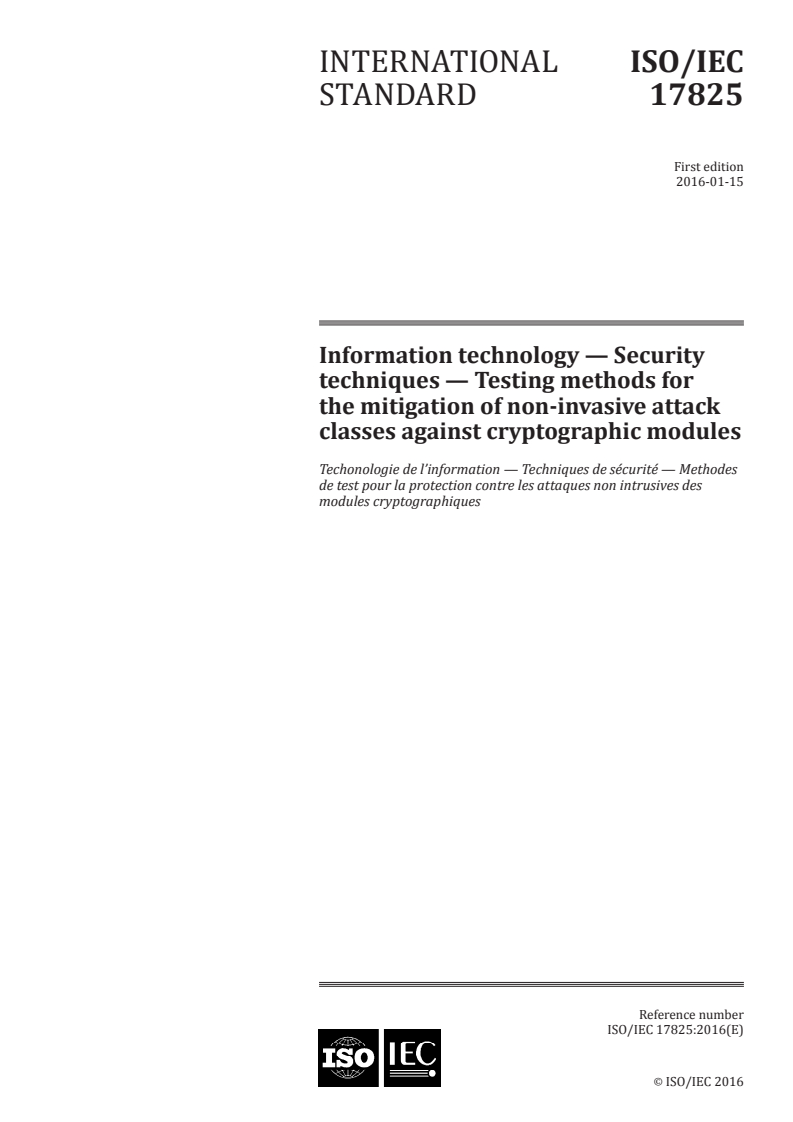

ISO/IEC 17825:2016

INTERNATIONAL ISO/IEC
STANDARD 17825
First edition
2016-01-15
Information technology — Security
techniques — Testing methods for
the mitigation of non-invasive attack
classes against cryptographic modules
Techonologie de l’information — Techniques de sécurité — Methodes
de test pour la protection contre les attaques non intrusives des
modules cryptographiques
Reference number
©
ISO/IEC 2016

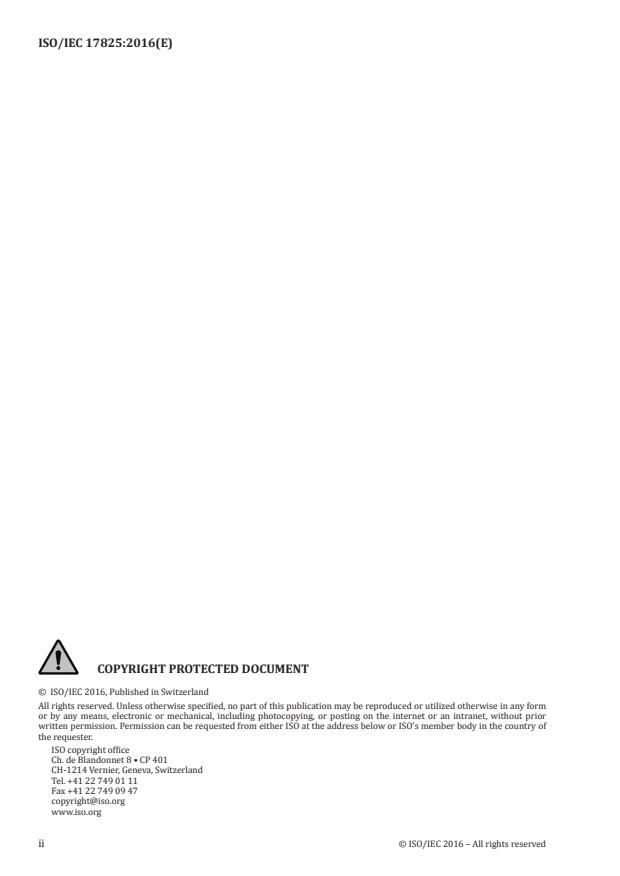

© ISO/IEC 2016, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO/IEC 2016 – All rights reserved

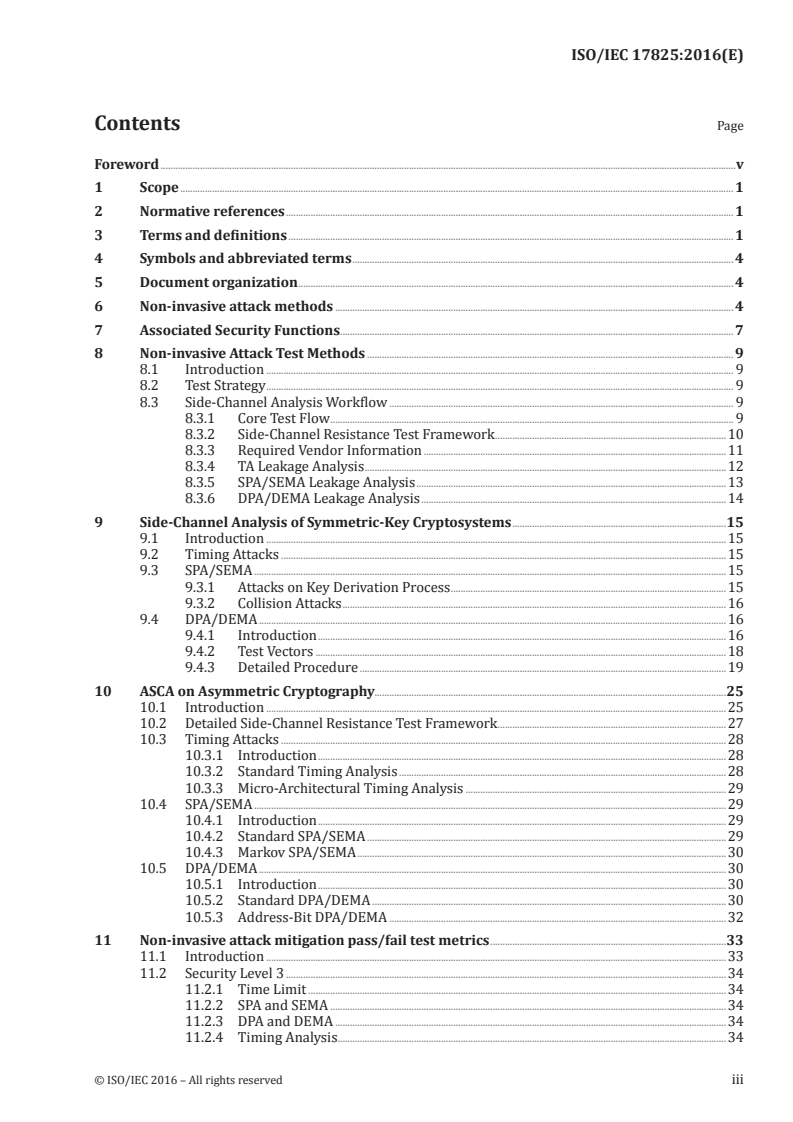

Contents Page
Foreword .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Symbols and abbreviated terms . 4
5 Document organization . 4
6 Non-invasive attack methods . 4
7 Associated Security Functions . 7
8 Non-invasive Attack Test Methods . 9
8.1 Introduction . 9
8.2 Test Strategy . 9
8.3 Side-Channel Analysis Workflow . 9
8.3.1 Core Test Flow . 9
8.3.2 Side-Channel Resistance Test Framework .10
8.3.3 Required Vendor Information .11
8.3.4 TA Leakage Analysis .12
8.3.5 SPA/SEMA Leakage Analysis .13
8.3.6 DPA/DEMA Leakage Analysis .14
9 Side-Channel Analysis of Symmetric-Key Cryptosystems .15
9.1 Introduction .15
9.2 Timing Attacks .15
9.3 SPA/SEMA .15
9.3.1 Attacks on Key Derivation Process .15
9.3.2 Collision Attacks .16
9.4 DPA/DEMA .16
9.4.1 Introduction .16
9.4.2 Test Vectors .18
9.4.3 Detailed Procedure .19
10 ASCA on Asymmetric Cryptography.25
10.1 Introduction .25
10.2 Detailed Side-Channel Resistance Test Framework .27
10.3 Timing Attacks .28
10.3.1 Introduction .28
10.3.2 Standard Timing Analysis .28
10.3.3 Micro-Architectural Timing Analysis .29
10.4 SPA/SEMA .29
10.4.1 Introduction .29
10.4.2 Standard SPA/SEMA .29
10.4.3 Markov SPA/SEMA .30
10.5 DPA/DEMA .30
10.5.1 Introduction .30
10.5.2 Standard DPA/DEMA .30
10.5.3 Address-Bit DPA/DEMA .32
11 Non-invasive attack mitigation pass/fail test metrics .33
11.1 Introduction .33
11.2 Security Level 3 .34
11.2.1 Time Limit .34
11.2.2 SPA and SEMA .34
11.2.3 DPA and DEMA .34
11.2.4 Timing Analysis .34
© ISO/IEC 2016 – All rights reserved iii

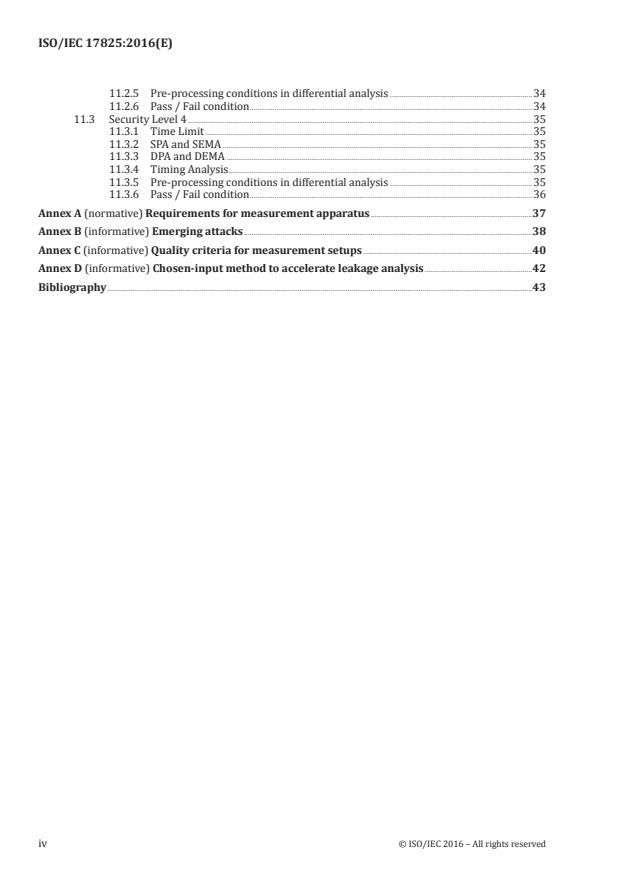

11.2.5 Pre-processing conditions in differential analysis .34
11.2.6 Pass / Fail condition . .34
11.3 Security Level 4 .35
11.3.1 Time Limit .35
11.3.2 SPA and SEMA .35
11.3.3 DPA and DEMA .35
11.3.4 Timing Analysis .35
11.3.5 Pre-processing conditions in differential analysis .35
11.3.6 Pass / Fail condition . .36
Annex A (normative) Requirements for measurement apparatus .37
Annex B (informative) Emerging attacks .38
Annex C (informative) Quality criteria for measurement setups .40
Annex D (informative) Chosen-input method to accelerate leakage analysis .42
Bibliography .43
iv © ISO/IEC 2016 – All rights reserved

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are
members of ISO or IEC participate in the development of International Standards through technical
committees established by the respective organization to deal with particular fields of technical
activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other international
organizations, governmental and non-governmental, in liaison with ISO and IEC, also take part in the
work. In the field of information technology, ISO and IEC have established a joint technical committee,
ISO/IEC JTC 1.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for
the different types of document should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject
of patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent
rights. Details of any patent rights identified during the development of the document will be in the
Introduction and/or on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical
Barriers to Trade (TBT) see the following URL: Foreword - Supplementary information
The committee responsible for this document is ISO/IEC JTC 1, Information technology, SC 27, IT
Security techniques.
© ISO/IEC 2016 – All rights reserved v

INTERNATIONAL STANDARD ISO/IEC 17825:2016(E)
Information technology — Security techniques — Testing
methods for the mitigation of non-invasive attack classes
against cryptographic modules
1 Scope
This International Standard specifies the non-invasive attack mitigation test metrics for determining
conformance to the requirements specified in ISO/IEC 19790 for Security Levels 3 and 4. The test
metrics are associated with the security functions specified in ISO/IEC 19790. Testing will be conducted
at the defined boundary of the cryptographic module and I/O available at its defined boundary.
The test methods used by testing laboratories to test whether the cryptographic module conforms to the
requirements specified in ISO/IEC 19790 and the test metrics specified in this International Standard
for each of the associated security functions specified in ISO/IEC 19790 are specified in ISO/IEC 24759.
The test approach employed in this International Standard is an efficient “push-button” approach: the
tests are technically sound, repeatable and have moderate costs.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
ISO/IEC 19790, Information technology — Security techniques — Security requirements for
cryptographic modules
ISO/IEC 24759, Information technology — Security techniques — Test requirements for cryptographic
modules
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO/IEC 19790 and the
following apply.
3.1
advanced SCA
ASCA
advanced exploitation of the fact that the instantaneous side-channels emitted by a cryptographic
device depends on the data it processes and on the operation it performs to retrieve secret parameters
3.2
correlation power analysis
CPA
analysis where the correlation coefficient is used as statistical method
3.3
critical security parameter
CSP
security related information whose disclosure or modification can compromise the security of a
cryptographic module
EXAMPLE Secret and private cryptographic keys, authentication data such as passwords, PINs, certificates
or other trust anchors.
© ISO/IEC 2016 – All rights reserved 1

Note 1 to entry: A CSP can be plaintext or encrypted.
[SOURCE: ISO/IEC 19790:2012, definition 3.18]
3.4
CSP class
class into which a CSP is categorised
EXAMPLE Cryptographic keys, authentication data such as passwords, PINs, biometric authentication data.
3.5
differential electromagnetic analysis
DEMA
analysis of the variations of the electromagnetic field emanated from a cryptographic module, using
statistical methods on a large number of measured electromagnetic emanations values for determining
whether the assumption of the divided subsets of a secret parameter is correct, for the purpose of
extracting information correlated to security function operation
3.6
differential power analysis
DPA
analysis of the variations of the electrical power consumption of a cryptographic module, for the
purpose of extracting information correlated to cryptographic operation
3.7
electromagnetic analysis
EMA
analysis of the electromagnetic field emanated from a cryptographic module as the result of its logic
circuit switching, for the purpose of extracting information correlated to security function operation
and subsequently the values of secret parameters such as cryptographic keys
3.8
horizontal attack
HA
modus operandi where sensitive information is extracted from a single measurement split into
several parts
3.9
implementation under test
IUT
implementation which is tested based on methods specified in this International Standard
3.10
mutual information analysis
MIA
analysis of the mutual dependence of two random variables
3.11
power analysis
PA
analysis of the electric power consumption of a cryptographic module, for the purpose of extracting
information correlated to security function operation and subsequently the values of secret parameters
such as cryptographic keys
3.12
rectangle attack
RA
modus operandi where the observations acquisition phase mix horizontal and vertical attacks
2 © ISO/IEC 2016 – All rights reserved

3.13
side-channel analysis
SCA
exploitation of the fact that the instantaneous side-channels emitted by a cryptographic device depends
on the data it processes and on the operation it performs to retrieve secret parameters
3.14
simple electromagnetic analysis
SEMA
direct (primarily visual) analysis of patterns of instruction execution or logic circuit activities, obtained
through monitoring the variations in the electromagnetic field emanated from a cryptographic module,
for the purpose of revealing the features and implementations of cryptographic algorithms and
subsequently the values of secret parameters
3.15
simple power analysis
SPA
direct (primarily visual) analysis of patterns of instruction execution (or execution of individual
instructions), in relation to the electrical power consumption of a cryptographic module, for the
purpose of extracting information correlated to a cryptographic operation
3.16
timing analysis
TA
analysis of the variations of the response or execution time of an operation in a security function, which
may reveal knowledge of or about a security parameter such as a cryptographic key or PIN
3.17
vertical attack
VA
modus operandi where sensitive information is extracted from different algorithm executions
© ISO/IEC 2016 – All rights reserved 3

4 Symbols and abbreviated terms
For the purposes of this document, the symbols and abbreviated terms given in ISO/IEC 19790 and the
following apply.
DLC Discrete Logarithm Cryptography
ECC Elliptic Curve Cryptography
EM Electro-Magnetic
HMAC keyed-Hashing Message Authentication Code
IFC Integer Factorization Cryptography
MAC Message Authentication Code
PC Personal Computer
PCB Printed Circuit Board
RBG Random Bit Generator
RNG Random Number Generator
USB Universal Serial Bus
* multiplication symbol
^ exponentiation symbol
5 Document organization
Clause 6 of this International Standard specifies the non-invasive attack methods that a cryptographic
module shall mitigate against for conformance to ISO/IEC 19790.
Clause 7 of this International Standard specifies for each non-invasive attack method the associated
security functions specified in ISO/IEC 19790.
Clause 8 of this International Standard specifies the non-invasive attack test methods.
Clause 9 of this International Standard specifies the test methods for side-channel analysis of
symmetric-key cryptosystems.
Clause 10 of this International Standard specifies the test methods for side-channel analysis of
asymmetric-key cryptosystems.
Clause 11 of this International Standard specifies the non-invasive attack mitigation pass/fail test
metrics for each non-invasive attack method to demonstrate conformance to ISO/IEC 19790.
This International Standard shall be used together with ISO/IEC 24759 to demonstrate conformance to
ISO/IEC 19790.
6 Non-invasive attack methods
This clause specifies the non-invasive attack methods that need to be addressed for conformance to
ISO/IEC 19790.
The non-invasive attacks use side-channels (information gained from the physical implementation of a
cryptosystem) emitted by the IUT such as:
— Its power consumption,
4 © ISO/IEC 2016 – All rights reserved

— Its electromagnetic emissions,
— Its computation time.
The number of possible side-channels can increase in the future (e.g. photonic emissions [49], acoustic
emanations, etc.)
In order to be more formal in the attacks’ taxonomy, a formalism will allow the relationships to be
highlighted between the different attacks and to have a systematic way to describe a new attack.
An attack is described in the following way:
--
YYY refers to the statistical treatment used in the attack (e.g. « S » for Simple, « C » for Correlation,
« MI »for Mutual Information, « ML » for Maximum Likelihood, « D » for Difference of Means, etc.).
NOTE 1 Other statistical treatments can be inserted like « dOC » which corresponds to a correlation treatment
exploiting dth order moments (obtained for instance by raising each targeted point in the traces to a power d, or
by combining d points per trace before processing the correlation).
XXX refers to the kind of observed side channel: e.g. « PA » for Power Analysis, « EMA » for
Electromagnetic Analysis, « TA » for Timing Analysis, etc.
ZZZ may refer to the profiled (« P ») or unprofiled (« UP ») characteristic of the attack. This is optional
and the default value is « UP ».
Additionally, an adjective may prefix the attack name to refer to the attack modus operandi. It can be:
“Vertical” (classical and default mode), “Horizontal” (see [43] for more details about this) or “Rectangle”.
Figure 1 — Taxonomy of non-invasive attacks
© ISO/IEC 2016 – All rights reserved 5

NOTE 2 Collision attacks can be viewed as a classical CPA with the single difference that the hypotheses are
not deduced from a hypothesis on the way that information leaks from the device but on real measurements that
are simply re-arranged in order to (in) validate a hypothesis on a key difference.
NOTE 3 Instead of just splitting ASCA into univariate and multivariate cases, the classification could still be
refined by separating attacks based on “variable distinguishers” (which focus on a particular moment of the
distribution of the target variable) from those based on “pdf distinguishers” (which try to distinguish a pdf from
another). In the first category we have ASCA based on correlation or on the linear regression techniques. In the
second one, we have Maximum Likelihood and MI attacks for instance.
NOTE 4 (informative but not applicable) The SPA and SEMA attack methods include some extensions to basic
SPA and SEMA attacks, such as the so called template attack. The DPA and DEMA attack methods include some
extensions to basic DPA and DEMA attacks, such as so called Correlation Power Analysis (CPA) and higher-order
DPA attacks. It is not mandatory to test them in this International Standard.
The variables used in the description of ASCA are:
A cryptographic processing
C observation processing
D number of predictions
d_C multivariate degree
d_D multivariate degree
d_o dimension of observation
F function, i.e. manipulation
h Observation
i Index
K secret key
k1 sub key 1
k2 sub key 2
M model of leakage
N number of observations
o_i observation interval
(o_i)_i observation interval number i
pred_i Prediction
t_i i iteration of time
x1_i i iteration of x1
x2_i i iteration of x2
X input text
ASCA is described in the following steps:
a) Measure N observations (o_i) related to a cryptographic processing A parameterized by a known
input X and a secret K.
b) [Optional] Choose a model M for the device leakage.
6 © ISO/IEC 2016 – All rights reserved

c) [Optional] Choose an observation processing C (by default C is set to the identity function).
d) Make a hypothesis h on the value of K or a subpart of it.
e) From A, h, the (o_i)_i and possibly M deduce N predictions pred_i (one for each value of X for which
an observation has been measured).
f) Select a statistical test D and compute D ( pred_i,C(o_i) ).
g) If D ( pred_i,C(o_i) ) is greater than some threshold, then validate h. Otherwise, invalidate h and go
back to step 4 for a new value h.
NOTE 5 In order to stay generic, a threshold value is added in step 7. This threshold should be carefully chosen
for an attack to have any chance to succeed. The classical way to choose such a threshold is to take the maximum
value, over all key hypotheses, of D (pred_i, C(o_i)).
NOTE 6 The observations o_i may be univariate or multivariate. In the latter case, each coordinate of o_i, viewed
as a vector, corresponds to a different time t_i. The dimension of o_i is denoted by d_o in the rest of this note.
NOTE 7 The observation processing C(.) can always be defined as a polynomial function over the set of real-
valued vectors of size d_o (denoted R^{d_o}) in the following. The multivariate degree of this polynomial is
denoted by d_C. Then, the function D(pred_i, . ): X → D ( pred_i, X) can also be viewed as a polynomial in X. Its
multivariate degree is denoted by d_D. The value d_C*d_D is defined as the order d of the attack. For Mutual
Information based attacks, only the degree d_C is used to define the attack order: we have d=d_C.
NOTE 8 In collision attacks against block ciphers, the second step is skipped and the third step simply consists
in a point selection in the traces o_i. Then, the hypothesis h typically corresponds to a hypothesis between
the difference (k1-k2) of two parts of the targeted key K (e.g. two sub-keys in a block cipher implementation).
Eventually, the predictions are deduced from the observations (o_i)_i and the difference h: if for instance the
attack targets the manipulation of a value F(x1_i+k1) (i.e. C(o_i) corresponds to the part of the observation
related to the manipulation of F(x1_i+k1)), then the attack will extract from the o_i the observations during the
manipulation of another values F(x2_i+k2) and those observations will be re-arranged such that x2_i – x1_i = h.
Then h_i corresponds to the part of the observation related to the manipulation of F(x2_i+k2) = F(x1_i+k1) if h
is correct. To validate the hypothesis, a correlation coefficient is usually used for D. Additionally, all the attacks
described in this section can be vertical or horizontal or rectangle (i.e. horizontal and vertical). An attack is said
to be vertical if each observation o_i corresponds to a different algorithm processing. If all the o_i correspond
to a same algorithm processing, then the attack is said to be horizontal. If some o_i share the same algorithm
processing while some other o_i do not, then the attack is said to be rectangle. The classical attacks of the
Literature are vertical and this modus operandi will hence be defined as the default one. Examples of attacks

performed in the horizontal mode can be found in [43] and [44].
NOTE 9 In this International Standard, it is only mandatory to mount vertical attacks.
NOTE 10 An approval authority may modify, add or delete non-invasive attack methods, the association
with security functions (see Table 1) and non-invasive attack mitigation test metrics specified in this
International Standard.
7 Associated Security Functions
The non-invasive attack methods specified in Clause 6 are associated with the specific security functions
that use the CSPs that the attacks target. The security functions are listed in ISO/IEC 19790:2012,
Annexes C, D and E.
The associations are shown in Table 1. Other non-invasive attacks and other associations between the
attack methods and security functions may exist but defence against them is not currently addressed in
this International Standard.
© ISO/IEC 2016 – All rights reserved 7

Table 1 — Associations between non-invasive attack methods and security functions covered
by this International Standard
Security functions Non-invasive attack methods
SPA/SEMA DPA/DEMA TA
Symmetric-Key AES A A A
Triple-DES A A A
Stream Ciphers A A A
Asymmetric-Key Plain RSA (Key wrapping) A A A
RSA PKCS#1 v1.5 A A A
RSA PKCS#1 v2.1 NA NA A
DSA A A A
ECDSA A A A
Hashing mechanisms SHA A NA NA
RNG and RBG Deterministic A NA NA
Non-deterministic A NA NA
Data Authentication Mechanisms HMAC A A NA
Key Generation A NA NA
Key Derivation from Other Keys A A NA
Key Derivation from Passwords A NA NA
Key Establishment DLC A NA NA
IFC A NA NA
Key Entry and Output NA NA NA
Operator Authentication Mech-
PIN/Password A A A
anisms
Key NA NA A
Biometrics A NA A
Legend: A : Applicable, NA : Not-Applicable
NOTE 1 Applicable means that the security functions are susceptible to these types of attacks.
NOTE 2 Not Applicable means that the security functions are not susceptible to these types of attacks.
NOTE 3 An HMAC implementation can be compromised by applying DPA/DEMA, however Block-cipher based
MAC will be covered through AES and/or Triple DES.
NOTE 4 All security functions using S Boxes such as AES, Triple-DES etc. can be compromised by applying TA,
more precisely cache-timing attacks for software implementations [50].
NOTE 5 RSA PKCS#1 v1.5 can be compromised by applying DPA/DEMA since the used padding is deterministic.
NOTE 6 Timing attacks on RSA PKCS#1 v2.1 are not practicable since the used padding is probabilistic. RSA
PKCS#1 v2.1 cannot be compromised by applying DPA/DEMA since the used padding is probabilistic (different
random numbers are used for each new signature of the message).
NOTE 7 There are two operations in DSA (resp. ECDSA) that involve the private key or an ephemeral (secret) key:
— The modular exponentiation (scalar multiplication) of a secret value with a known parameter. This op-
eration is vulnerable to simple side-channel analysis and to horizontal differential ones.
— The modular multiplication of a known value and the private key. If the multiplication is implemented in
such a way that the multiplier is the private key and the multiplication is carried out with a variant of the binary
algorithm, then this implementation is, in principle, vulnerable to side-channel analysis.
NOTE 8 SHA can be used for password hashing e.g. in Password-Based Key Derivation Function, so in this case,
a non-protected SHA against SPA/SEMA or DPA/DEMA can lead to the password.
8 © ISO/IEC 2016 – All rights reserved

8 Non-invasive Attack Test Methods
8.1 Introduction
This clause presents an overview of the non-invasive attack test methods for the corresponding non-
invasive attack methods specified in Clause 6.
8.2 Test Strategy
The goal of non-invasive attack testing is to assess whether a cryptographic module utilising non-
invasive attack mitigation techniques can provide resistance to attacks at the desired security level.
No standardized testing program can guarantee complete protection against attacks. Rather, effective
programs validate that sufficient care was taken in the design and implementation of non-invasive
attack mitigations.
Non-invasive attacks exploit a bias latent in the physical quantities non-invasively measured on
or around the IUT. Such a bias is induced from and depends on the secret information the attacks

target. For background see Reference [16]. The bias may be subtle but is generally persistent. In this
International Standard, the biased information that depends on the secret information is referred to as
leakage hereinafter. A device can fail one or more tests if experimental evidence suggests that leaking
information exceeds permitted leakage thresholds. This implies that leakage demonstrates a potential
vulnerability. Conversely, attacks will fail and the test passes unless leakage is observed. The test of
existence of leakage will be called leakage analysis (leak analysis) hereinafter.
The goal is to collect and analyse measurements within certain test limitations such as maximum
waveforms collected, elapsed test time, and determine the extent of CSP information leakage. Thus the
test limitations and leakage thresholds constitute the test criteria.
Consider timing attack testing. If the test reveals that the computation time is biased relative to the
CSP the IUT fails. For DPA if the test reveals that the power consumption during CSP related processes
is biased relative to the CSP the IUT fails. The testing approach uses statistical hypothesis testing to
determine the likelihood that a bias is present. Thus this International Standard provides a leakage
threshold in terms of statistical significance. The test will fail if a bias exceeds the leakage threshold.
8.3 Side-Channel Analysis Workflow
8.3.1 Core Test Flow
The tester collects measurement data from the IUT and applies a suite of statistical tests on the collected
data. Core test refers to testing for a single security function with a single CSP class, where CSP classes
include cryptographic keys, biometric data or PINs. If some security functions deal with more than one
CSP class, leakage analysis for every applicable CSP class will be performed for each security function.
The test method requires repeating core tests with different CSP classes until the first fail of test occurs
or all the CSP classes pass. If a core test is unable to continue if the IUT limits the number of repeated
operations, the result is a pass and the core test is continued with the next CSP class. The core test is
shown in Figure 2. Side Channel Resistance Test Framework is depicted in Figure 3. Leakage analysis
for TA is shown in Figure 4, SPA/SEMA in Figure 5 and DPA/DEMA in Figure 6.
© ISO/IEC 2016 – All rights reserved 9

Figure 2 — Core Test Flow
Figure 2 shows the flow of a core test. First, the vendor document is verified for the specified CSP class.
Second, the practicality of measuring the physical characteristics is determined. If the measurement
cannot be made, the test result is Pass. Third, a set of CSPs determined by the testing laboratory will be
configured into the IUT. Finally, the essential part of the core test, the analysis, which is shown in the
subsequent figures, is performed and significant leakage is either observed or not.
8.3.2 Side-Channel Resistance Test Framework
As explained in Clause 7, a testing laboratory has to check the security of IUTs against TA, SPA, and DPA.
The sequential test of the three attacks leads to the attack framework depicted in Figure 3. The testing
laboratory should follow the order of the operations. For example, the SPA can be tested only if TA passed.
10 © ISO/IEC 2016 – All rights reserved

Figure 3 — Side-Channel Resistance Test Framework
The proposed methodology for side-channel resistance assessment does not need full key extraction to
fail a device: an IUT can fail if significant sensitive information leakage can be demonstrated.
8.3.3 Required Vendor Information
The vendor shall provide the following information about the algorithms and countermeasures
implemented in the IUT:
a) Implemented cryptographic algorithms.
b) Design of the implementation.
c) The conditions/mode(s) of usage where the IUT is susceptible to side-channel analysis.
Moreover, the testing laboratory shall be able to modify CSPs and cipher text when performing side-
channel testing.
When performing side-channel analysis, it is common to perform signal alignment so that different
traces can be compared at the same point during the cryptographic calculation. For the purposes of
side-channel testing, the vendor shall provide the testing laboratory the best synchronization signal
for the start of the cryptographic operation. For example, in testing mode the device may provide an
external trigger point to indicate the start or stop of the cryptographic operation. If such start and
stop information is not available, the testing laboratory should adopt standard signal processing- and
matching-based techniques to perform alignment. In cases where traces are well aligned at the start
of the cryptographic operation, the lab may be required to use standard, least-squares fit-based signal
matching to perform better alignment on specific internals of the algorithm; the number and locations
of these alignment points will be specified by the testing laboratory.
© ISO/IEC 2016 – All rights reserved 11

The vendor should then provide a so-called “calibration function” that will allow the testing laboratory to:
a) synchronize its measurements,
b) check the quality of its measurements (see 8.3.5 for more details).
8.3.4 TA Leakage Analysis
Figure 4 — Leakage Analysis for Timing Attacks
Figure 4 shows the Leakage Analysis flow for Timing Attacks. The flow can be divided into two stages.
For the first stage, execution times with several different CSPs and fixed text are measured. If the
measured execution time doesn’t show dependency with the CSP used through statistical analysis, then
the test continues to the second stage. Otherwise, the test fails. For the second stage, execution times
with several different texts and a fixed CSP are measured. If the measured execution time doesn’t show
dependency with the text used, the test passes. Otherwise, the test fails. If the execution time is difficult
to measure a tolerance value ε equals a clock cycle of the targeted chip should be used. To compare two
time values (or two average time values) T and T , the test pass if |T - T |< ε, and fail otherwise.
1 2 1 2
Not only the difference of means, but also of variances, shall be computed, so as to detect second-order
timing leakage. Indeed, high-order timing attacks are practical threats [58].
12 © ISO/IEC 2016 – All rights reserved

8.3.5 SPA/SEMA Leakage Analysis
Figure 5 — SPA (SEMA) Leakage Analysis
Figure 5 shows the SPA/SEMA Leakage Analysis flow. The flow can be divided into two stages.
First, the testing laboratory shall capture the number of side-channel measurements related to the
desired Security Level (see Clause 11).
Asymmetric cryptography repeatedly uses elementary operations. For RSA these are modular square
(denoted “S”) and multiply (denoted “M”) operations. For ECC, these are point doubling and addition
operations. Since the key may be derived from the order of operations it is important for the testing
laboratory to distinguish these operations. As side-channel measurements can be noisy, it may be
difficult to recognize these operations visually. A good method to identify a repeating operation is
called “cross-correlation”. This method also helps to remove subjective assessment from the testing
laboratory. When the correlation is so weak that no definite statement can be taken, the testing
laboratory can mount a cluster analysis.
For all the side-channel measurements, if the cross-correlation process leads to a non-regular operation
sequence which leads to the CSP, the test result is Fail.
© ISO/IEC 2016 – All rights reserved 13

8.3.6 DPA/DEMA Leakage Analysis
Figure 6 — DPA (DEMA) Leakage Analysis
Figure 6 shows the DPA/DEMA Leakage Analysis flow. The result represented indicates whether or
not significant leakage has been observed. In case of doubt clear box or white box will be needed to
clarify the ambiguity (see [45]). Indeed, if the test is a t-test, not all leakages are sensitive: typically,
possible test violations are incurred by non-CSP variables, such as the plaintext or the ciphertext of
a block cipher. Therefore, based on the analysis of the IUT documentation, it can be decided whether
test violations depend on the CSP or not. Notice that the NICV test does not feature such ambiguity. The
same expressions apply to Figure 6.
As a general rule, it is supposed that the cryptographic operations occur always in the same moment in
each measurement (consumptions or emanations). Nonetheless, the developers have the possibility to
include internal clocks modifying the operation frequency or introduce randomly non-operative wait
status in the algorithms execution, thus the time is no longer constant and the cryptographic operations
are not performed in the same instant. This produces the well-known misalignments in the set of
traces, making the analysis difficult and much more costly in terms of the number of traces needed
to be processed. These modifications of the original behaviour are countermeasures implemented by
the developers to counteract the possibility to acquire information through side channels, breaking the
assumptions that characterize the known attacks.
In cryptographic implementations without specific countermeasures, misalignments come from errors
in the measurement configuration, when starting the power consumption (or emanations) acquisition.
In this case, the traces may be aligned if the vagueness can be determined when launching the
measurement, displacing properly the traces. This process is called “static alignment”. This vagueness
14 © ISO/IEC 2016 – All rights reserved

can also be mitigated or, at least, facilitates the alignment, if a trigger is provided (or exists) signalling
when the operation starts
...
